Endodontic Handpieces

Woodpecker E-COM Plus, E-COM+ Cordless Endo Motor Handpiece, Premium Latest Model, Effectively Prevent Needle Breakage, OLED-Screen, Maximum Compatibility, 9 User-defined Modes with Reciprocating Mode, Endodontic Root Canal Molding and Cleaning in Treatment, One Year Warranty.

The product does not come with WaveOne system. Our engineers recommend adjusting the torque and speed yourself. Additionally, the set parameters can be saved, eliminating the need to re-set them again.Settings: Speed 350, Torque 4.0, Forward 30°, Reverse 130°

Overview:

• E-COM + is mainly used in EndodoAdopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.
• E-COM + can be connected to the matched Apex locator to add an apex locator function. By connecting the E-COM + to the matched Apex locator, the position of the file tip inside the canal can be monitored during the procedure and many automatic functions such as Auto Apical Reverse can be activated.

Features:

• Effectively Prevent Needle Breakage

Adopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.

• Preset Various File Systems

Preset various file systems so that the dentist can directly choose the file system that they need,which brings dentists convenience while they need to use different kinds of files.

• Maximum Compatibility

Wide torque & speed range make it adapt to various file systems such as FKG,XP-endo,and Shaper in the market.
Recommended speed is 800-1000rpm.

• Cordless Handpiece

Flexible use & easy storage without tail cord Human friendly design brings better holding feeling.

• All-angle OLED Screen

Without visual angle limit,clear display can be guaranteed even under strong light.
Available display of speed,torque, and Battery Consumption

• Customization 9 user-defined modes

Storage of 9 user-defined modes allows invocation at any time.
Under each mode,continuous motion,reciprocating motion,and reverse motion are for options.
Torque and speed is adjustable.

• Imported Motor 15.5:1

Reduction ratio endows strong power and efficient cutting.
Durable planet gear gearbox prolongs service life of device

• Nimble & Autoclavable Contra-angle

Contra-angle can be autoclaved to avoid cross-infection.Adjustable angle make it available for different teeth positions small & exquisite head provides unobstructed views.

• Automatic Torque Calibrating

Choose Torque Calibrating mode to automatically calibrate torque,reducing the torque fluctuation caused by contra-angle replacement or sterilization under high temperature and high pressure

Technical Parameter:

• Battery: Lithium battery in handpiece, 3.6V /750mAh
• Power input: ~100V-240V, 50Hz/60Hz, 0.4A(Max)
• Power output: DC5V/1A
• Torque: 0.6Ncm-5.0Ncm(6mNm ~ 50mNm)
• Rotate speed: 100rpm~1000rpm

Environment Parameters:

• Environment temperature: +5℃ ~ +40℃
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa ~ 106kPa

Packing List:

• Charging base *1
• Motor handpiece *1
• Contra-angle *1
• Lubricator *1
• Adapter *1
• Disposable insulation sleeves *1
• Qualified certificate *1
• Instruction manual *1
• Warranty card *1

The Contra Angle Instructions:

• Before the first use and after treatments, please clean and disinfect contra-angle with disinfectant of neutral PH value.
• After disinfection, lubricate it with specific cleaning oil.
• Finally, sterilize it under high temperature and high pressure (134℃, 0.2MPa~0.23MPa).

Warranty:

One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.

*Please Notice:

The contra-angle can only be used cooperatively with this device. Otherwise the contra-angle will be damaged.

COXO #C-SMART-I PILOT Cordless Endo Motor with Apex Locator with LED Light 5 inch Colorful Screen Detachable Integrated Insulation Contra-angle. Imported motor, powerful, mute, longer service life. Detachable integrated insulation contra-angle, built-in LED light. 300 degree rotation contra angle head. Powerful bluetooth 10m effective distance.

Woodpecker Dental Smart A Brushless Endo Motor Controlled by APP Orange/White.  BB and LB Modes. The Smart App Controls allow you to effortlessness connect the Endo Motor to your preferred device (tablet, phone, watch, etc.) via Bluetooth to control, program and store data from from your endodontic procedures. Controlled solely through the app and a third-party device of your choice. Compact, sleek and only 17mm in diameter to hold.

Woodpecker Endo Radar Pro. Endo Motor with Apex Locator. Two-in-one function. Ultra-compact and cordless handpiece enables better hand feeling. 6:1 speed ratio. 360°rotatable handpiece. FDA Approved. One Year Warranty.

The product does not come with WaveOne system. Our engineers recommend adjusting the torque and speed yourself. Additionally, the set parameters can be saved, eliminating the need to re-set them again.Settings: Speed 350, Torque 4.0, Forward 30°, Reverse 130°.

Features

• High-performance Brushless Endo Motor. Super high torque, high speed, lower noise, fast response, more accurate output, and more stable, ensuring more efficient & safe preparation.
• 360° Rotatable Contra-angle, 6:1 Super Mini Curved Handpiece. Smooth rotation, lower noise, and small vibration in handpiece doctors feel good during operations. Patients will have a new experience in root canal therapy.
• Clear HD LCD Display. The touchable intelligent panel is smooth and easy to clean. The clear display offers simple and clear information feedback.
• Wireless Connection. Use a wireless signal to control the handpiece, realizing flexible operation without the restraint of the tail cord.
• Wireless Charging. Adopt a wireless charging design for the handpiece. Built-in 2000mAh large capacity rechargeable lithium battery one charge for longtime operation.
• Endo Radar Pro is mainly used in Endodontic treatment. It is a cordless endo motor with root canal measurement capability. It can be used as a endo motor for preparation and enlargement of root canals, or device for measuring canal length.
• It can be used to enlarge the canals while monitoring the position of the file tip inside the canal.

Technical Parameter

• Power input: 100V~240V, 50/60Hz, 800mA
• Lithium battery: 3.7V/ 2000mAh
• Power output: DC15V/ 1.6A
• Speed rang: 100rpm~2500rpm
• Torque rang: 0.4Ncm~5.0Ncm (4mNm~50mNm)

Packing List

• 1* Base
• 1* Motor handpiece
• 1* Protective silicon cover
• 1* Contra-angle
• 1* USB wire
• 1* Lubricator
• 1* Measuring wire
• 4* File clip
• 1* Disposable insulation sleeves
• 2* Lip hook
• 2* Touch probe
• 1* Adapter
• 1* Tester
• 1* Instruction manual
• 1* Qualified certificate
• 1* Warranty card
• 1* Apex locator troubleshooting card
• 1* Packing list

Warranty

The base, handpiece, powder adapter have ONE years warranty period from the date of purchase. The contra-angle has one year warranty period. Other spare parts have six months warranty period.

Dental Wireless Endo Motor With 16:1 Electric Contra Angle 9 Programs. The equipment will auto-reverse or auto reverse & stop, auto-stop according to different torque and resistance. Electric contra angle are autoclave sterilization up to 135℃. Built-in recharging and high capacity battery not only brings convenience of replace battery, but also save the cost. Light weight, ergonomic design, easy to carry.

Features：

• With 16:1 electric contra angle.
• The equipment will auto-reverse or auto reverse & stop, auto-stop according to different torque and resistance.
• Electric contra angle are autoclave sterilization up to 135℃
• Built-in recharging and high capacity battery not only brings convenience of replace battery, but also save the cost.
• Light weight, ergonomic design, easy to carry.
• There are 9 kinds of procedures for selection.
• Note: The current model of our endodontic motor does not have a waveone function.
  Our motor is designed with a range of features and modes, but it does not include the specific rotation pattern required for thed WaveOne system.
  After you load the file, you need to adjust the parameters (speed and torque) in the product by yourself.

Technical Parameter：

• Handle lithium battery: 3.7V/800mAh
• Input: AC100V-240V;50Hz/60Hz
• Output: DC5V/1A
• Range of torque: 0.3Ncm-4 .0Ncm (3mNm~ 40mNm)
• Range of speed: 140rpm-550rpm
• Program: 9 programs
• Rotation: 9 kinds

Working Modes：

•
  Continuous working mode: Automatic Forward and Reverse Cycle after encountering resistance,it will automatically reverse.If there is no resistance after reversing,it will continue to work forward.


•
  Left and Right Reciprocating Motion


•
  Continuous Forward Rotation: Automatically stop when encountering obstacles Left and Right Reciprocating Motion.


•
  Reverse Continuous: torque limit mode.


•
  Continuous Forward Rotation: Stop automatically after encountering resistance after encountering resistance,it will automatically reverse.If there is no resistance after reversing, it will stop working.



Packing list：

• Root Canal Host *1
• 16:1 Contra Angle *1
• USB Cable *1
• Wrench *1
• Oil Nozzle *1
• User Manual *1

Dental 6:1 Reduction Contra Angle Endo Handpiece Mini Head. It can be used for root canal preparation. Fit E type motor.

Overview:

• 6:1 mini head, can be used for root canal preparation
• Fit E type motor
• Chuck type：push button
• Max speed：1200rpm
• Max torque：5.2N.cm

Dental Mini 8:1 Endo Contra Angle Handpiece Internal Channel For Endodontic or Prophy. Push button, quick and easy changing burs and files. Compatible with universal E-Type Motor.

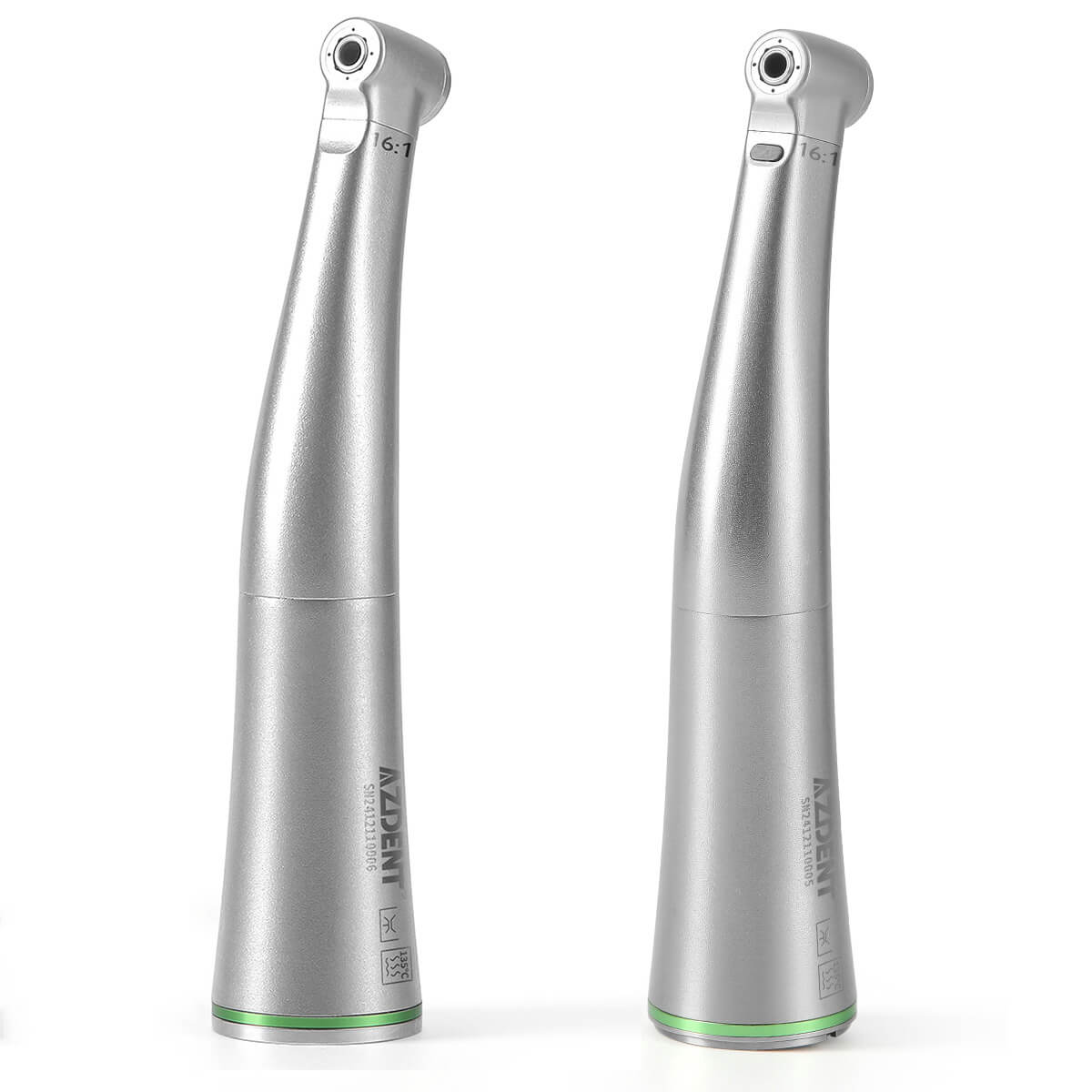

Dental Push Button 16:1 Contra Angle Handpiece Internal Channel For Endo Treatment. Push button, quick and easy changing burs and files. Compatible with universal E-Type Motor.

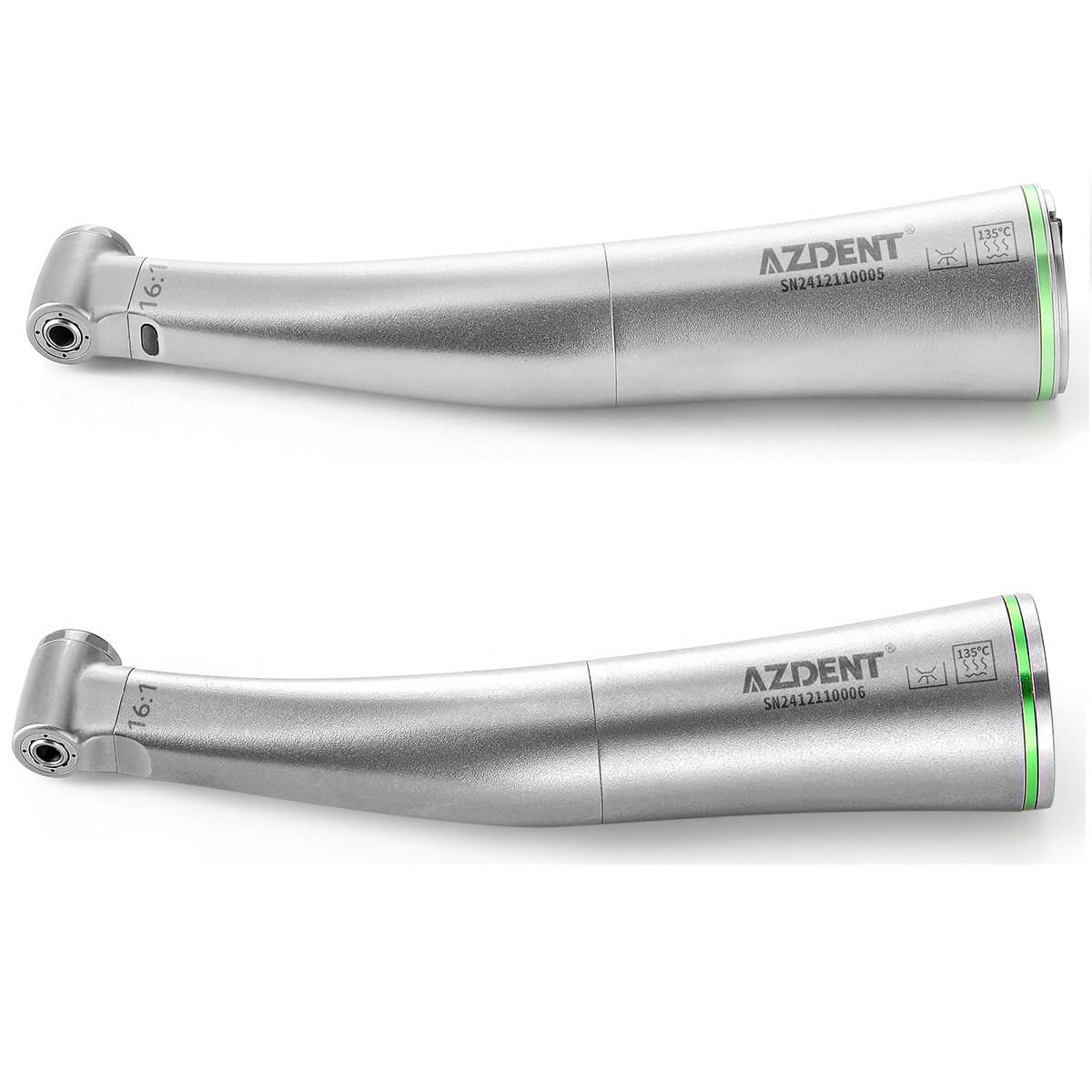

COXO C5-4M Endo Contra Angle Handpiece 16:1 Reduction Compatible with C-SMART-I Pilot Endo Motor. The COXO C5-4M is a high-precision 16:1 reduction contra angle specifically engineered for the C-SMART-I Pilot endo motor. Crafted from premium stainless steel, it delivers the stable torque and controlled speed essential for delicate root canal preparations. Designed for clinical excellence, its ergonomic, lightweight build minimizes hand fatigue, while the advanced gear system ensures ultra-quiet operation and minimal vibration for superior outcomes.

Dental 2-in-1 Wireless Endo Motor With Integrated Apex Locator. This 2-in-1 Wireless Endo Motor integrates a high-precision apex locator with an advanced brushless motor to streamline root canal preparation. The brushless technology ensures exceptionally low wear and minimal heat generation, significantly extending the service life of the device while maintaining stable power. Designed for superior ergonomics, the lightweight cordless handpiece provides a more natural hand feel and unrestricted movement during delicate procedures. Additionally, the 1:1 mini contra-angle offers an improved line of sight and easier access to the posterior region, combining clinical precision with maximum operator comfort.
