Dental Piezo Motor Surgery & Implant Device 2 IN 1 Bone Cutter Touch

$1,670.00 $2,087.50

Dental Implant Motor Ultrasonic Bone Cutter Machine & Piezo Surgery Touch with LED 20:1 Contra Angle And Two Handles

Dental Implant Motor Ultrasonic Bone Cutter Machine & Piezo Surgery Touch with LED 20:1 Contra Angle And Two Handles. Multi-functional integration. Combines dental implant placement, low-power dental restoration, and ultrasonic bone cutting for minimally invasive dental surgery. Ultrasonic bone cutter features compatibility with over 20 different working tips, 4 operating modes, and 10 power levels. 16:1, 20:1, and 27:1 ratios, catering to diverse surgical applications. The ultrasonic bone cutter accommodates over 20 distinct working tips, four operational modes, and ten adjustable power levels to meet minimally invasive dental surgery requirements across various oral locations. Surgical parameters are automatically stored and recalled, eliminating repetitive settings. The software employs user-friendly, intelligent algorithms.

Overview

Multi-functional integration. Combines dental implant placement, low-power dental restoration, and ultrasonic bone cutting for minimally invasive dental surgery. Multiple programme modes freely configurable for implant placement, restoration, bone cutting, periodontal treatment, root canal therapy, and cleaning. Implant restoration function compatible with 10 types of bending heads (1:1, 1:2, 1:3, 1:4.2, 1:5, 3.2:1, 4:1, 16:1, 20:1, 27:1) for diverse surgical applications. Ultrasonic bone cutter features compatibility with over 20 different working tips, 4 operating modes, and 10 power levels. 16:1, 20:1, and 27:1 ratios, catering to diverse surgical applications. The ultrasonic bone cutter accommodates over 20 distinct working tips, four operational modes, and ten adjustable power levels to meet minimally invasive dental surgery requirements across various oral locations. Surgical parameters are automatically stored and recalled, eliminating repetitive settings. The software employs user-friendly, intelligent algorithms.
Touchscreen display. Features a 7-inch true-colour TFT capacitive touchscreen with a visualised interface and ergonomic touch design, supporting multi-touch input with responsive feedback. The self-illuminating screen offers unrestricted viewing angles and adjustable brightness, ensuring optimal visibility under both bright and low-light conditions.
Multi-function foot control. Artificial intelligence foot control algorithm ensures smooth motor speed and ultrasonic start/stop control. Enables seamless switching between surgical modes, water flow, and power settings for intuitive operation.
Dental implant placement, restorative procedures, minimally invasive bone cutting, periodontal surgery, root canal therapy, and cleaning modes all support external connection to physiological saline or sterile water. Prevents backflow, reducing cross-infection risks.
Host unit includes built-in operating instructions alongside ten common error prompts and alarm interfaces, providing immediate alerts for incorrect operation and enhanced overall system protection.
Implant and micro-power handpieces, along with ultrasonic transducer handpieces, are autoclavable to reduce cross-infection risks, providing greater peace of mind during procedures.
All implant, micro-power, and ultrasonic transducer handpieces incorporate high-brightness self-illuminating LEDs with multi-level brightness adjustment, enhancing surgical visualisation and precision.
Implant and micro-motor handpieces employ next-generation high-efficiency, low-noise, high-torque brushless DC motors. Maximum speed: 40,000 rpm (1:1 ratio). Maximum torque: 80 N·cm (20:1 ratio). Ultrasonic bone cutters utilise high-performance crystal transducers. The main unit incorporates low-power intelligent control algorithms for precise motor speed and ultrasonic output regulation, resulting in reduced overall power consumption and operating temperature.
Incorporates an integrated peristaltic pump with multi-level water flow settings for precise hydration control. Features a streamlined, integrated housing desige.

Technical Specifications

Model:	IMPLANT Surg Plus
Host specifications:	Input power: 150VA Weight：4.35Kg Power supply frequency: 50/60Hz Dimension：286mm×252mm×113mm Power supply voltage：AC 100-240V
Dental ultrasonic handpiece:	Dimension: ∅ 21.5mm×110mm Tail cord length：1.8m
Motor specifications:	Rotating speed range: 200~40000rpm Torque range：5-80N·cm (Speed ratio：20:1) Input voltage：DC30V Dimension: ∅ 21.5mm×105mm Tail cord length：1.8m
Foot pedal controller specifications:	Tail cord length：2.0m
Ultrasonic working frequency:	24kHz~36kHz
Flow:	30~110ml/min
Operation environment:	a) Environment temperature: 0°C~+40°C b) Relative humidity: 30%~75% c) Atmosphere pressure: 70kPa~106kPa d) Temperature in the water inlet of water-cooling equipment is not higher than 25°C
Intermittent operation equipment:	Device for ultrasonic intermittent operation: 60s ON, 10s OFF

Packing List

Implant unit:	1 Pc
Foot pedal:	1 Pc
Piezosurgery handle:	1 Pc
Tips:	7 Pcs
20:1 LED contra angle :	1 Pc
Piezosurgery wrench:	1 Pc
Silicone base:	2 Pcs
Saline water tube:	2 Pcs
Power line:	1 Pc

$1,519.00

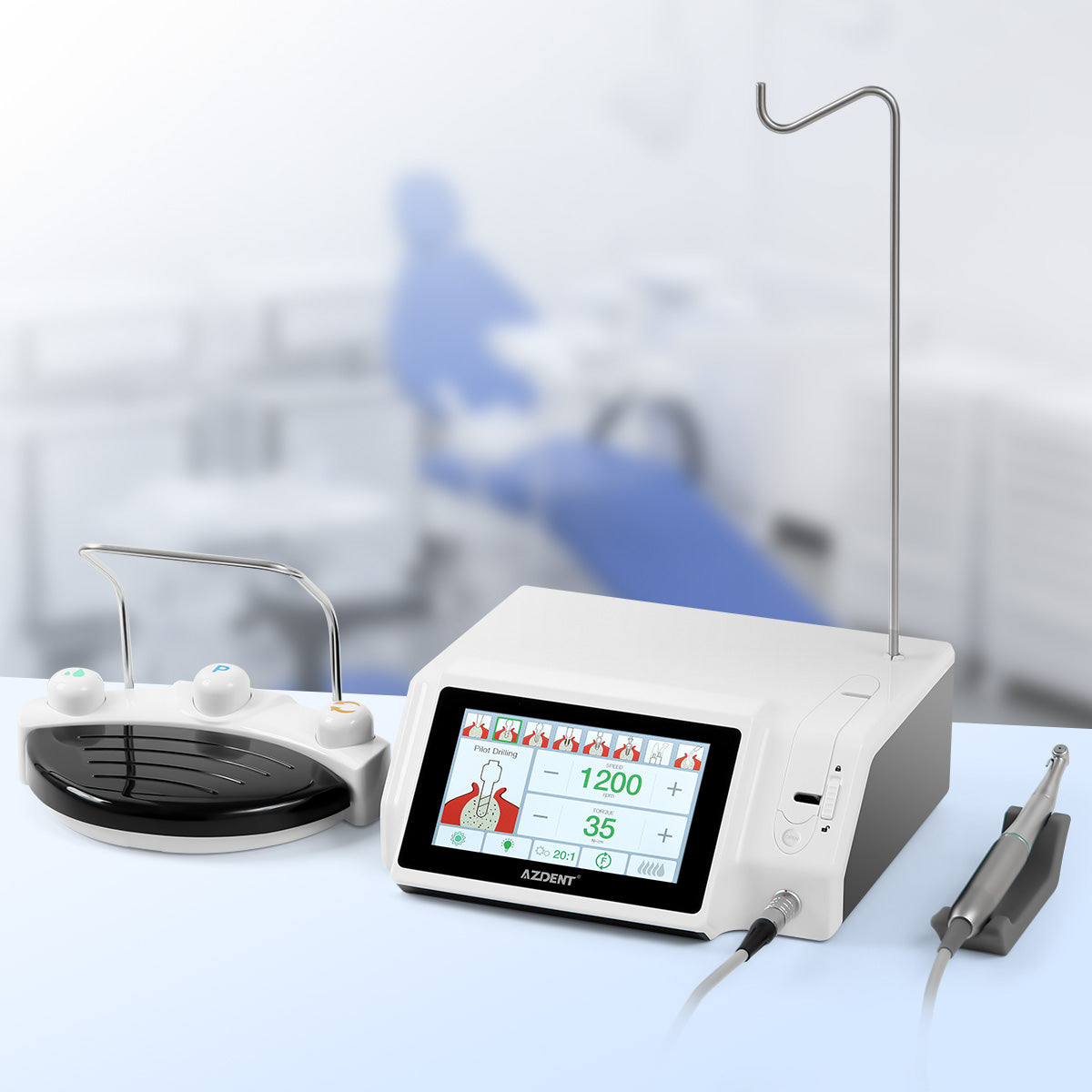

Dental Implant Surgical Brushless Motor Multi Function Color Touch Screen With 20:1 LED Contra Angle 80Ncm

Dental Implant Surgical Brushless Motor Multi Function Color Touch Screen With 20:1 LED Contra Angle 80Ncm. Auto-Calibration Function. 8 setting programs. LED light source illumination. LED lighting ensures visibility. Illumination and sound can be adjusted. Flexible multi function foot pedal, could achieve the most of operating functions. There are 6 gears water flow,click the button each time, increase water volume. Motor and cable can be sterilized at high temperature and pressure. Built in common error prompt and alarm interfaces, timely remind the wrong operation, better protect the machine.

Note: The foot pedal is with a cord, it is not a wireless foot pedal.

Overview

Surgical brushless motor
8 setting programs
20:1 Fiber Optic Contra Angle
LED light source illumination
Warranty
Main unit: 2 years
Motor and contra angle: 1 year

Features

Color touch screen
The large size screen ensures that the treatment parameters are visible. Graphical operation steps, intuitive and clear, easy operation, simple and flexible, humanized touch design, responsive.
Multi function
For implant, restoration, extraction of impacted teeth, orthopaedic surgery.
8 Program memory function for setting setting speed, torque, compatible with various contra angle or straight handpiece, such as 20:1 16:1 27:1 4:1 3.2:1 1:1 1:3 1:4.2 1:5
Motor Auto-Calibration function (implant)
Operate safely with high precision thanks to the surgical motor, low noise and vibration, powerful.
A new generation of motors with torque up to 80Ncm
High performance brushless motor, high torque and wide speed range for all kinds of treatment.
LED lighting ensures visibility
Helps clinicians focus more on the treatmenet area and make surgery more accurate.
Illumination and sound can be adjusted
Flexible multi function foot pedal
Could achieve the most of operating functions.
Smooth Irrigation Pump
There are 6 gears water flow,click the button each time, increase water volume.
Built in user manual
Simple and convenient operation.
Motor and cable can be sterilized at high temperature and pressure

Warnings: Plug must be inserted when the motor is sterilized.

Built in common error prompt and alarm interfaces
Timely remind the wrong operation, better protect the machine.

Technical

Maximum power:	150W
Power supply:	AC110v/60HZ,AC220V/50HZ
Torque:	5-80Ncm
Motor speed:	300-40000rpm
Infusion flow(Maximum):	135ml/min

Package

Implant unit:	1
E-type motor:	1
LED contra angle handpiece:	1
Foot pedal:	1
Motor stand:	1
Hanger:	1
Power cord:	1
Motor cap for autoclave:	1
Irrigation tube:	2
English instruction manual:	1
Aluminum Box:	1

$980.00

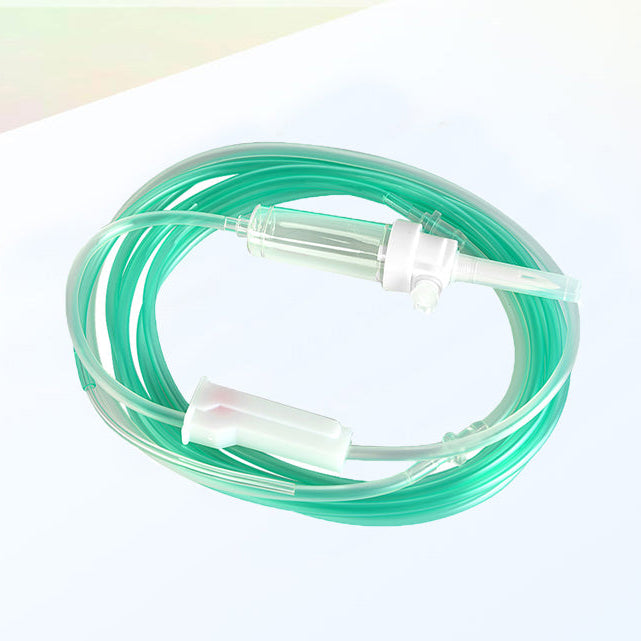

Disposable Implant Irrigation Tube Green 114.56" - pairaydental.com

Disposable Implant Irrigation Tube Green 114.56 Inch

5 Bags 10 Bags 20 Bags

$20.13 $21.94

Universal Implant Torque Wrench Handpiece Kit with 2 Heads 12 Drivers

1 Kit 3 Kits

🔥

5 Kits

🔥

10 Kits

🔥

$76.84

20:1 Implant Contra Angle Handpiece LED Fiber Optic Push Button

1 Pc 5 Pcs 10 Pcs

$112.89

Dental Universal Implant Screw Removal Kit

1 Kit 5 Kits 10 Kits

$114.24

Dental Implant Stability Monitor ISQ Tester for Osseointegration Measurement

$393.19

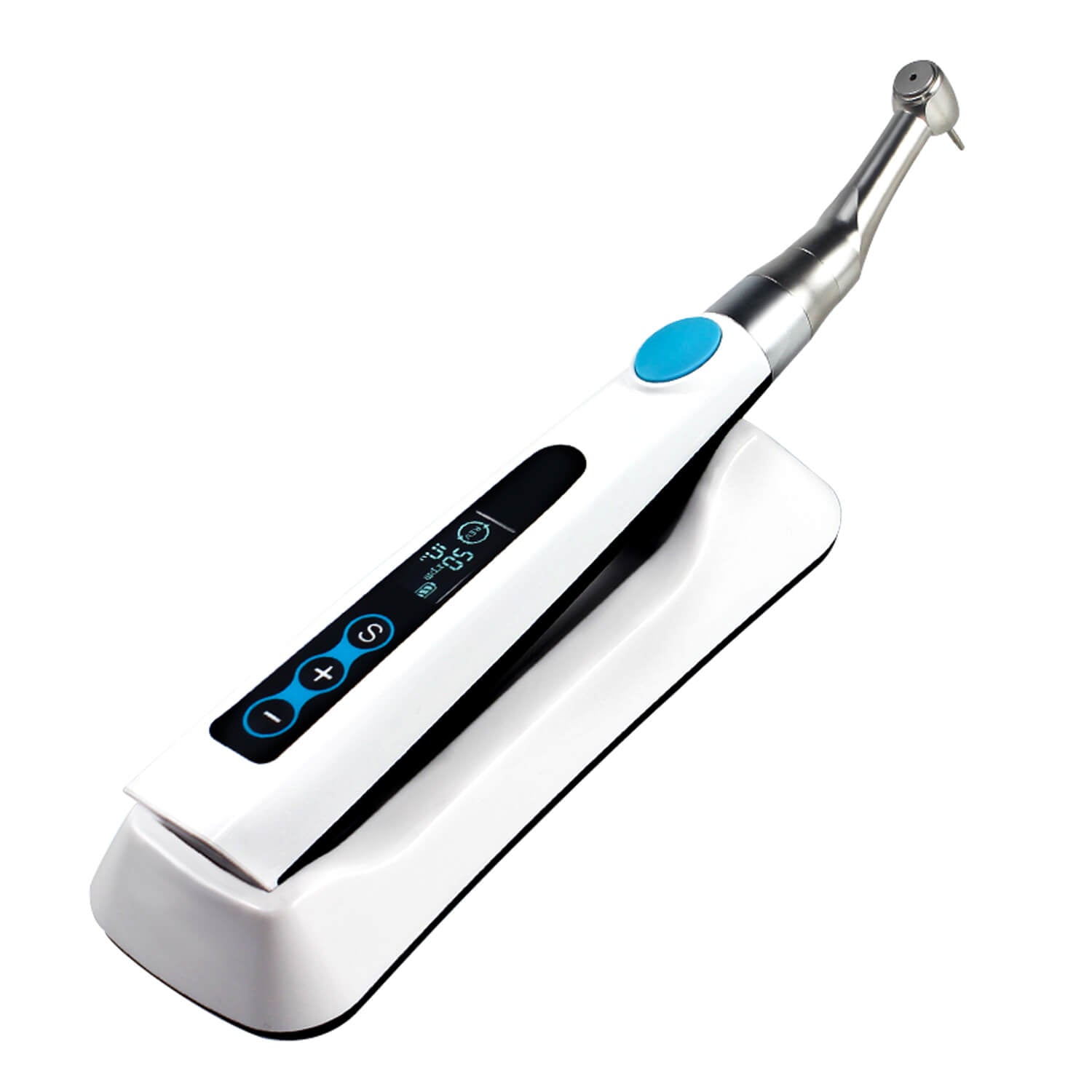

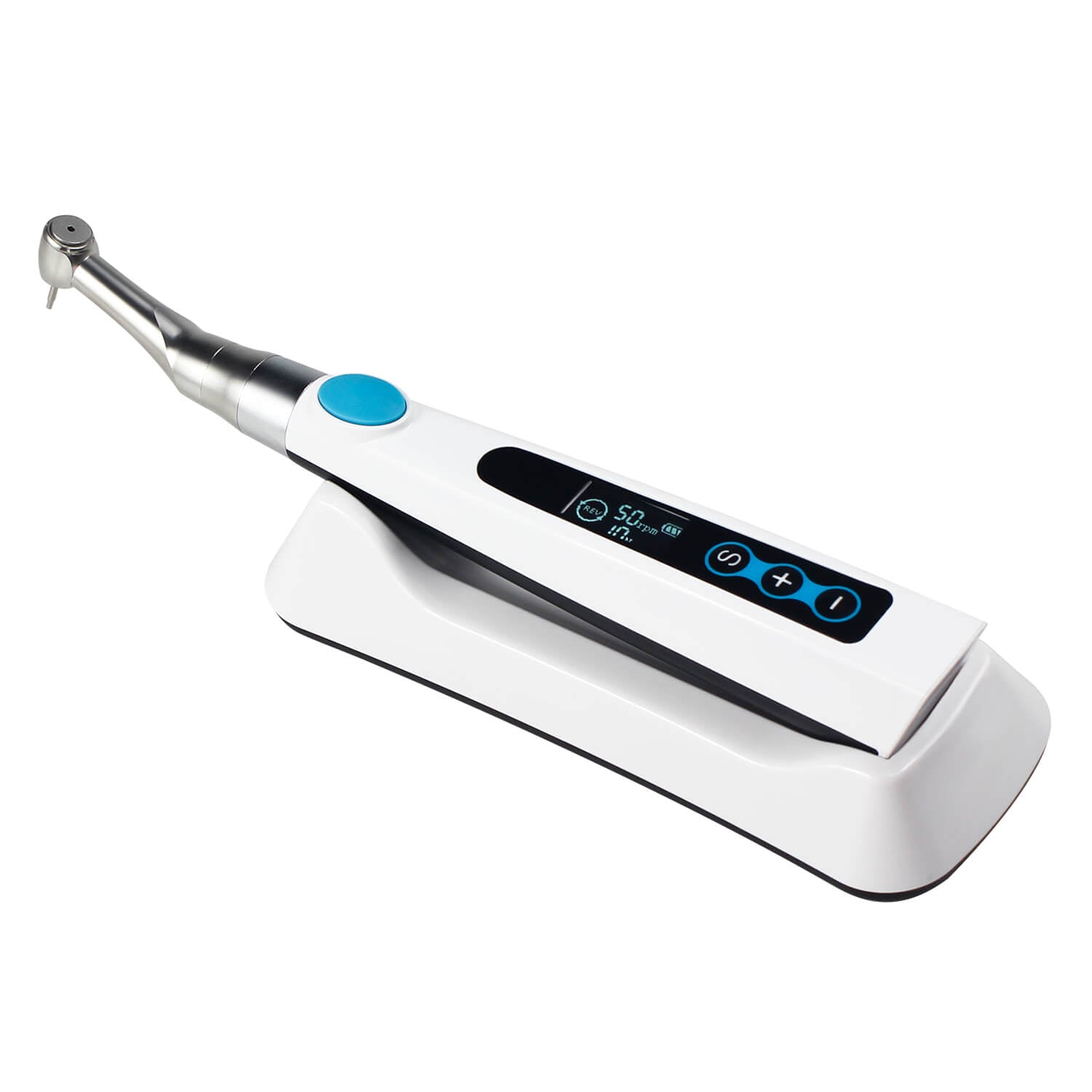

Dental Wireless Implant Electric Torque Wrench LCD Display With 16pcs Drivers 360° Rotating

1 Kit 5 Kits 10 Kits

$129.66

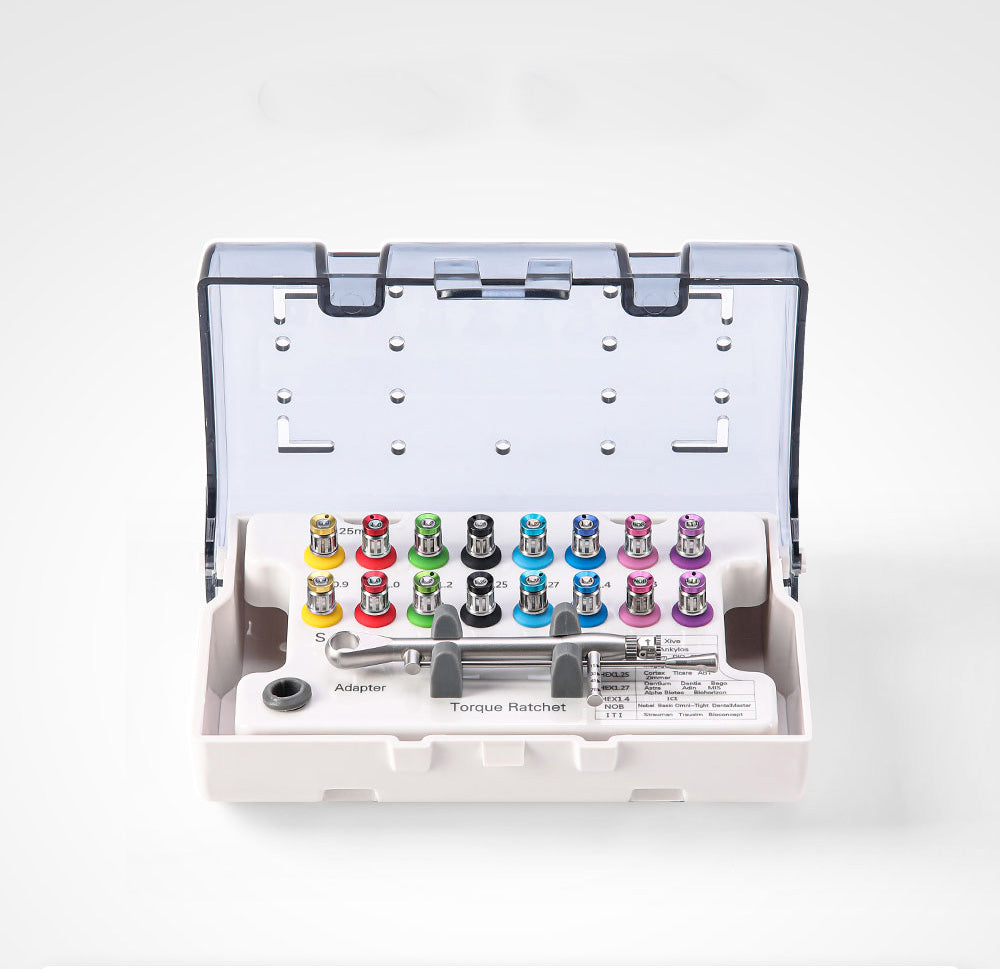

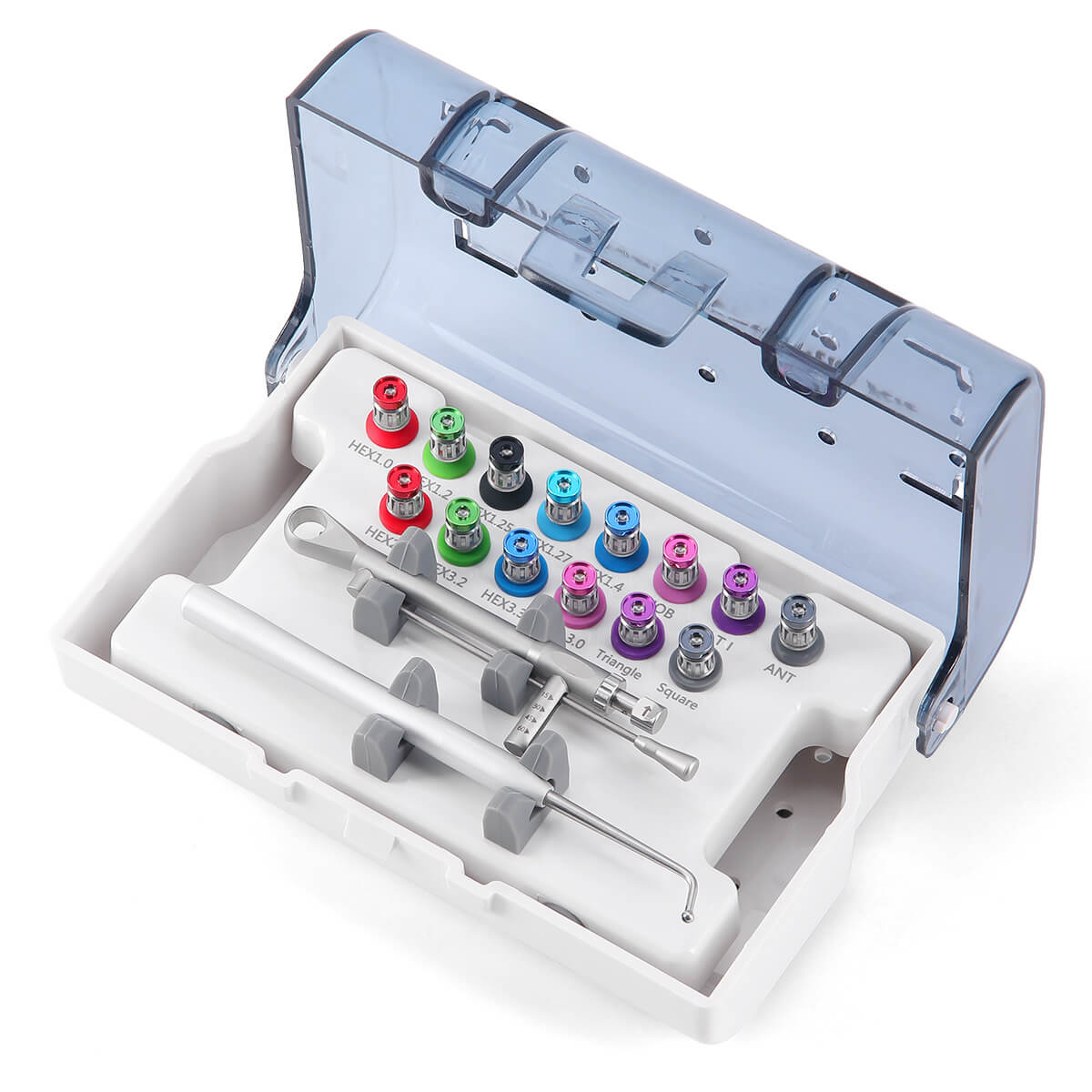

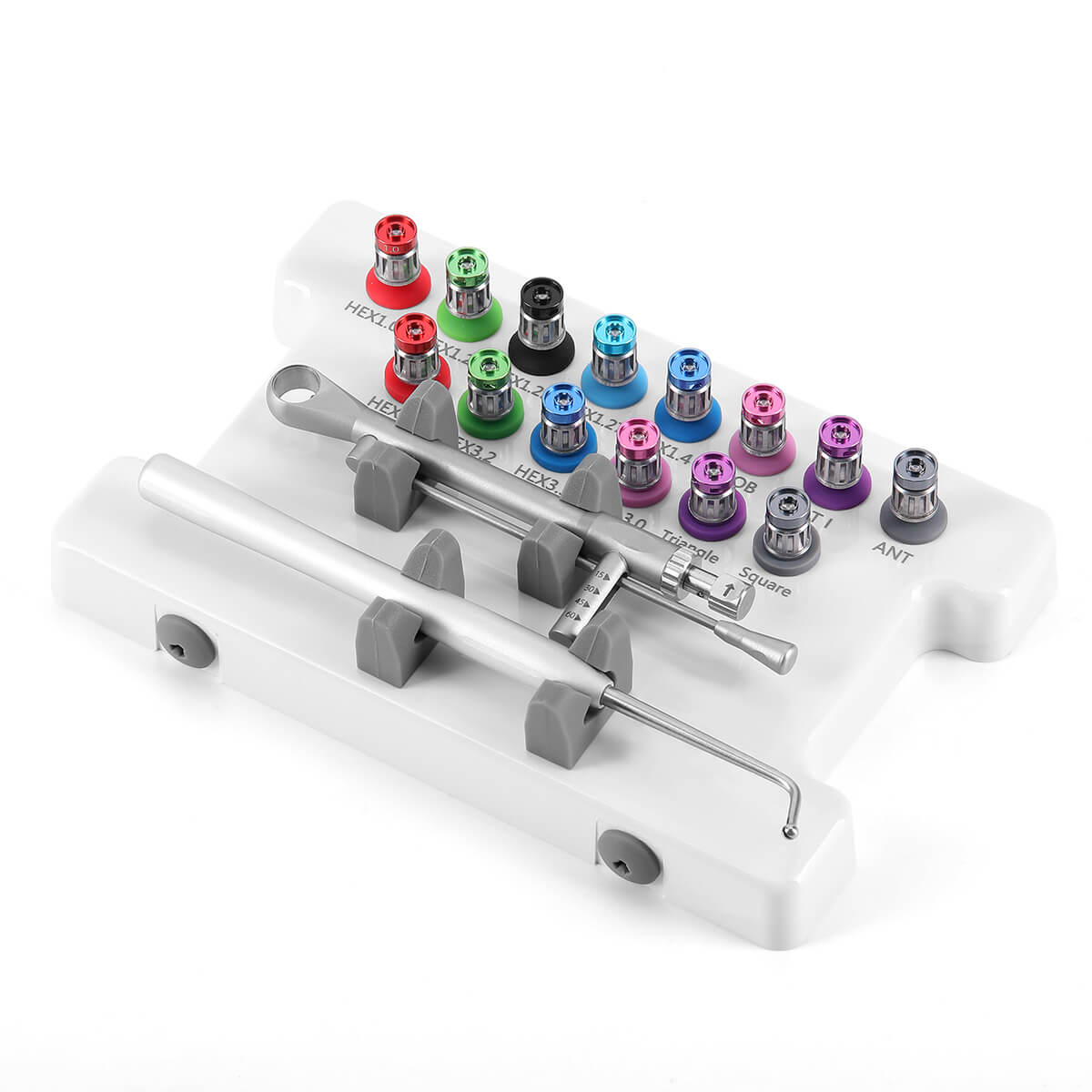

Dental Color Implant Restoration Tool Kit 16pcs Drivers With Torque Wrench 15-70Ncm - pairaydental.com

16pcs Universal Dental Implant Driver Kit With Torque Wrench 15-70Ncm

1 Kit 5 Kits 10 Kits

$83.49

Dental Stainless Steel Implant Screw Removal Kit

1 Kit 5 Kits 10 Kits

$283.34 $321.98

COXO CX235C6 Dental 20:1 Contra Angle Electric Implant Handpiece Fiber Optic #C6-22

1 Pc 5 Pcs 10 Pcs

$179.99 $199.99

Dental 20:1 Implant Reduction Contra Angle Handpiece LED Fiber Optic Push Button

1 Pc 5 Pcs 10 Pcs

$78.49

16pcs Electric Wireless Universal Implant Torque Wrench Drivers 10-50Ncm Kit

1 Kit 5 Kits 10 Kits

$137.19 $185.29

Dental Electric Wireless Universal Implant Driver Kit with Torque Wrench 16pcs Drivers 10-50Ncm 360° Rotating

1 Kit 5 KIts 10 Kits

$248.99

Dental Drill Guide and Implant Positioning Kit Implant Tools

1 Kit 5 Kits 10 Kits

$63.65

20:1 Implant Contra Angle Handpiece External Spray Push Button

1 Pc 5 Pcs 10 Pcs

$52.58

16pcs Universal Implant Drivers With Torque Wrench 15-70Ncm Kit

1 Kit 5 Kits 10 Kits

$76.07

Dental Universal Implant Driver Kit / Drivers / Torque Wrench

From $9.43

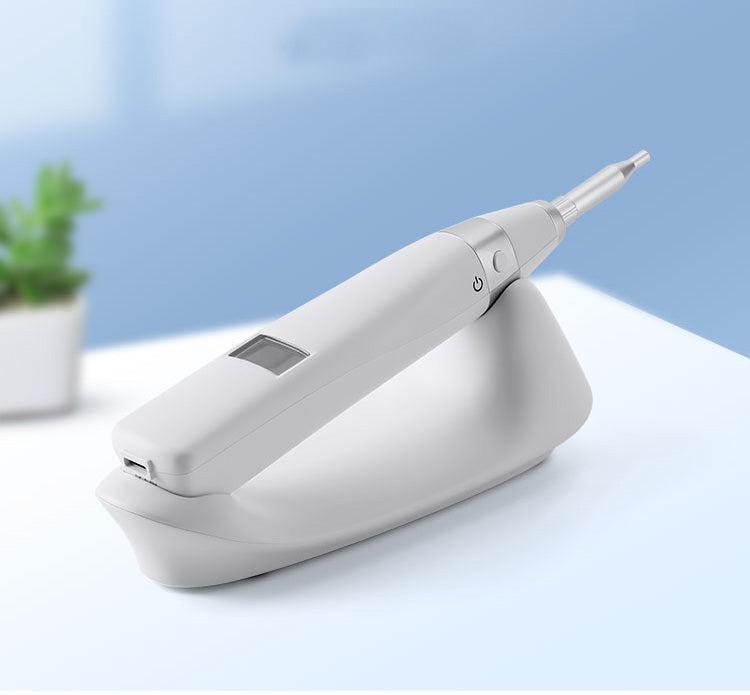

Dental Implant Stability Measurement Device

Dental Implant Stability Measurement Device. It is a stability measuring device that uses tapping method. Easy to use due to simple controlling method. Fast measuring time less than 3 seconds. Safe measurement due to slight tapping technique and auto safety system. Available to check possibility of implant failure at in earlier stages.

Instructions for Use

Overview

Used to measure implant stability, continuous monitoring of implant stability can help determine bone resorption and guide the selection of the great repair timing.
The impact force is relatively small, approximately equal to 0.9N.
Simple and fast measurement of accurate values.
It is a stability measuring device that uses tapping method, which measures the time of the Tapping Rod of the device contacting the implant for dentistry and dental implantology or oral cavity, or abutment, to measure the stability of the placed implant.
Convenient usage due to small and light design. Easy to use due to simple controlling method.
Fast measuring time less than 3 seconds. Safe measurement due to slight tapping technique and auto safety system (tapping stops after tapping twice when Osseointegration is unstable, otherwise taps up to 6 times.).
Available to check possibility of implant failure at in earlier stages.

Note: Maintain the contact angle within the range of 0° ~ 30°, the measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular.

Instructions for Use

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure.
Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure.
Do not use disinfectant spray to prevent the disinfectant from penetrating into the product
Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

Measuring Process

Take out the disposable seeve and put it on the handpiece before use
Turn the power on by pressing the ON/OFF switch.
Carefully position the tip of the Tapping Rod to the upper edge of the healing abutment while being cautious not to push the abutment.
Maintain the contact angle within the range of 0° ~ 30° to upward
When the Tapping Rod of the handpiece is located 90 degree from the side part of the top of the healing abutment and the ON/OFF switch is pressed once, the tapping motion starts after 0.5 second.
The measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular.
Check the numbers displayed on the LCD screen of the device.
Due to the different bone widths in different directions of the implant, the measurement data will be biased. Try to measure the stability value from multiple angles to get a reasonable value.

Note

If the contact angle is off the range (0° ~ 30° . upward from the surface), an alert sound will be on and the LCD screen displays "TOO LOW" or"TOO HIGH", the handpiece will not operate. In this case, tilt the deviceuntil the contact angle is back in the range, and then, try measuring again.
Measurement error may occur if the tip of the Front Guide applies too much force to the healing abutment or is too far away from the healingabutment during measurement.
Empty tapping-motion results in no reading or obvious data errors.

Checking Measured Value (iST scale)

Measured value is similar to ISQ scale:
-above 60: bridge recommended.
-above 70: single case loading possible.
A range of measured value is displayed as a number between 01 to 99.
Color of the number appears as Red (1 to 59), Yellow (60 to 64), Green(65 to 99).
Green light below the LCD Display is the status bar.
Lower the measured value (iST scale), greater the implant mobility (weaker the degree of osseointegration).

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure.
Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure.
Do not use disinfectant spray to prevent the disinfectant from penetrating into the product
Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

Specifications

Battery Capacity:	850mAh
lnput:	100-240V~50/60Hz
Output:	5V 1A
Environment Temperature:	+5℃ to +40℃
Relative Humidity:	10%~93%
Atmosphere Pressure:	70kPa to106kPa
Operation Model:	Continuous Operation

Performance

Accuracy:	Display value ± 3
Tapping Speed:	0.5 sec. / 1 time
Tapping Strength:	≤1.0 N to 1.3N
Number of Tapping:	Taps 2~4 times until the measured value of 1~59. After 60~ 99, the device taps 6 times in order to measure the stability.

$789.99 $1,049.00

Dental Implant Colorful Electronic Torque Universal Tools Kit 16pcs Drivers With Wrench 10-50Ncm

1 Kit 5 Kits 10 Kits

$104.96 $115.59

20:1 Reduction Implant Latch Contra Angle Handpiece Water Spray

1 Pc 5 Pcs 10 Pcs

$41.49

Dental Implant Measuring Gauge Orthodontic Sliding Caliper 0-80mm

1 Pc 5 Pcs 10 Pcs

$16.48

Dental Implant Locating Guide Rule

1 Set 5 Sets 10 Sets

$16.80

Dental Implant Screw Drivers Kit 6pcs

1 Kit 5 Kits 10 Kits

$52.49

Dental Stainless Steel Sinus Lifting Implant Kit Elevation Instruments Set 14Pcs

1 Kit 5 Kits 10 Kits

$83.57 $93.01

Dental Implant Position Locator Stainless Steel

1 Kit 3 Kits

$45.36

Dental Extractor Apical Root Fragments Drill Short & Long 2pcs/Pack

1 Pack 5 Packs 10 Packs

$26.25

20:1 Implant Reduction Contra Angle Handpiece Push Button External Spray

1 Pc 3 Pcs

🔥

5 Pcs

🔥

10 Pcs

🔥

$42.99

Dental Disposable Surgical Irrigation Tube 107.48"

1 Bag 5 Bags 10 Bags 20 Bags

$6.04

Disposable Dental Irrigation Tube 110.2" - pairaydental.com

Disposable Dental Irrigation Tube 110.2 inch

1 Bag 5 Bags 10 Bags 20 Bags

$6.44

Disposable Dental Irrigation Tube 118.1"

1 Bag 5 Bags 10 Bags 20 Bags

$6.84

Disposable Dental Irrigation Tube 116.14" - pairaydental.com

Disposable Dental Irrigation Tube 116 inch

1 Bag 5 Bags 10 Bags 20 Bags

$6.52

Dental Implant Periosteal Elevator Instrument Double Ends

1 Set 5 Sets 10 Sets

$8.39

Dental Implant Bone Grafting Instruments Stainless Steel 6pcs/Set

1 Set 5 Sets 10 Sets

$37.44

Dental Wireless Electric Torque Driver Implant Torque Wrench with 16pcs Drivers

1 Kit 5 Kits 10 Kits

$149.80

COXO Dental Implant Motor With 20:1 Fiber Optic Contra Angle Handpiece 7" Touch Screen #C-SAILOR PRO

$999.00 $1,199.99

Woodpecker Dental Surgical Implant Motor Implant Air w/ 20:1 LED Contra Angle

Woodpecker Dental Surgical Implant Motor Implant Air w/ 20:1 LED Contra Angle. Automatic Calibration that is Convenient & Ensures Accuracy. Compact Design, User Friendly Interface. Ultra Quiet Peristaltic Pump that is Convenient to Use. Max Water Volume: 135ml/minute. Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable. Multi-Function Foot Pedal.

Features

The Woodpecker Implant Air is the latest and most advanced version of implant motor from Woodpecker Dental that is completely redesigned to be simple, precise and reliable for your implant surgery. Implanter Air will be your favorite assistant of high-precision dental implanting treatment.
Automatic Calibration that is Convenient & Ensures Accuracy
The Implant Air Implant Motor features automatic torque calibration upon powering on the motor to ensure absolute accuracy and eliminating manual operational steps.
Compact Design & User Friendly Interface
The Implant Air Implant Motor is designed with space savings in mind. Its compact design is perfect for space savings in your operatory and has a much smaller foot print than other implant motors available. This is not your typical â€œclunky" implant motor.
-Length 6.1 inches (155mm)
-Width 6.5 inches (167mm)
-Height 8.9 inches (227mm)
The 5 inch color LCD touchscreen is user friendly and easy to understand. It has 5 pre-set surgical programs and automatically saves the parameters after each operation.
Ultra Quiet Peristaltic Pump that is Convenient to Use
The Implant Motor water pump has a waterproof design to prevent any occurrence of circuit board burnout. Simple and user friendly connect for water supply and is adaptable to using a disposable water source.
Max Water Volume: 135ml/minute
Multi-Function Foot Pedal
The Woodpecker Implant Air Implant Motor foot pedal has 1) water volume control 2) program switching 3) forward and reverse and 4) speed control. This allows you to free your hands and focus on the implant procedure.
Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable.
The Woodpecker Implant Air features a Swiss Motor producing torque of 80N cm and an LED 20:1 Handpiece with German bearings allowing for maximum stability and durability.
* One 20:1 LED contra angle is included with the implant motor.

Technical

Model:	Implant Air
Power Input:	AC 100-240V 50Hz/60Hz
Host Size:	155mm×167mm×227mm
Size of fuse:	5.2 mm×20mm
No-Load Speed (r/min):	300 ~ 42000
Input Power:	180VA
Software Version:	V1
Ambient Temperature:	+5 ~ 40°C
Relative Humidity:	30% ~ 75%
Atmospheric Pressure:	70kPa ~ 106kPa
Handpiece Gear Ratios Output speed (r/min):	16: 1 (20 ~ 2500) 20: 1 (15 ~ 2000) 27: 1 (10 ~ 1500) 1: 1 (300 ~ 42000) 1:2 (600 ~ 84000) 1:2.7 (810 ~ 113400) 1:3 (900 ~ 126000) 1:4.2 (1260 ~ 176400) 1:5 (1500 ~ 210000)
Pedals Model:	MF4
Tail line length:	2.8m

Packing List

Main unit:	1
Handpiece holder:	1
Disposable water pipe:	4
Infusion bottle holder:	1
Foot pedal:	1
Power cord:	1
Motor handpiece:	1
Contra-angle kit:	1
Spare fuse:	2
Disinfection plug:	2
Pipe clamp:	10
O-ring(Motor):	4
Instruction manual:	1

$1,999.99 $2,499.99

Dental Wireless Electric Torque Driver Implant Torque Wrench with 16pcs Drivers 10-50Ncm 360° Rotating

Dental Wireless Electric Torque Driver Implant Torque Wrench with 16pcs Drivers 10-50Ncm 360° Rotating. 360° Precision Ratchet Head, Defined Tactile Stops at Every Angle. Equipped with a smart calibration system—alerts with a buzzer and stops automatically upon reaching preset torque. Seamlessly toggle directions with a single press, ensuring effortless control and smoother clinical workflows. Applications: Implant Installation & Removal, Abutment Placement, Healing Nut Adjustment. Professional Cordless Implant Wrench. A safe, high-efficiency solution for dental surgery.

Instructions for Use

Overview

One-Touch Forward/Reverse Switch: Seamlessly toggle directions with a single press, ensuring effortless control and smoother clinical workflows.
Comprehensive Implant & Repair Solutions: Perfect for first-phase implants, second-phase restorations, and versatile backup clinical tasks.
Precision Torque & Auto-Stop Control: Equipped with a smart calibration system—alerts with a buzzer and stops automatically upon reaching preset torque.
Applications: Implant Installation & Removal, Abutment Placement, Healing Nut Adjustment.
Sterilizable contra angle (Electronic handle can not be autoclaved)

Maintenance

Main Unit Care:
If the tool will not be used for an extended period, recharge the battery every 15 days.
Unplug the wrench motor main unit within 2 hours after it is fully charged. Failure to do so may damage the battery.
After use, wipe the main-body housing with a soft cloth dampened with alcohol. Store it in a dry, well-ventilated area once the surface is completely dry.
Important Note: Do NOT use highly concentrated ethanol or corrosive liquids to clean the main unit.
Maintenance of the bender:
Apply oil to the shaft center through the screw-start insertion port daily to extend shaft service life.
Spray lubricant at the end of every workday for at least 1-2 seconds per application.
For heavy-duty-workloads: Spray lubricant once at noon and again at the end of each workday.
Spray lubricant before autoclaving.

Technical Specifications

Model:	Electric Torque Driver XLY-DNBS300
Input Voltage:	100-240V/AC 50/60Hz
Output Voltage:	DC 5V/1A
Battery model:	INR 14500 3.7V 800mAh
Standard Head:	20:1
Rotation Speed:	10–50 r/min
Torque:	5–50 N·cm
Net Weight:	155g

Packing List

Main unit:	1
20:1 Contra Angle Handpiece Head:	1
Power Adapter:	1
Screwdrivers:	16
Certificate of Compliance:	1
Instruction manual:	1

1 Kit 5 Kits 10 Kits

$164.80

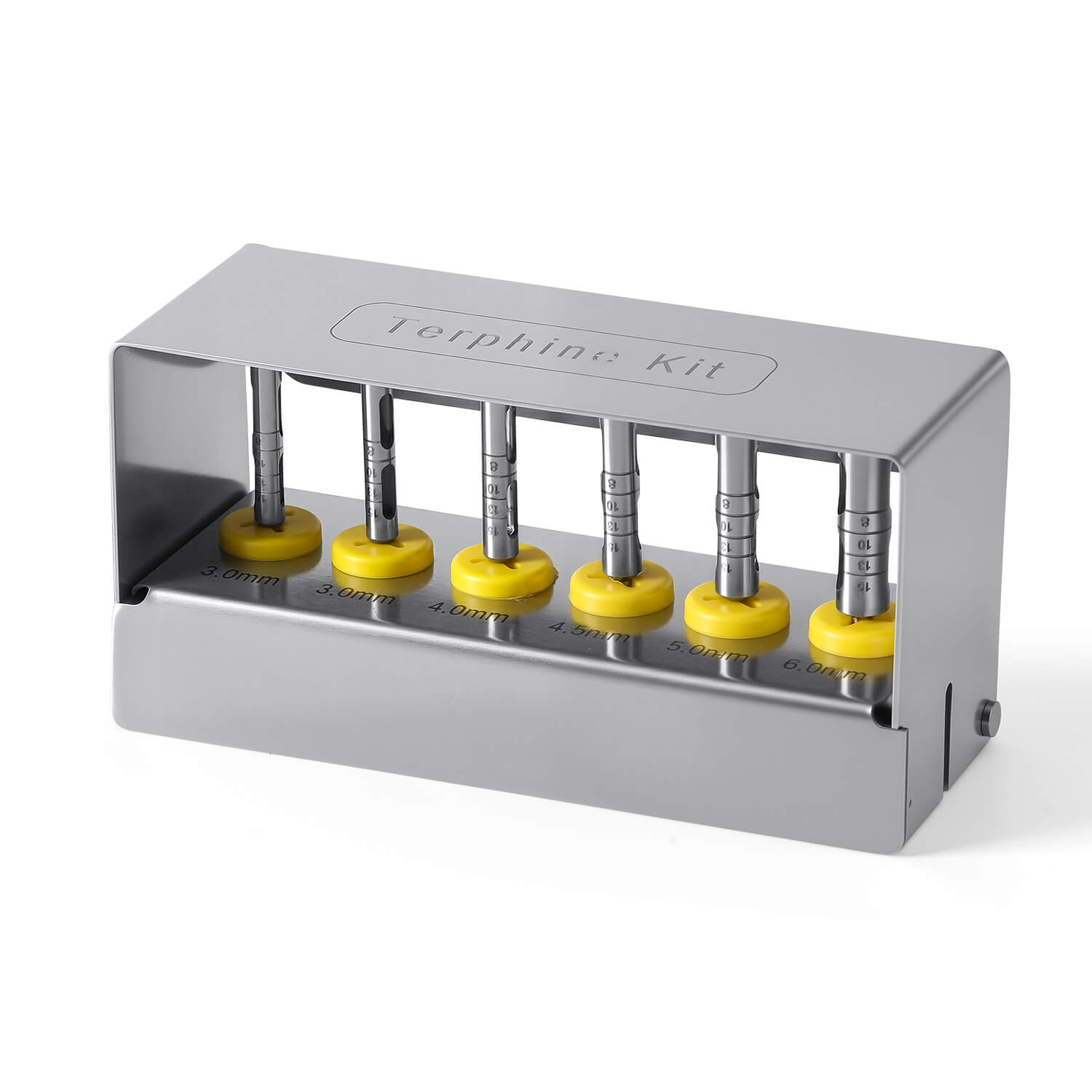

Dental Implant Bone Trephine Drill Surgical Instrument Long Type 6pcs/Set

1 Set 5 Sets 10 Sets

$37.10

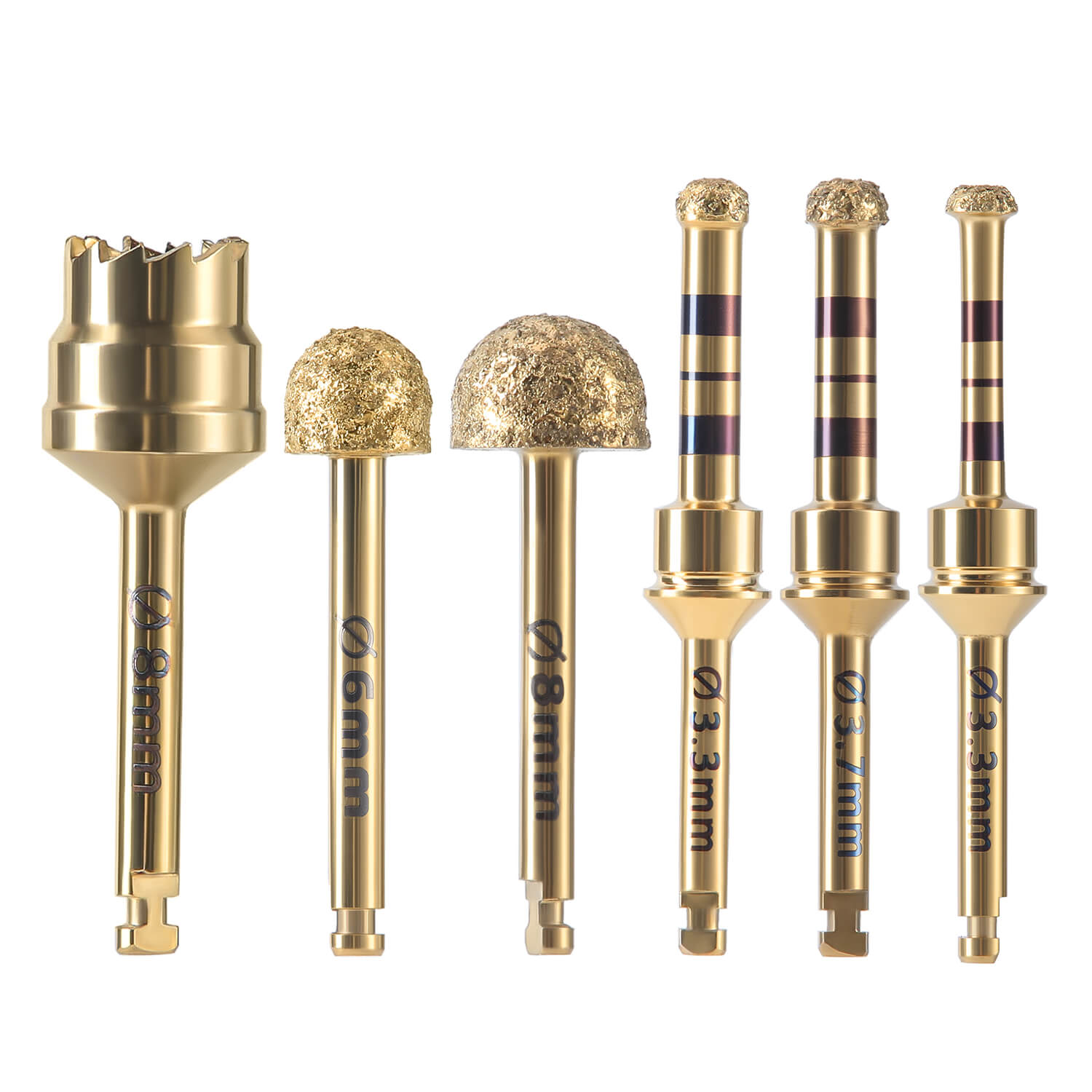

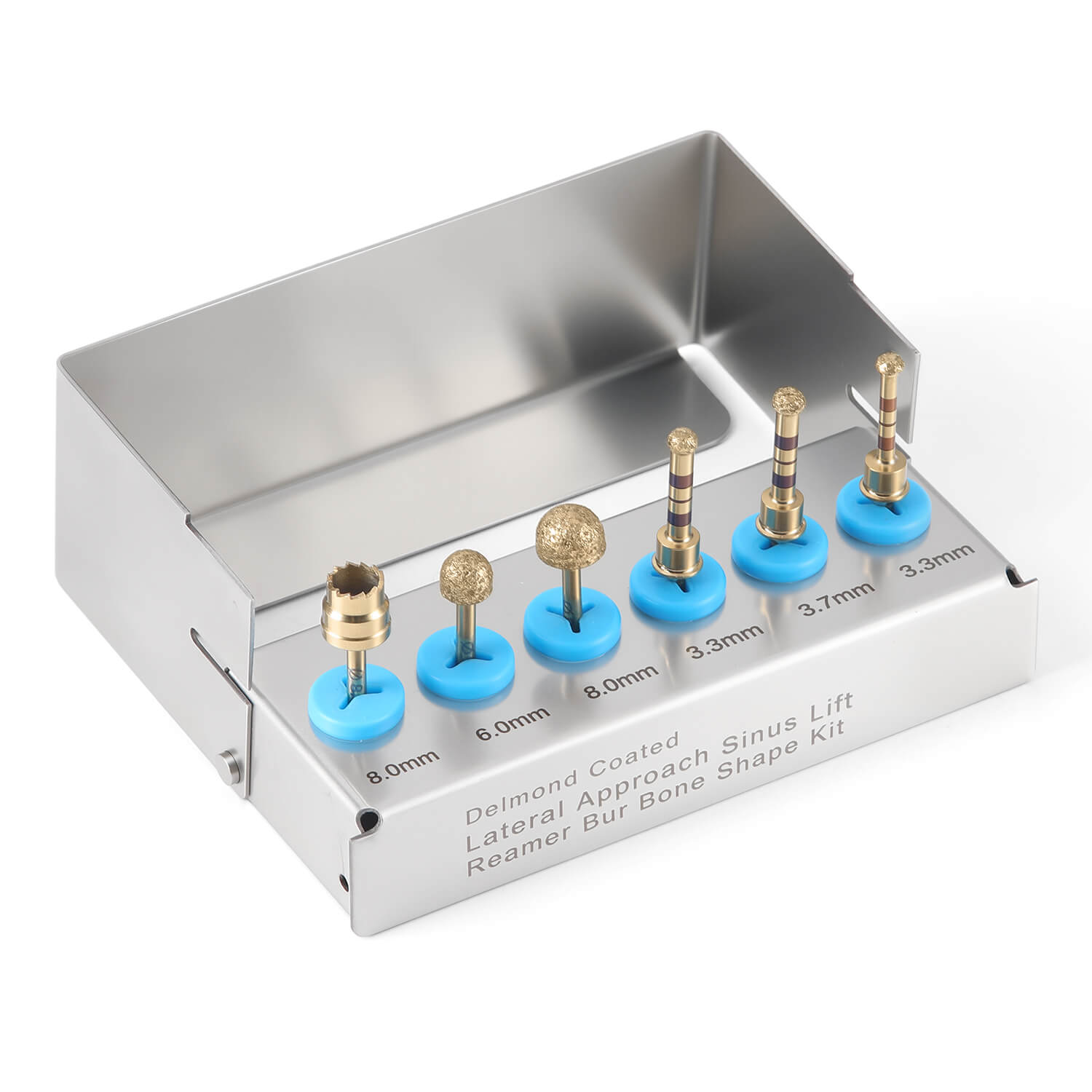

Dental External Maxillary Sinus Lift Drill Diamond Coated Bur 6pcs/Set

Dental External Maxillary Sinus Lift Drill Diamond Coated Bur 6pcs/Set. This product is suitable for maxillary sinus lift surgery in dental implantation procedures. Multiple drill bit shapes are available to meet the clinical needs of maxillary sinus lift surgery. Our product is equipped with scale markings to help you precisely control the depth of penetration into the bone wall. Made of Stainless Steel ensuring longevity and resistance to corrosion.

Note: The silicone fixing bases will be shipped in random colors.

Overview

This product can be cleaned with neutral liquid, ultrasonic cleaner, and sterilized by autoclaving.
Before use, please assess the bone wall depth and working range via imaging examination, and select the appropriate drill bit to avoid redundant operations.
The product features a sharp tip and is for use only by professional medical personnel.
Manufactured from medical-grade stainless steel, it maintains high operational efficiency even after repeated use.
This product is suitable for maxillary sinus lift surgery in dental implantation procedures.
The spherical bur can be used with a metal ring to grind the bone tissue at the floor of the maxillary sinus, providing a clear surgical view and ample operating space for maxillary sinus lift surgery.
The mushroom-shaped bur is designed for grinding the bone tissue of the maxillary sinus lateral wall at different angles to achieve bone window preparation, which provides an optimal surgical view and operating space for maxillary sinus lift surgery.
The sawtooth-shaped bur is applicable for cutting circular bone tissue from the maxillary sinus lateral wall, and the excised circular bone can be repositioned after the completion of maxillary sinus lift surgery.
Drill speed 800 to 1,200 rpm, 30~45Ncm(with external irrigation)
It comes with drill bits in multiple profiles to meet clinical requirements for maxillary sinus lift surgery.

Specifications

Material:	Medical Stainless Steel
Package:	6 pcs/Set

1 Set 5 Sets 10 Sets

$35.10

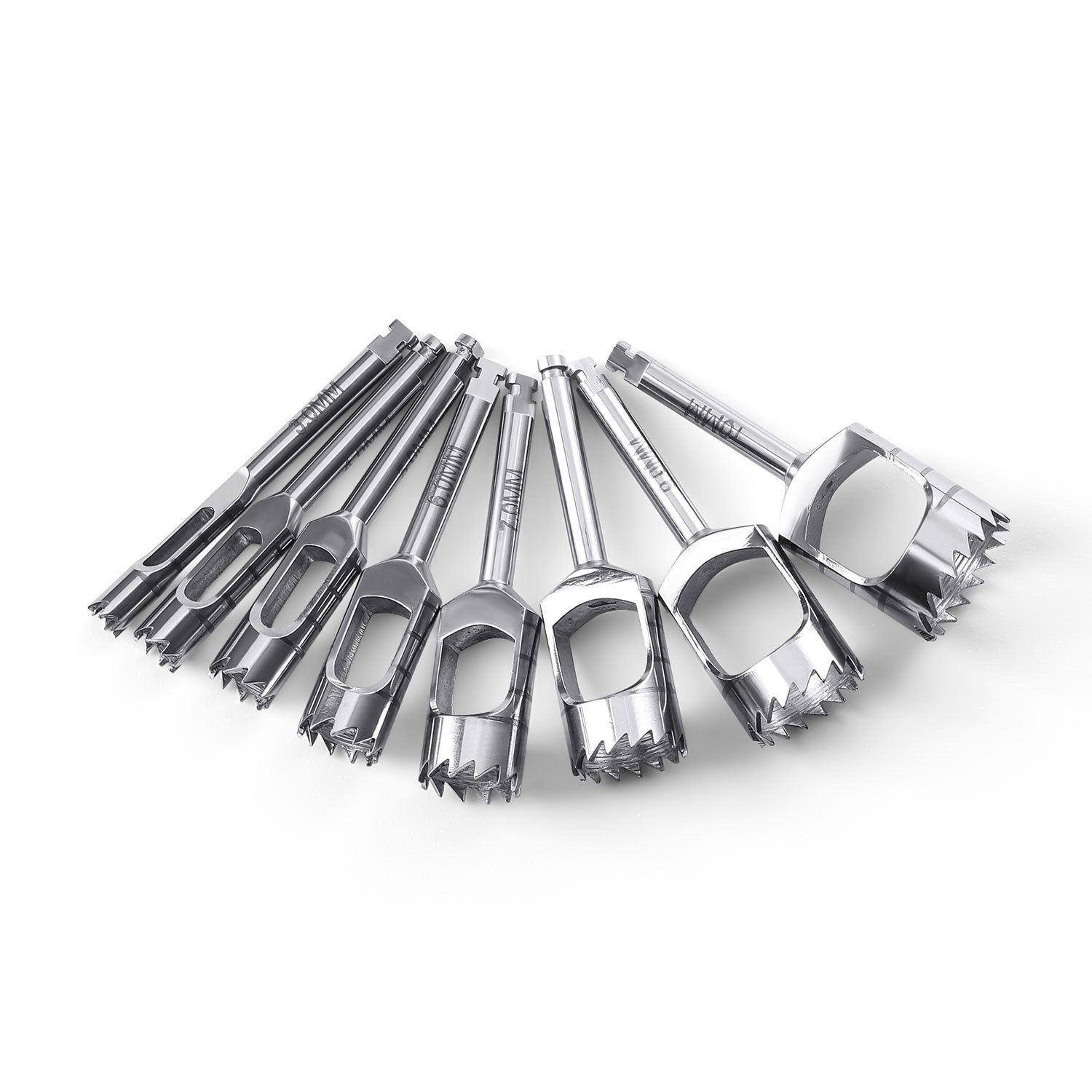

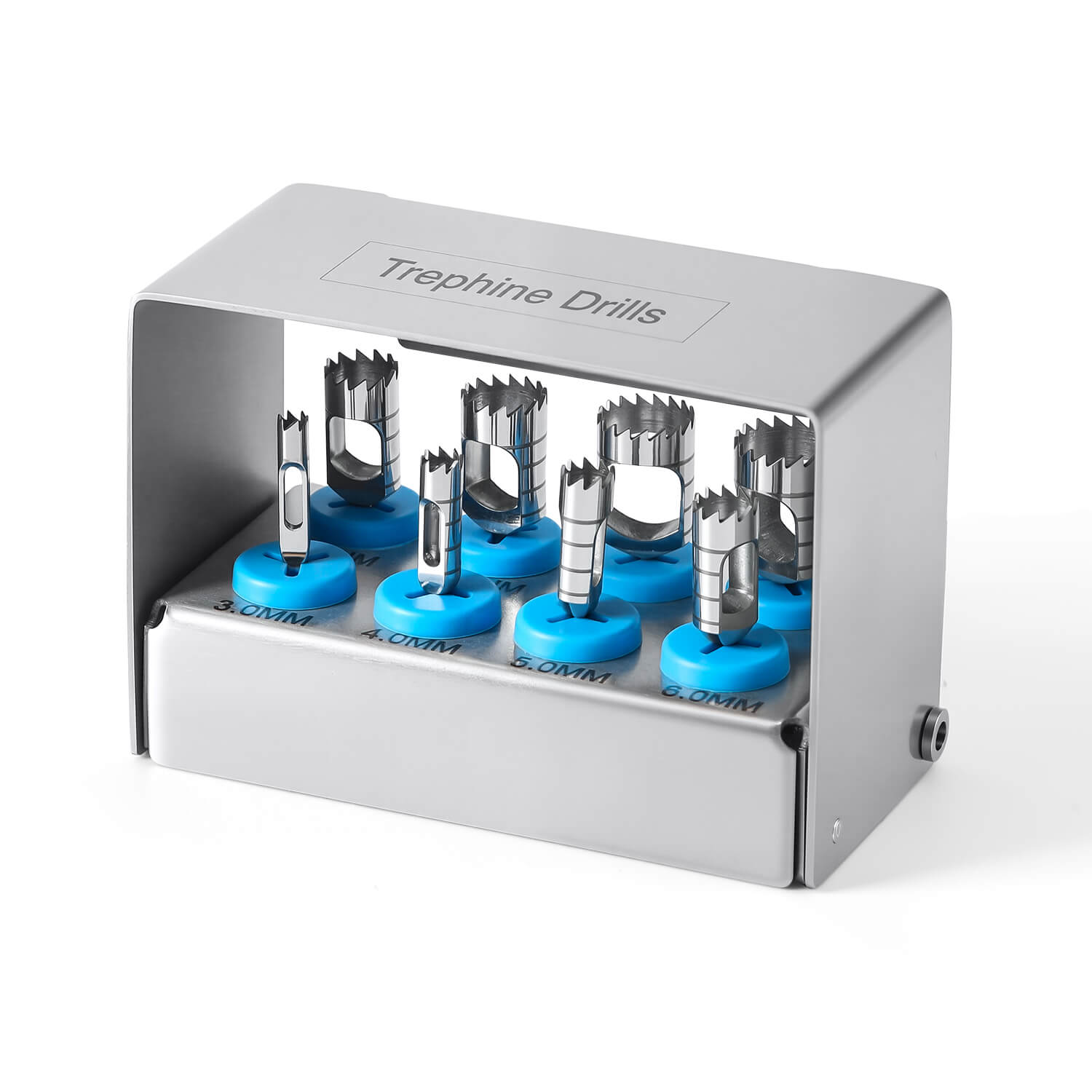

Dental Implant Bone Trephine Drill Surgical Instrument Short Type 8pcs/Set

1 Set 5 Sets 10 Sets

$37.10

Dental Implant Colorful Universal Restoration Tool Kit 14pcs Drivers With Wrench 15-60Ncm and Carrying Device

1 Kit 5 Kits 10 Kits

$101.24

Power supply:	~100-240V 50Hz/60Hz 150VA
Coolant flow volume:	30~110ml/min
Handle wire:	It is recommended to use no more than 100 sterilization cycles
Pump pipe:	It is recommended to use no more than 8 sterilization cycles
Water temperature:	The water temperature of the normal saline in the recommended infusion bottle or infusion bag is 4°C
Size of Host Machine:	269mmX235mmX141mm
Weight of Host Machine:	3.5 kg

Environment Temperature:	+5 ℃-+40℃
Relative humidity:	20%-80%RH
Atmospheric pressure:	860hPa-1060hPa

Implant unit:	1pc
Bluetooth pedal:	1pc
Piezosurgery handle:	1pc
20:1 contra angle (with light):	1pc
Piezosurgery tips:	6pcs
Piezosurgery wrench:	1pc
Scaler tips:	2pcs
Ultra Ativator tips:	3pcs
Silicone base:	2pcs
Saline water tube:	2pcs
Power line:	1pc

Gear Ratio:	20:1, for implant
Chuck Type:	Push Button
Bur Applicable:	Ø2.35mm
Torque:	55N.cm
Max Speed:	2,000RPM
Warranty:	1 year
Autoclavable:	135°C
Packing:	Handpiece1, Wrench1, Operation manual*1

Instrument Weight:	100g
Power Supply:	~100-240V, 50Hz/60Hz
Power Output:	5VDC 2VA
Accuracy:	±0.5ISQ
Charger Safety Grade:	EN 60601-1-1
Capability of Battery:	900mAh

Battery:	3.7V/1500mAh
Contra Angle:	20:1
Speed:	10~50 rpm
Torque:	10~50 N.cm
Packaging Size:	1909760mm
Mainframe Weight:	158g

Host Machine	*1pc
20:1 Contra Angle	*1pc
Screwdriver	*16pc
Base	*1pc
USB Cable	*1pc
Wrench	*1pc
User Manual	*1pc

Torque Wrench:	15-70Ncm
Autoclavable:	135°C Autoclavable,the box can also be sterilized
Material:	Stainless Steel
Package:	1 pc Wrench. 16 pcs drivers

Model:	CX235C6, #C6-22
Low-speed handpiece:	20: 1 reduction
Chuck type:	Push button
Spray:	Inner channel and external
Bur applicable:	Ø2.35mm(ISO1797-1)
Max speed:	2, 000RPM
Internal cooling system:	Kirschner/ Meyer

Gear Ratio:	20:1 Reduction
Chuck Type:	Push Button
Model:	AZ-ER 20
Bur Applicable:	φ2.345-2.355mm
Spray:	Extemal irrigation system
Max torque:	80Ncm
For:	Compatible with all E-type motors(NSK Aseptico, W&H, Nouvag Acteon)

Electronic Torque Wrench:	10-50N.cm
Autoclavable:	135°C Autoclavable,the box can also be sterilized. Electronic handles can only be alcohol wiped on the surface and cannot be autoclaved.
Material:	Stainless Steel+Plastics
Package:	1 pc Electronic Wrench. 16 pcs drivers

Working Part:	Medical Grade Stainless Steel
Package:	6 pcs drivers

Chuck Type:	Button type chuck
Bur Applicable:	φ2.345-2.355mm
Spray:	Extemal irrigation system
Warranty:	1 Year (6 months for cartridge)

Model:	Electric Torque Driver Motor S
Power Supply:	DC3.7V/1900mAh
Contra Angle:	10:1
Speed range:	10~50 rpm
Torque range:	10~50 N.cm
Power Power Supply:	AC100-240V, 50/60Hz

Main unit:	1
Contra Angle:	1
Protective Case:	2
USB Cable:	1
Base:	1
Adapter:	1
Screwdriver:	16
User Manual:	1

Maximum power:	130VA
Power supply:	AC110V 60Hz
Motor speed	300--40000rpm
Adjustable torque:	5Ncm--80Ncm (20:1)
Water supply volume:	4 blocks adjustable. up to 150ml/min
Light source illumination:	30000 lux
Motor:	surgical brushless motor
Volume(cm)	42x38x26cm
Weight(kg) with case/pcs:	8.7kg
Packing:	Aluminum box

Model:	Implant Bone Trephine Drill
Material:	Excellent Quality Medical Stainless Steel
Style:	Long Type
Diameter:	3.0mm/3.5mm/4.0mm/4.5mm/5.0mm/5.5mm
Package:	6 pcs/Set

Main menu

Implant
