Dental LED Brushless E Type Electric Internal Micro Motor. Designed for clinical precision and durability. Featuring an internal spray and an ISO-E type connector, it offers seamless compatibility and superior cooling. The advanced brushless technology delivers a powerful 3.4 N·cm torque with quiet operation (<60dB). With three versatile gear settings (1:1, 1:5, and 16:1), it provides an expansive speed range from 100 rpm for endodontics up to 200,000 rpm for high-speed preparation, ensuring optimal performance across all dental procedures.
1:1 LED Fiber Optic Push Contra Angle Handpiece. Designed for durability and clinical efficiency. Featuring an internal water spray and a convenient push-button bur exchange system, it operates at a stable speed range of 18,000–25,000 rpm. Built to international ISO standards, it is fully compatible with various E-type motors. The handpiece is constructed to be sturdy and long-lasting, supporting repeated autoclave sterilization at 135°C under high-temperature and high-pressure conditions for maximum hygiene.
| Electric Micro Motor Specification |
| Type of motor: | Brushless motor |
| Water Spray: | Internal Spray |
| Rotation: | 2,000-40,000rpm |
| Optional settings: | 2000rpm-40000rpm(1:1) 10000rpm-200000rpm(1:5) 100rpm-2500rpm(16:1) |
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <60dB |
| Illuminate: | LED(white light) |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| 1:1 LED Contra Angle Handpiece Specification |
| Water Spray: | Inner water spray |
| Chuck Type: | Push button |
| Gear Ratio: | 1:1 with LED |
| Rotation Speed: | MAX40,000rpm/min |
| Bur Applicable: | Φ2.35mm |
| Air Pressure: | 0.3Mpa-0.35Mpa |
| Noise: | ≤68dB |
| Brightness: | 32000Lux |
| Sterilization: | 135°C Autoclavable (High-temperature/High-pressure) |
| Packing List |
| Micromotor: | 1 PC |
| Control unit: | 1 PC |
| Micromotor tube: | 1 PC |
| Power adaptor: | 1 PC |
| Operation manual: | 1 PC |
| Handpiece: | 1 PC |
| Wrench: | 1 PC |
| Operation manual: | 1 PC |
Dental LED Brushless E Type Electric Internal Micro Motor. Designed for clinical precision and durability. Featuring an internal spray and an ISO-E type connector, it offers seamless compatibility and superior cooling. The advanced brushless technology delivers a powerful 3.4 N·cm torque with quiet operation (<60dB). With three versatile gear settings (1:1, 1:5, and 16:1), it provides an expansive speed range from 100 rpm for endodontics up to 200,000 rpm for high-speed preparation, ensuring optimal performance across all dental procedures.
1:1 LED Fiber Optic Push Contra Angle Handpiece. Designed for durability and clinical efficiency. Featuring an internal water spray and a convenient push-button bur exchange system, it operates at a stable speed range of 18,000–25,000 rpm. Built to international ISO standards, it is fully compatible with various E-type motors. The handpiece is constructed to be sturdy and long-lasting, supporting repeated autoclave sterilization at 135°C under high-temperature and high-pressure conditions for maximum hygiene.
| Electric Micro Motor Specification |
| Type of motor: | Brushless motor |
| Water Spray: | Internal Spray |
| Rotation: | 2,000-40,000rpm |
| Optional settings: | 2000rpm-40000rpm(1:1) 10000rpm-200000rpm(1:5) 100rpm-2500rpm(16:1) |
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <60dB |
| Illuminate: | LED(white light) |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| 1:1 LED Contra Angle Handpiece Specification |
| Water Spray: | Inner water spray |
| Chuck Type: | Push button |
| Gear Ratio: | 1:1 with LED |
| Rotation Speed: | MAX40,000rpm/min |
| Bur Applicable: | Φ2.35mm |
| Air Pressure: | 0.3Mpa-0.35Mpa |
| Noise: | ≤68dB |
| Brightness: | 32000Lux |
| Sterilization: | 135°C Autoclavable (High-temperature/High-pressure) |
| Packing List |
| Micromotor: | 1 PC |
| Control unit: | 1 PC |
| Micromotor tube: | 1 PC |
| Power adaptor: | 1 PC |
| Operation manual: | 1 PC |
| Handpiece: | 1 PC |
| Wrench: | 1 PC |
| Operation manual: | 1 PC |

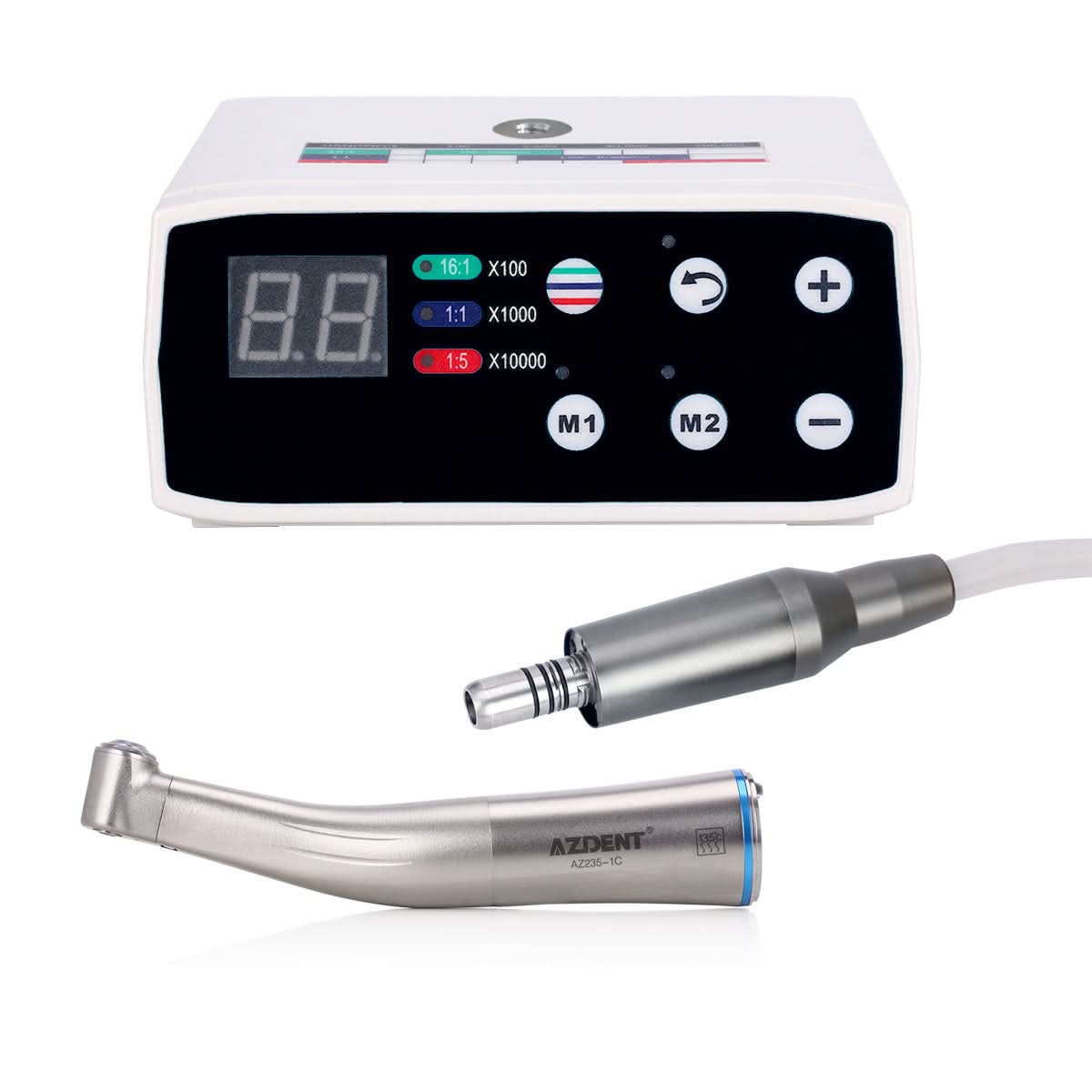

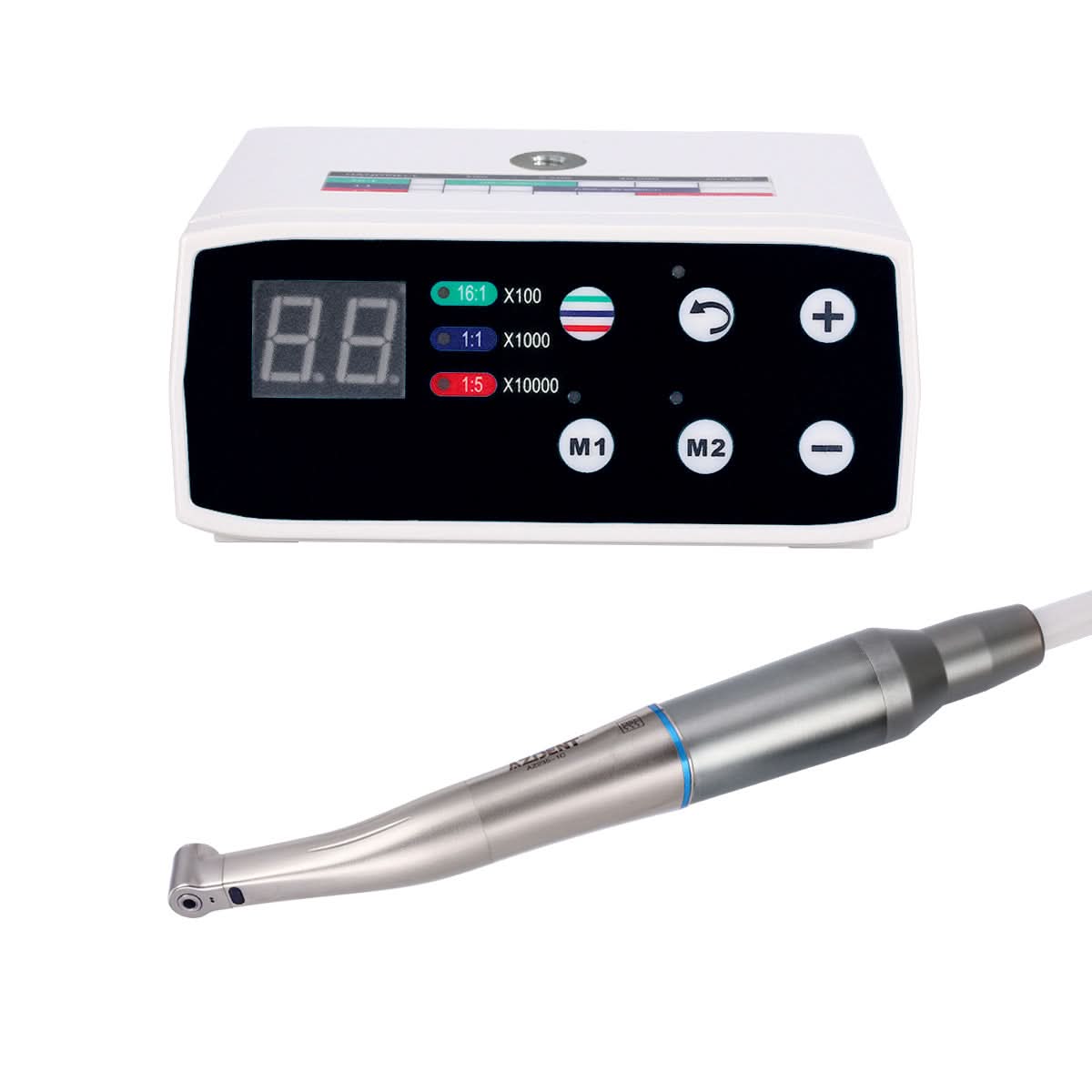

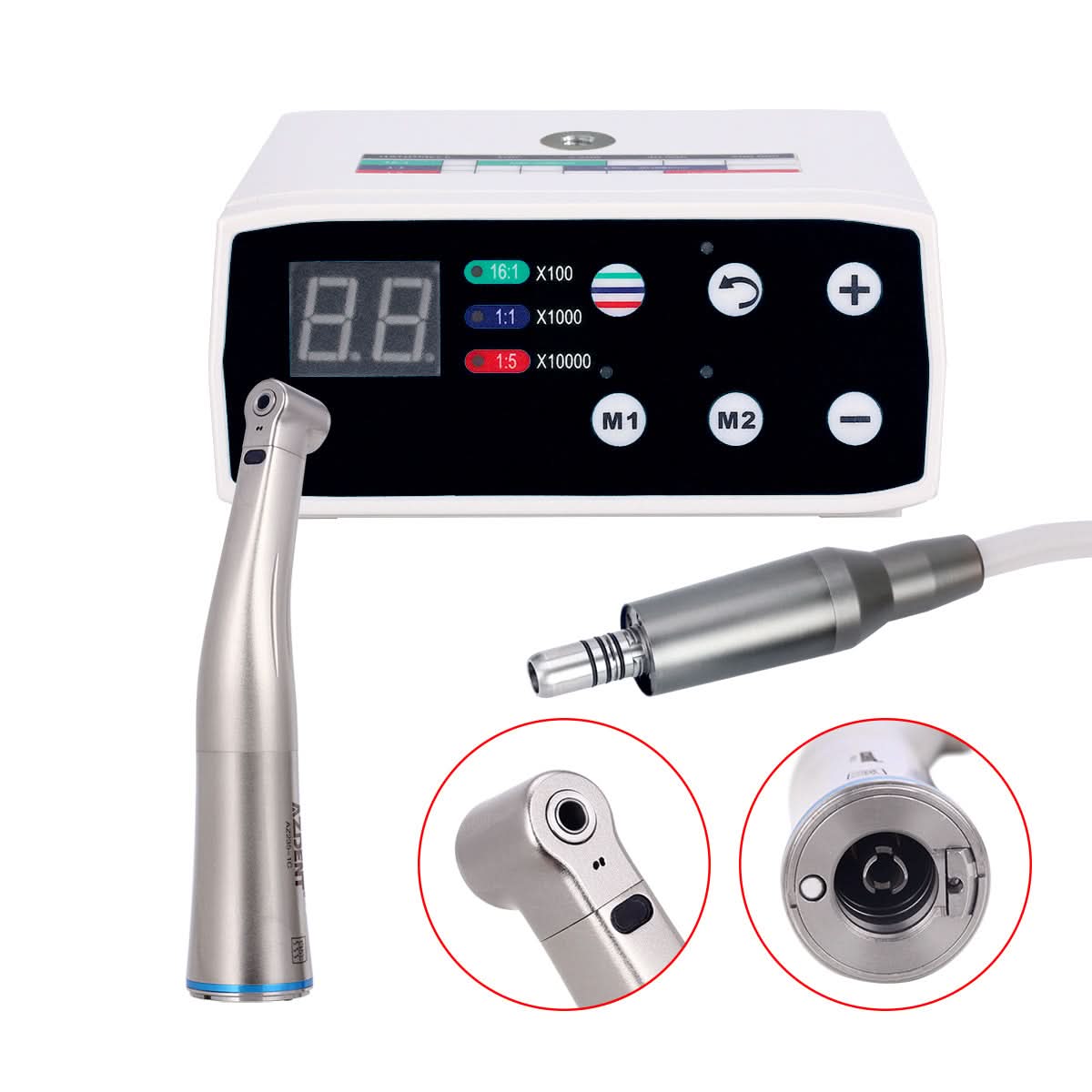

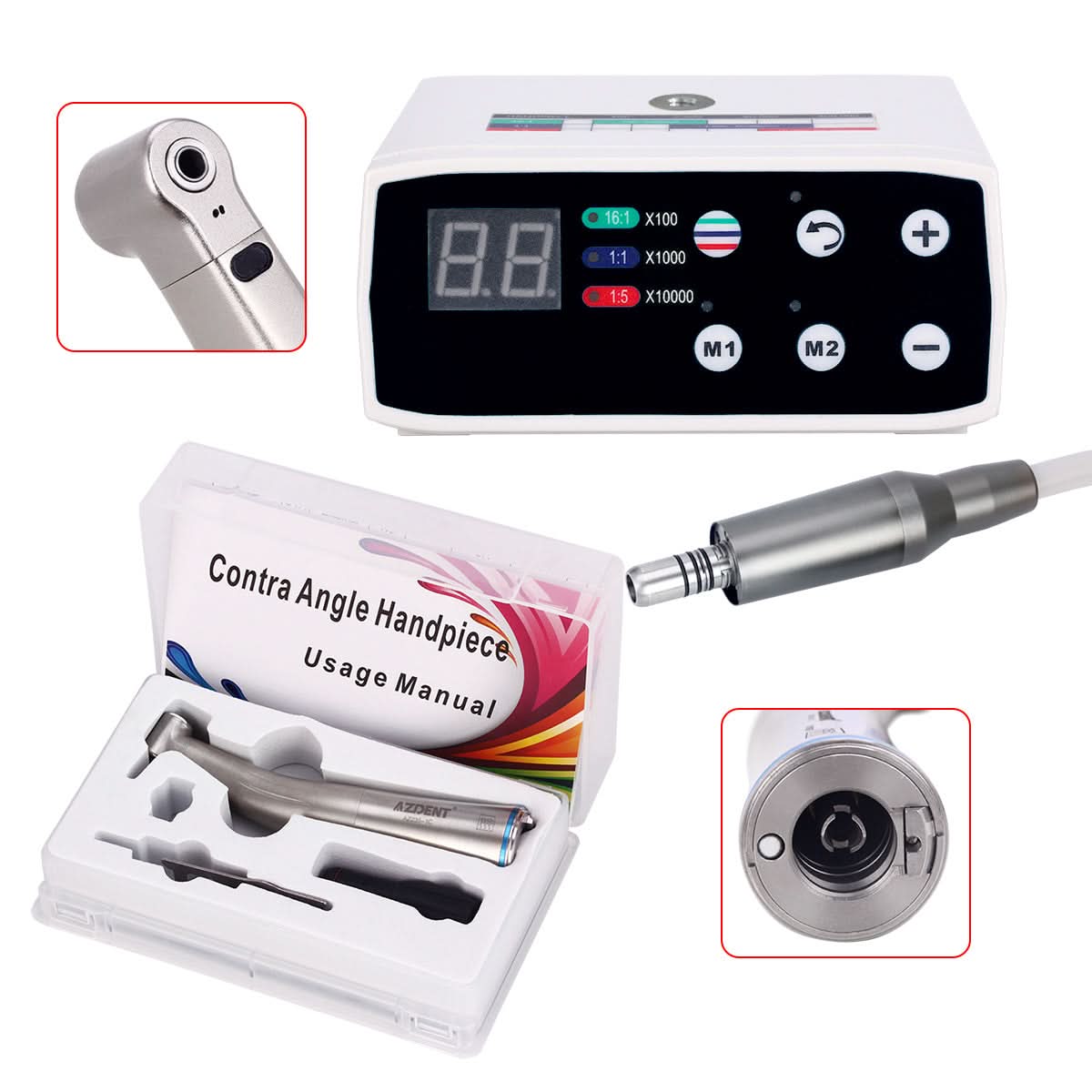

LED Brushless E Type Electric Micro Motor + 1:1 LED Fiber Optic Push Contra Angle Handpiece
$224.37
