Endodontics

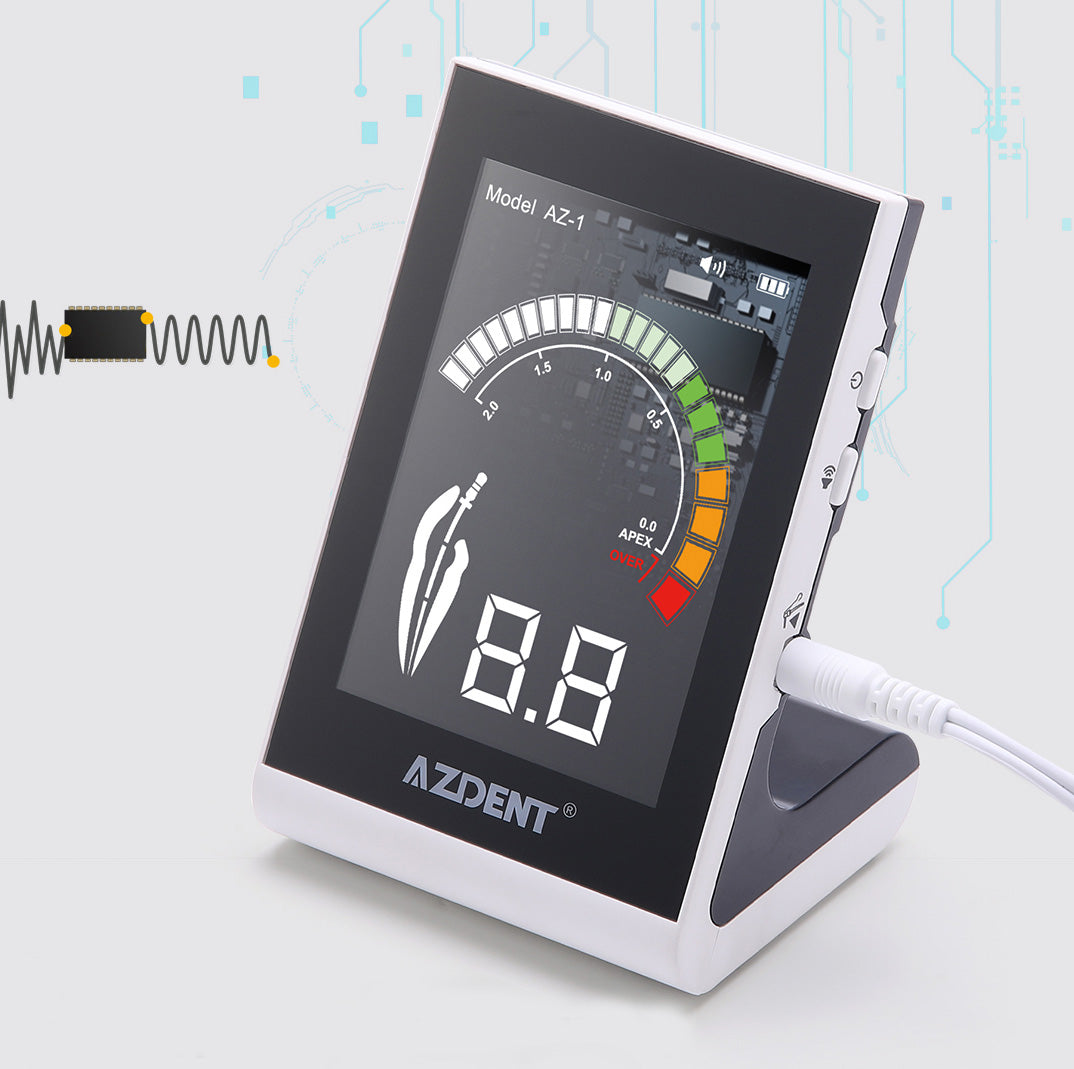

Dental Endo Apex Locator Multi-color Screen Touch Inductive Button. The one-button operation, simple and convenient. High testing accuracy, widely used in different oral environment. Automatic calibrating ensures the measurements are accurate. The File clip, Lip hook and Touch probe can be sterilized by autoclaved sterilizer. Small size, big ability, more accurate multi-frequency measurement. The measurement is not affected by the types of teeth.

Attention:
Transportation restrictions, no batteries. Batteries need 1.5V*3.

Features:

• The one-button operation, simple and convenient.

• High testing accuracy, widely used in different oral environment.
• Automatic calibrating ensures the measurements are accurate.
• The File clip, Lip hook and Touch probe can be sterilized by autoclaved sterilizer.
• Small size, big ability, more accurate multi-frequency measurement. The measurement is not affected by the types of teeth.

Packing List:

Dental Wireless Endo Motor With 16:1 Electric Contra Angle 9 Programs. The equipment will auto-reverse or auto reverse & stop, auto-stop according to different torque and resistance. Electric contra angle are autoclave sterilization up to 135℃. Built-in recharging and high capacity battery not only brings convenience of replace battery, but also save the cost. Light weight, ergonomic design, easy to carry.

Features：

• With 16:1 electric contra angle.
• The equipment will auto-reverse or auto reverse & stop, auto-stop according to different torque and resistance.
• Electric contra angle are autoclave sterilization up to 135℃
• Built-in recharging and high capacity battery not only brings convenience of replace battery, but also save the cost.
• Light weight, ergonomic design, easy to carry.
• There are 9 kinds of procedures for selection.
• Note: The current model of our endodontic motor does not have a waveone function.
  Our motor is designed with a range of features and modes, but it does not include the specific rotation pattern required for thed WaveOne system.
  After you load the file, you need to adjust the parameters (speed and torque) in the product by yourself.

Technical Parameter：

• Handle lithium battery: 3.7V/800mAh
• Input: AC100V-240V;50Hz/60Hz
• Output: DC5V/1A
• Range of torque: 0.3Ncm-4 .0Ncm (3mNm~ 40mNm)
• Range of speed: 140rpm-550rpm
• Program: 9 programs
• Rotation: 9 kinds

Working Modes：

•
  Continuous working mode: Automatic Forward and Reverse Cycle after encountering resistance,it will automatically reverse.If there is no resistance after reversing,it will continue to work forward.


•
  Left and Right Reciprocating Motion


•
  Continuous Forward Rotation: Automatically stop when encountering obstacles Left and Right Reciprocating Motion.


•
  Reverse Continuous: torque limit mode.


•
  Continuous Forward Rotation: Stop automatically after encountering resistance after encountering resistance,it will automatically reverse.If there is no resistance after reversing, it will stop working.



Packing list：

• Root Canal Host *1
• 16:1 Contra Angle *1
• USB Cable *1
• Wrench *1
• Oil Nozzle *1
• User Manual *1

Woodpecker Woodpex III Apex Locator. 4.5" LCD, For Dental Endodontic Root Canal Treatment Measurement. Folding Upgraded Chip, Innovation Algorithm. High Accuracy Rate.High Sensitivity. FDA Approved. One Year Warranty.

Features:

• Upgraded chip, innovation algorithm, high sensitivity.

• Folding, easy to adjust the visual angle.
• Equipped with clear bright 4.5’’LCD, clear image and different colors indicate the trajectory of the file clearly.
• Innovative algorithm, multi-frequency measurement, and anti-interference.
• Based on advanced multiple frequency network impedance measurement technology and automatic calibrating ensures the measurements are accurate. The accuracy rate has been improved to 97.71%.
• The accessories of the “WOODPEX III” can be autoclaved under the high temperature and high pressure. Avoiding cross infection effectively.
• Rechargeable lithium battery, unnecessary to replace batteries repeatedly.
• Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex.
• Apex locator is a supporting equipment of endodontic treatment, through the measurement of the length of apical teeth, helping dentists to finish the endodontic treatment.

Technical Parameter:

• Adapter: 100V~240V, 50Hz/60Hz
• Consumption power: ≤0.5W
• Battery: 3.7V/ 750mAh
• Screen: 4.5’’ LCD
• Weight: 0.74lb (336g)
• Dimension: 3.3"×3.5"×4.4" (84mm×88mm×112mm)

Packing List:

Direction to Use:

• When the file reached the front region of the apical foramen, the white bars displayed.
• When the file has gone to the position near by the apical foramen, the green bars displayed.
• When the file has exceeded the apical forament, the red bars displayed. A continuous beep sound will be generated at the same time.

Warranty:

• We offer ONE years free repair on main unit and six months on spare parts from the date of purchase with warranty card.

Using Traditional Measuring Methods:

• Handing Method:

• X-raying Method:

Woodpecker E-COM Plus, E-COM+ Cordless Endo Motor Handpiece, Premium Latest Model, Effectively Prevent Needle Breakage, OLED-Screen, Maximum Compatibility, 9 User-defined Modes with Reciprocating Mode, Endodontic Root Canal Molding and Cleaning in Treatment, One Year Warranty.

The product does not come with WaveOne system. Our engineers recommend adjusting the torque and speed yourself. Additionally, the set parameters can be saved, eliminating the need to re-set them again.Settings: Speed 350, Torque 4.0, Forward 30°, Reverse 130°

Overview:

• E-COM + is mainly used in EndodoAdopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.
• E-COM + can be connected to the matched Apex locator to add an apex locator function. By connecting the E-COM + to the matched Apex locator, the position of the file tip inside the canal can be monitored during the procedure and many automatic functions such as Auto Apical Reverse can be activated.

Features:

• Effectively Prevent Needle Breakage

Adopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.

• Preset Various File Systems

Preset various file systems so that the dentist can directly choose the file system that they need,which brings dentists convenience while they need to use different kinds of files.

• Maximum Compatibility

Wide torque & speed range make it adapt to various file systems such as FKG,XP-endo,and Shaper in the market.
Recommended speed is 800-1000rpm.

• Cordless Handpiece

Flexible use & easy storage without tail cord Human friendly design brings better holding feeling.

• All-angle OLED Screen

Without visual angle limit,clear display can be guaranteed even under strong light.
Available display of speed,torque, and Battery Consumption

• Customization 9 user-defined modes

Storage of 9 user-defined modes allows invocation at any time.
Under each mode,continuous motion,reciprocating motion,and reverse motion are for options.
Torque and speed is adjustable.

• Imported Motor 15.5:1

Reduction ratio endows strong power and efficient cutting.
Durable planet gear gearbox prolongs service life of device

• Nimble & Autoclavable Contra-angle

Contra-angle can be autoclaved to avoid cross-infection.Adjustable angle make it available for different teeth positions small & exquisite head provides unobstructed views.

• Automatic Torque Calibrating

Choose Torque Calibrating mode to automatically calibrate torque,reducing the torque fluctuation caused by contra-angle replacement or sterilization under high temperature and high pressure

Technical Parameter:

• Battery: Lithium battery in handpiece, 3.6V /750mAh
• Power input: ~100V-240V, 50Hz/60Hz, 0.4A(Max)
• Power output: DC5V/1A
• Torque: 0.6Ncm-5.0Ncm(6mNm ~ 50mNm)
• Rotate speed: 100rpm~1000rpm

Environment Parameters:

• Environment temperature: +5℃ ~ +40℃
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa ~ 106kPa

Packing List:

• Charging base *1
• Motor handpiece *1
• Contra-angle *1
• Lubricator *1
• Adapter *1
• Disposable insulation sleeves *1
• Qualified certificate *1
• Instruction manual *1
• Warranty card *1

The Contra Angle Instructions:

• Before the first use and after treatments, please clean and disinfect contra-angle with disinfectant of neutral PH value.
• After disinfection, lubricate it with specific cleaning oil.
• Finally, sterilize it under high temperature and high pressure (134℃, 0.2MPa~0.23MPa).

Warranty:

One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.

*Please Notice:

The contra-angle can only be used cooperatively with this device. Otherwise the contra-angle will be damaged.

Woodpecker Dental Endo Fi-G & Fi-P Cordless Gutta-Percha Obturation System.
The Fi-P (Heat & Packing Pen) and Fi-G (Hot Melting & Filing Gun) conjunction with each other for the ultimate gutta-percha obturation system for your root canal procedures. 4 Working Temperatures. Efficient and Safe Work in Root Treatment. High-capacity Battery. One Year Warranty.

Fi-P

Features

• With high-precision temperature control and a heating speed of 0.2 seconds, it ensures efficient and safe work.
• With 4 working temperatures(150ºC, 180ºC, 200ºC, 230ºC) that adapt to the different Gutta-Perchas on the market.
• High-capacity battery with up to 4 hours of autonomy (1,500 operations on a full charge).
• Its dual-directional display facilitates both left- and right-handed operation.
• Pre-curved 0.35 mm Attackers/Pluggers: the thinner tips can penetrate deep into the narrow root canal, even in lateral roots.

Technical Parameter

• Handpiece weight: 80g.
• Battery capacity 2.000 mAh
• Recharging time: 2,5 hours
• Autonomy duration: 1,500 operations
• Preset temperatures: 150ºC, 180ºC, 200ºC, 230ºC
• Warm-up time: in 0.2 seconds

Picking List

• Fi-P Main unit *1
• Charging stand *1
• Power adapter *1
• WP4004 tip *1
• WP4504 tip *1
• WP5506 tip *1
• WP5508 tip *2
• Heat insulation sleeve of tips *4
• Instruction manual *1
• Qualified certification *1
• Warranty card *1
• Packing list *1

Fi-G

Features

• With high precision temperature control and a heating speed of 15 seconds ensures efficient and safe work.
• With 4 working temperatures(150ºC, 180ºC, 200ºC, 230ºC) that adapt to the different Gutta-Perchas on the market.
• 0.5mm Injection needles for precise obturation and perfect filling. In addition, the tip can rotate 360º to facilitate obturation at any angle.
• High-capacity battery with up to 4 hours of autonomy (1,500 operations on a full charge).
• Dual direction display facilitates both right and left-handed operation.

• Handpiece weight: 170g.
• Base weight: 207g.
• Battery capacity 2.000 mAh
• Recharging time: 2,5 hours
• Autonomy duration: 1,500 operations
• Preset temperatures: 150ºC, 180ºC, 200ºC, 230ºC
• Warm-up time: 15 seconds.

• Fi-G Main unit *1
• Charging stand *1
• Power adapter *1
• 23G 24mm Needle *1
• 23G 28mm Needle *1
• 25G 24mm Needle *2
• Heat insulation hood *2
• Heat insulation sleeve of needle *1
• Pushing ram *1
• Brush *2
• Wrench of needle *1
• Instruction manual *1
• Qualified certification *1
• Warranty card *1
• Packing list *1

Warranty

One year warranty (not including customer damages).

Woodpecker DTE DPEX V Apex Locator. Rose Gold The Fifth Generation 4.5" LCD Connectable Endo Motor. More Accurate and Intuitive Measurement. Clear View and Sound. Apical Stop Setting. Folding Upgraded Chip, Innovation Algorithm. High Sensitivity. Multi-configuration. Can be Used in Endodontics for Precise Determination of Working Length. One Year Warranty.

Overview:

• An electronic apex locator is an electronic device used in endodontics to determine the position of the apical constriction and thus helps in determining the precise working length.
• Using the latest multi-frequency apical positioning technology, Woodpecker DTE DPEX V Apex Locator avoids the influence of subjective factors of measurement results.
• Measuring results are not affected by the tooth type, effects of root canal orifice size, root canal internal environment.
• It shows real-time display of the moving file in the root canal.

Features:

• Accurate: Eliminate interference. Inherit multi-frequency apex positioning technology. Add DSP data processing system. Combined with clinical big data fitting, it can ensure accurate measuring even there are residual pulp and blood in the root canal.

• Simple, Clear View and Sound. Zoom in on the apical 1/3 narrow part. Subdivision from 11-19. More accurate and intuitive measurement trajectory, effectively preventing perforation. When the file is less than 2mm from the apical foramen, there will be intermittent low-frequency beeps prompt.
  When the file approaches the apical foramen, the sound gradually rushed. When the file reaching the preset position of the apex, there will be continuous high-frequency beeps prompt.
  The sound level can be adjusted, and the position can be distinguished by sound, making measurement easier.

• Apical Stop Setting. Add the apical stop alarm function. The alarm position can be adjusted freely according to clinical needs. Flexible seeting, timely remined to measure distance. Reposition the display location of 0.5mm from the apical foramen.

• New Digital Circuit Industry recognized U.S. central processing chip. Information processing speed increased by Adopt high-precision components imported from Japan. High resolution signal without distortion. Automatic calibration during 0.5s booting.

• Multi-configuration. File clip x4; Lip hook x5; Probing x2

Technical Parameter:

• Adapter: 100V~240V, 50Hz/60Hz
• Consumption power: ≤0.5W
• Battery: 3.6V/ 750mAh
• Screen: 4.5’’ LCD
• Weight: 0.74lb (336g)
• Dimension: 3.3"×3.5"×4.4" (84mm×88mm×112mm)

Packing List:

Intend to Use: This equipment applies to the measurements below:

• Measurement of pulpitis, pulp necrosis, periapical periodontitis and tooth length.
• Measurement of the tooth length before restoration of post crown.
• Measurement of the tooth length of transplantation and retransplantation.

Warranty: We offer ONE years free repair on main unit and six months on spare parts from the date of purchase with warranty card.

Dental Endo Apex Locator Apex-X Root Cancal 3.2' LCD Screen. Accurate measurements. Compact size and stable design. Advanced multi-frequency network technology, Buzzer alert.

Dental Endodontic Endo Apex Locator Root Canal Measurement Tool. Advanced multi-frequency network technology, more accurate. Clear and simple result presentation. Smooth body line with ergonomics design.

Dental Endodontic Hand Use K-Files Stainless Steel #15-80 25mm 11 Models 6pcs/Pk.

• High quality Stainless Steel with high quality cutting efficiency.
• Good flexibility and fracture resistance, Diamond-shape cross section.
• With fixed plastic washer and handle.
• Maximum temperature of sterilization is 150℃
• Material: Stainless Steel
• Package: 6Pcs/Pack

Dental Endodontic Hand Use K-Files Stainless Steel 21mm #15-80 11 Models 6pcs/Pk.

• High quality stainless steel with high quality cutting efficiency.
• Good flexibility and fracture resistance, Diamond-shape cross section.
• With fixed plastic washer and handle.
• Maximum temperature of sterilization is 150℃.
• Material: Stainless Steel.
• Package: 6Pcs/Pack.

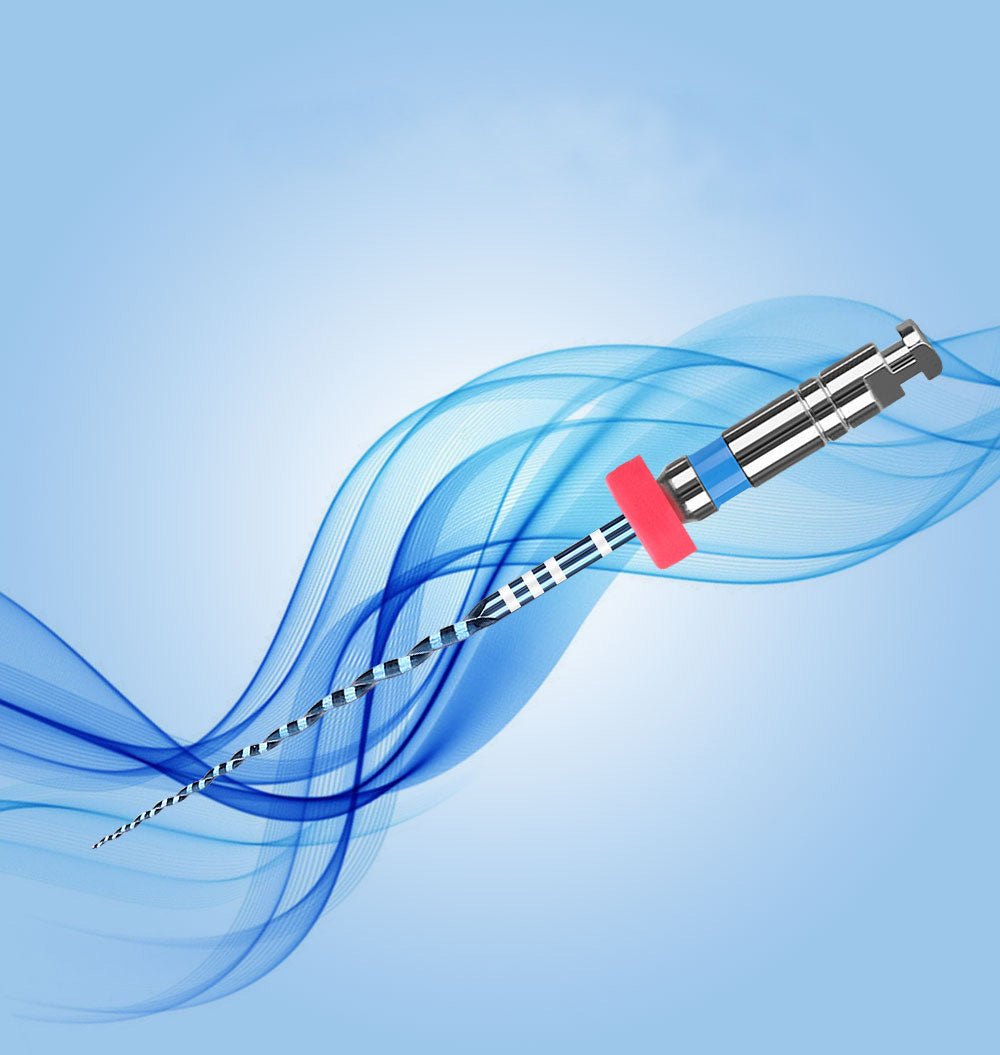

Dental Endo Blue Engine Use Rotary File Root Canal 21/25mm Taper.04/.06 #15-40 6pcs/Pack. This file utilizes a unique approach in wire processing that increases cyclic fatigue resistance and improves torque strength.  Our files are advantageous in curved canals.

Dental Rotary Engine Super Files Rainbow Files 25mm Endo NiTi Thermal Activation Accessories Endodontic For Root Canal Files Cleaning Dentist Use 6pcs/Pack. Engine Use, heat activated,can be pre-bent. With precise processing technology, products in good flexibility, high quality cutting efficiency and fracture resistance. Compatible with all major rotary motors in the market.

Dental Endo NiTi Rotary Engine Files Heat Activated 19mm SX 6pcs/Pk. For engine use. High quality NiTi. Pre bended design. Good flexibility, high quality cutting efficiency and fracture resistance.

Dental Endo NiTi Rotary Files Heat Activated 25mm Assorted SX-F3 6pcs/Pack. Made of a nickel-titanium alloy. Engine Use, heat activated, can be pre-bent. Good flexibility, high quality cutting efficiency and fracture resistance.

Dental Endodontic NiTi Rotary Engine Files Root Canal 25mm Assorted SX-F3 6pcs/Pack. For engine use. High quality NiTi. Pre bended design. Good flexibility, high quality cutting efficiency and fracture resistance.

Dental Endodontic NiTi Rotary Engine Files Gold Taper 25mm Assorted SX-F3 6pcs/Pk. Engine Use. Unique designed 6 files system (SX S11 S2 F1 F2 F3). Increased flexibility. Greater resistance to cyclic fatigue. Compatible with all major rotary motors in the market.

Dental Endodontics NiTi H-Files Hand Use 25mm Assorted #15-40 6pcs/Pack.

• Model: H-Files Hand Use
• Material: High quality nickel-titanium
• Length: 25mm
• Size: Assorted #15-40
• Packaeg: 6pcs/Pack

Dental Endodontics NiTi K-Files Hand Use 25mm Assorted #15-40 6pcs/Pack.

• Model: K-Files Hand Use
• Material: High quality nickel-titanium
• Length: 25mm
• Size: Assorted #15-40
• Packaeg: 6pcs/Pack

Dental Endodontics C Files Hand Use Stainless Steel 25mm #6 #8 #10 Assorted 6pcs/Pack. For severely curved or calcified root canals. Special steel alloy with uniform structure for maximum resistance to fracture and maximum flexibility.

• Model: C-Files Hand Use
• Material: High quality Stainless Steel
• Length: 25mm
• Size: #6 #8 #10 Assorted
• Package: 6pcs/Pack

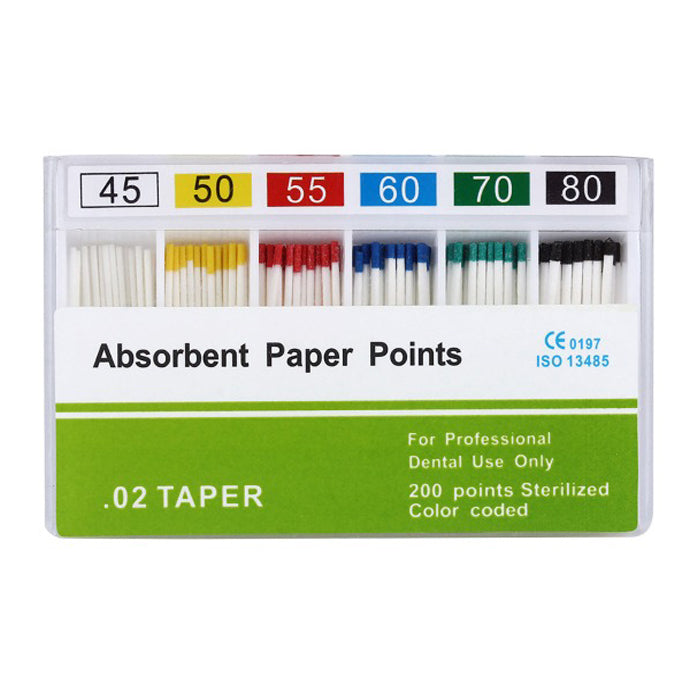

Dental Absorbent Paper Points 0.02 Taper #15-40 Color Coded 7 Models 200pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.04 Taper #15-40 Color Coded 7 Models 100pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.06 Taper #15-40 Color Coded 7 Models 100pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Gutta Percha Points 0.02 Taper 15-40# Color Coded 7 Models 120pcs/Pack. Excellent radiopacity. Uniform and non-distorting crimp. Long shelf life and freshness assured. Suitable for vertical and lateral condensation

• Universal Gutta Percha Points match the shape of the the Universal Finishing Files and are colour-coded for easy identification.
• Available in sizes F1, F2, F3, and F1-F3 assortment packs with 60 Universal Gutta Percha Points per pack.
• The advanced Universal Gutta Percha Points have been specifically designed for both cold and warm obturation techniques.

Features:

• For all warm or cold obturations.
• The high quality level of our gutta-percha points offers you the precision required for optimal obturation results.
• Reliable insertion down to the apex. Taper: from 0.02 to 0.06.
• Available in monochrome white in order to avoid tooth darkening.

Endodontic Dental Instruments Endo Rulers Gutta Percha Cutter Measuring Ruler Span Measure Scale. Compact and Lightweight, space saving and portable. Can be Sterilized. High-quality Plastic Material.

Dental Absorbent Paper Points F Series Assorted F1 F2 F3 Color Coded 100pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.02 Taper Assorted 45-80# Color Coded 200pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.02 Taper Assorted #15-40 Color Coded 200pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.04 Taper Assorted #15-40 Color Coded 100/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Absorbent Paper Points 0.06 Taper Assorted #15-40 Color Coded 100pcs/Pack. For dental root endodontics. Hard and resilient, easy to use. Good hydrophilia and no viscidity. Tip colors avoid confusion of various types.

Dental Gutta Percha Points 0.04 Taper Assorted 15-40# Color Coded 60pcs/Pack

• Uniform and non-distorting crimp
• Excellent radiopacity
• Long shelf life and freshness assured
• Suitable for vertical and lateral condensation

Notice:

• For Professional Dental Use Only.

• Do not autoclave or heat sterilize in a cool place.

• Contains: Guttta Percha, Zinc Oxide, Barium Sulfate, Coloring Agent.

Dental Gutta Percha Points 0.06 Taper Assorted 15-40# Color Coded 60pcs/Pack

• Uniform and non-distorting crimp
• Excellent radiopacity
• Long shelf life and freshness assured
• Suitable for vertical and lateral condensation
• Variety in the selection of sizes and packaging

Notice:

• For Professional Dental Use Only.

• Do not autoclave or heat sterilize in a cool place.
• Contains: Guttta Percha,Zinc Oxide,Barium Sulfate,Coloring Agent.

• Universal Gutta Percha Points match the shape of the the Universal Finishing Files and are colour-coded for easy identification.
• Available in sizes F1-F3 assortment packs with 60 Universal Gutta Percha Points per pack.
• The advanced Universal Gutta Percha Points have been specifically designed for both cold and warm obturation techniques.

Features:

• For all warm or cold obturations.
• The high quality level of our gutta-percha points offers you the precision required for optimal obturation results.
• Reliable insertion down to the apex. Taper: from 0.02 to 0.06.
• Available in monochrome white in order to avoid tooth darkening.

Dental Gutta Percha Points 0.02 Taper Assorted 15-40# Color Coded 120pcs/Pack

• Uniform and non-distorting crimp
• Excellent radiopacity
• Long shelf life and freshness assured
• Suitable for vertical and lateral condensation

Notice:

• For Professional Dental Use Only.

• Do not autoclave or heat sterilize in a cool place.

• Contains: Guttta Percha,Zinc Oxide,Barium Sulfate,Coloring Agent.
