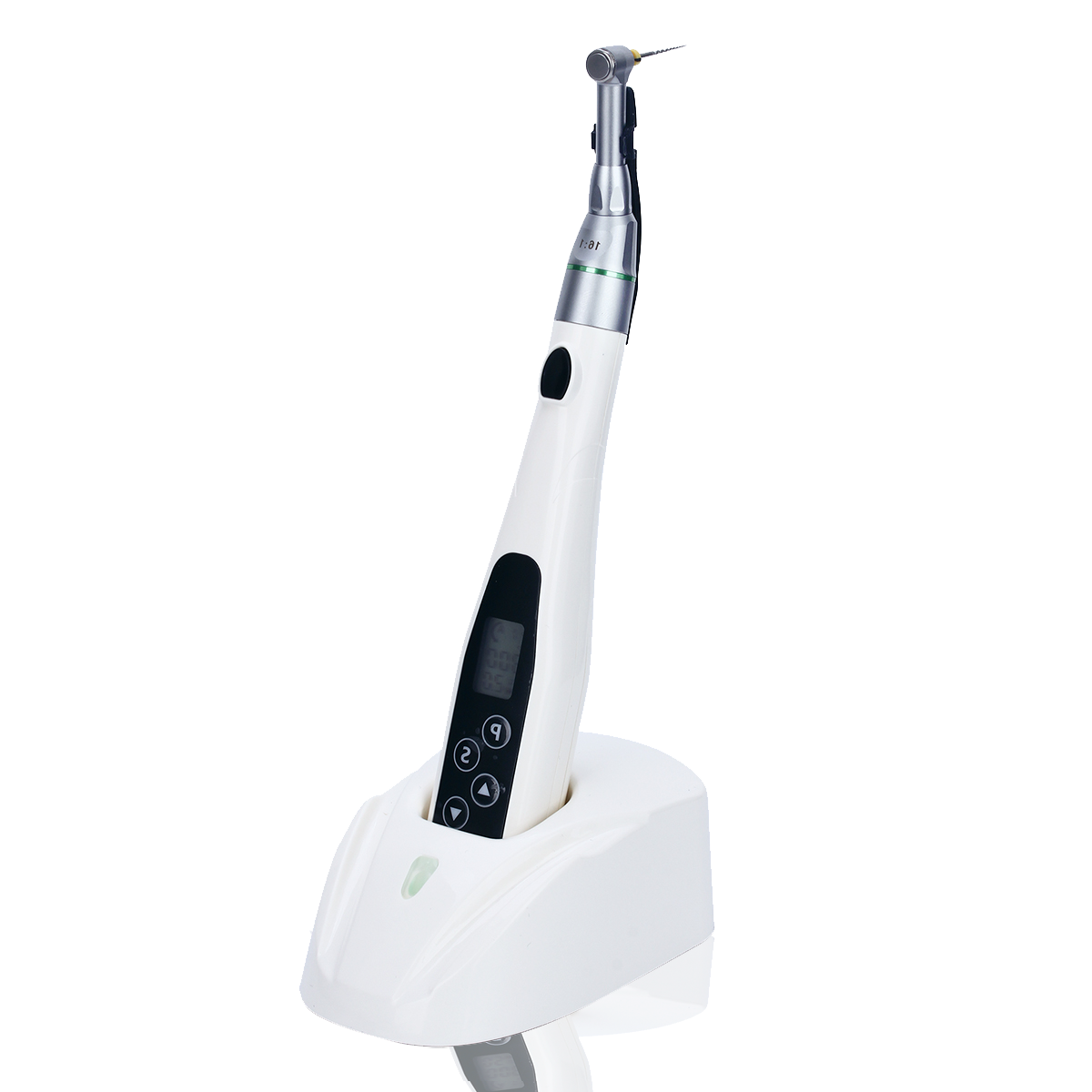

Mini Cordless LED Endo Motor Handpiece 16:1 Reduction Contra Angle 6 Memory Set

Mini Cordless LED Endo Motor Handpiece 16:1 Reduction Contra Angle 6 Memory, 6 Kinds of Procedures(Memory set) For Selection, With High Brightness LED Lamp.

Overview

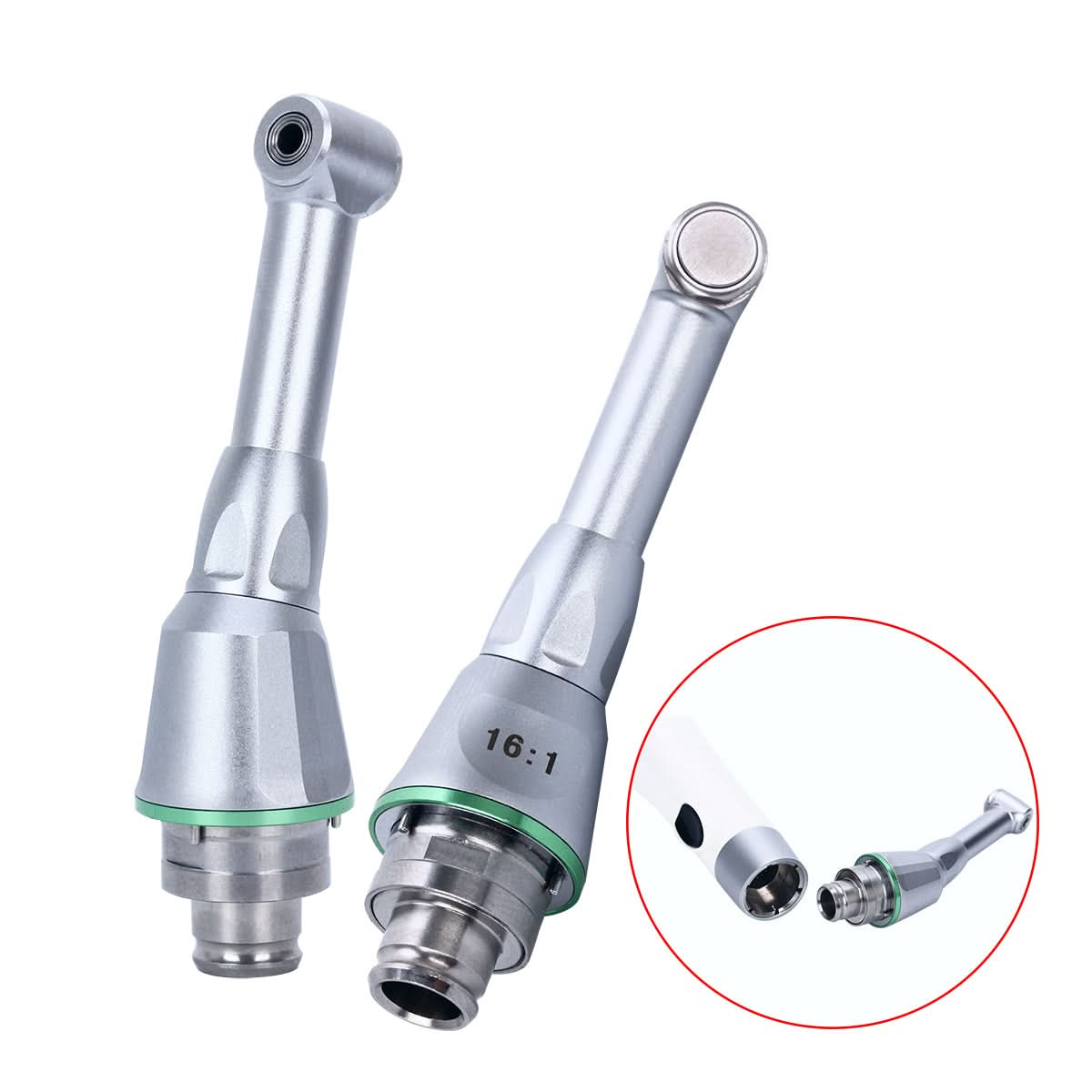

  • When operating, using mini push button 16:1(left and right reciprocating) dental contra-angle handpiece to coordinate the machine files(hand files).
  • There are 6 kinds of procedures(Memory set) for selection. It can input the optimum data in advance, and also can modify it according to the working conditions in use.
  • Soft start and soft stop can be achieved and the operation is more comfortable. Simultaneously, it will not break the needle when root canal files encounter instantaneous shock.
  • Dental contra-angle Handpiece and lamp holder can withstand 135°C high temperature and high pressure sterilization.
  • Built-in high-capacity lithium battery, so it can reduce battery change times and reduce costs for machine.

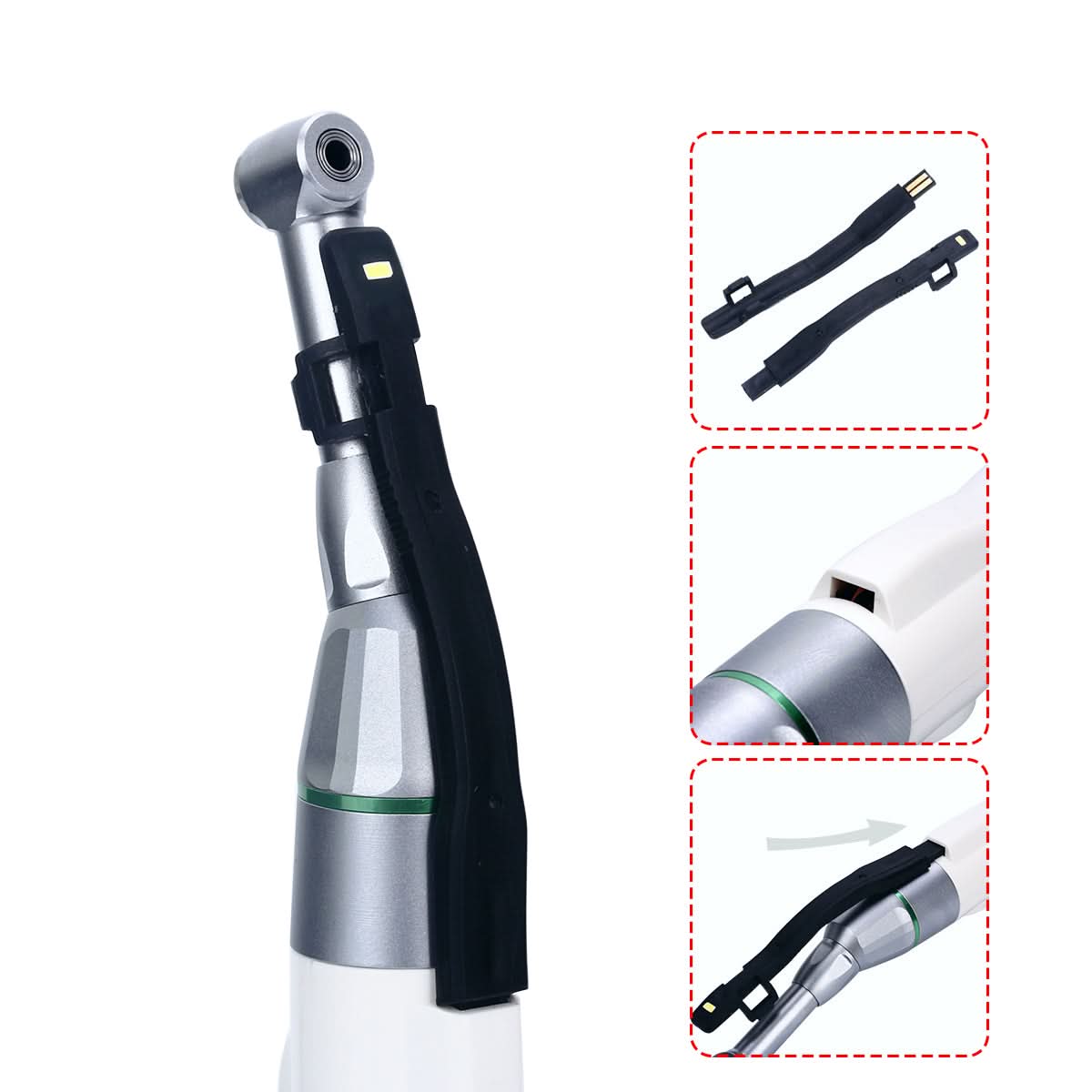

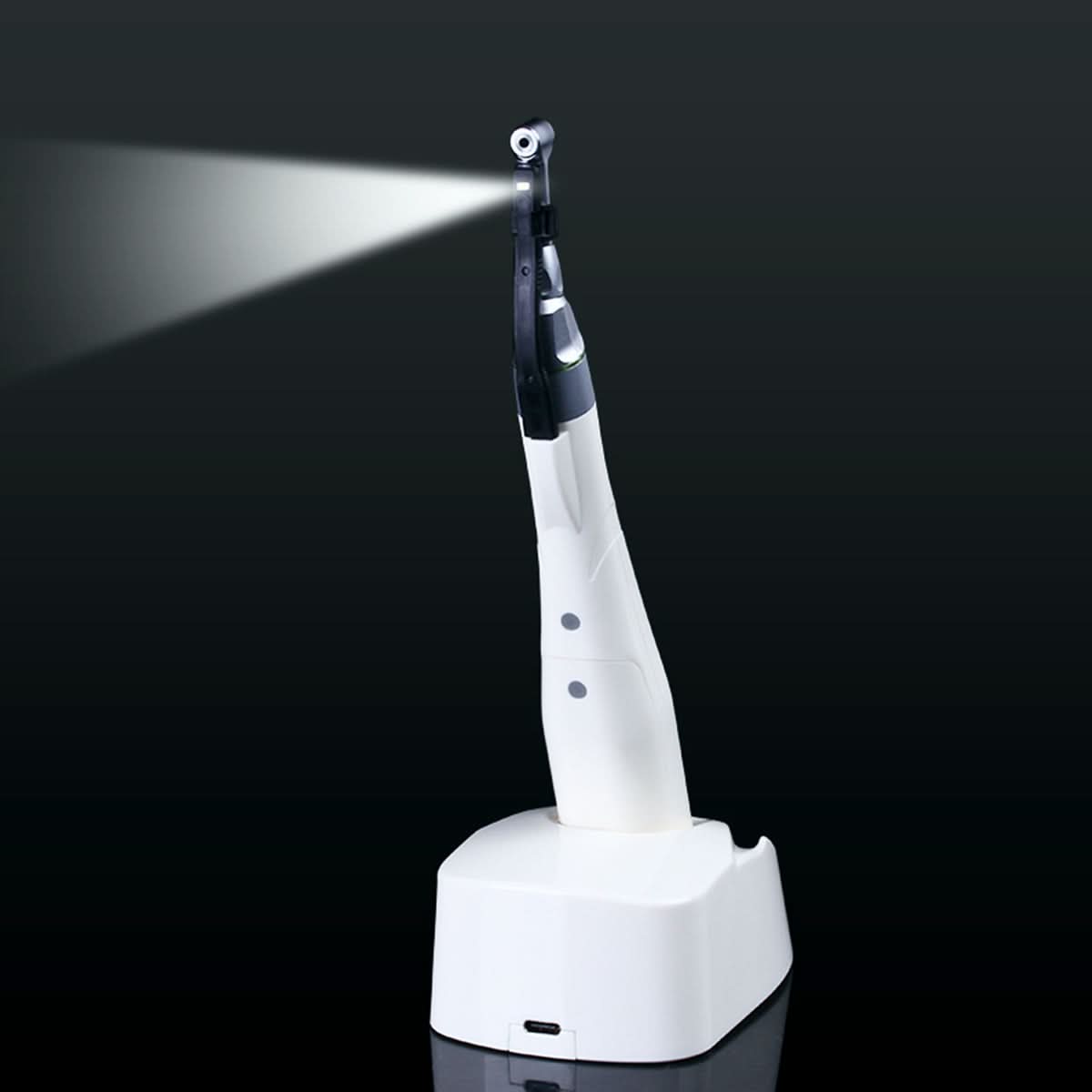

  • With LED lamp and high brightness, it can help doctors get a better look at the root canal environment.
Ratio RPM Torque(N.cm)
16:1 150-500 0.6 – 4.0

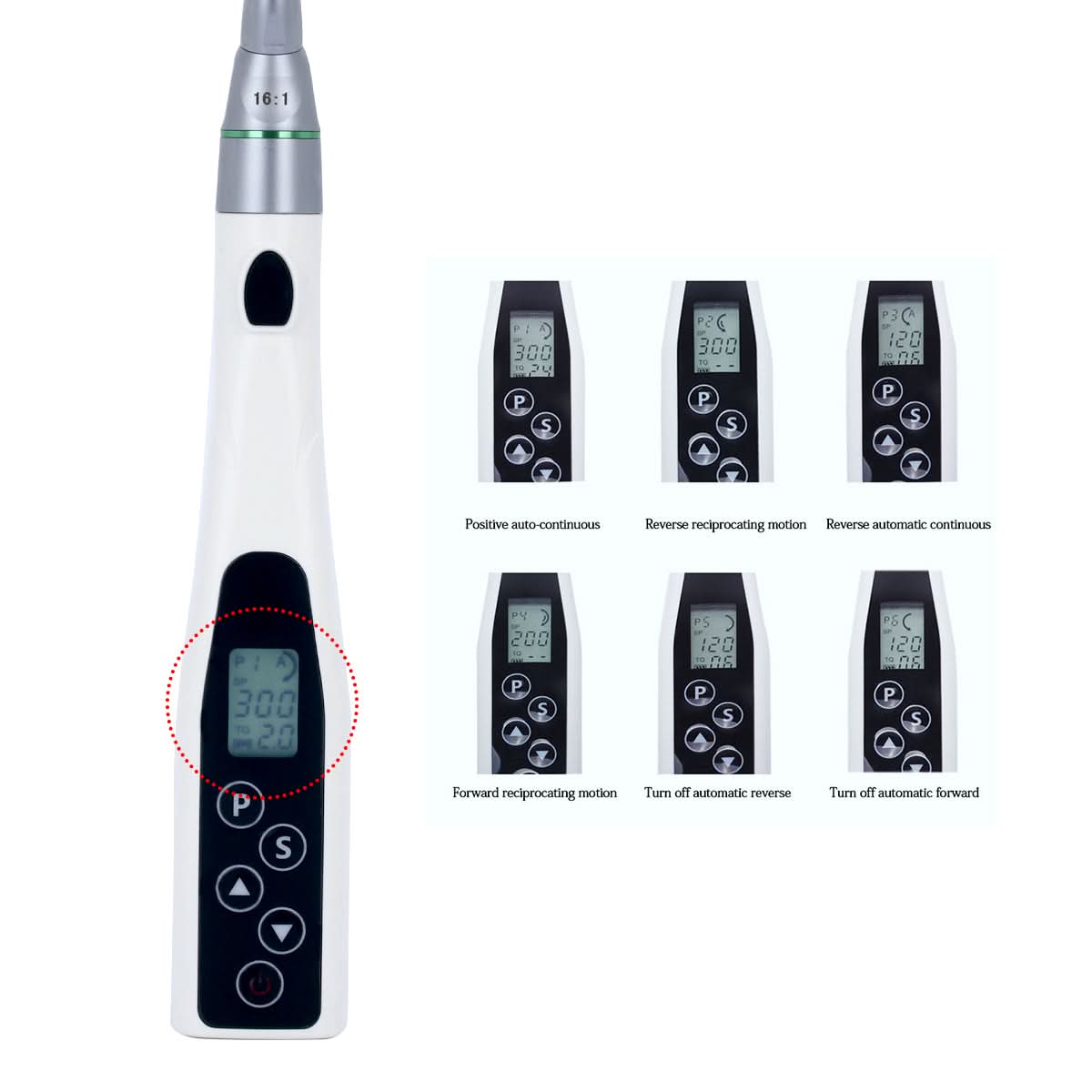

Six Kinds Work Procedures
P1: Positive 360°automatic movement,forward rotation plus reversal torque,then remove the torque to restore forward.
P2: Reverse reciprocating motion system,reverse 150°,forward 30°(approximation)
P3:
 Reverse 360°automatic movement,reverse rotation plus torque forward,then remove the torque to restore the reversal
P4:
 Forward reciprocating motion system,forward 150°,reverse 30°(approximation)
P5:
 Positive 360°,when encounter torque,please stop.Using hand file to reciprocate Contra-angle Handpiece or Anti edge file to remove broken needle.
P6:
 Reverse 360°,when encounter torque,please stop.Using cutting edge file to remove broken needle.
Specifications
Main Engine Voltage: 3.7Vdc
Battery Capacity: 800mAh
Charger Input Voltage:
 AC110-220V,60/60Hz
Charger Output Voltage:
 5Vdc
Intput Current:
 1A
Packing List
The Host : 1
Charging Dock: 1
Lamp Holder :
 2
Power Adapter  :
 1
Motor Cover   :
 1
Product Specification:
 1
Product Certificate:
 1

Mini Cordless LED Endo Motor Handpiece 16:1 Reduction Contra Angle 6 Memory Set

SKU: 1105903301

Warehouse For US
3-5 business days for delivery.
$88.35 $112.20
-21%
