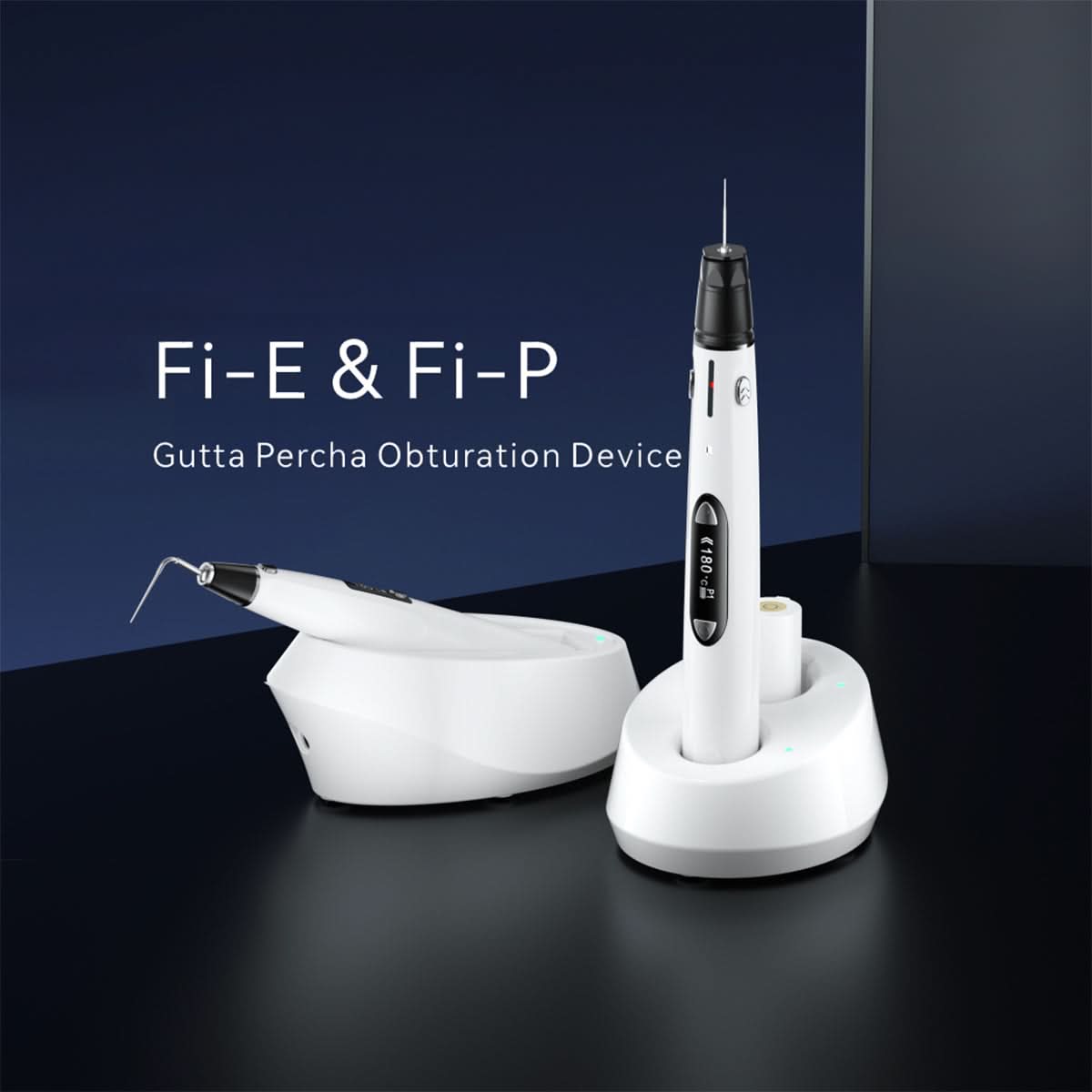

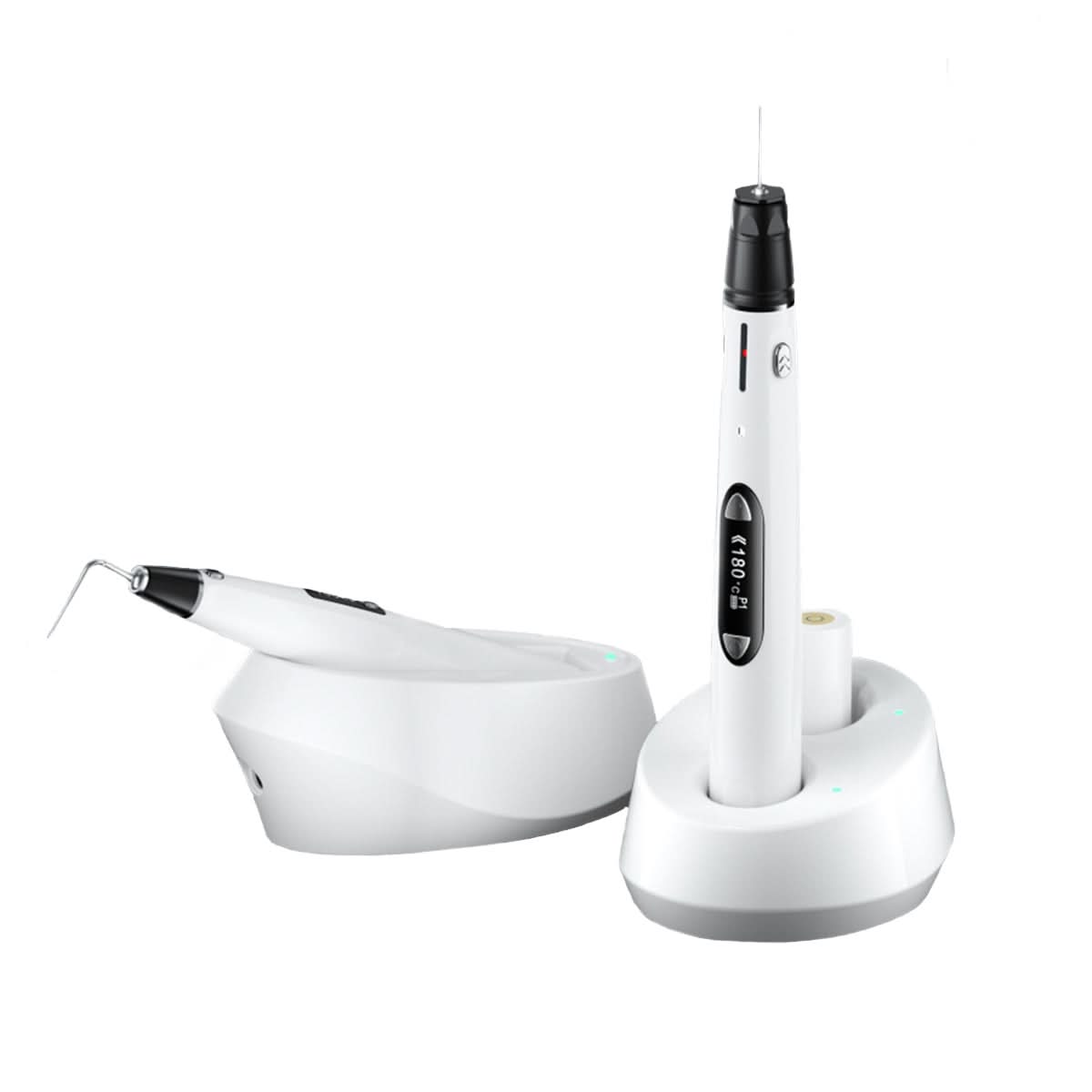

Woodpecker Dental Endo Fi-E & Fi-P Cordless Gutta-Percha Obturation System. The Fi-P (Heat & Packing Pen) and Fi-E (Electronic Filing Pen) work in conjunction with each other for the ultimate gutta-percha obturation system for your root canal procedures.
Note: The difference between the Fi-E gutta percha dispenser and the Fi-G gutta percha dispenser is that the Fi-G is a “gun” type handle that is squeezed, where the Fi-E is an electronic pen type dispenser that does not require the use of a handle to be squeezed to dispense the warm gutta percha bar.
Both the black and the white color Fi-P units use the same tips. The tips are interchangeable between the two Fi-P models and colors.

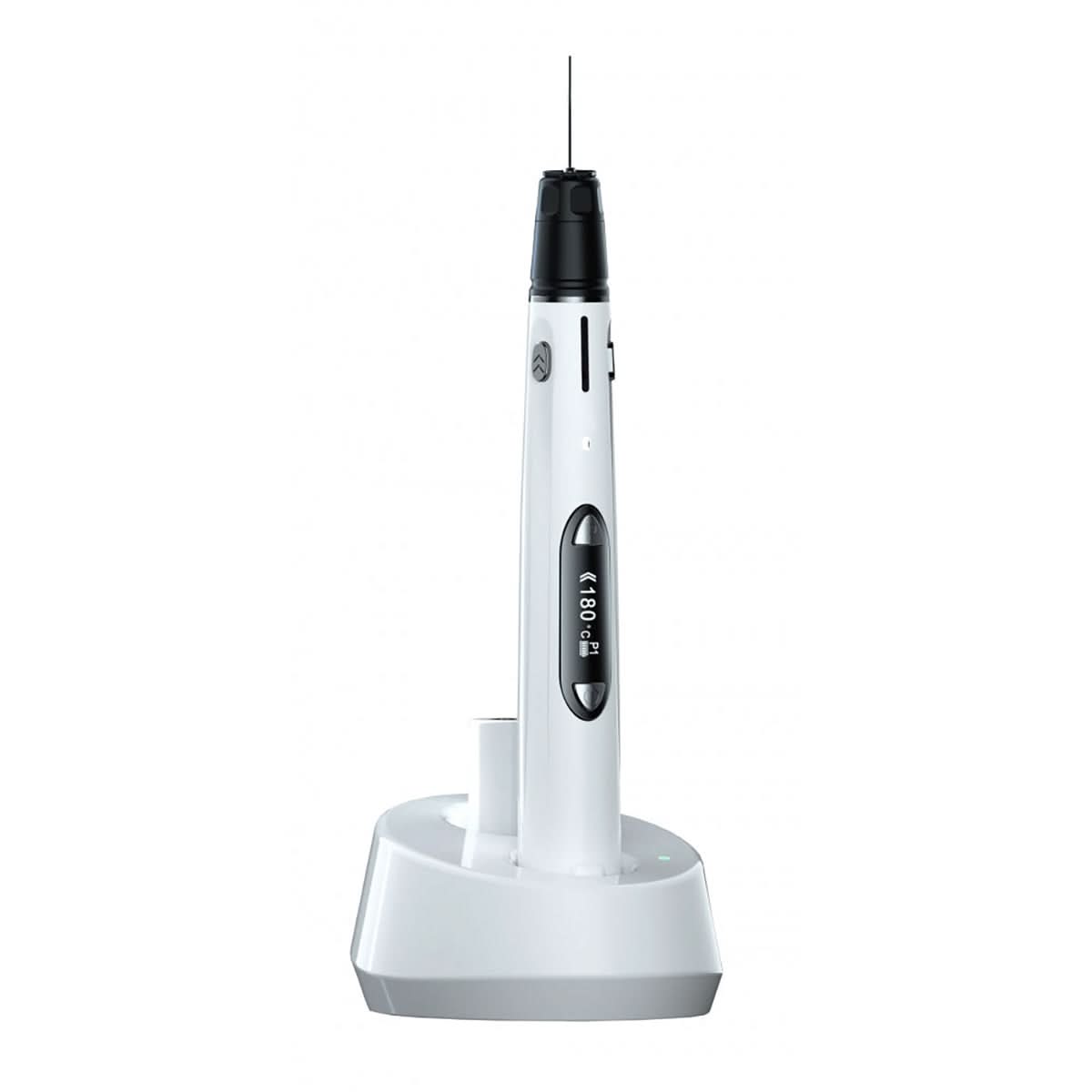

| Overview for Fi-E |
- Wireless and Electric: Perfect gutta-percha fluidity, uniform and smooth gutta-percha output without bubbles. Easier than traditional manual gutta-percha injection to relieve hand fatigue for the operator. Eliminate surgical hazards caused by gutta-percha leakage and overflow. Maintenance-free thanks to automatic cleaning of remaining gutta-percha.
- Reusable Injection Needle: 360° ROTATABLE. The gutta-percha bar is directly loaded into the injection needle. There is no gutta-percha residue inside the machine, making it easier to clean. The gutta-percha bar can be replaced at any time without waiting for the internal cooling of machine.
- Dual Button Design: Symmetrically-designed dual injection buttons, sensitive and convenient.
- Precise and Intuitive Display of Remaining Gutta‑Percha: An indication window is set on the front of the machine to display the remaining gutta-percha intuitively and accurately.
- Protection System: Auto heating stop after timeout; Auto shutdown after timeout.
- Charging Base With Battery: TEMPERATURE MONITORING DESIGN. Charging base enable battery temperature monitoring, guaranteeing more secure charging.
- Dual Batteries, More Durability: 2x2000mAh batteries, allowing quick replacement in 1sec. Dual batteries deliver longer endurance, enabling filling about 100 root canals.

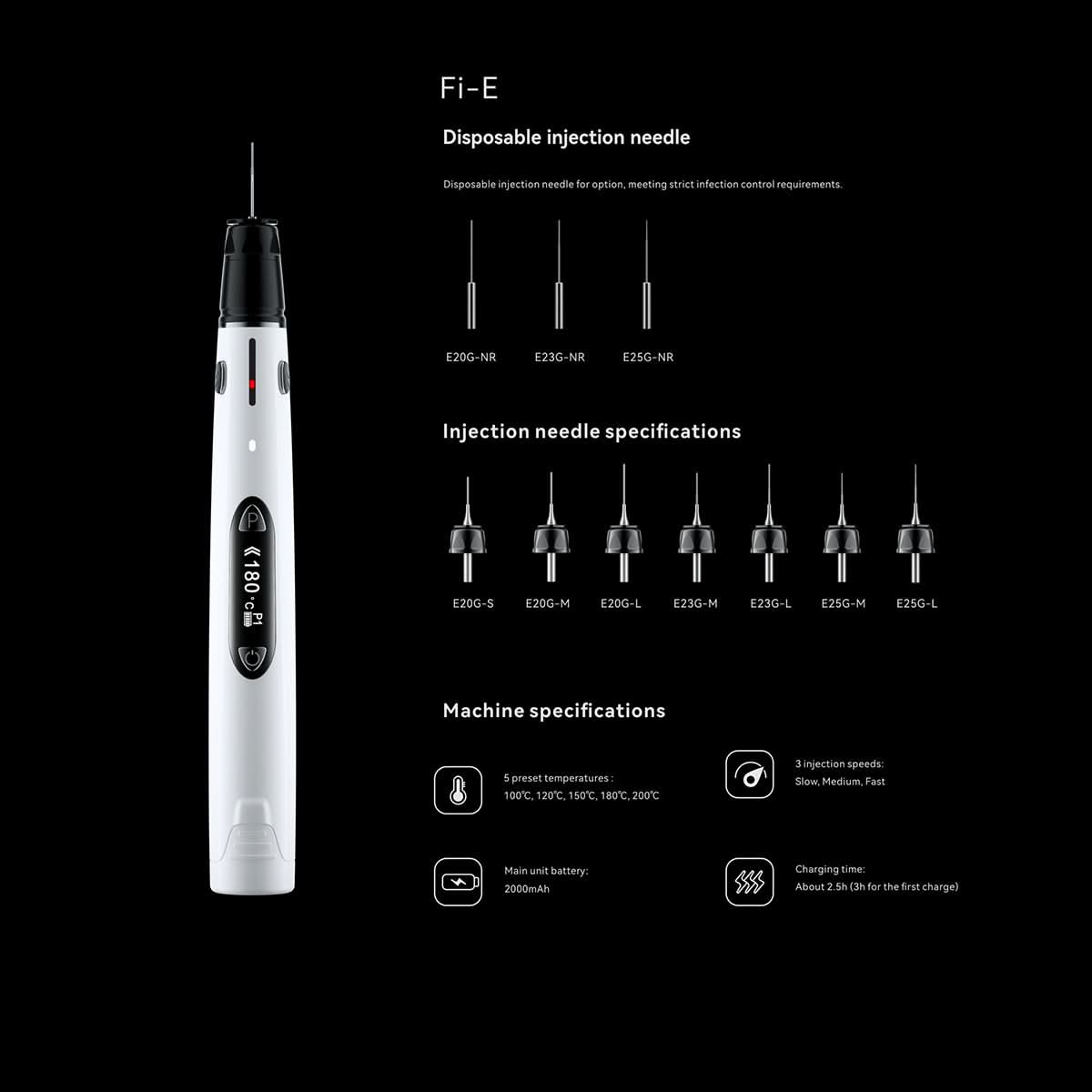

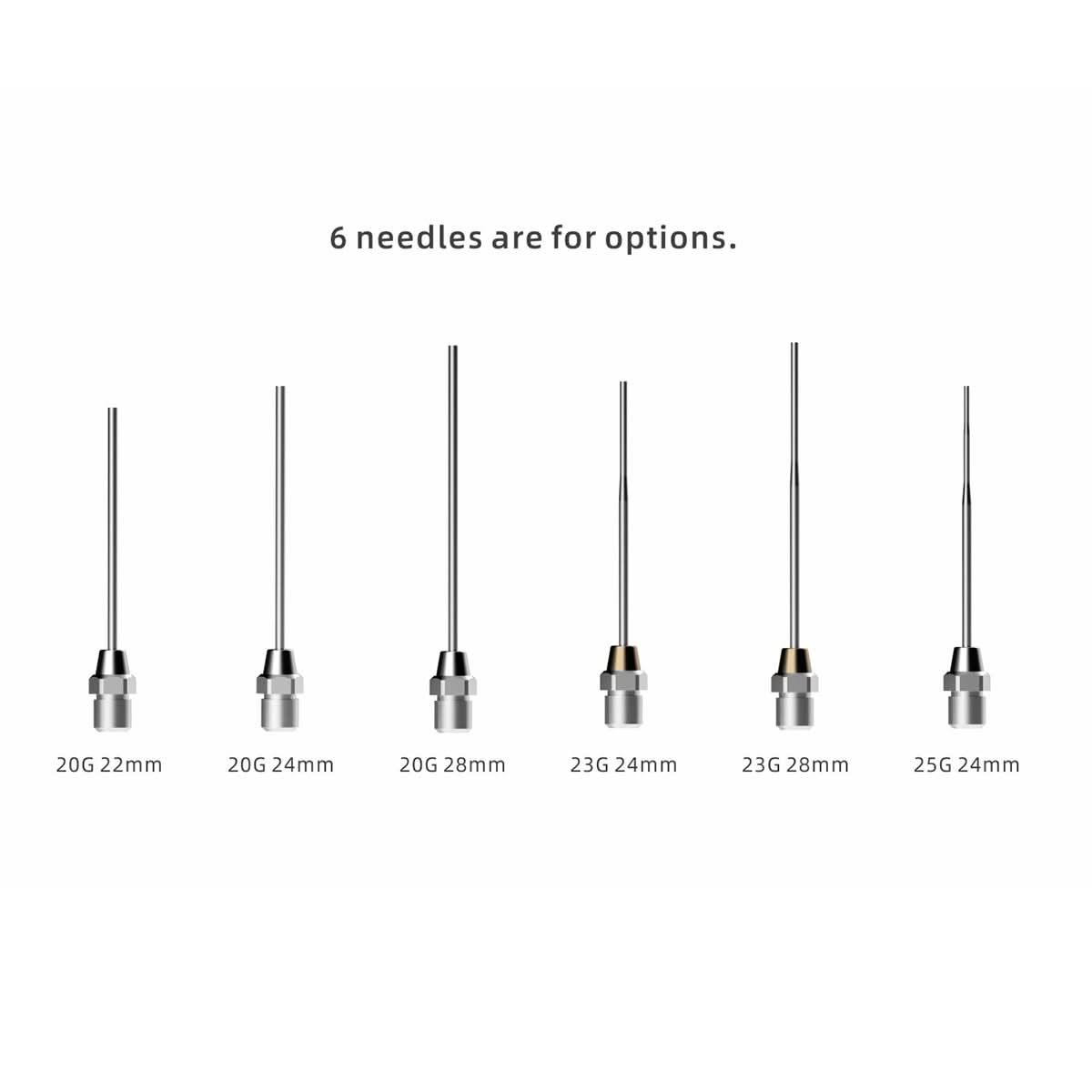

- Equipped With Injection Needles: Disposable injection needles foroption, meeting strict infection control requirement.
| Technical Parameter for Fi-E |
| Input power: | AC 100~240V, 50Hz/60Hz 800mA |
| Output output: | DC15V/1.6A |
| 5 Preset temperatures: |
100°C→120°C→150°C→180°C→200°C |
| 3 Injection speeds: | Slow, Medium, Fast |
| Main unit battery: | 18500, 2000mAh |
| Charging time: | About 2.5h (3h for the first charge) |
| Heater Rating: | 10W |

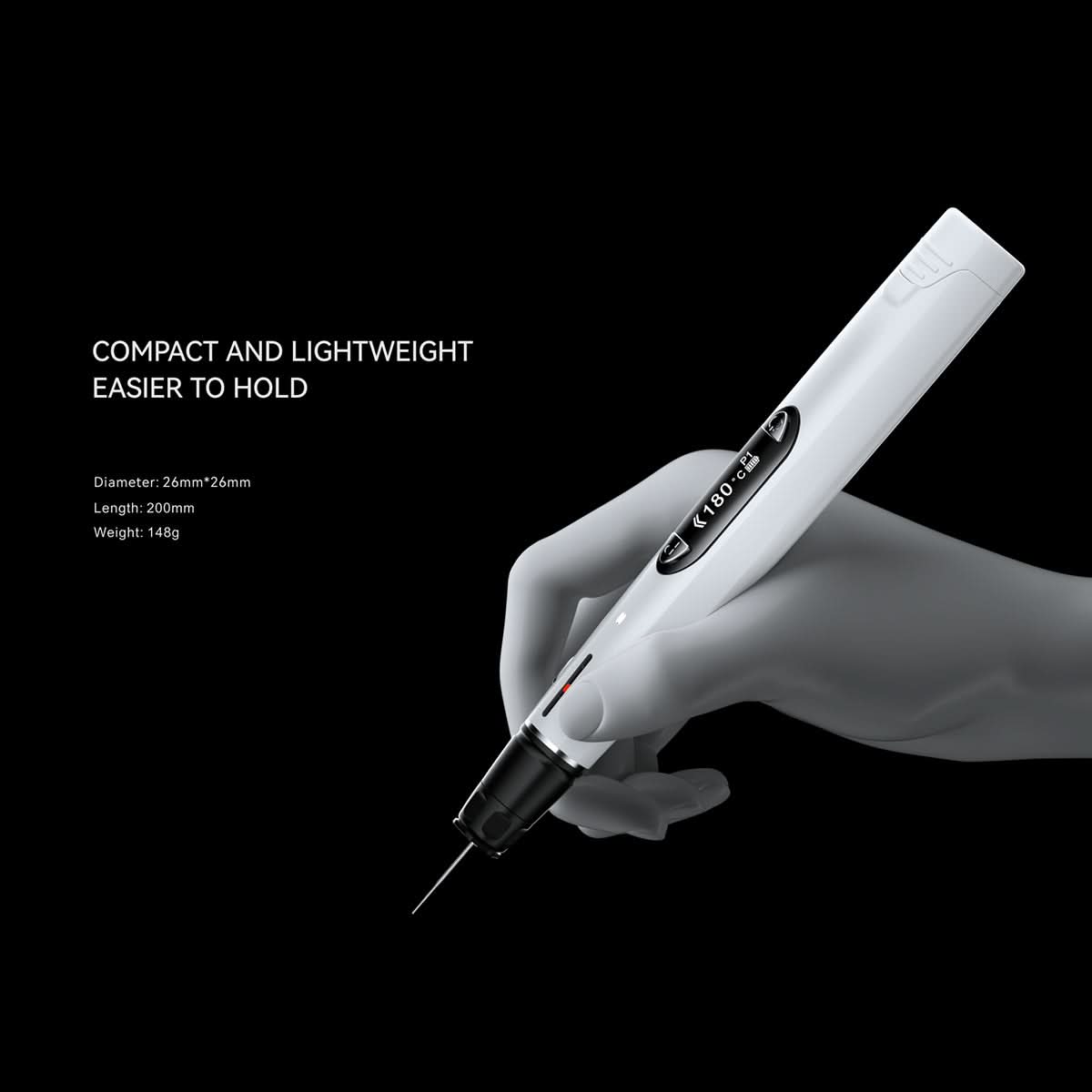

| Size of unit: | 25mmx28mmx200mm |
| Net weight: | 148g |
| Packing List for Fi-E |
| Main unit: | 1 |
| Charging stand: | 1 |
| Power adapter: | 1 |
| Battery: | 2 |
| Injection needle: | 4 |
| Heat insulation sleeve of needle: | 4 |
| Heat insulation hood: | 2 |
| Wrench of needle: | 1 |
| Gutta-Percha Ring: | 1 |
| Instruction manual: | 1 |
| Qualified certification: | 1 |
| Warranty card: | 1 |
| Packing list: | 1 |

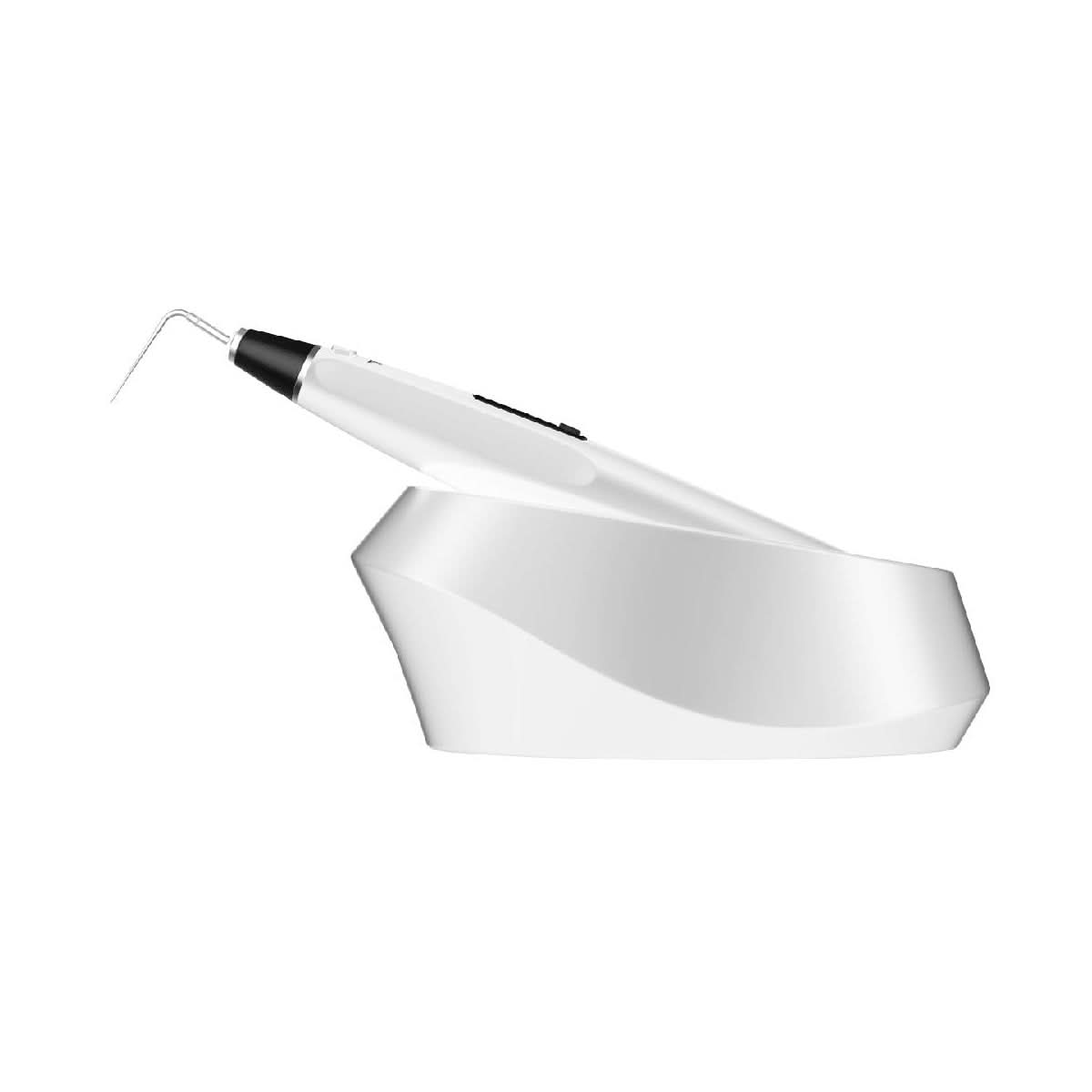

| Overview for Fi-P |
- With high-precision temperature controland a heating speed of 0.2 seconds, it ensures efficient and safe work.
- With 4 working temperatures(150ºC, 180ºC, 200ºC, 230ºC) that adapt to the different Gutta-Perchas on the market.
- High-capacity battery with up to 4 hours of autonomy (1,500 operations on a full charge).
- Its dual-directional display facilitates both left- and right-handed operation.
- Pre-curved 0.35 mm Attackers/Pluggers: the thinner tips can penetrate deep into the narrow root canal, even in lateral roots.
| Technical Parameter for Fi-P |
| Handpiece weight: | 80g |
| Battery capacity: | 2.000 mAh |
| Recharging time: |
2,5 hours |
| Autonomy duration: | 1,500 operations |
| Preset temperatures: | 150ºC, 180ºC, 200ºC, 230ºC |
| Warm-up time: | in 0.2 seconds |
| Technical Parameter for Fi-P |
| Fi-P Main unit: | 1 |
| Charging stand: | 1 |
| Power adapter: |
1 |
| WP4004 tip: | 1 |
| WP4504 tipy: | 1 |
| WP5506 tip: | 1 |
| WP5508 tip: | 2 |
| Heat insulation sleeve of tips: | 4 |
| Instruction manual: | 1 |
| Qualified certification: | 1 |
| Packing list: | 1 |
| Warranty |
- One year warranty (not including customer damages).
