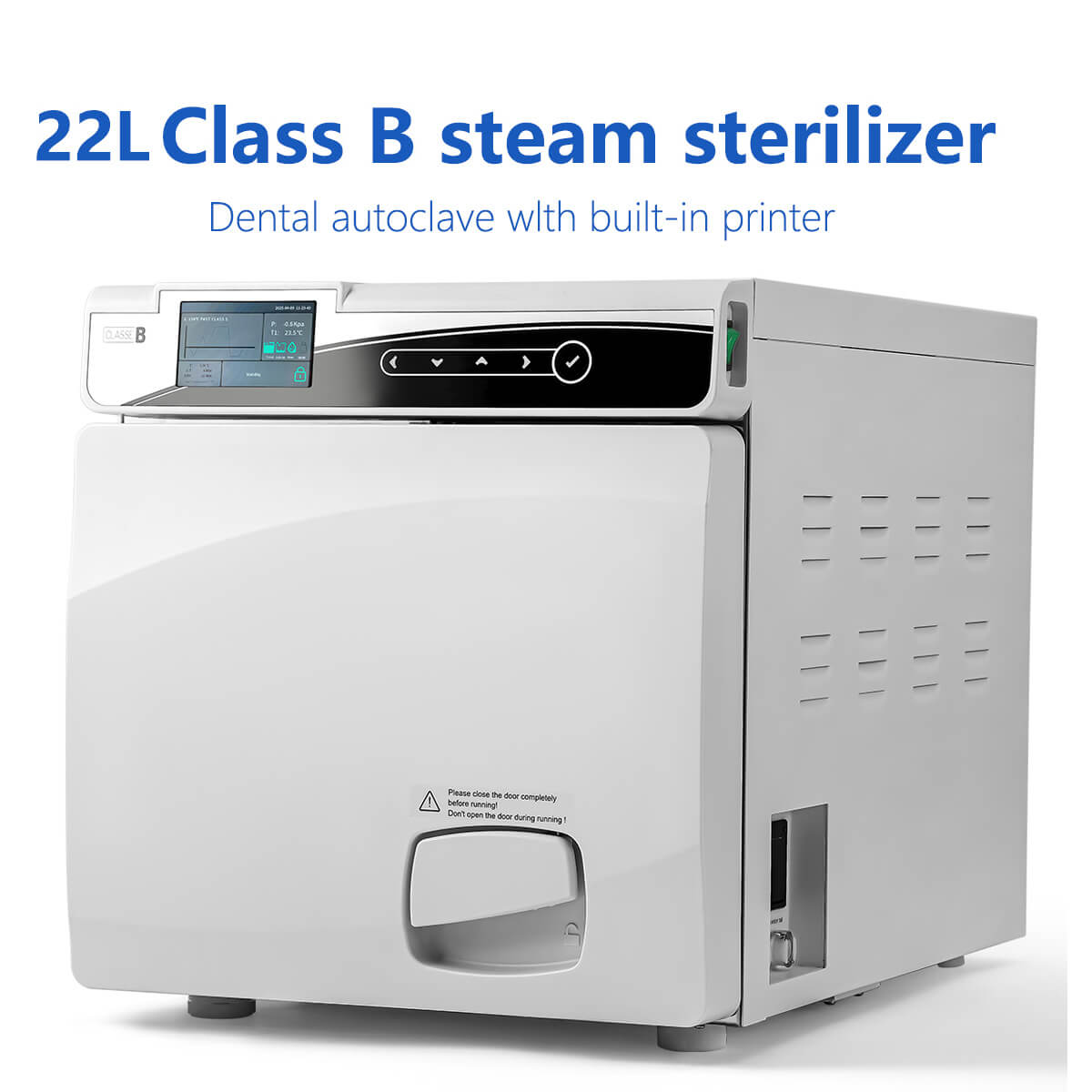

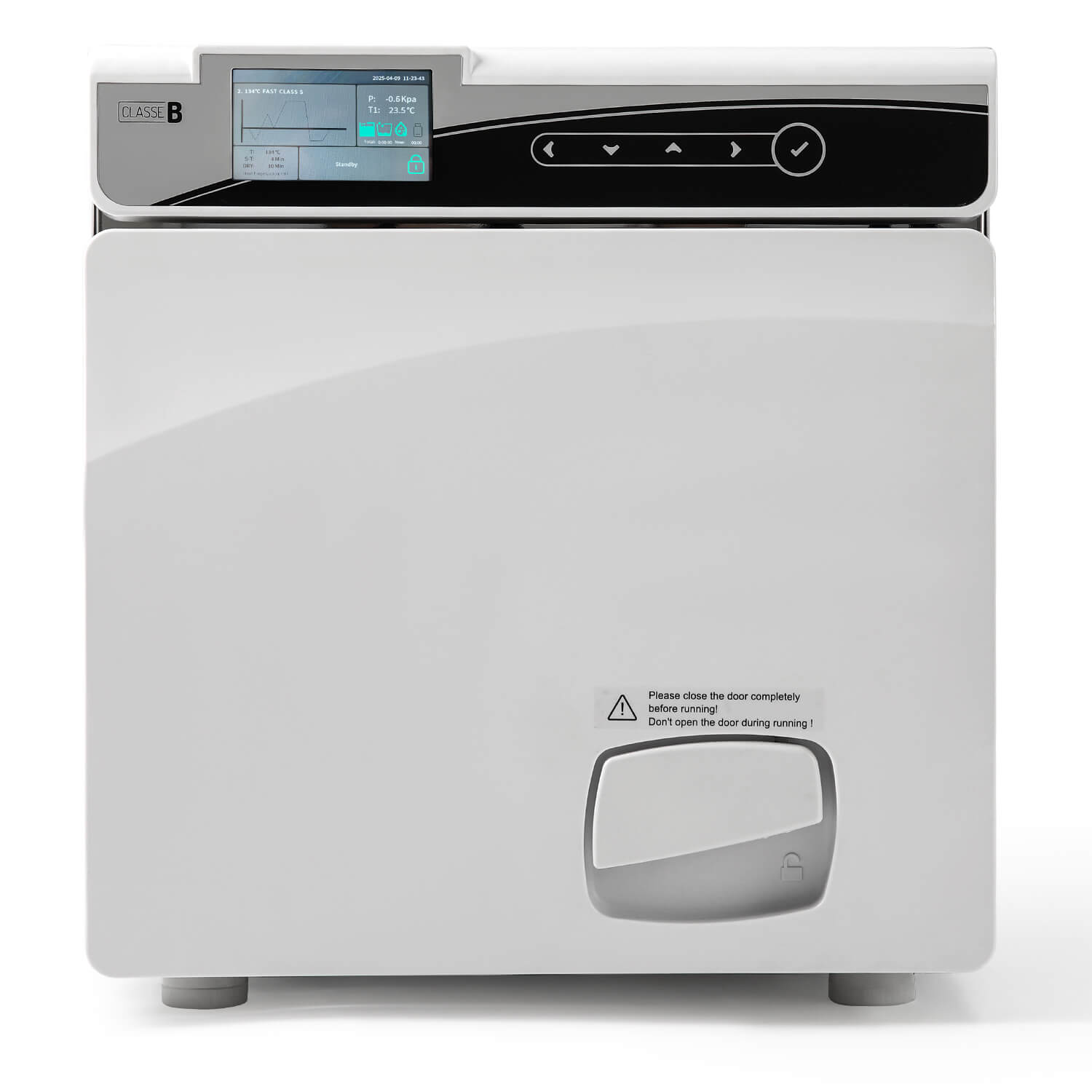

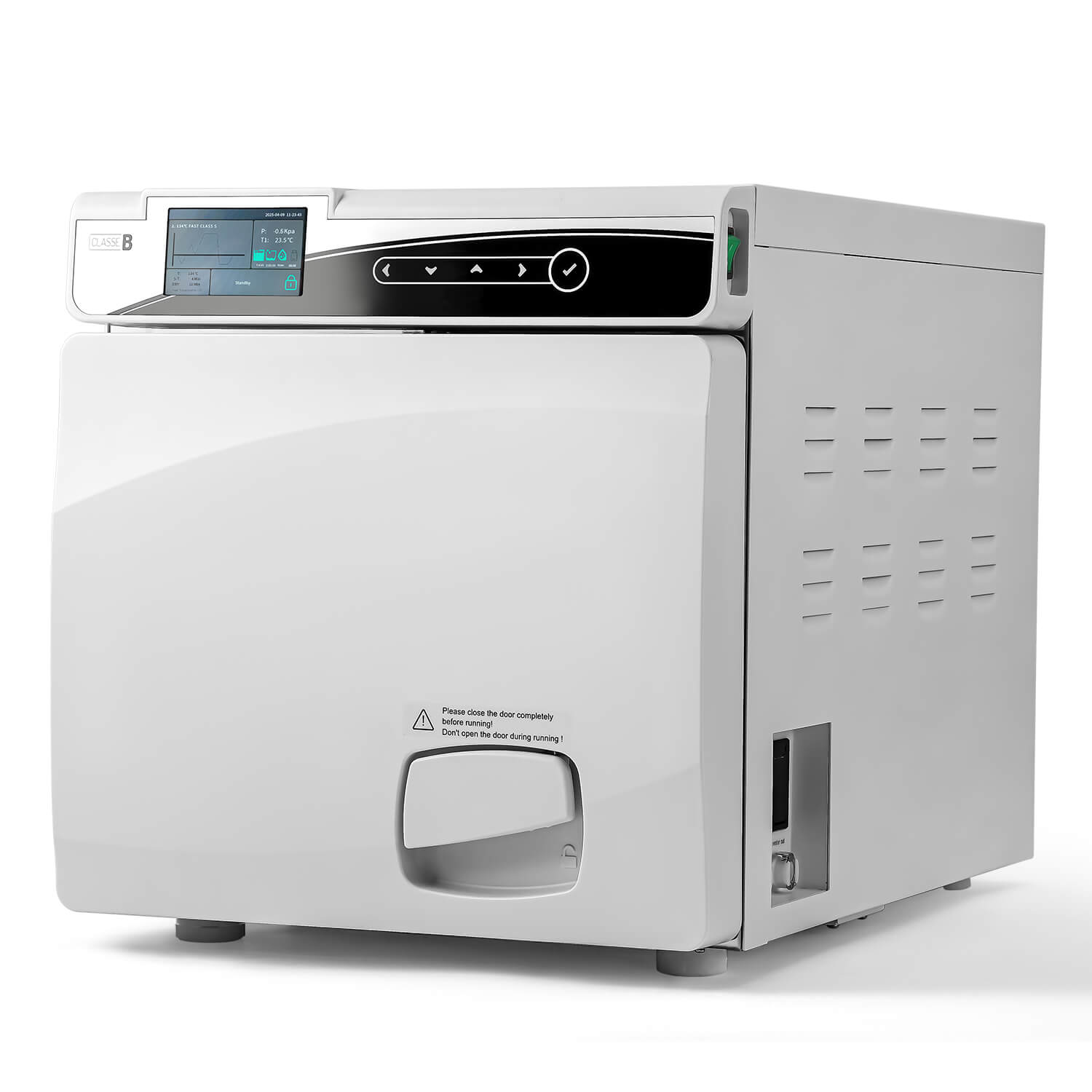

22L Dental Table top Autoclave Class B Vacuum Steam Sterilizer with Built-in Printer Dry Function. Advanced LED display and smart touch keys provide intuitive control, while a double door locking system and water quality sensor ensure maximum safety. Featuring a built-in USB for seamless data logging, this system offers a reliable, high-performance sterilization solution.

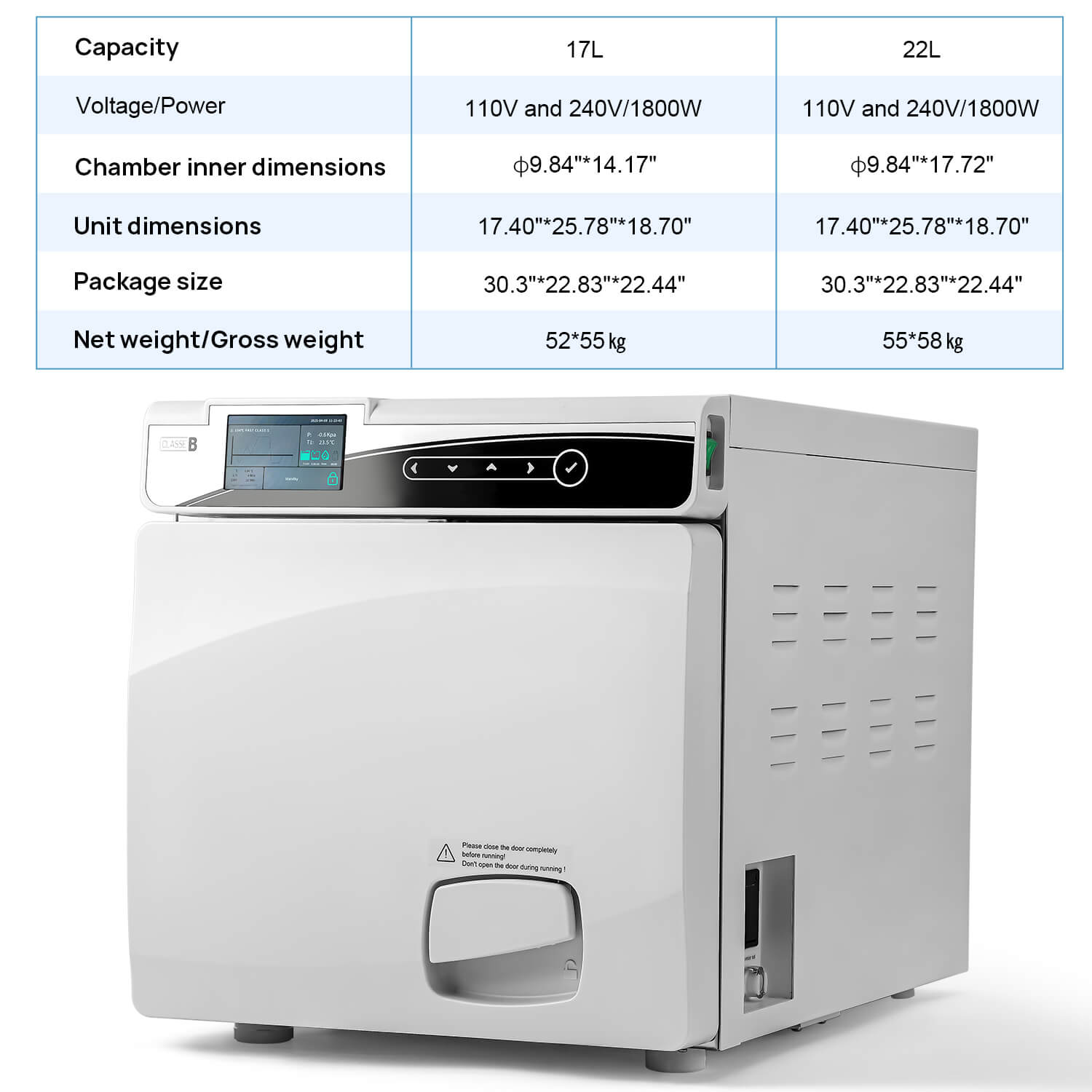

Note: The machine size and packaging size of 17L and 22L are the same, but the volume and weight inside the pot cavity are different.

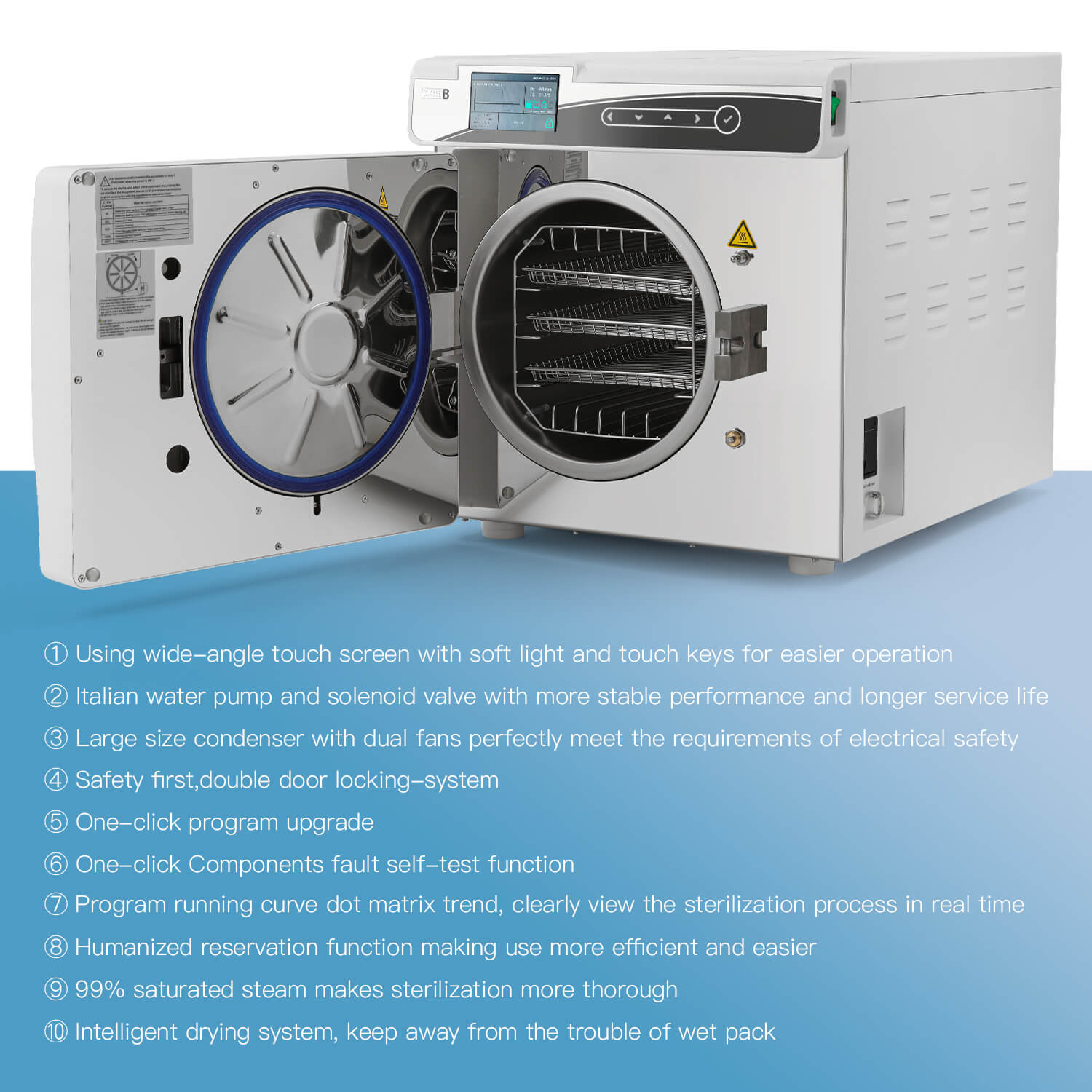

- Using wide-angle LED color screen with soft light.

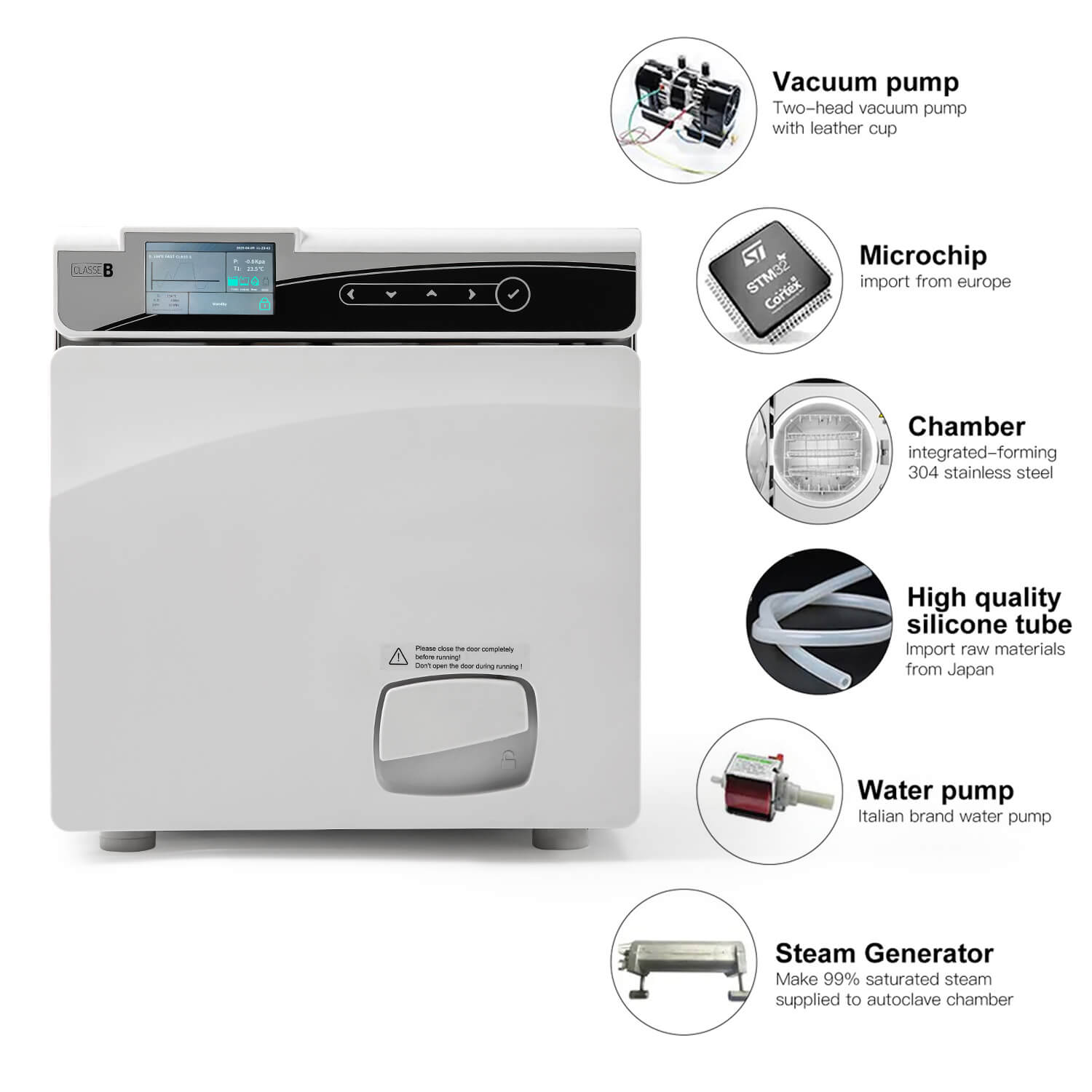

- Italian water pump and solenoid valve with more stable performance and longer service life.
- Large size condenser with dual fans perfectly meet the requirements of electrical safety.
- Safety first,double door locking-system.
- One-click program upgrade.
- One-click components fault self-test function.
- Program running curve dot matrix trend,clearly view the sterilization process in real time.
- Humanized appointment function making use more efficient and easier.
- 99% saturated steam makes sterilization more thorough.
- All-inclusive heating loop makes sterilized instruments drier.
- Please note the placement of the sterilizer: leave 10cm of space around it and 20cm of space above it.
|

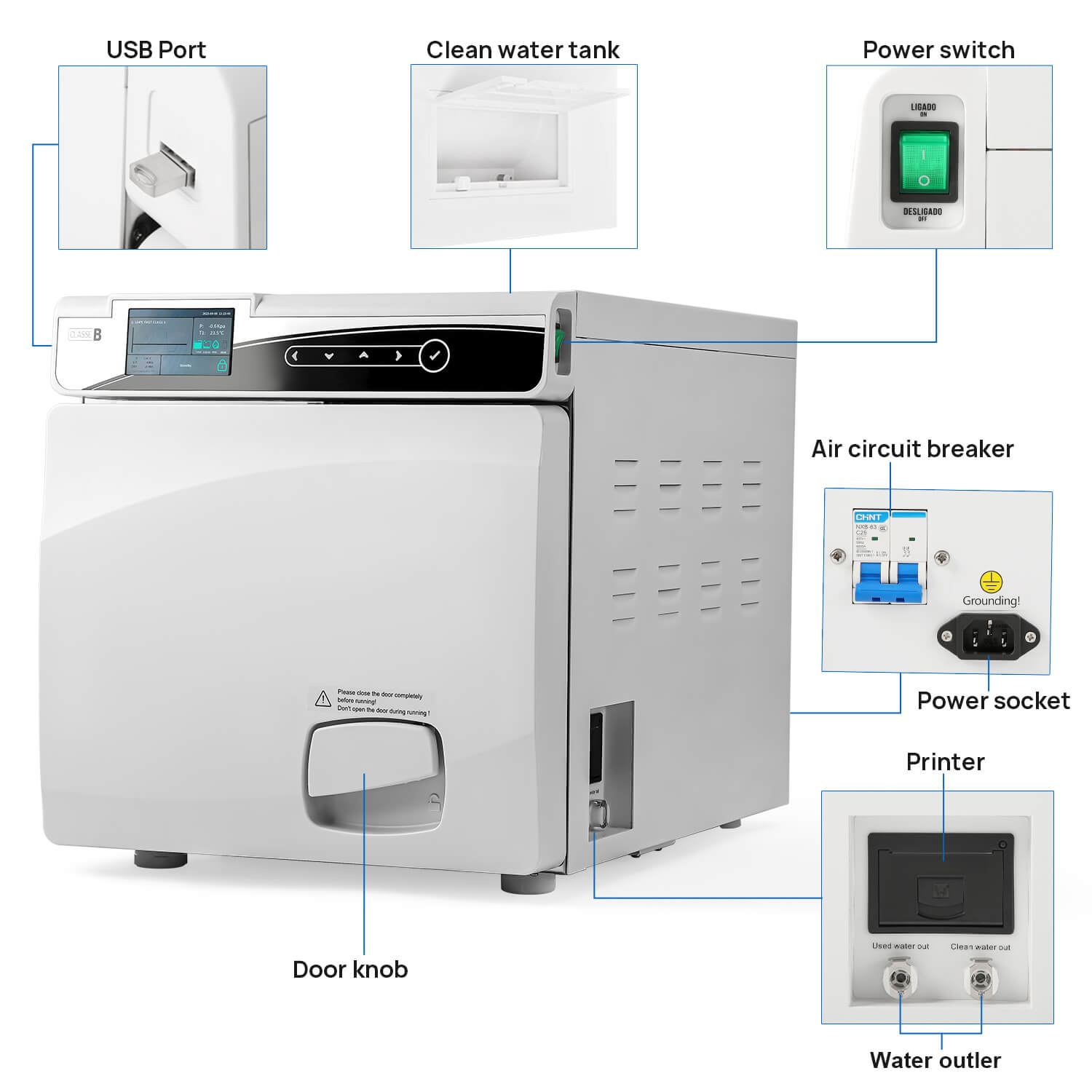

- 22L, European class B

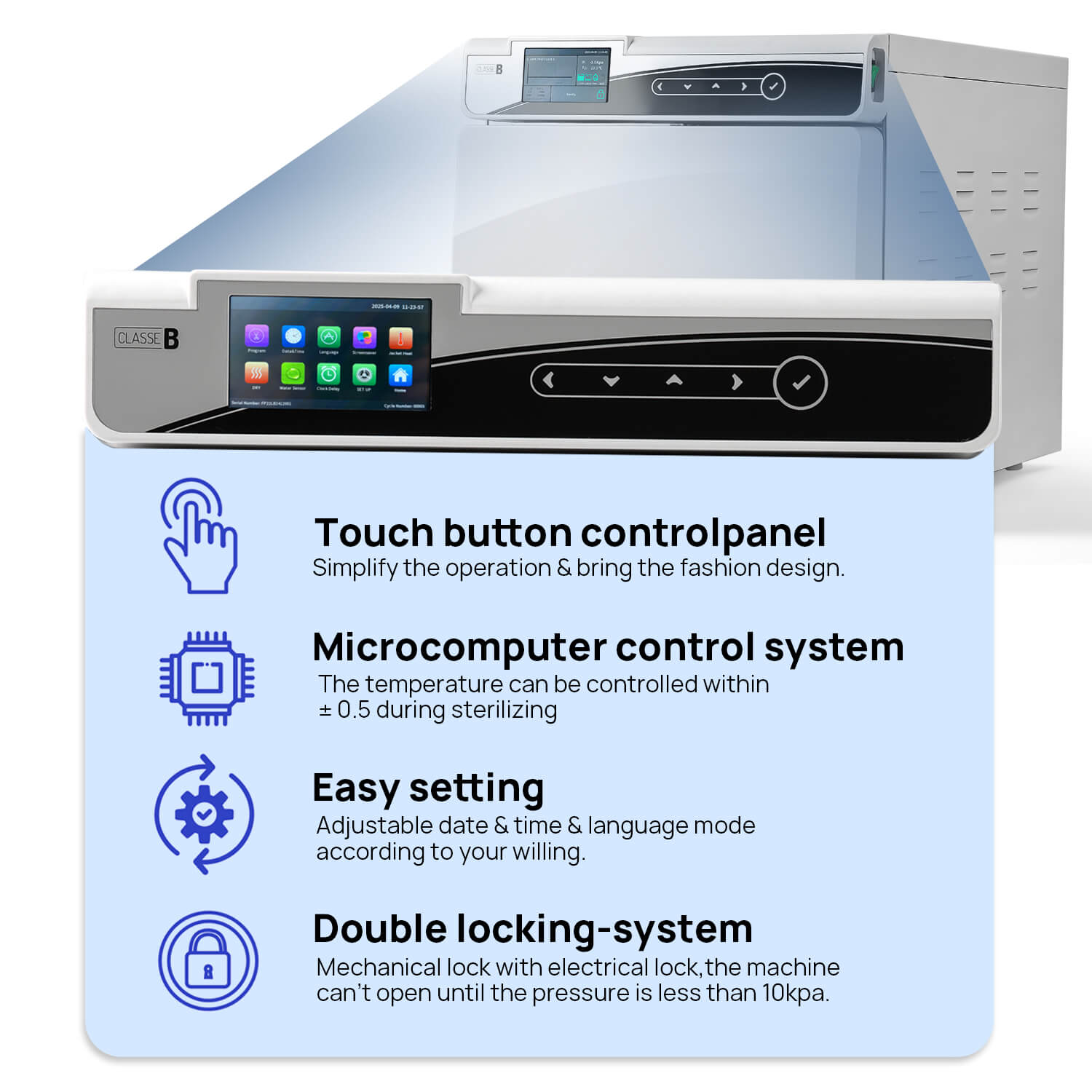

- Smart touch keys

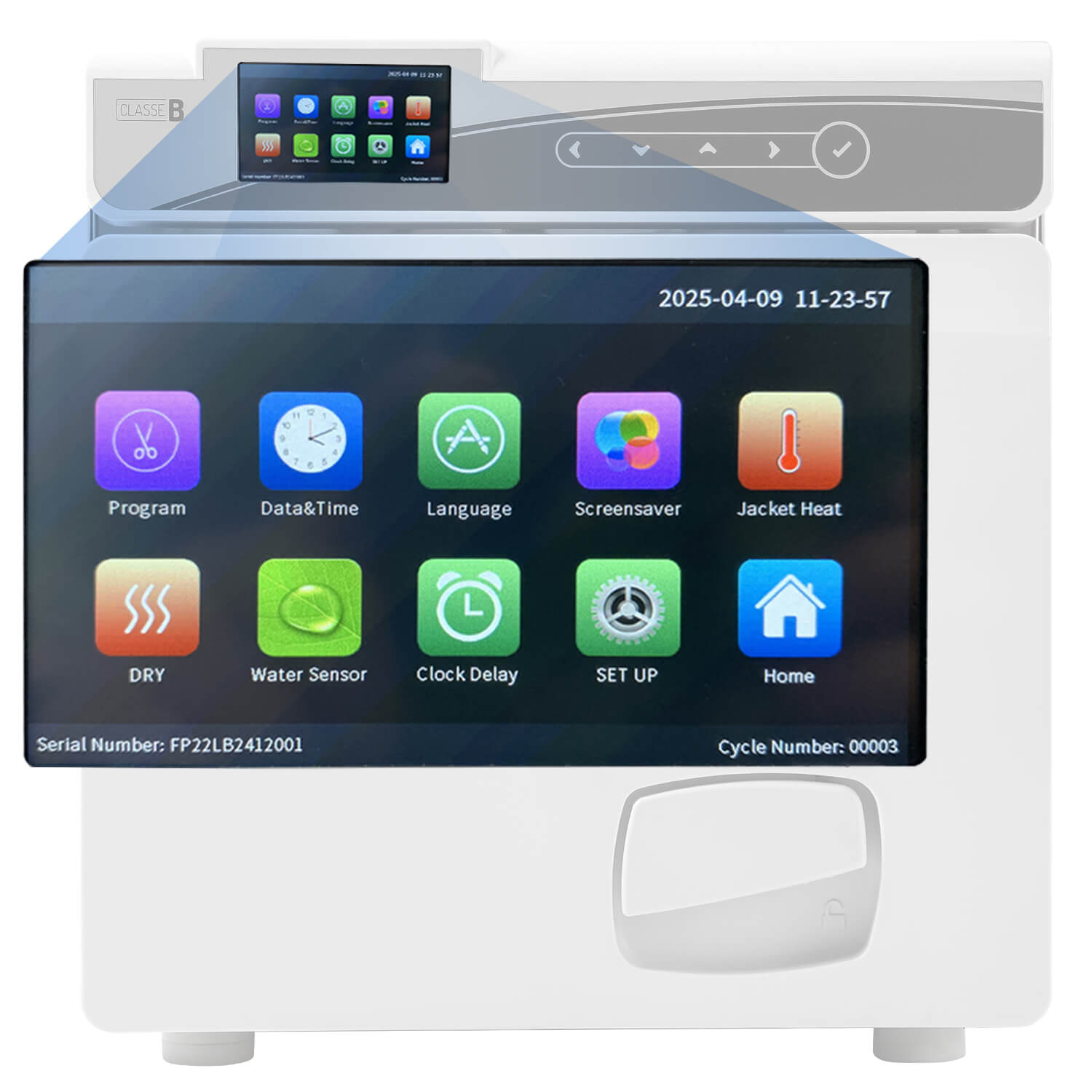

- LED display panel
- Double door locking-system
- Water quality sensor
- Built-in USB function
|
| Model: |
Linea 22L (Horizontal screen) |
| Sterilizing temperature: |
121℃, 134℃ |
| Display: |
LCD display |

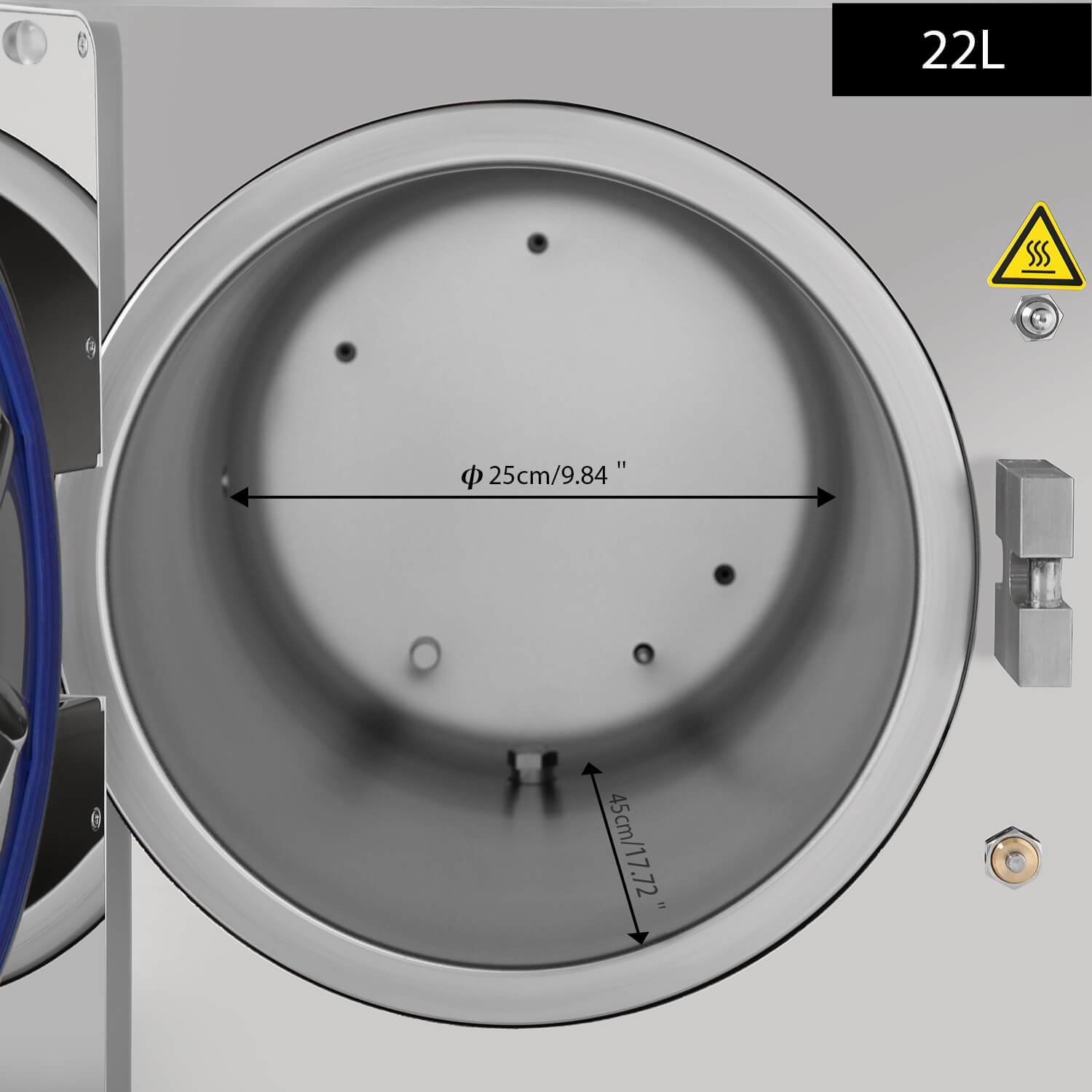

| Chamber inner dimensions (Diameter × Depth): |
φ25*D45cm(9.84"*17.72") |
| Net Weight/Gross Weight: |
55kg/58kg |

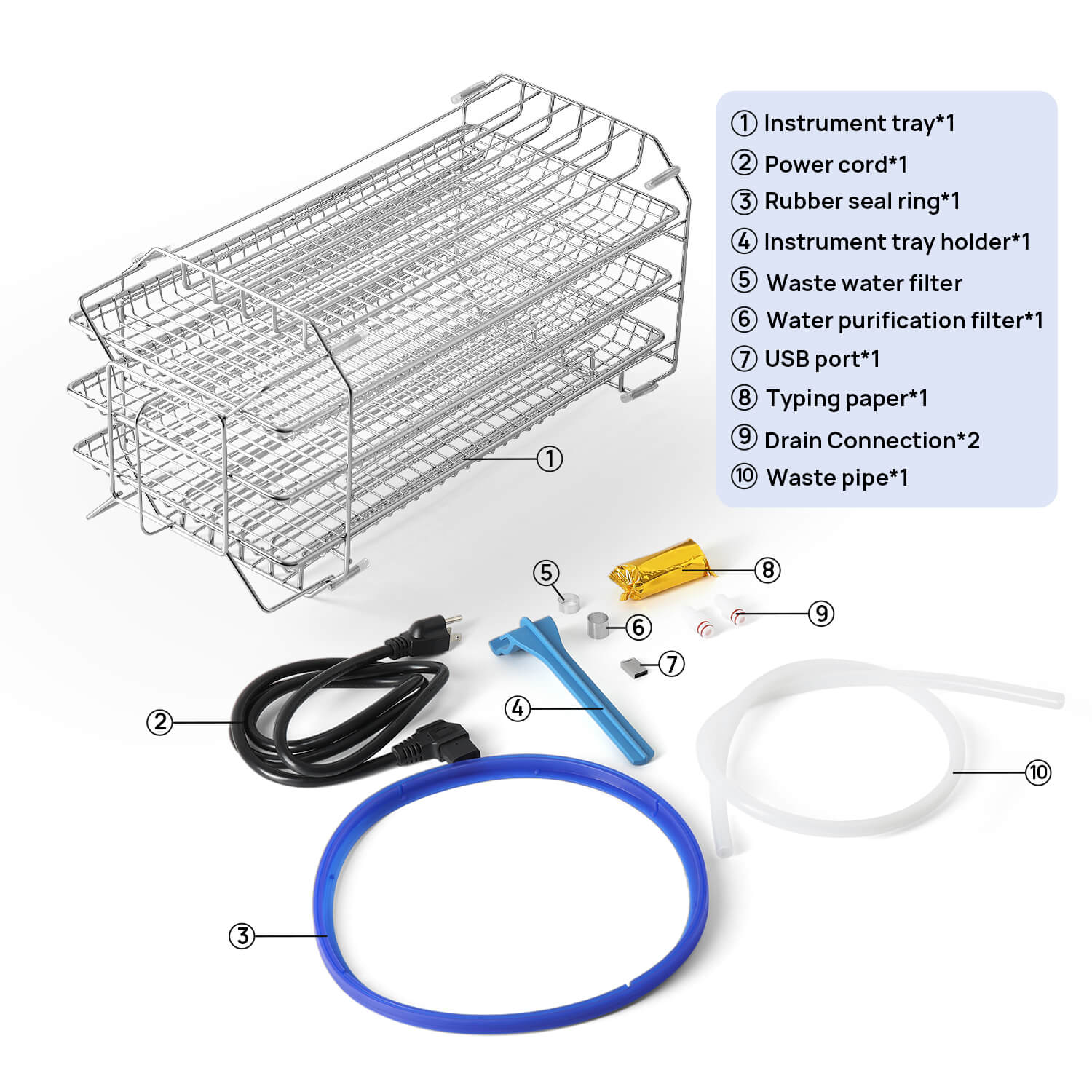

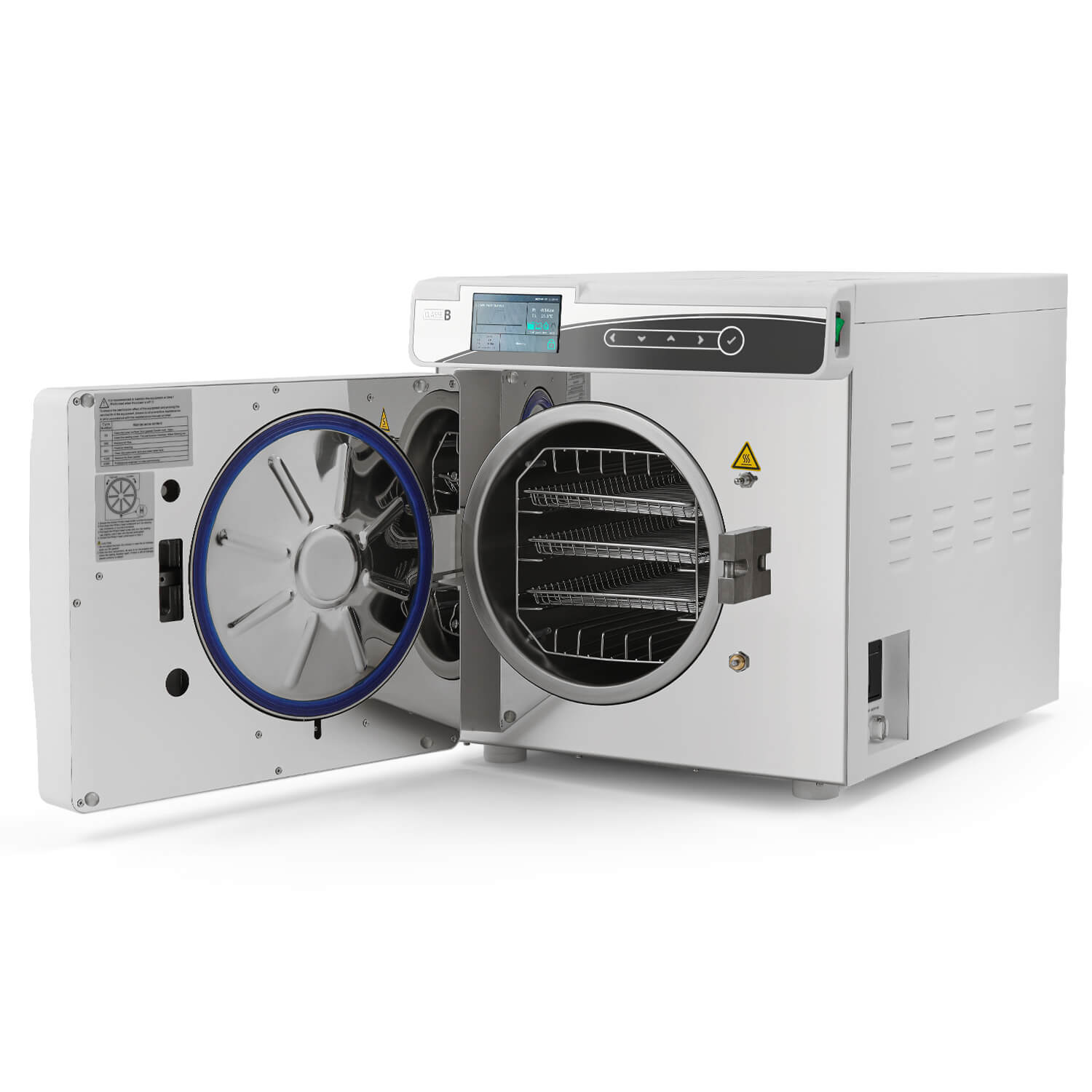

| Instrument containers: |
5 layers with 3 trays |
| Water supply system: |
3.5L fresh water and 2.5L liter waste water reservoirs |
| Dry procedure: |
The residual humidity < 0.2% |

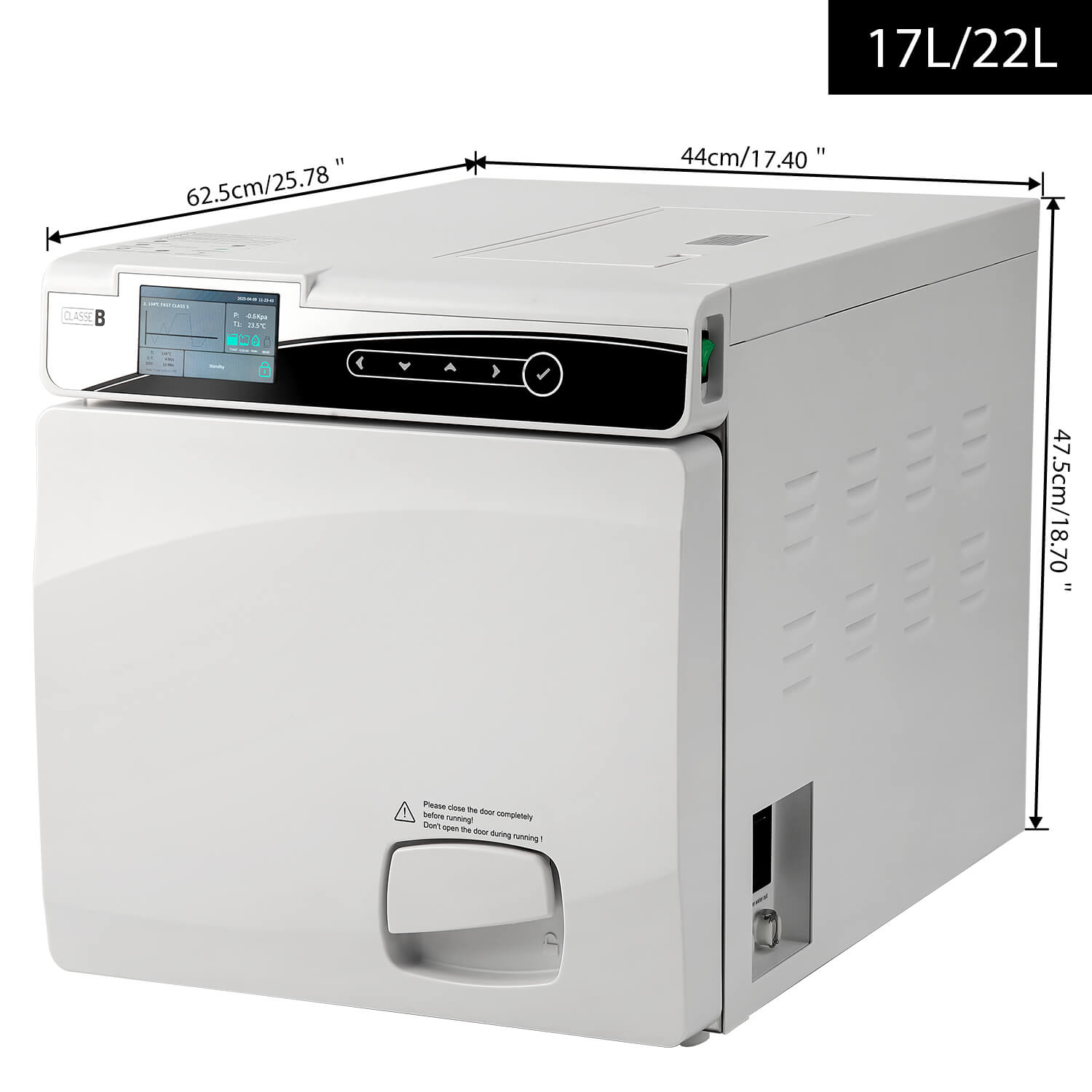

| Product size: |
65*44*47cm(25.59"*17.32"*18.5") |

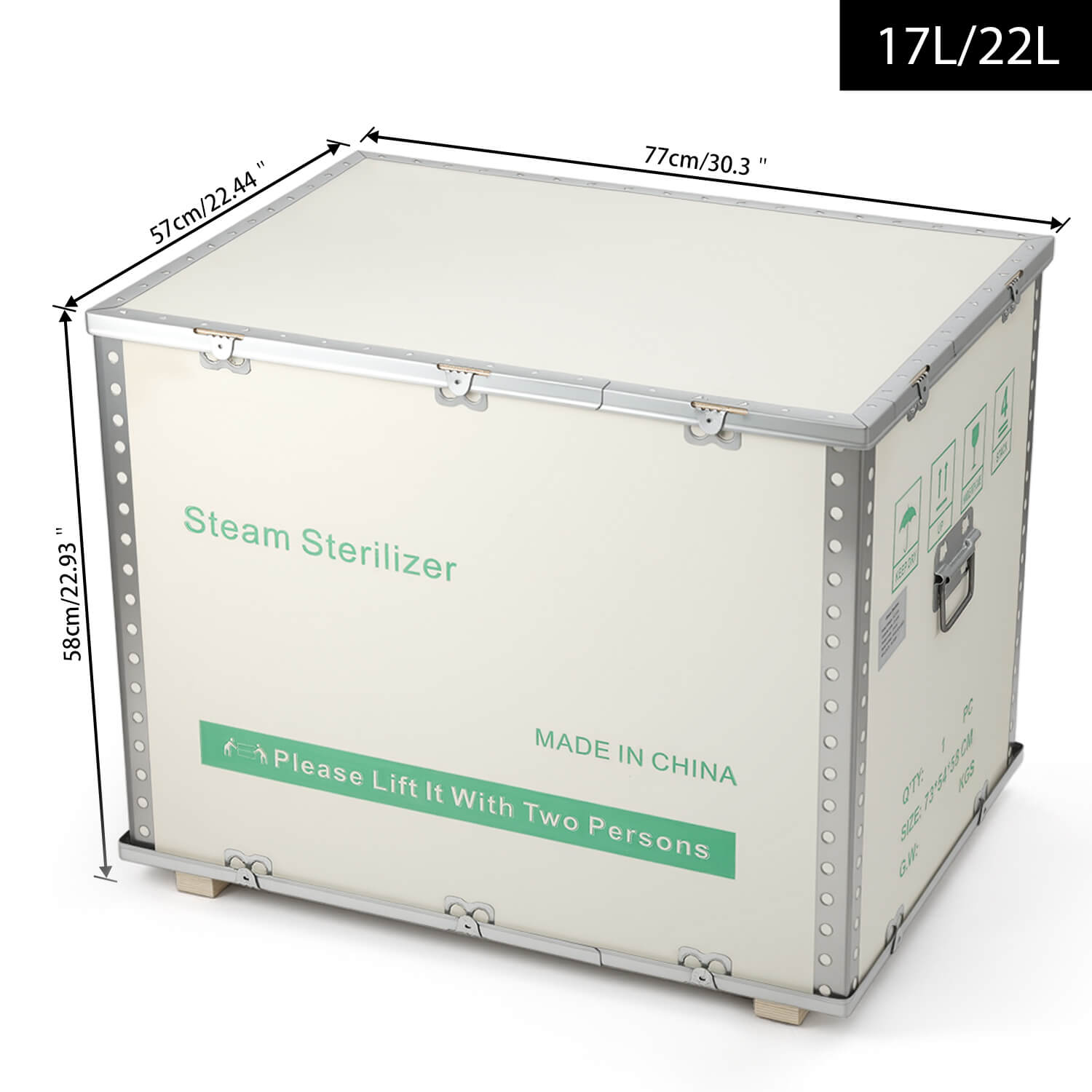

| Package size: |
77*58*57cm(30.31"*22.83"*22.44") |
