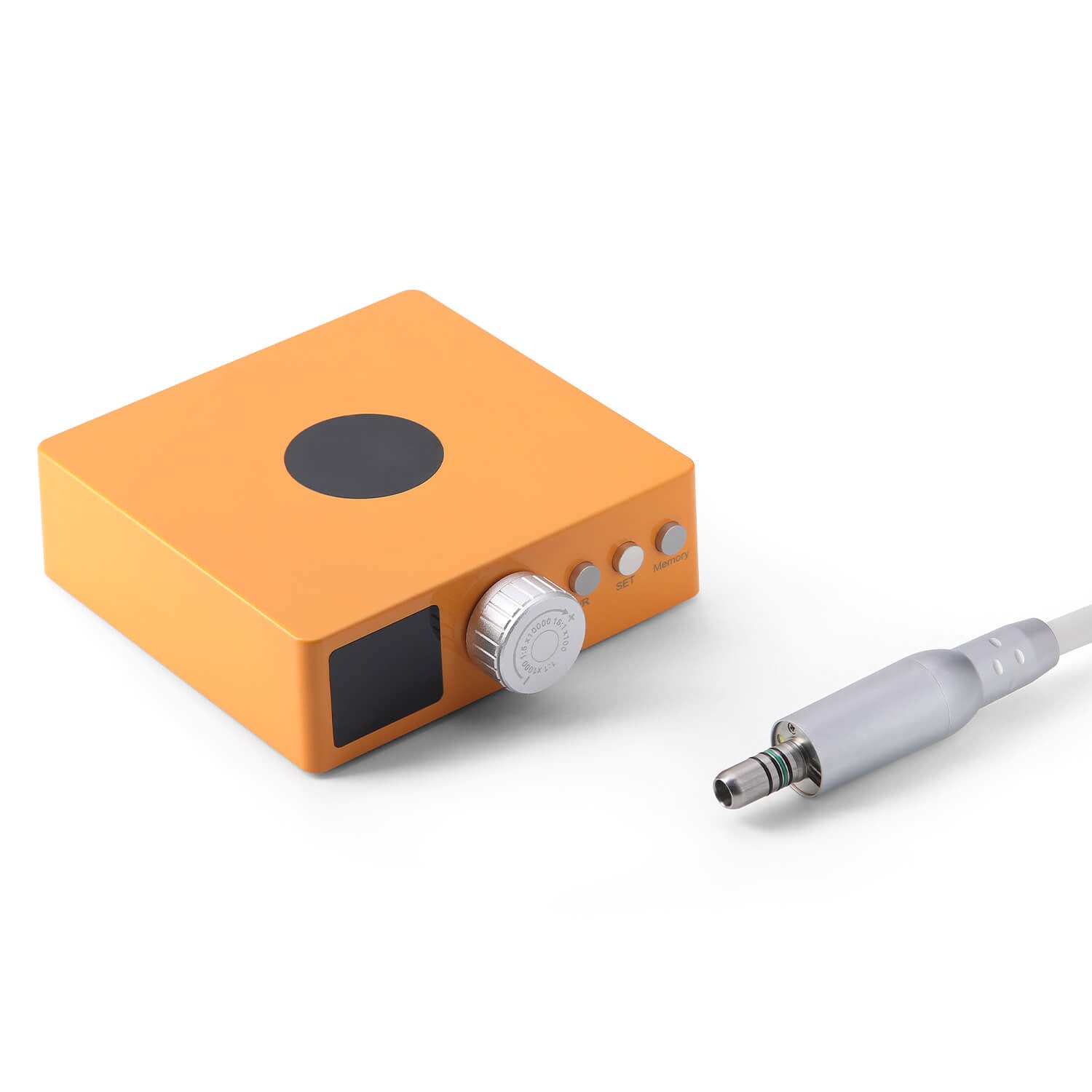

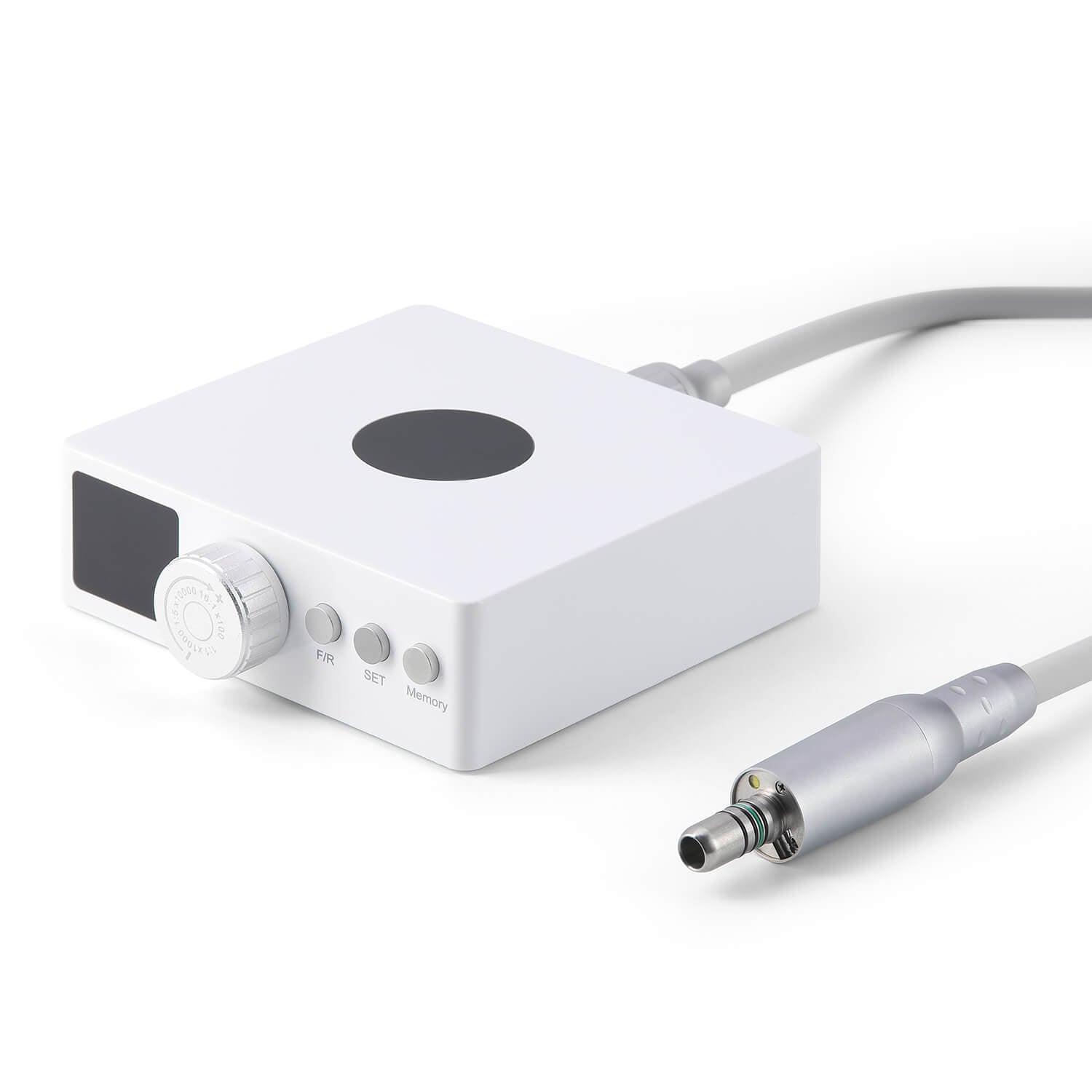

Dental Brushless Electric LED Micro Motor 4 Holes. When connecting or disconnecting the handpiece, ensure the motor has stopped rotating. Never connect or disconnect the handpiece while the motor is running.
- Before treatment, test run the handpiece outside the oral cavity for at least 30 seconds. Proceed with treatment only if no abnormalities are found
- When connecting or disconnecting the handpiece, ensure the motor has stopped rotating. Never connect or disconnect the handpiece while the motor is running
- Portable and mobile RF communication equipment may affect the performance of the electric motor. Avoid strong electromagnetic interference during use, such as being near mobile phones, microwave ovens, etc
|
- Do not use chlorine-containing disinfectants
- Please use according to the disinfectant manufacturer's instructions
- Avoid disinfectant entering the inside of the motor connector
- Sterilizable components: Contra angle handpiece, Motor
- Sterilization method: High-pressure steam sterilization
- Before sterilizing the motor, it must be detached from the motor connector and the motor shaft plug and tail nut must be installed
- Except for the motor and handpiece components that can withstand high-temperature high-pressure sterilization, other components must not be sterilized
- Sterilization conditions: Considering the requirements of various countries/regions, use a fractional pre-vacuum steam sterilization process (according to EN 285 / EN 13060 / EN ISO 17665) to sterilize the instrument. (134°C for 5 minutes, maximum sterilization temperature: 137°C)
|
| Adapter input voltage: |
AC 100-240V 50/60Hz |
| Adapter output voltage: |
DC 36V 4A |
| Motor parameters block torque: |
69mN·m |
| Motor parameters no-load current: |
0.22A MAX |
| Motor parameters no-load speed: |
39,000±10% r/min |
| Motor parameters blockage current: |
12.37A |
| Motor parameters starting voltage: |
DC 24V |
| Water pressure: |
0.2-0.3MPa
|
| Power: |
120W |
| Main unit: |
1 |
| Power supply: |
1 |
| Power supply: |
1 |
| Motor: |
1 |
| Motor pipeline: |
1 |
| Instruction manual: |
1 |
