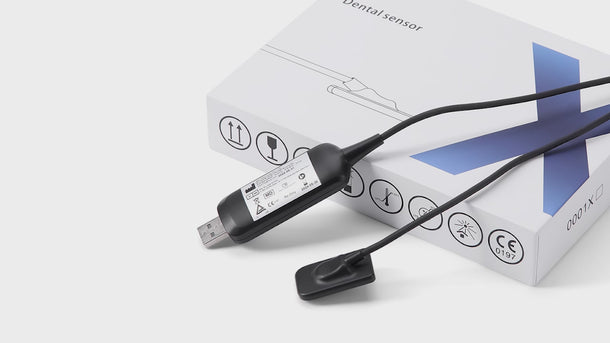

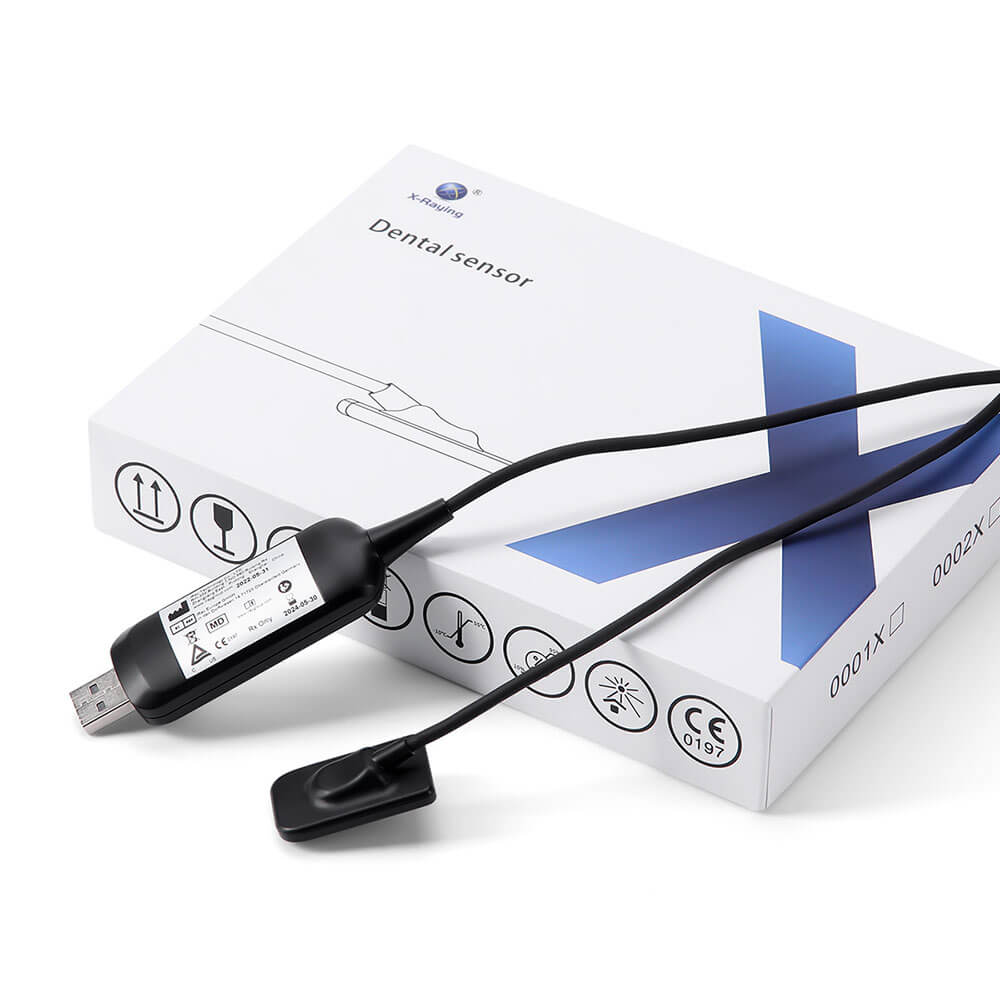

Dental Digital X-Ray Sensor Intraoral HD Image System with Software S1/S2. The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the Product is intended to make X-ray radiography in dental clinics or veterinary clinics. FDA Cleared.
Notice: This sensor comes with its own software, and it can be used for free for life.
-

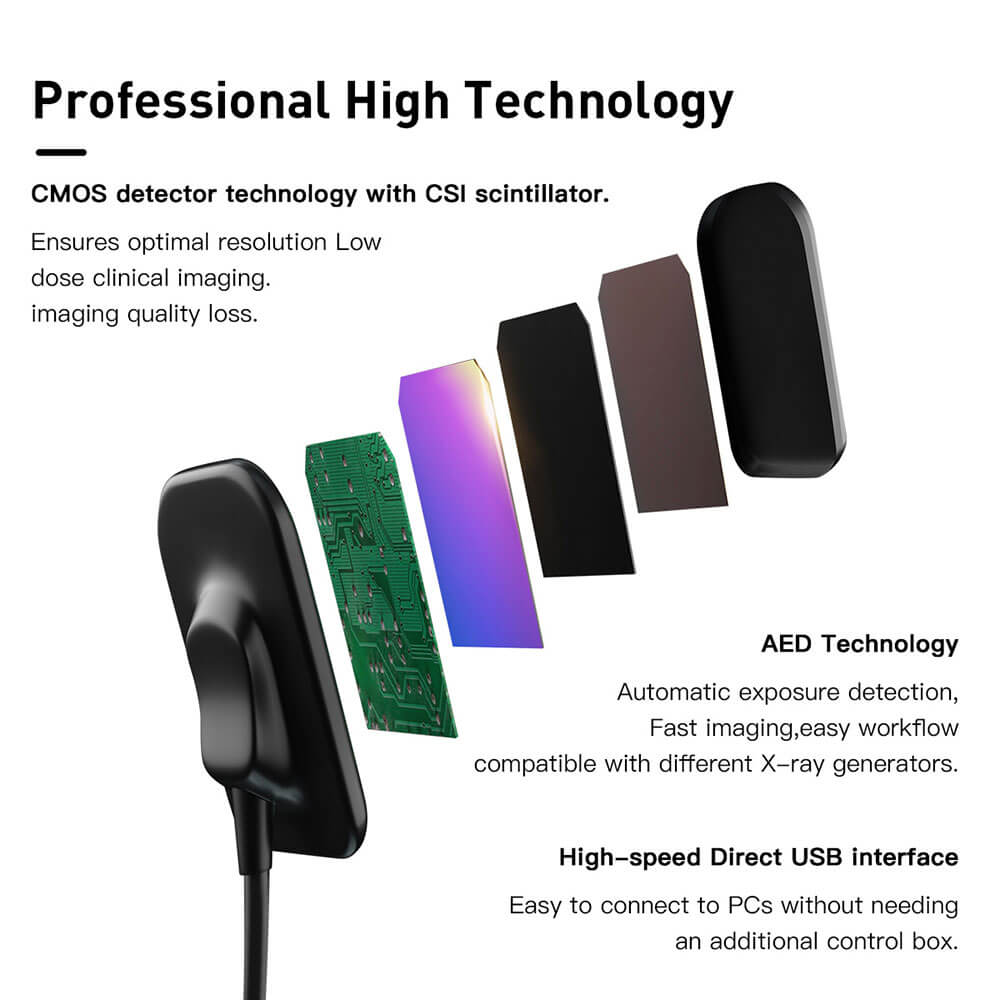

High Resolution CMOS Imaging Technology: Advanced CMOS detector technology combined with CSI scintillator provides clear and detailed dental images with excellent resolution and accurate grayscale reproduction.
-
16-bit Grayscale Image Processing: With 16-bit grayscale technology, the sensor provides up to 65,536 gray levels, allowing dentists to observe more image details and improve diagnostic efficiency.
-

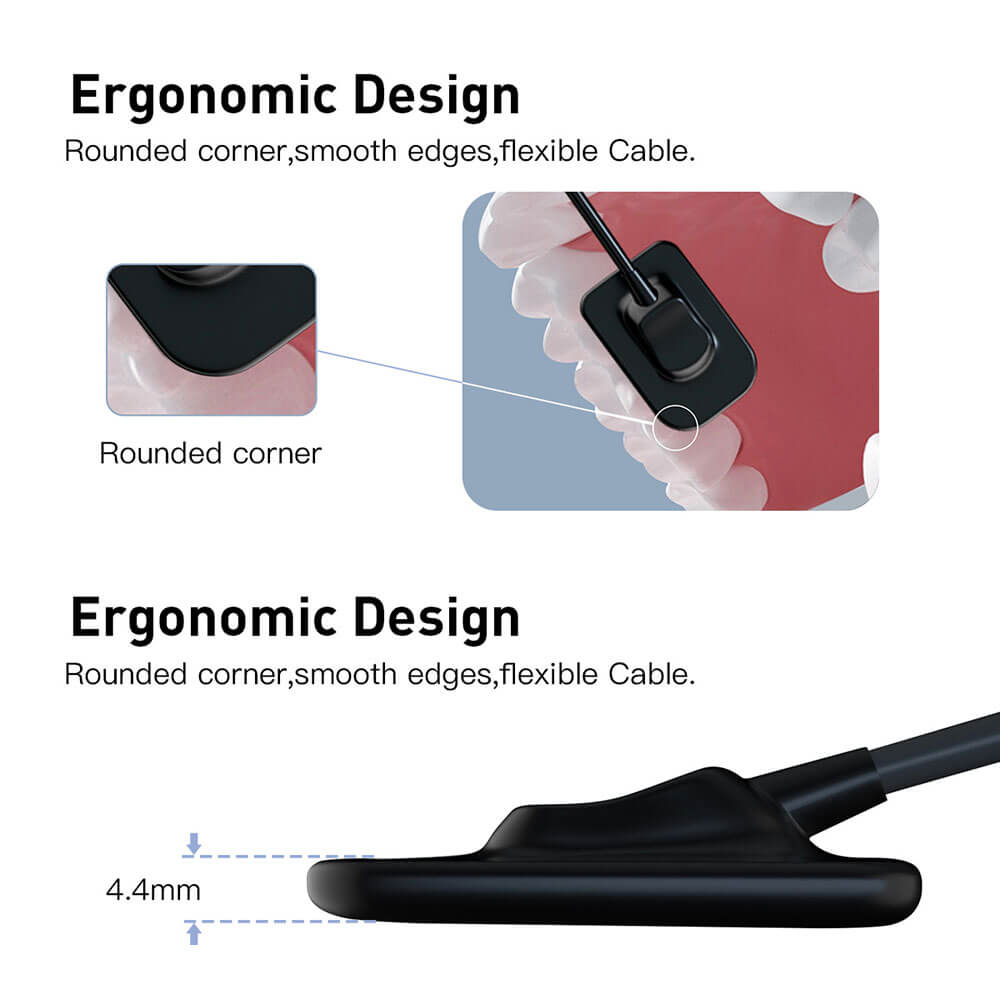

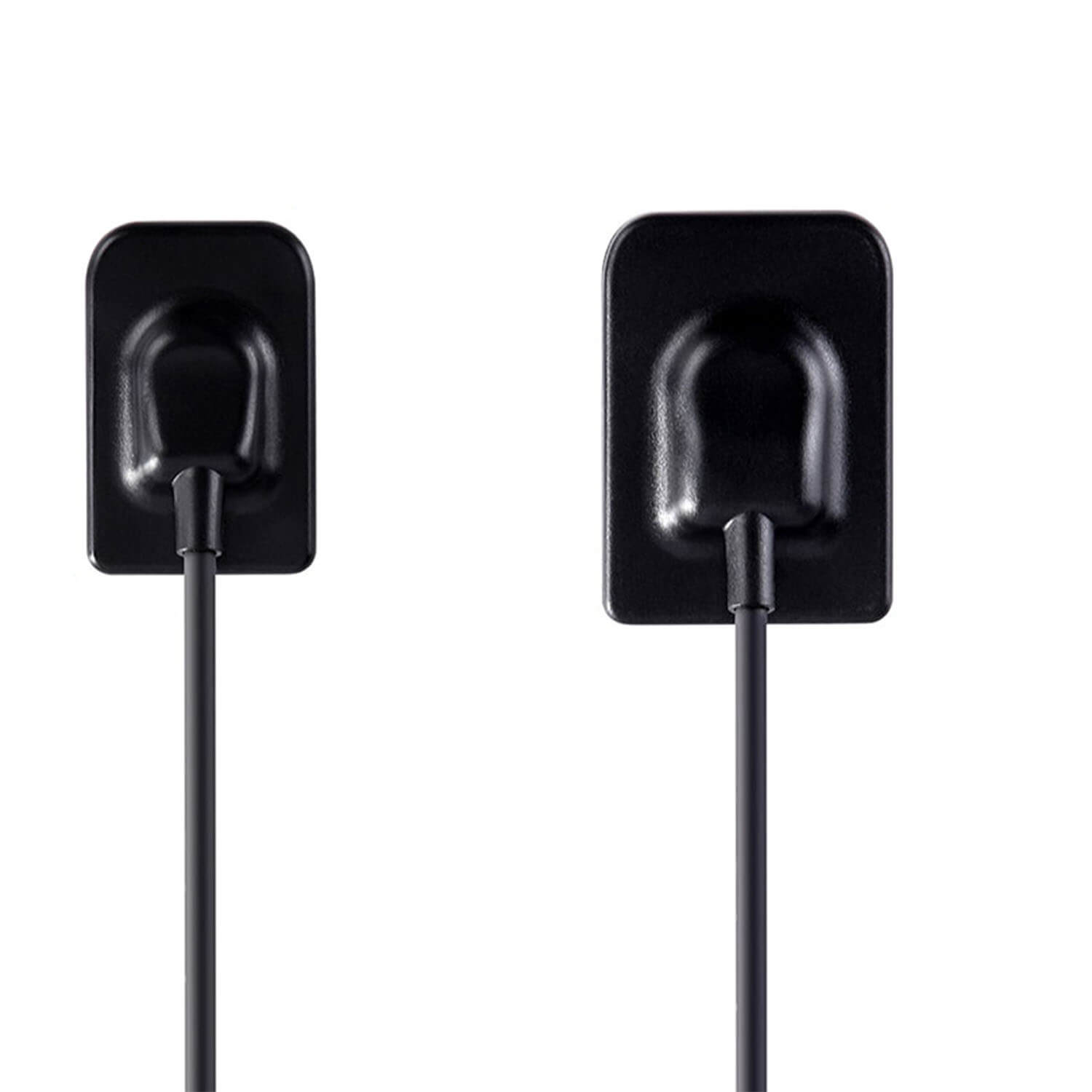

Ultra-thin Ergonomic Design: The sensor is available in two sizes and features a rounded corner design with a thickness of only 4.4mm, improving patient comfort and making intraoral positioning easier during clinical operation.
-

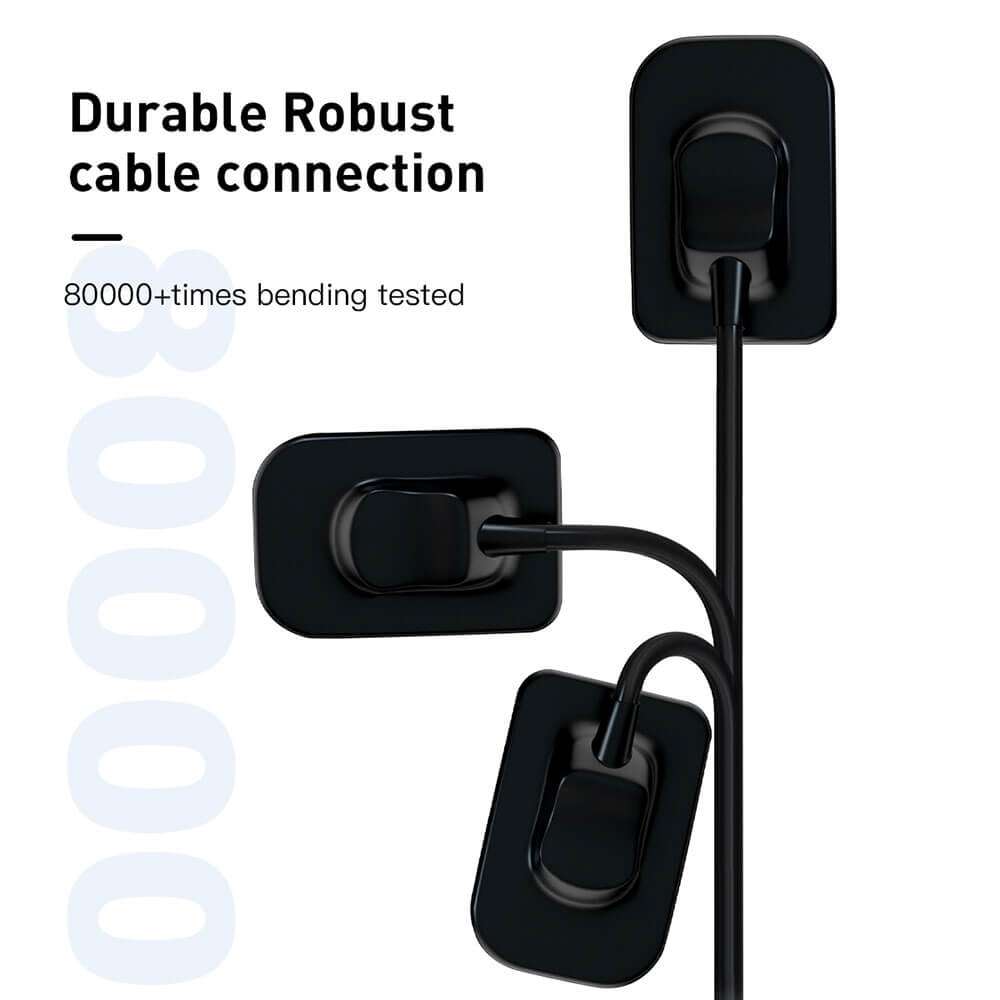

Durable Cable Design: The reinforced cable structure has passed 80,000+ bending tests, ensuring reliable performance and long-term durability for daily clinical use.
-
IP68 Waterproof Protection: The sealed sensor housing provides IP68 waterproof protection, improving durability and simplifying daily cleaning procedures.
-

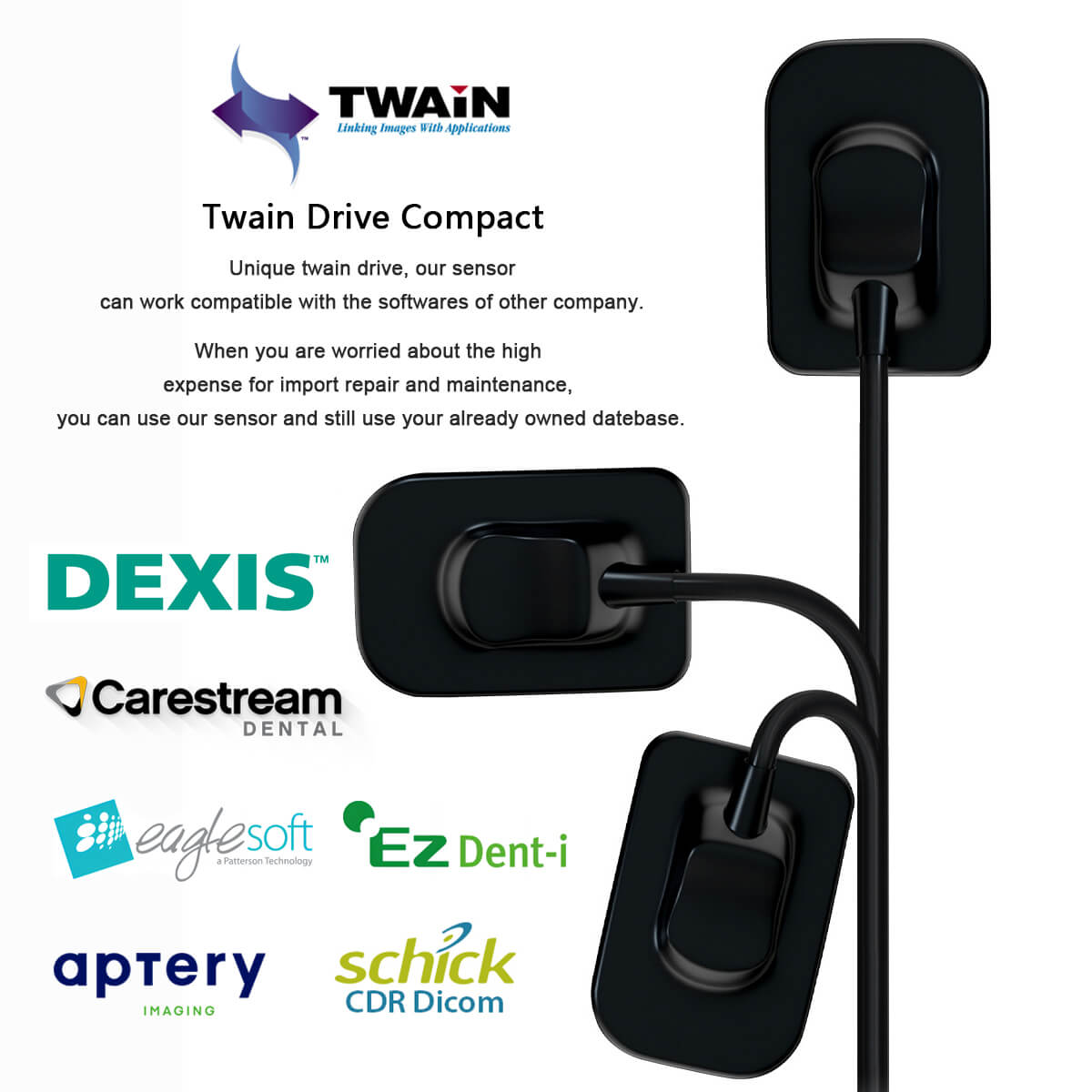

Wide Compatibility: Compatible with different dental X-ray generators, the sensor can be easily integrated into existing dental imaging workflows for convenient clinical use.
-
Professional Imaging Software: Compatible with professional dental imaging software for image acquisition, processing, and management.
-
Cost-effective Digital Solution: Compared with traditional dental film, the digital sensor requires no consumables, reducing long-term operating costs while improving imaging efficiency.
|
| Hardware and Software Requirement |
| Processor: |
1.0GHz or above |
| Memory: |
2GB or above |
Hard disk:
|
64GB or above |
| Display resolution: |
1440*900 or above |
| USB port: |
USB 2.0 |
| Operating system: |
Windows 7, Windows 10, Windows 11 |
| Model: |
S1 |
S2 |
| Detector Technology: |
APS CMOS |
APS CMOS |
| Scintillator: |
CsI |
CsI |
| Theoretical Resolution: |
25lp/mm |
25lp/mm |
| True Resolution: |
20lp/mm |
20lp/mm |
| Pixel Matrix: |
1000*1500 |
1300*1800 |

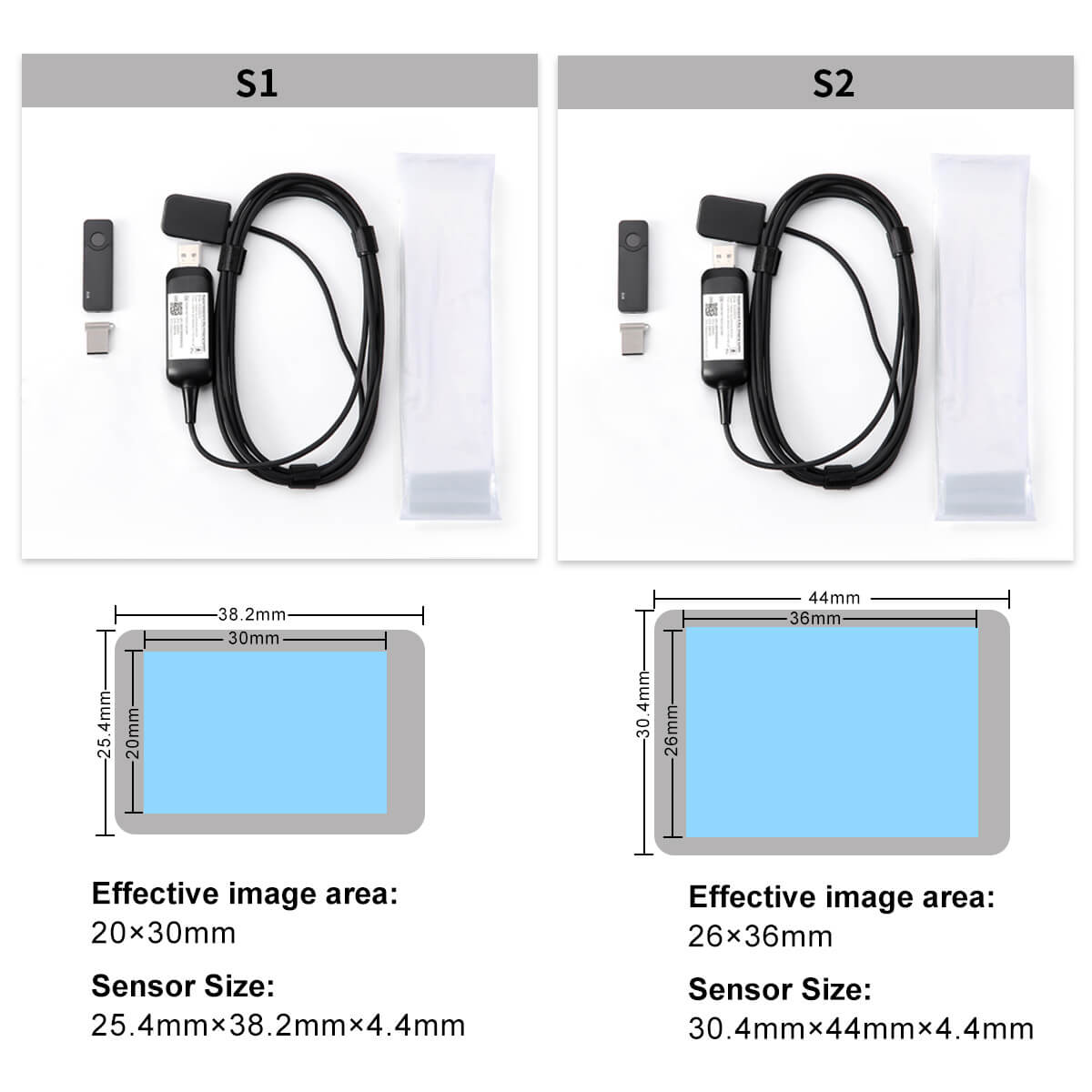

| Active Area(mm): |
20*30 |
26*36 |

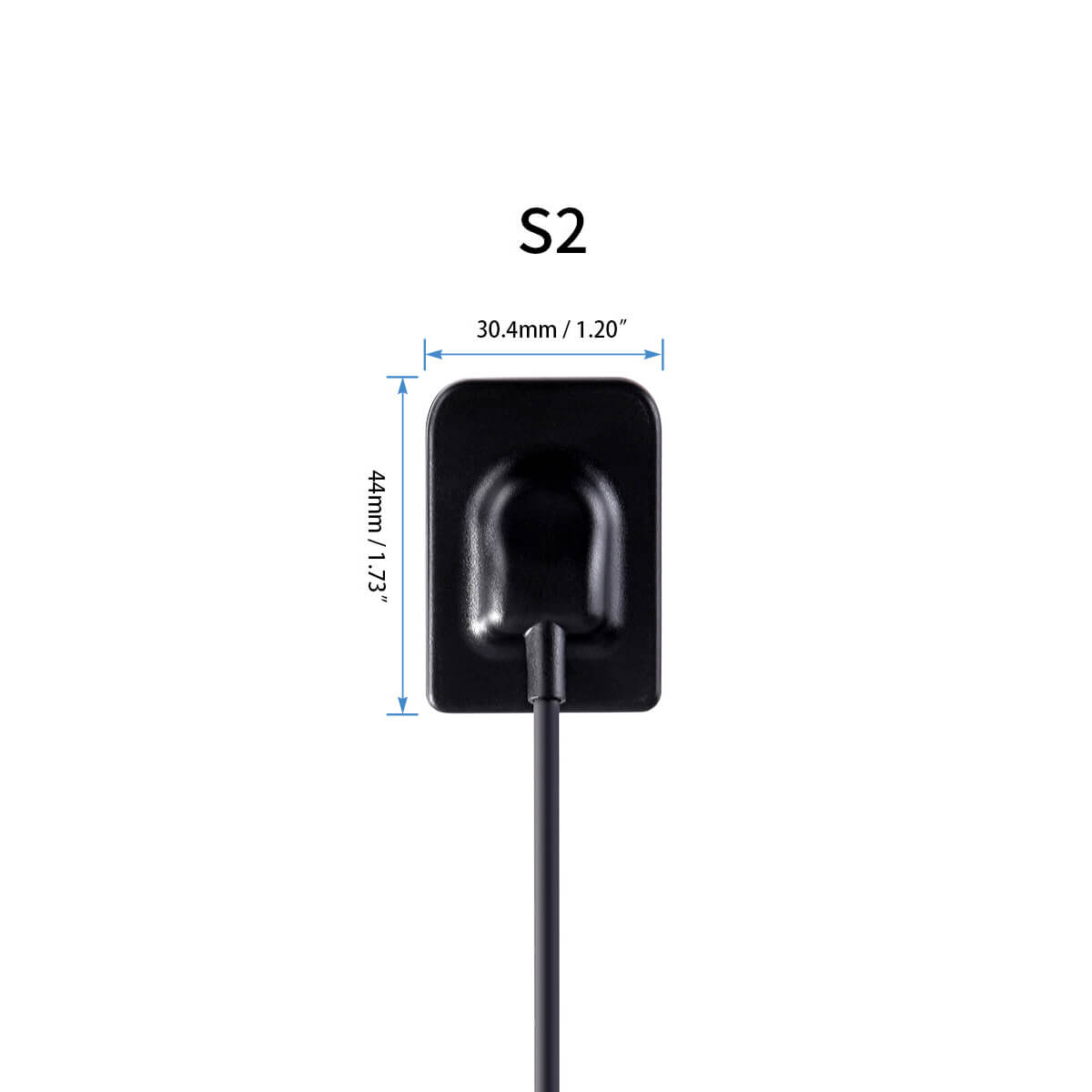

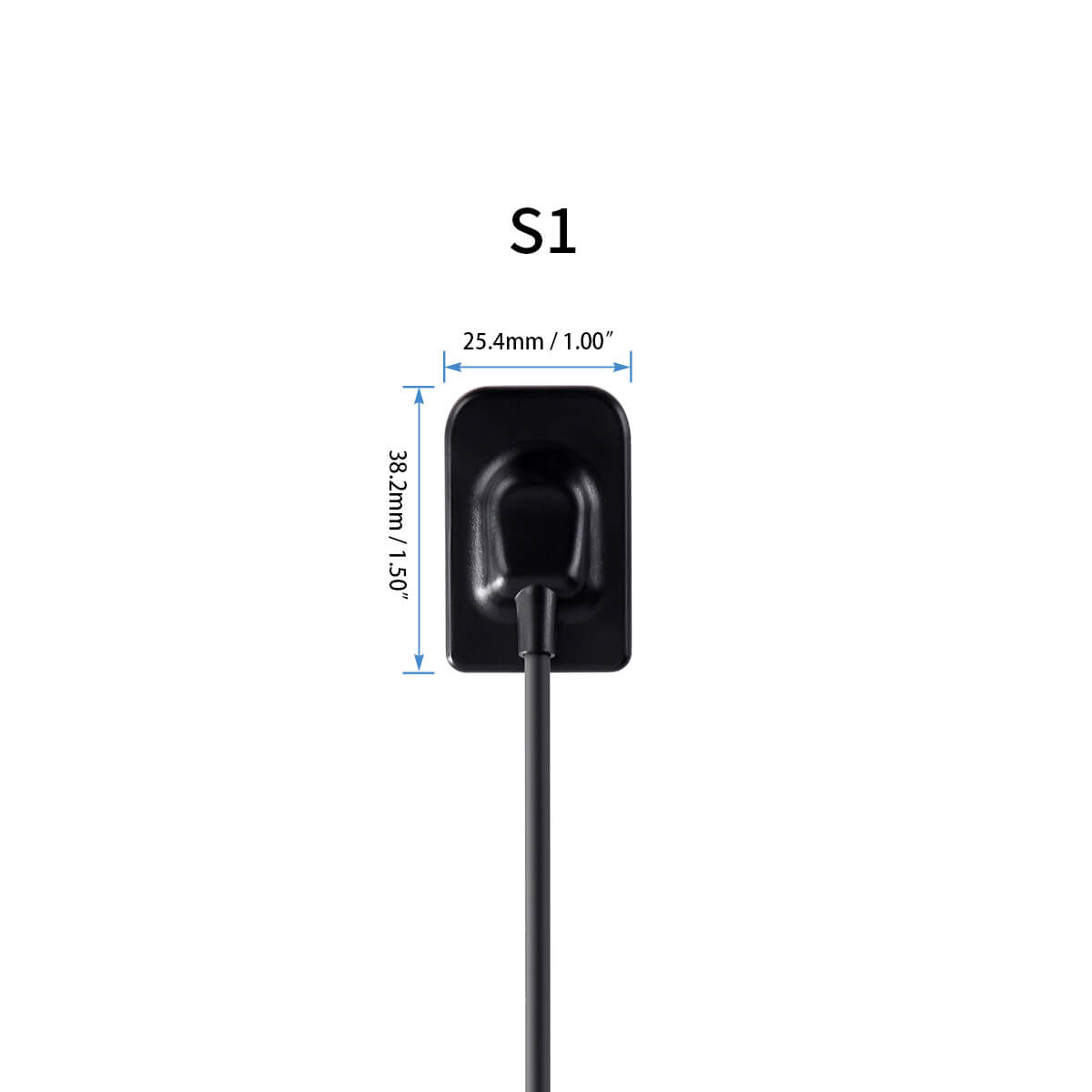

| Mechanical Size(mm): |
25.4*38.2*4.4 |
30.4*44*4.4 |
| Data interface: |
USB 2.0 |
USB 2.0 |
| AD Conversion(bit): |
16 |
16 |
| Protection: |
IP68 |
IP68 |

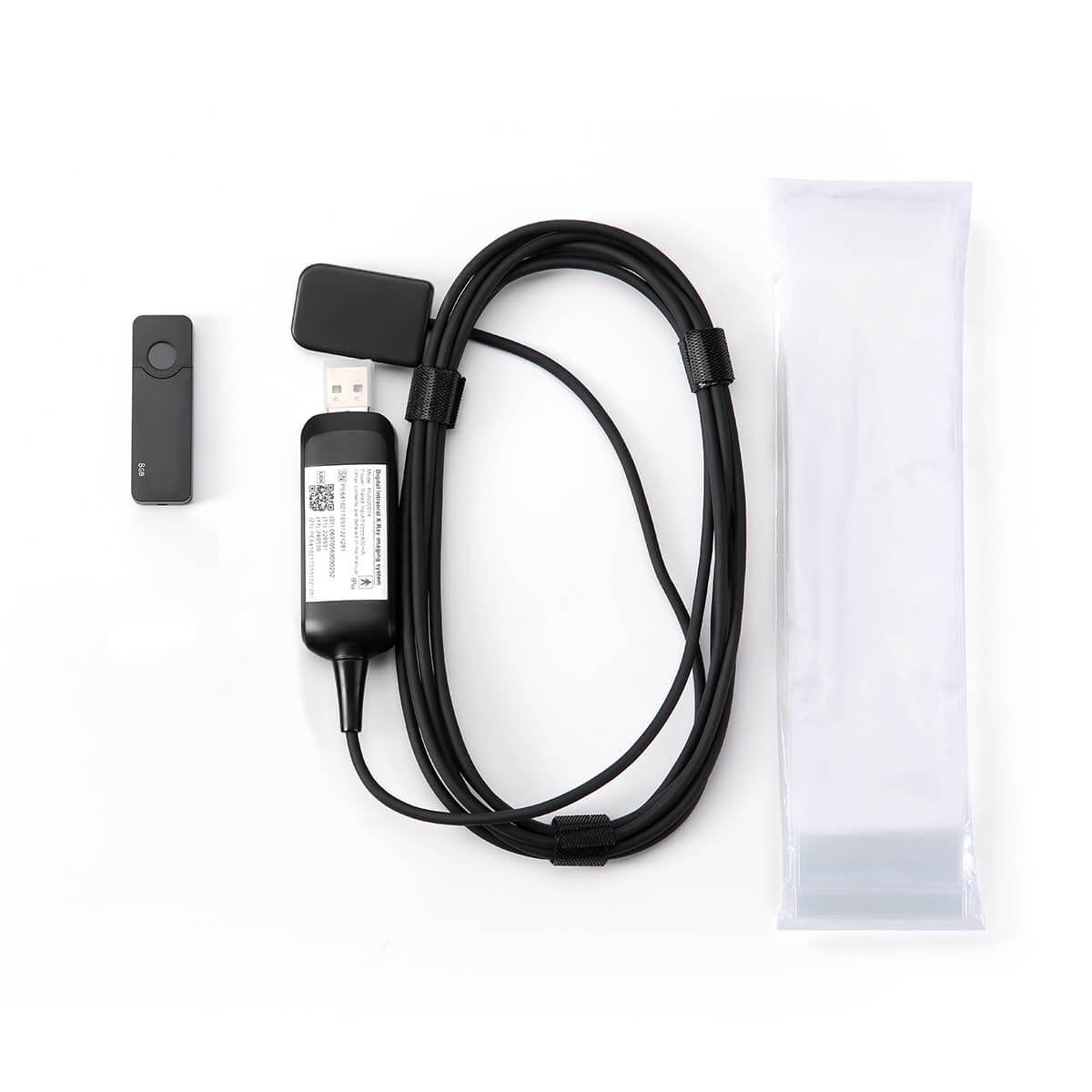

| Sensor |
1 |
| USB flash disk (Software) |
1 |
| Protective sleeve |
1 |
| Dongle |
1 |
