Dental LED Brushless Micro Motor. Designed for clinical precision and durability. Featuring an internal spray and an ISO-E type connector, it offers seamless compatibility and superior cooling. The advanced brushless technology delivers a powerful 3.4 N·cm torque with quiet operation (<60dB). With three versatile gear settings (1:1, 1:5, and 16:1), it provides an expansive speed range from 100 rpm for endodontics up to 200,000 rpm for high-speed preparation, ensuring optimal performance across all dental procedures.
1:5 LED Increasing Contra Angle Handpiece. Designed for precision and durability, reaching speeds up to 200,000 rpm. Equipped with ceramic bearings and high-brightness fiber optic lighting, it ensures smooth, low-noise operation with superior visibility. Compatible with standard E-type electric motors, the handpiece features an internal four-way spray for optimal cooling and is fully autoclavable, making it a reliable choice for demanding clinical procedures.
| Electric Micro Motor Specification |
| Type of motor: | Brushless motor |
| Water Spray: | Internal Spray |
| Rotation: | 2,000-40,000rpm |
| Optional settings: | 2000rpm-40000rpm(1:1) 10000rpm-200000rpm(1:5) 100rpm-2500rpm(16:1) |
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <60dB |
| Illuminate: | LED(white light) |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| 1:5 LED Electric Increasing Contra Angle Handpiece Specification |
| Water Spray: | Internal four way spray |
| Gear Ratio: | 1:5 |
| Rotation Speed: | Max.200,000rpm/min |
| Noise: | ≤60dB |
| Bur Applicable: | Φ1.59-1.60mm |
| Connector: | E-type |
| Chuck Type: | Push Button |
| Packing list |
| Micromotor: | 1 PC |
| Control unit: | 1 PC |
| Micromotor tube: | 1 PC |
| Power adaptor: | 1 PC |
| Operation manual: | 1 PC |
| Handpiece: | 1 PC |
Dental LED Brushless Micro Motor. Designed for clinical precision and durability. Featuring an internal spray and an ISO-E type connector, it offers seamless compatibility and superior cooling. The advanced brushless technology delivers a powerful 3.4 N·cm torque with quiet operation (<60dB). With three versatile gear settings (1:1, 1:5, and 16:1), it provides an expansive speed range from 100 rpm for endodontics up to 200,000 rpm for high-speed preparation, ensuring optimal performance across all dental procedures.
1:5 LED Increasing Contra Angle Handpiece. Designed for precision and durability, reaching speeds up to 200,000 rpm. Equipped with ceramic bearings and high-brightness fiber optic lighting, it ensures smooth, low-noise operation with superior visibility. Compatible with standard E-type electric motors, the handpiece features an internal four-way spray for optimal cooling and is fully autoclavable, making it a reliable choice for demanding clinical procedures.
| Electric Micro Motor Specification |
| Type of motor: | Brushless motor |
| Water Spray: | Internal Spray |
| Rotation: | 2,000-40,000rpm |
| Optional settings: | 2000rpm-40000rpm(1:1) 10000rpm-200000rpm(1:5) 100rpm-2500rpm(16:1) |
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <60dB |
| Illuminate: | LED(white light) |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| 1:5 LED Electric Increasing Contra Angle Handpiece Specification |
| Water Spray: | Internal four way spray |
| Gear Ratio: | 1:5 |
| Rotation Speed: | Max.200,000rpm/min |
| Noise: | ≤60dB |
| Bur Applicable: | Φ1.59-1.60mm |
| Connector: | E-type |
| Chuck Type: | Push Button |
| Packing list |
| Micromotor: | 1 PC |
| Control unit: | 1 PC |
| Micromotor tube: | 1 PC |
| Power adaptor: | 1 PC |
| Operation manual: | 1 PC |
| Handpiece: | 1 PC |

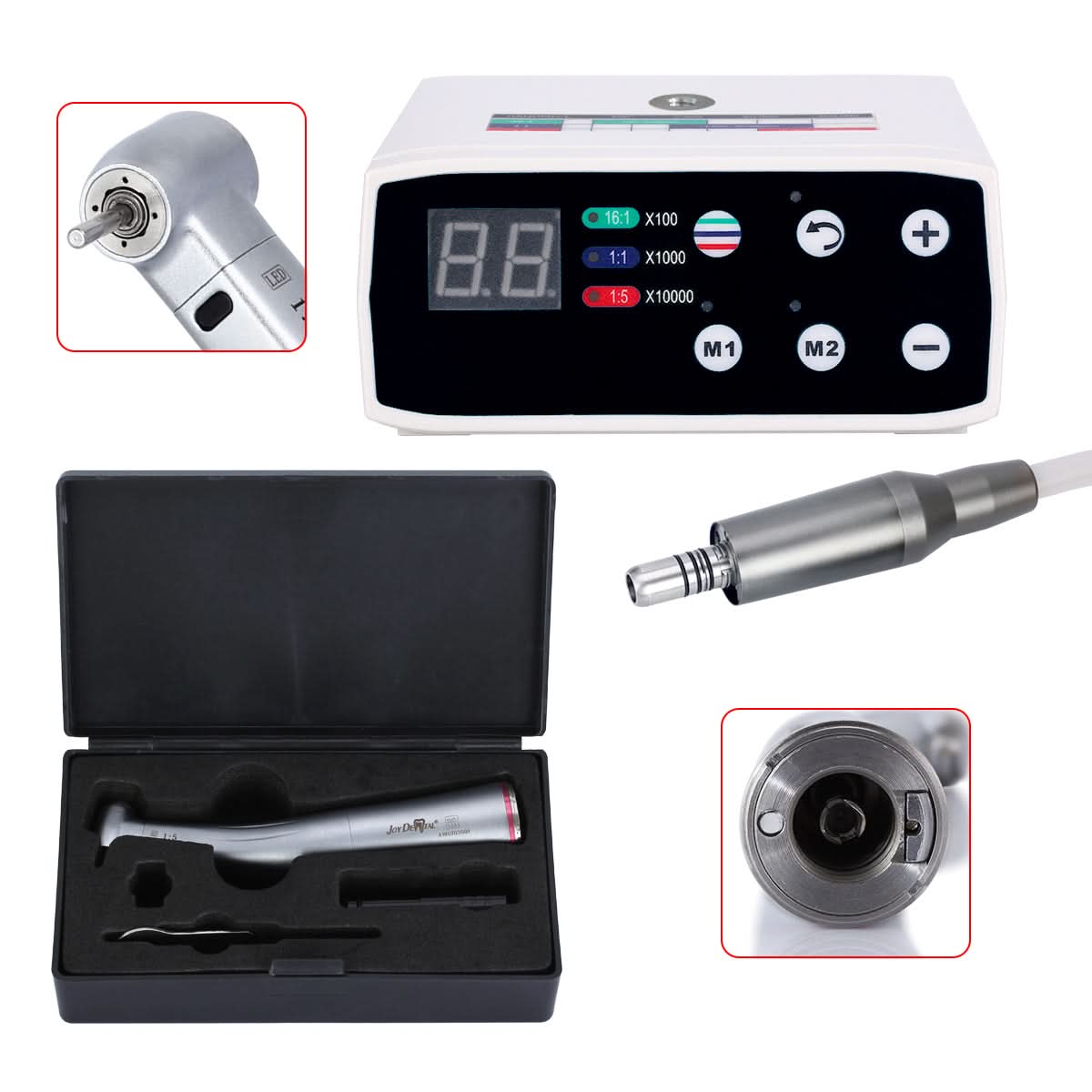

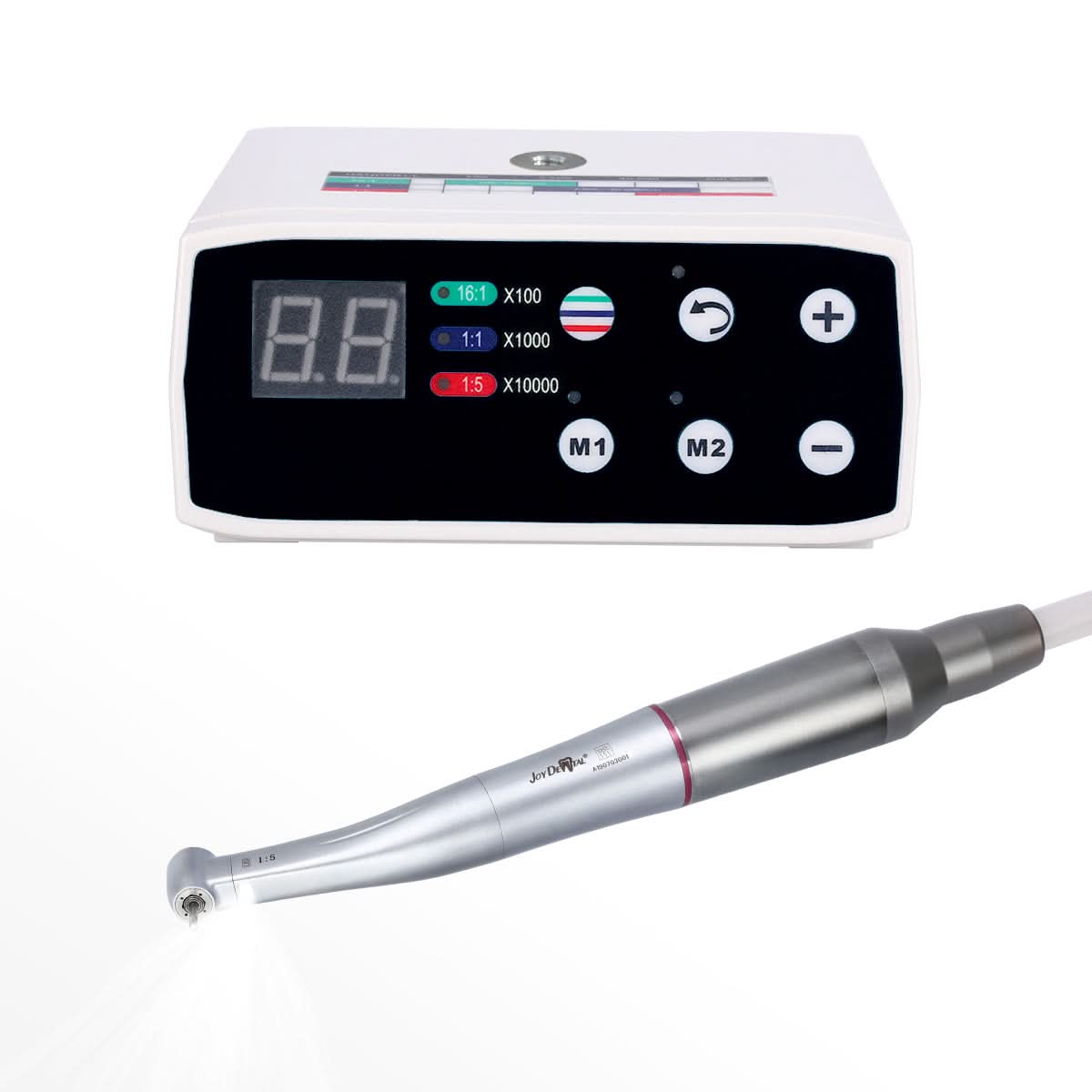

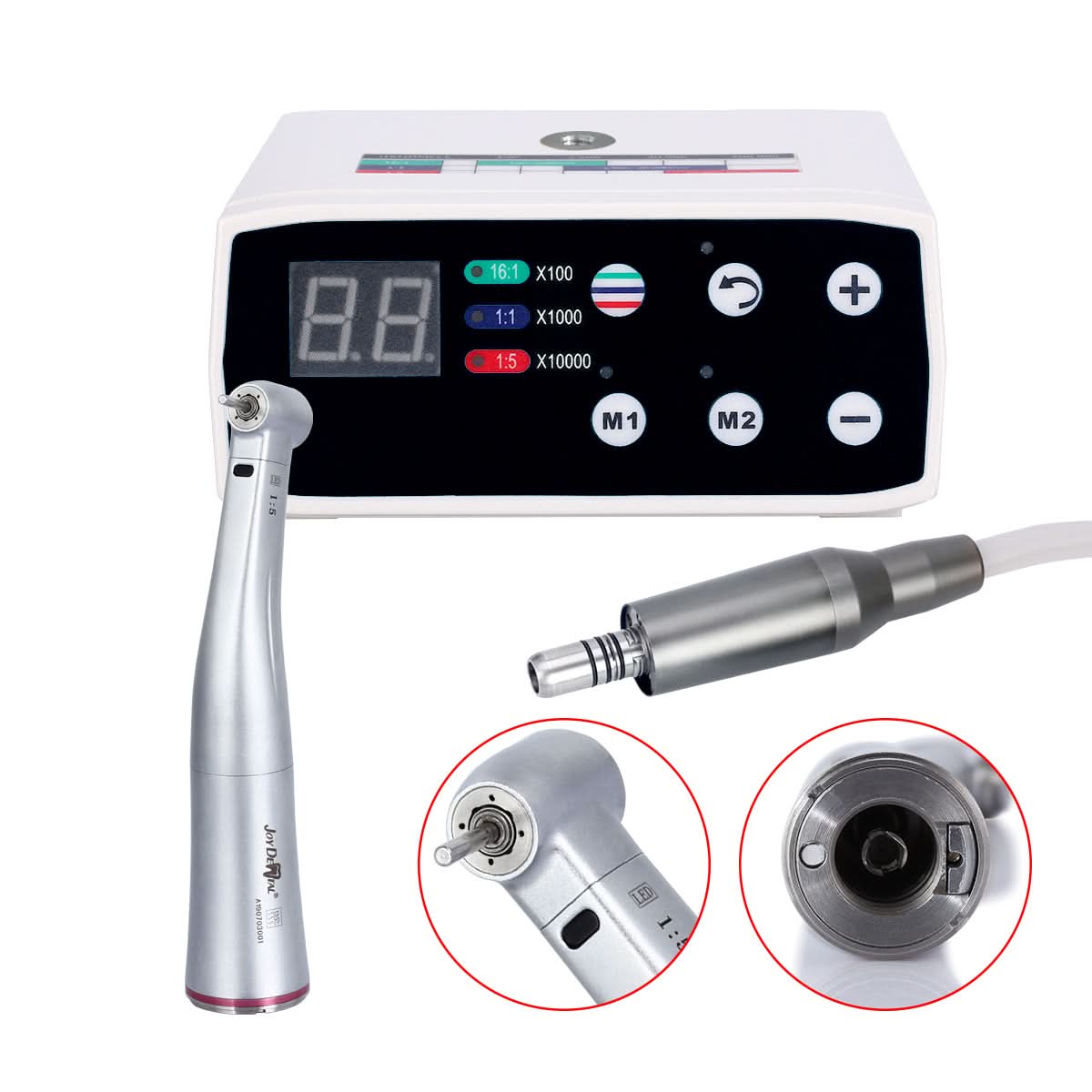

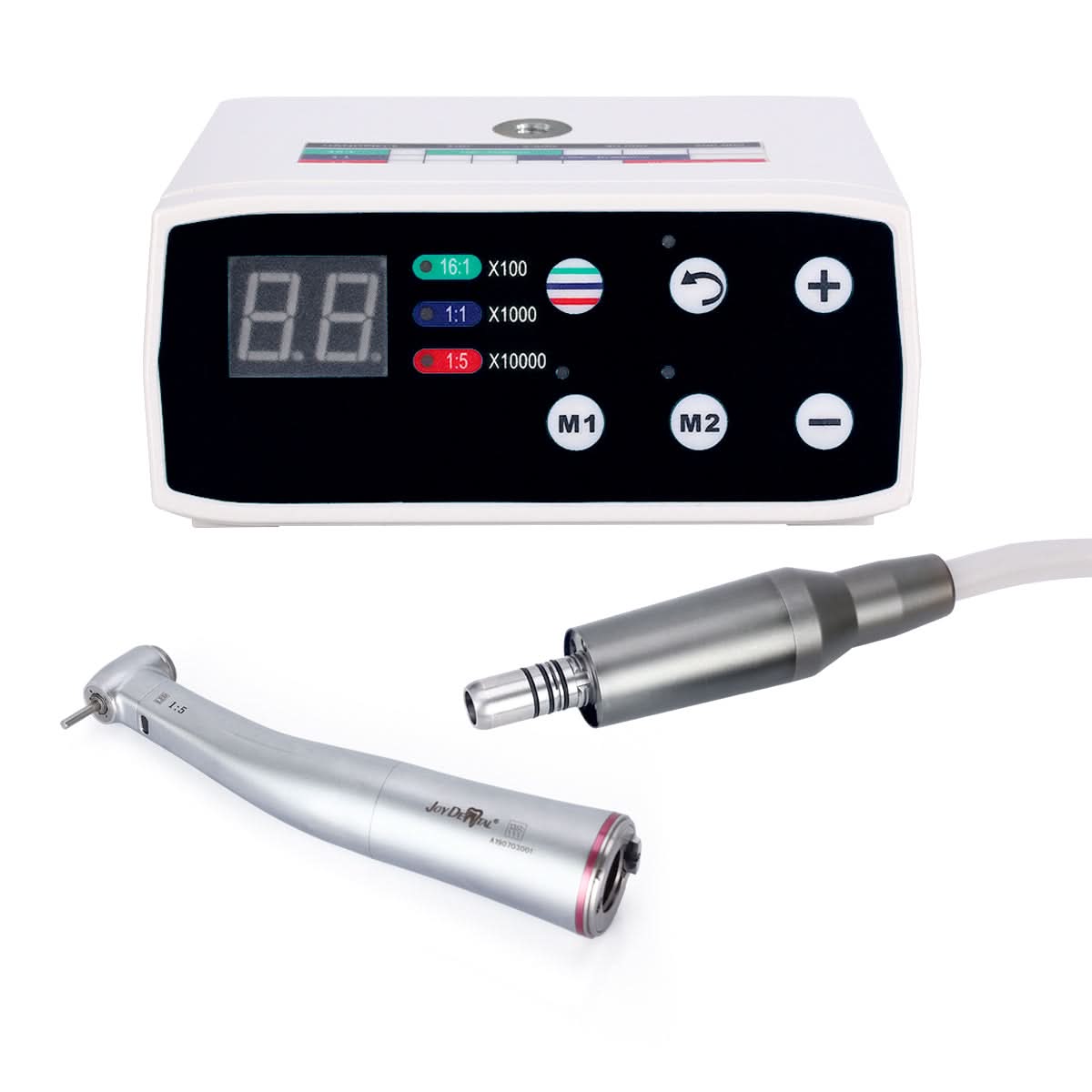

Dental LED Brushless Micro Motor + 1:5 LED Electric Increasing Contra Angle Handpiece
$261.94
