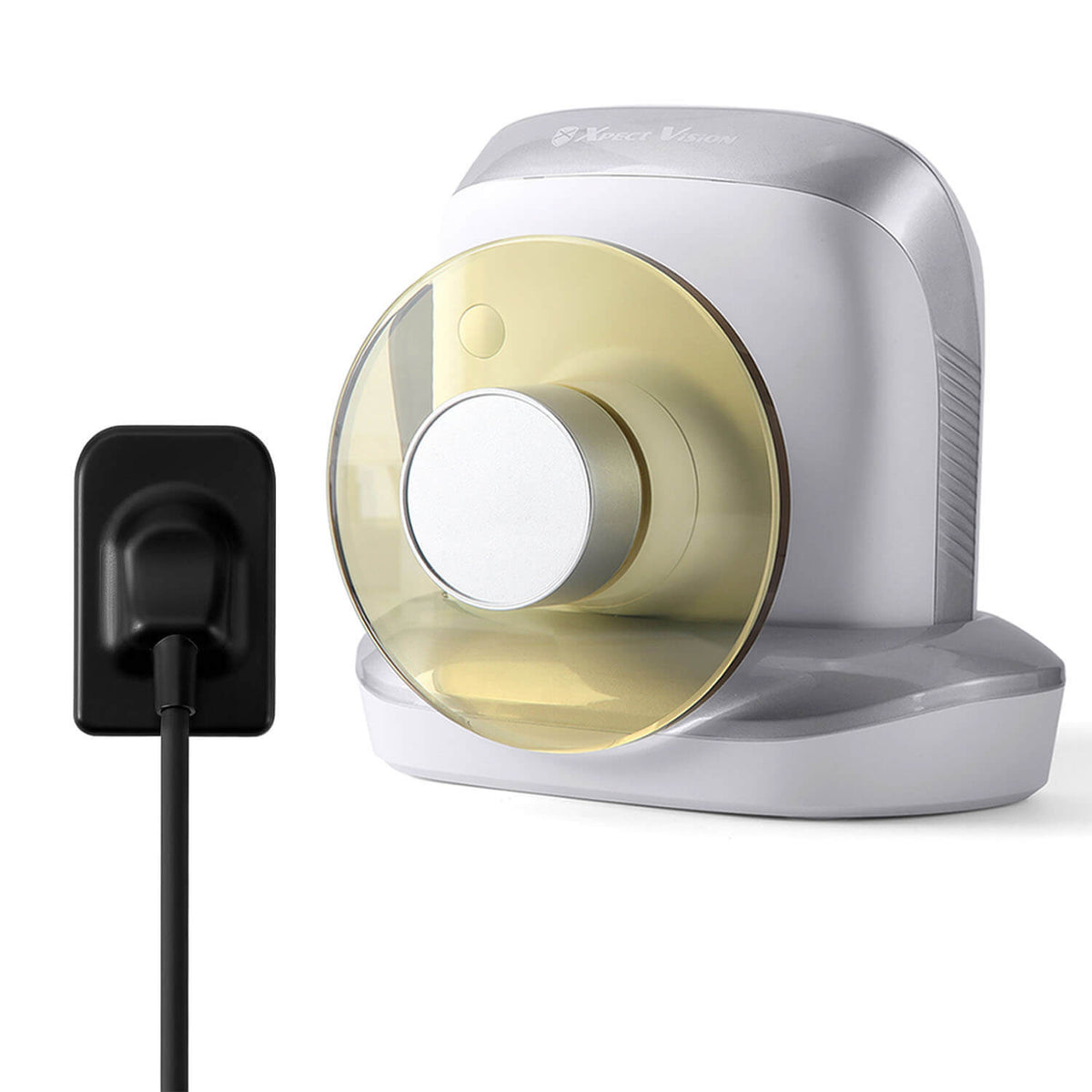

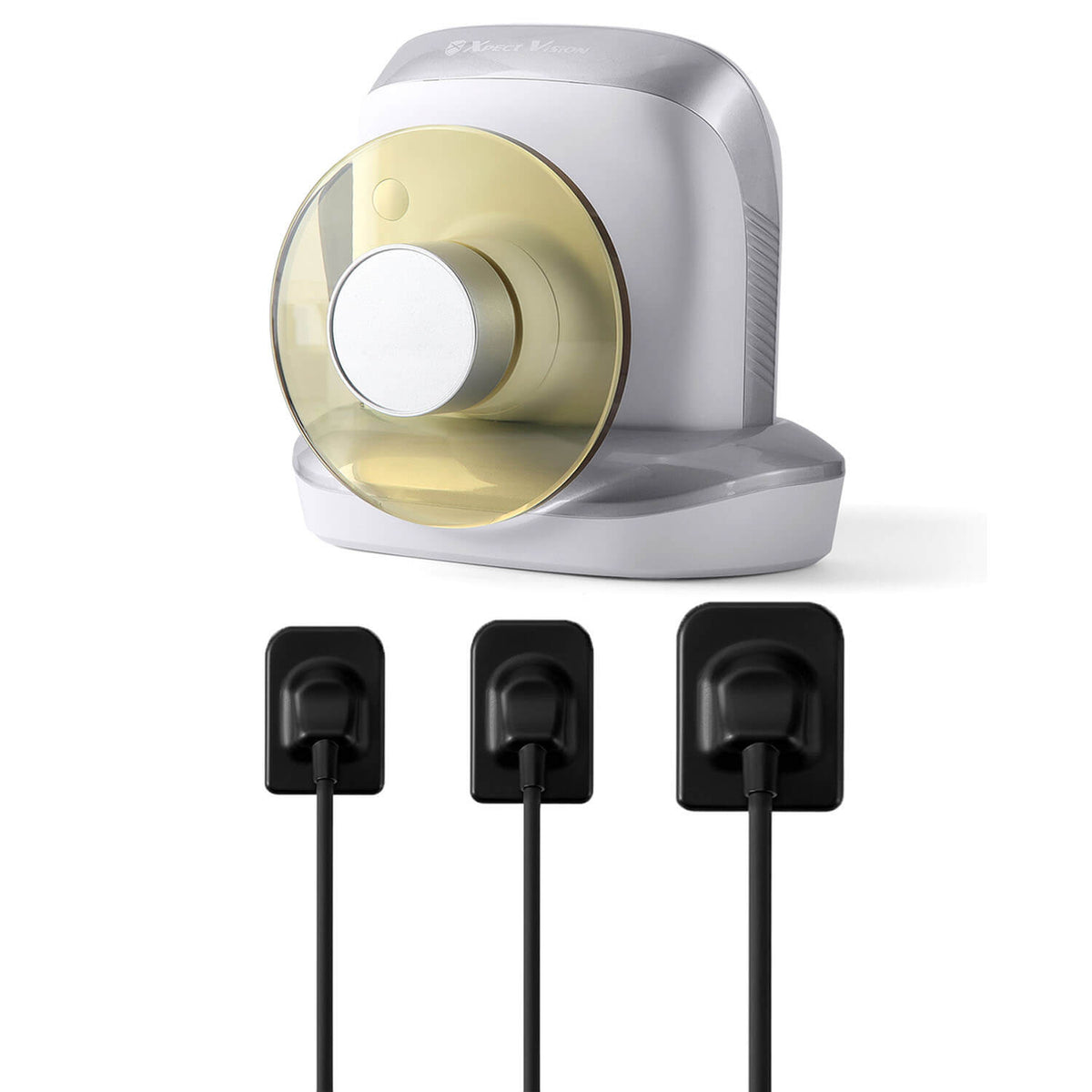

Dental X-Ray Machine Touch Screen Control with X-Ray Digital Intraoral Sensor Size #1 #1.5 #2
Dental Portable X-Ray Machine Handheld Digital Smart Touch Screen Control With Scatter Shield FDA Cleared. This FDA-cleared handheld dental X-ray machine combines high-definition diagnostics with industry-leading safety. Featuring a powerful 65kV/2.6mA output and a precise 0.4mm focal spot, it ensures crystal-clear penetration for both sensors and film. The dual-protection design, incorporating an internal radiation leak shield and an external backscatter lead shield—prioritizes operator safety. Weighing only 2.1kg, the lightweight ergonomic body includes a secure hand strap and an intuitive smart touch screen with preset exposure doses for an optimized workflow. Its high-capacity battery supports 300+ exposures per charge and includes an innovative docking station for automatic recharging.
Note: It is not recommended to keep the device powered on long‑term after a full charge, as constant charging will degrade battery life. Disconnect charging once fully charged. If you wish to store the device on its docking station, cut power to the dock. The device stays securely seated with no active charging, causing no battery damage.
Charging specs:
Charge time: ~80 mins after auto‑shutdown
Charging: Power the dock, align device charging port with dock connector
Indicator: Orange = charging; Blue = fully charged

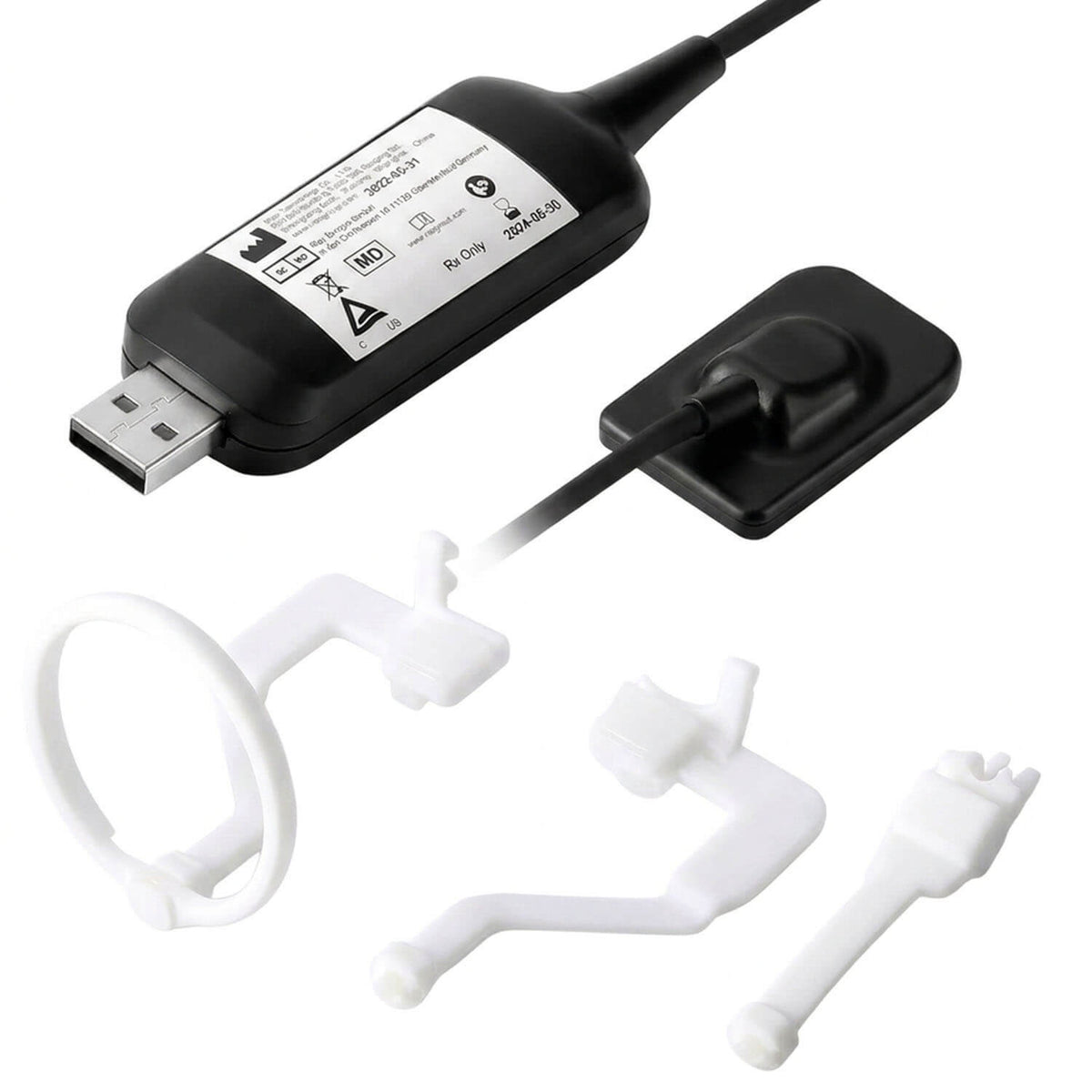

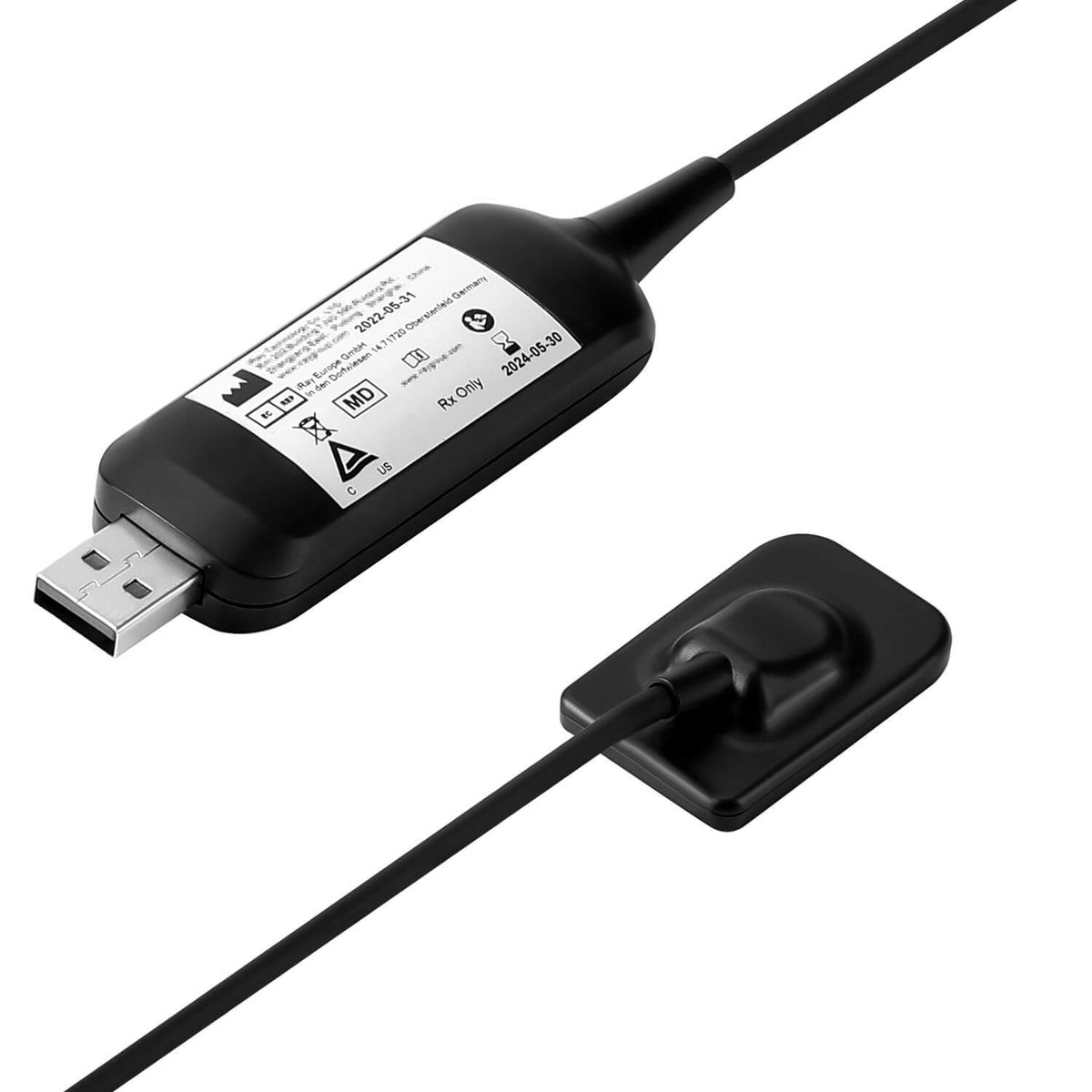

Dental Digital X-Ray Sensor HD Intraoral Imaging System Size #1 #1.5 #2 With Sensor Positioning Holder. This high-definition Digital Intraoral X-Ray Sensor is engineered for superior clinical efficiency and patient comfort. Utilizing advanced CMOS detector technology with a CSI scintillator, it delivers high-resolution, low-dose imaging that is compatible with various X-ray generators. The ultra-slim 4.4mm profile with rounded corners ensures a comfortable experience, while the heavy-duty cable is built to last through 80,000+ bends. A Sensor Positioning Holder is included to ensure precise placement and consistent image accuracy.
Notice: This sensor comes with its own software, and it can be used for free for life.
| Overview for X-Ray Machine |
- Precision HD Imaging: Engineered with a 0.4mm fine focal spot and high-power 65kV/2.6mA output, delivering exceptional contrast and crystal-clear detail for accurate clinical diagnosis.
- Industry-Leading Dual Shielding: Features comprehensive Internal Lead Lining and an External Backscatter Shield, providing a dual-layer radiation barrier that ensures maximum safety for the operator.
- Smart Touch Control: Equipped with an intuitive, high-resolution Smart Touch Screen featuring preset exposure programs for different tooth positions and patient sizes (Adult/Pediatric).
- Ultra-Lightweight Ergonomics: Weighing only 2.1kg, the compact body and adjustable Anti-Slip Hand Strap allow for fatigue-free, stable one-handed operation.
- High-Endurance Battery: The high-capacity lithium battery supports 300+ exposures on a single charge, ensuring uninterrupted performance throughout a busy clinic day.
- Auto-Charge Dock: Includes a dedicated Wireless-Style Docking Station for easy storage and automatic recharging, ensuring the device is always ready for the next patient.
- Universal Digital Integration: Fully optimized for seamless use with all major Digital RVG Sensors, PSP plates, and traditional dental film.
- FDA Cleared: Meets rigorous international safety and quality standards, providing peace of mind and professional-grade reliability.
|
| Overview for X-Ray Sensor |
-
High Resolution CMOS Imaging Technology: Advanced CMOS detector technology combined with CSI scintillator provides clear and detailed dental images with excellent resolution and accurate grayscale reproduction.
-
16-bit Grayscale Image Processing: With 16-bit grayscale technology, the sensor provides up to 65,536 gray levels, allowing dentists to observe more image details and improve diagnostic efficiency.
-
Ultra-thin Ergonomic Design: The sensor is available in two sizes and features a rounded corner design with a thickness of only 4.4mm, improving patient comfort and making intraoral positioning easier during clinical operation.
-
Durable Cable Design: The reinforced cable structure has passed 80,000+ bending tests, ensuring reliable performance and long-term durability for daily clinical use.
-
IP68 Waterproof Protection: The sealed sensor housing provides IP68 waterproof protection, improving durability and simplifying daily cleaning procedures.
-
Wide Compatibility: Compatible with different dental X-ray generators, the sensor can be easily integrated into existing dental imaging workflows for convenient clinical use.
-
Professional Imaging Software: Compatible with professional dental imaging software for image acquisition, processing, and management.
-
Cost-effective Digital Solution: Compared with traditional dental film, the digital sensor requires no consumables, reducing long-term operating costs while improving imaging efficiency.
|
| Technical Parameter for X-Ray Machine |
| Model: |
XVB2000 |
| Focal Spot: |
0.4 mm |
| Tube Voltage: |
65 kV |
| Tube Current: |
2.6 mA |
| Exposure Time: |
0.01 – 2.0 sec |
| Weight: |
2.1 KG |
| Source to Skin Distance: |
200 mm |
| Power Input: |
22.2 V |
| Hardware and Software Requirement for X-Ray Sensor |
| Processor: |
1.0GHz or above |
| Memory: |
2GB or above |
| Hard Disk: |
64GB or above |
| Display Resolution: |
1440*900 or above |
| USB Port: |
USB2.0 |
| Operating System: |
Windows 7, Windows 10, Windows 11 |

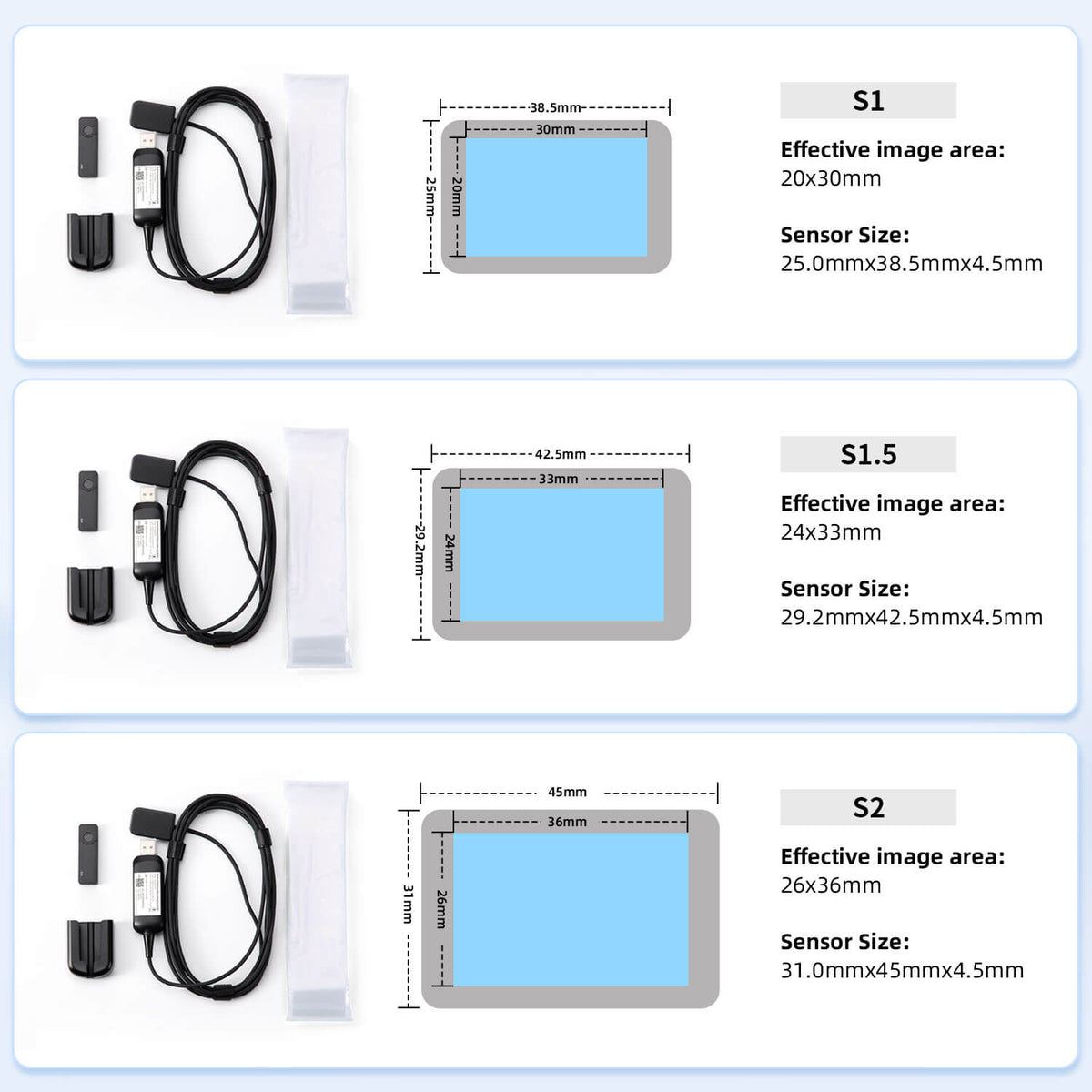

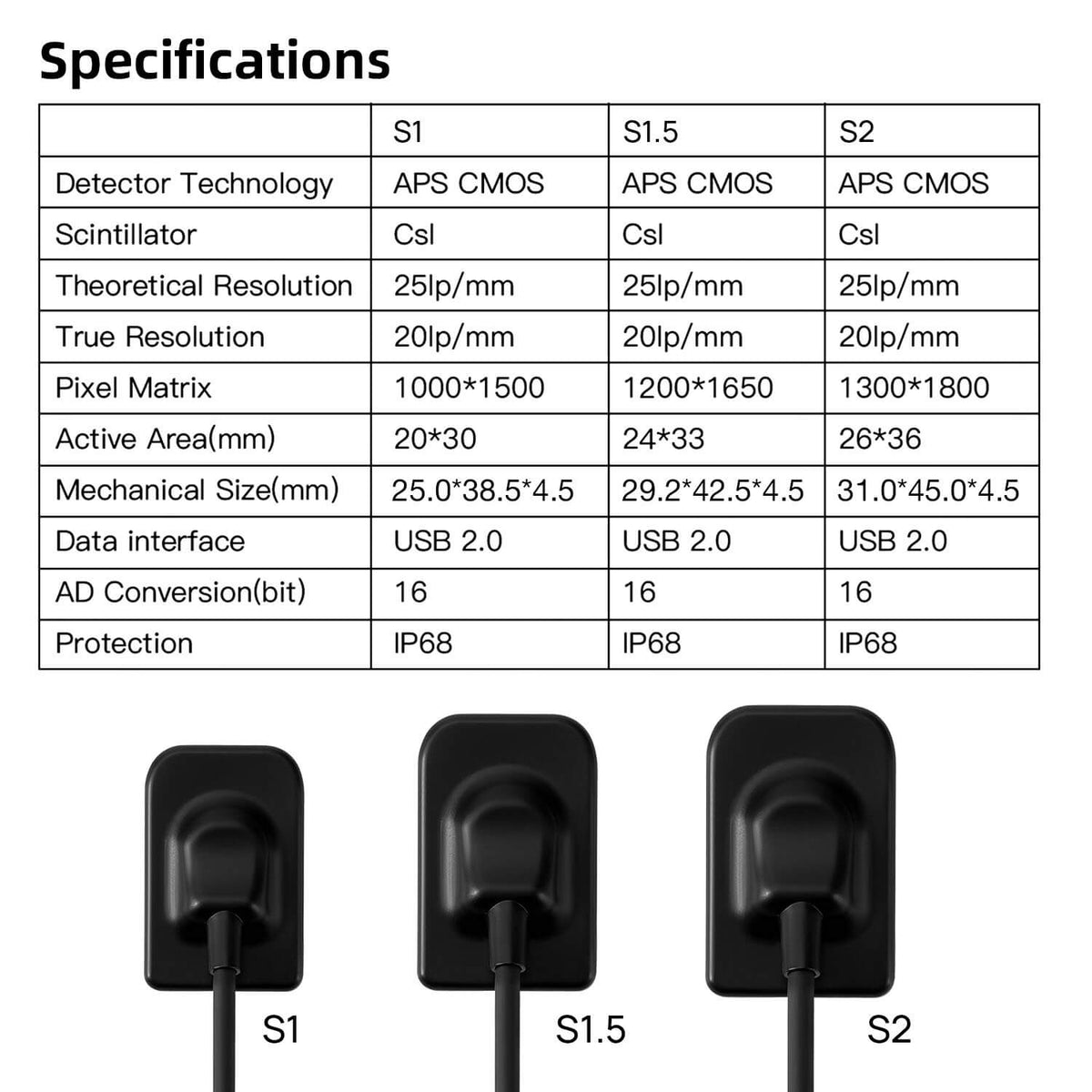

| Specifications of X-Ray Sensor |
| Size: |
Size 1 |
Size 1.5 |
Size 2 |
| Detector Technology: |
APS CMOS |
APS CMOS |
APS CMOS |
| Scintillator: |
CsI |
CsI |
CsI |
| Theoretical Resolution: |
25lp/mm |
25lp/mm |
25lp/mm |
| True Resolution: |
20lp/mm |
20lp/mm
|
20lp/mm
|
| Pixel Matrix: |
1000*1500 |
1300*1800 |
1300*1800 |
| Active Area(mm): |
20*30 |
24*33 |
26*36 |
| Mechanical Size(mm): |
25*38.5*4.5 |
29.2*42.5*4.5 |
31*45*4.5 |
| Data Interface: |
USB 2.0 |
USB 2.0 |
USB 2.0 |
| AD Conversion(bit): |
16 |
16 |
16 |
| Protection: |
IP68 |
IP68 |
IP68 |
| Size Core Positioning: |
Pediatric & Small Anatomy |
Universal Adult Standard |
Large View & Bitewing |
| Packing List for X-Ray Machine |
| Main Unit: |
1 |
| Extension Tube: |
1 |
| External Backscatter Shield: |
1 |
| Docking Station: |
1 |
| Power Adapter & Cable: |
1 |
| Secure Strap: |
1 |

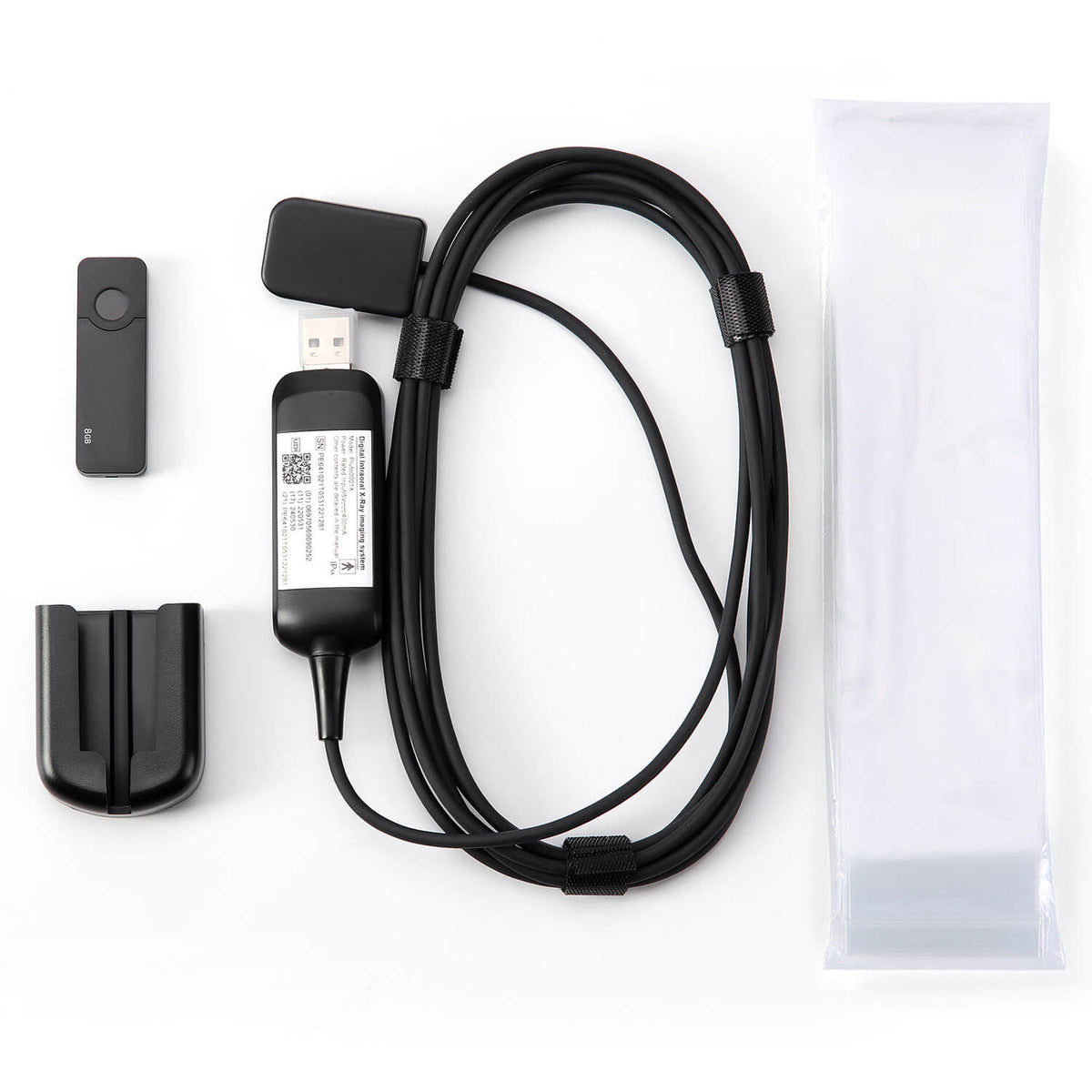

| Packing List of X-Ray Sensor |
| Sensor: |
1 |
| USB Flash Disk (Software): |
1 |
| Protective Sleeve: |
1 |
| X-ray Position System: |
1 |
