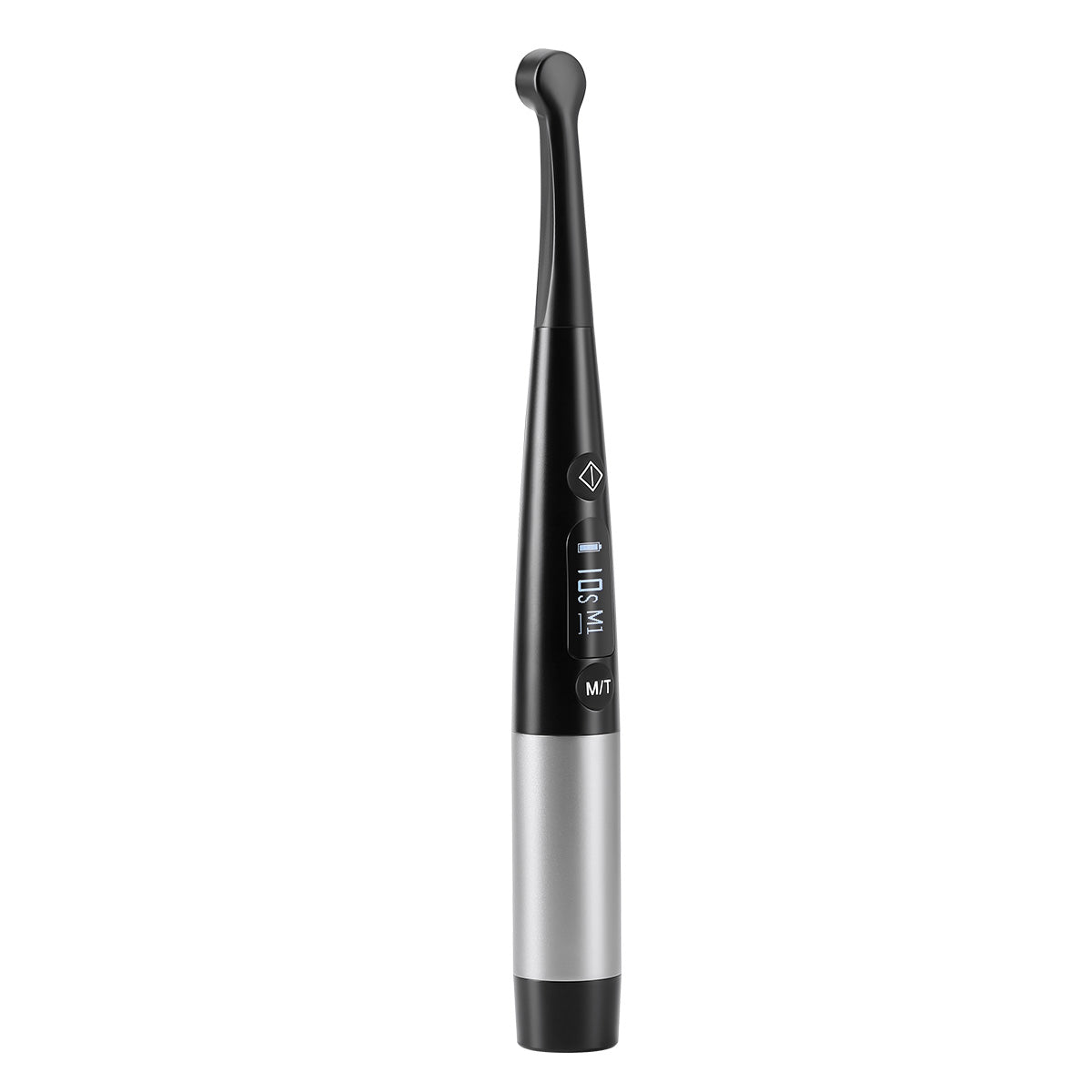

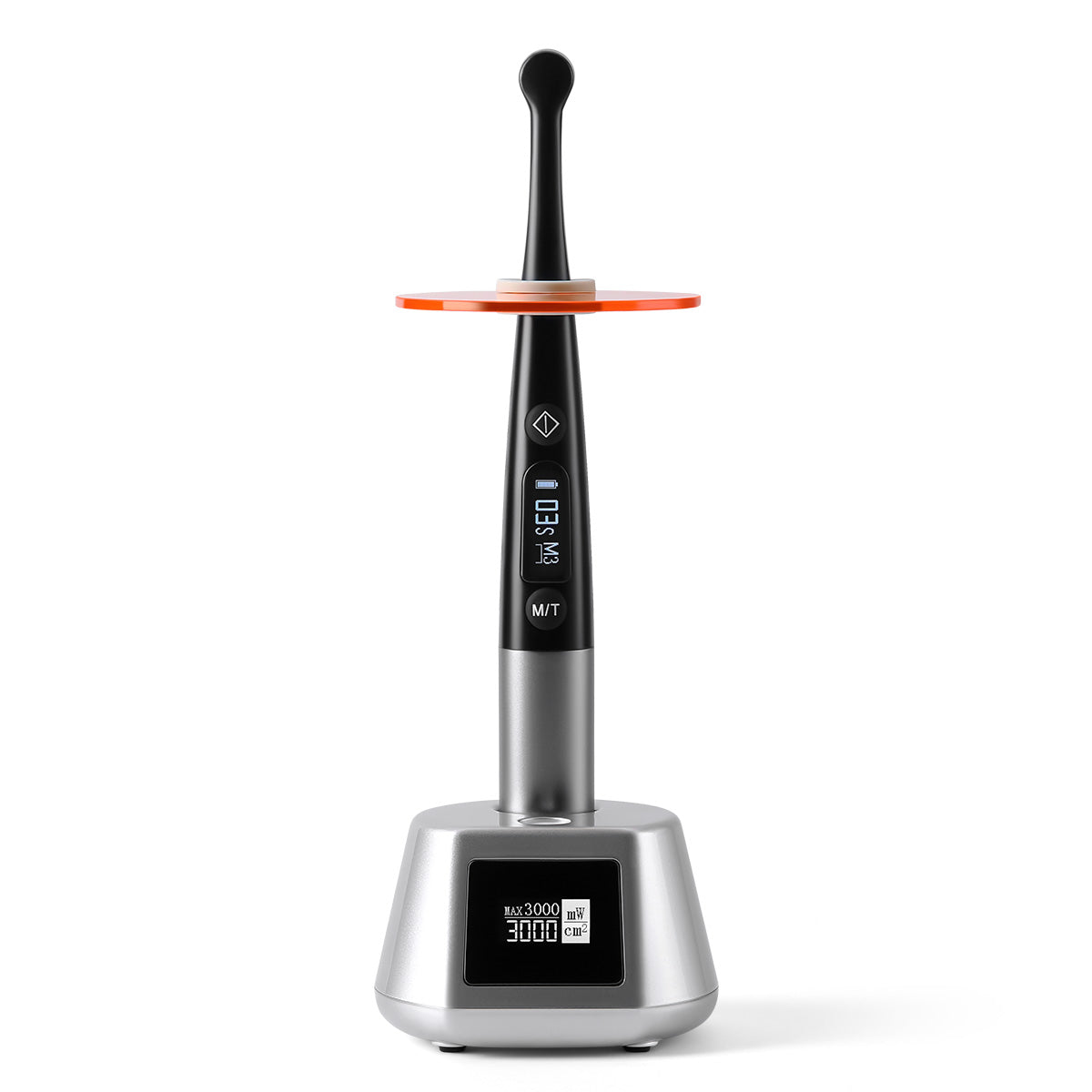

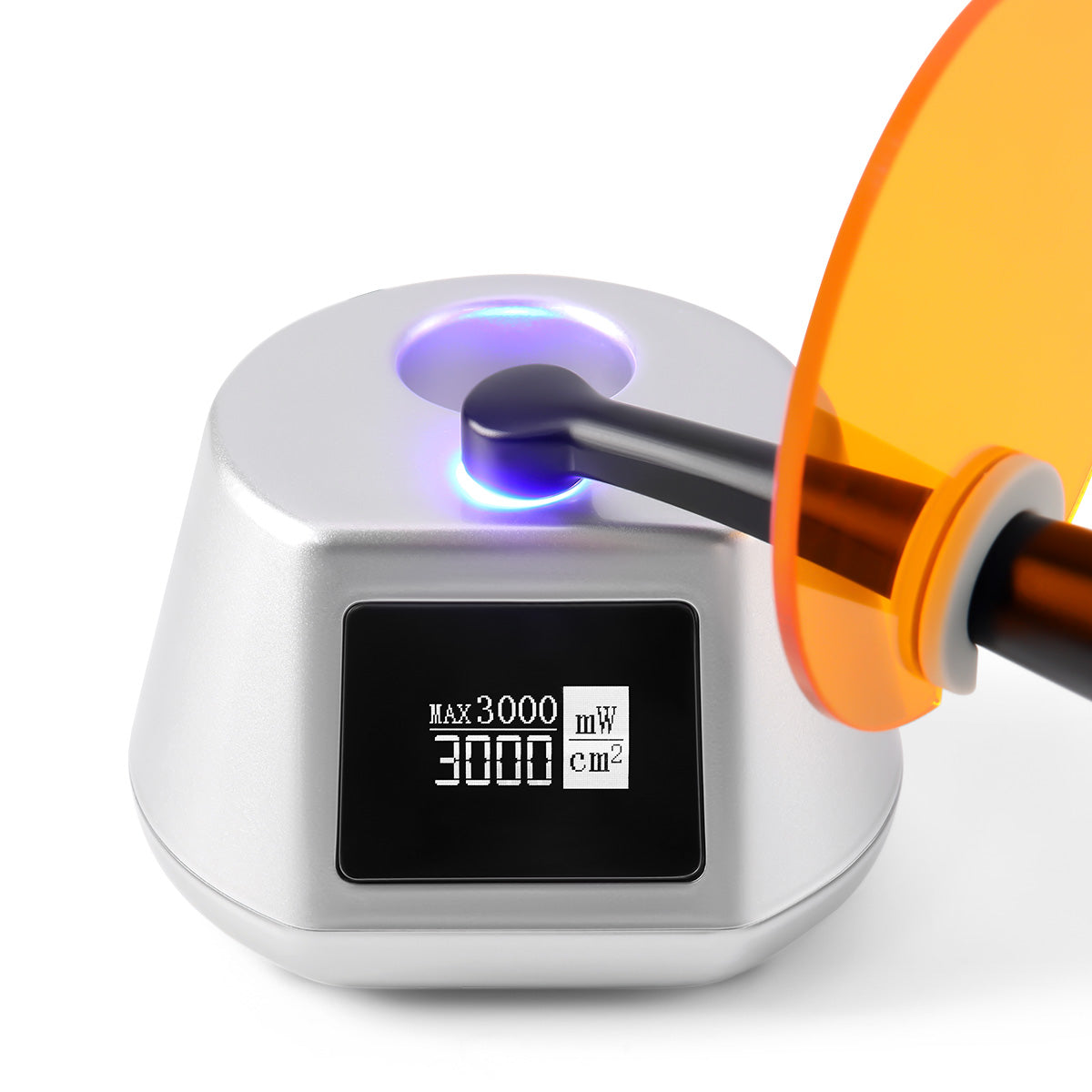

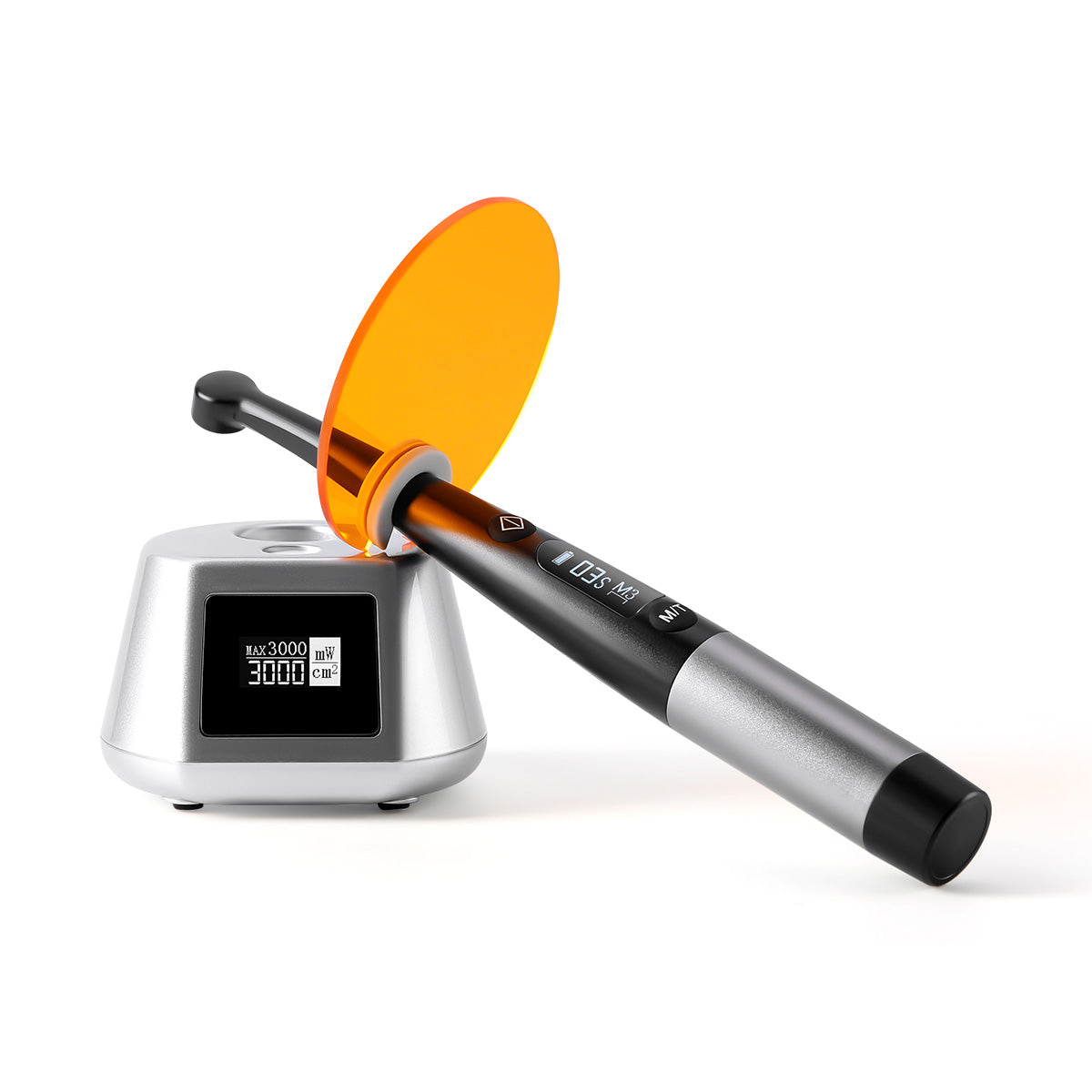

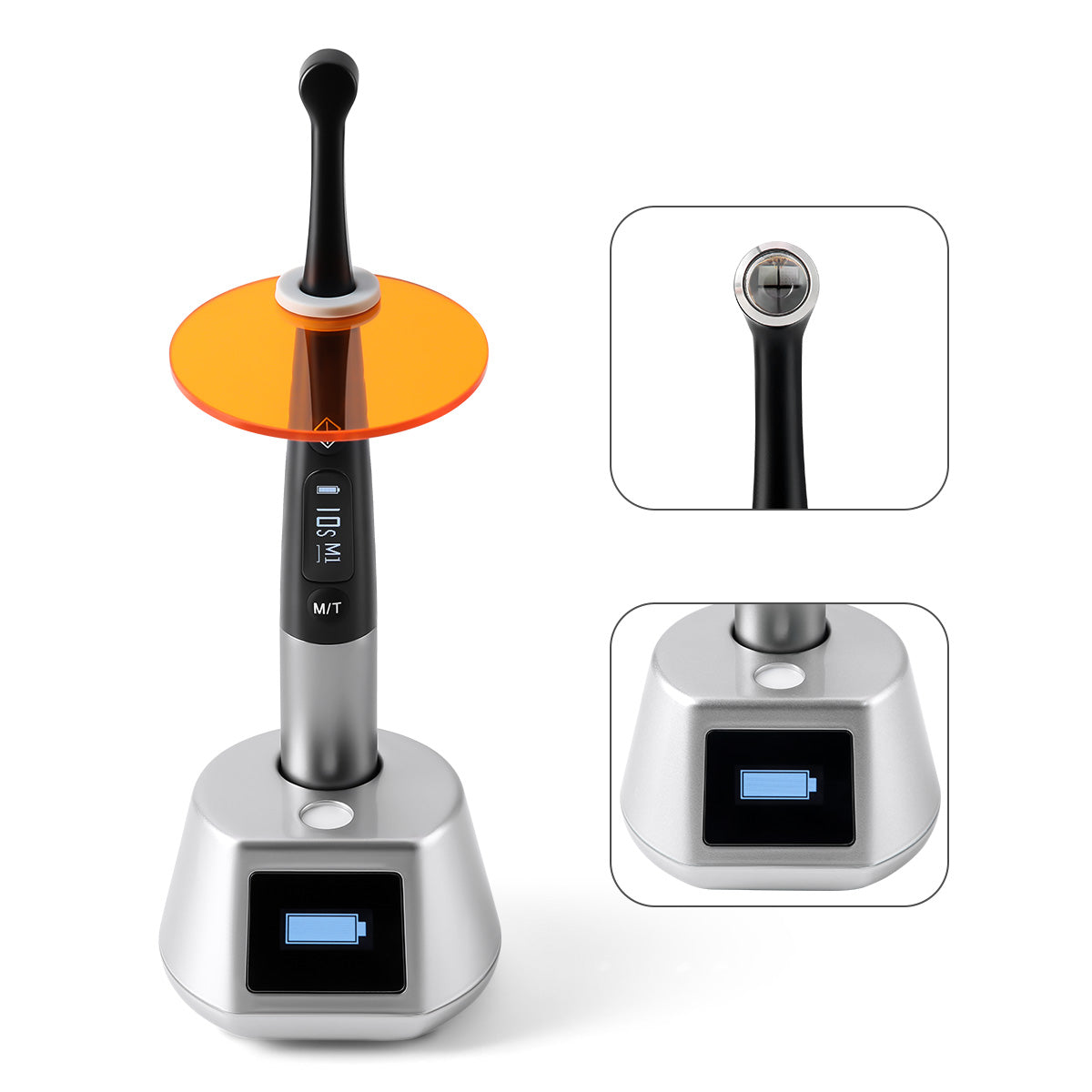

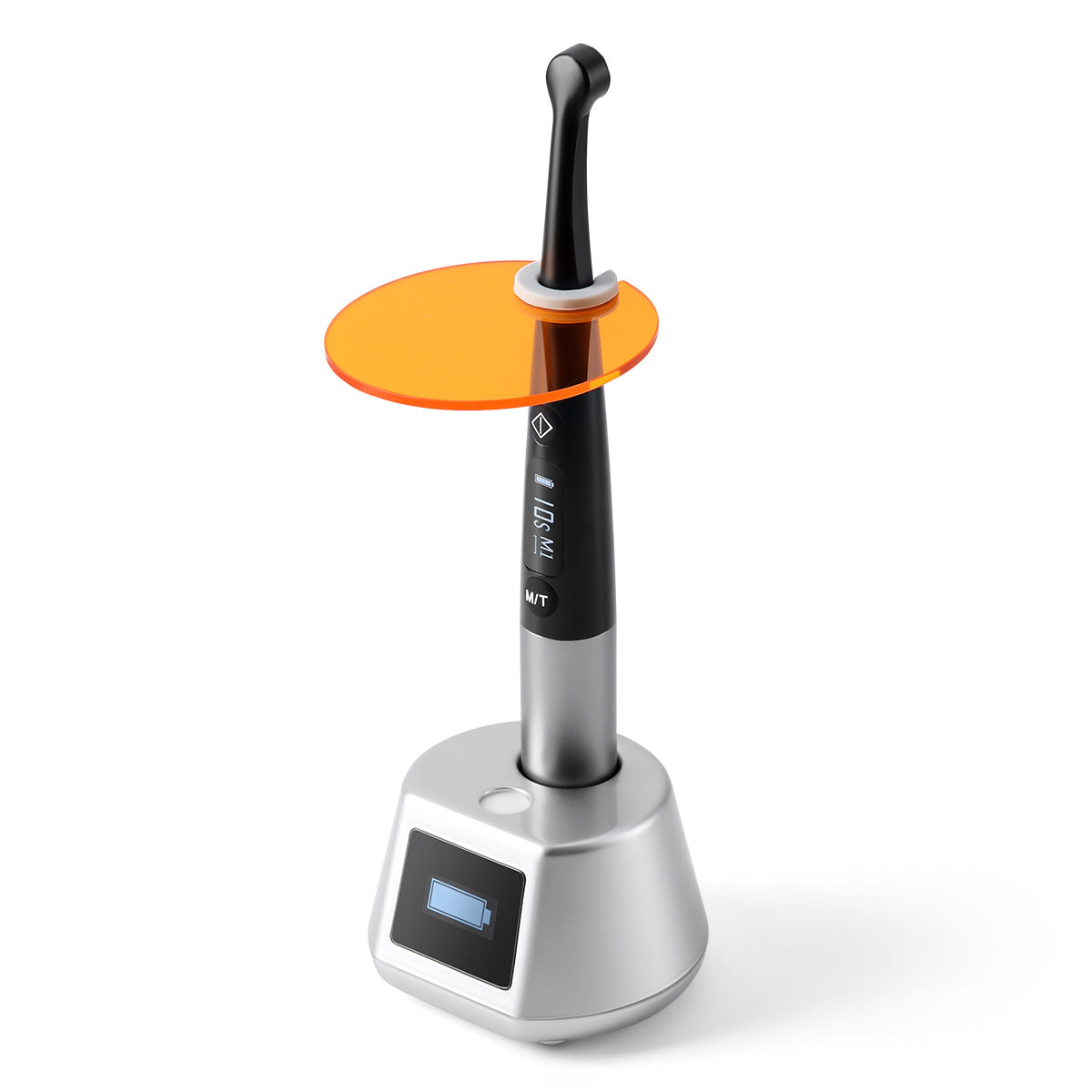

LED Curing Light Cordless 1 Sec Cure Wide Spectrum Metal Body 7 Modes 3100mW/cm². 10W high power blue light LED. Digital display screen. More-focused light output. All metal body, ergonomic streamlined design long-lasting durability. Lightweight and sturdy, resistant to drops and durable. Charging base with built-in light mete. 360° rotating lamp cap.
- 10W high power blue light LED.
- Checking method：the LED light is fine when the light is on during operating correctly.
- The wave length of this product can match with the clinical dental resin solidification, such as 3M, Dentsply etc.
- Wave length：385nm-515nm.
- Light intensity：1000mW/cm²-3100mW/cm².
- Note: Do not sterilize the detachable head in autoclave. Please make sure to cover the unit with a disposable isolation sleeve before each use.
|
- Press the mode button.Following Seven modes are available:
-
M1: Standard mode:Screen shows M1,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².
-
M2: Strong light mode:Screen shows M2,Press the button to select of time which could be 3s,4s,5s.Its output light intensity is about 1800mW/cm²-2100mW/cm².
-
M3: Super-strong light mode:Screen shows M3,Press the button to select of time which could be 1s,2s,3s.Its output light intensity is about 2700mW/cm²-3100mW/cm².
-
M4: Orthodontic mode:Screen shows M4,Press the button to select of time which could be 3s /5 times, 3s /10 times.Its output light intensity is about 2700mW/cm²- 3100mW/cm².
-
M5: Examination mode: Screen shows M5,Press the button to select of time which could be 30s times, 60s times.Its output light intensity is about 2700mW / cm² - 3100mW /cm².
-
M6: Pulse mode:Screen shows M6,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².
-
M7: Progressive mode:Screen shows M7,Press the button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 1000mW/cm²-1300mW/cm².
|
| Dimension: |
22.5mm×22.5mm×205mm |
| Net weight: |
110g |
| Power supply: |
Rechargeable Lithium battery |
| Battery mode: |
ICR 18500 |
| Battery voltage and capacity: |
3.7V/2000mAh (Battery has protection against Over-voltage, over-current and short circuit.) |
| Input: |
100-240V～50/60Hz 0.4A Max |
| Output: |
5V～1A |
