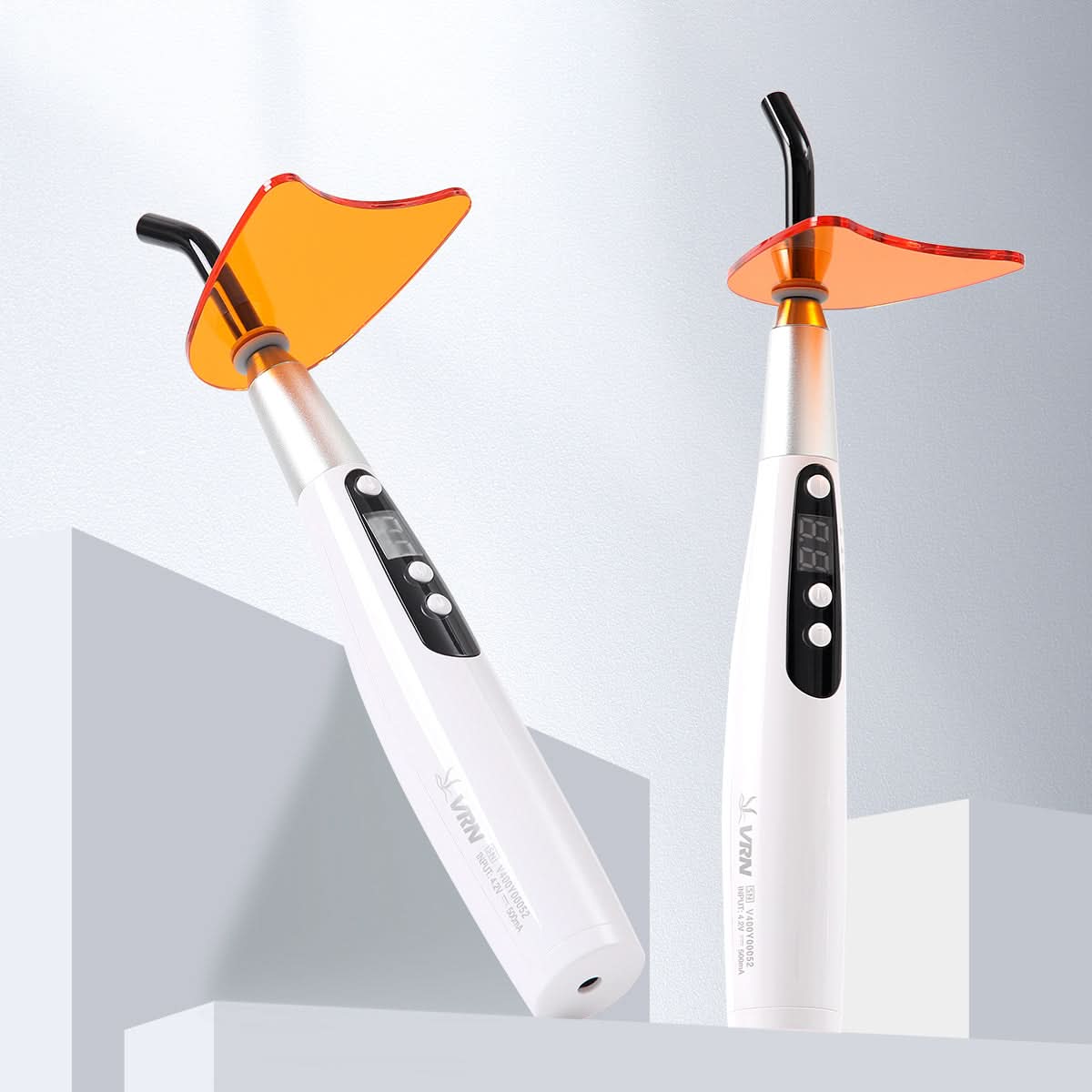

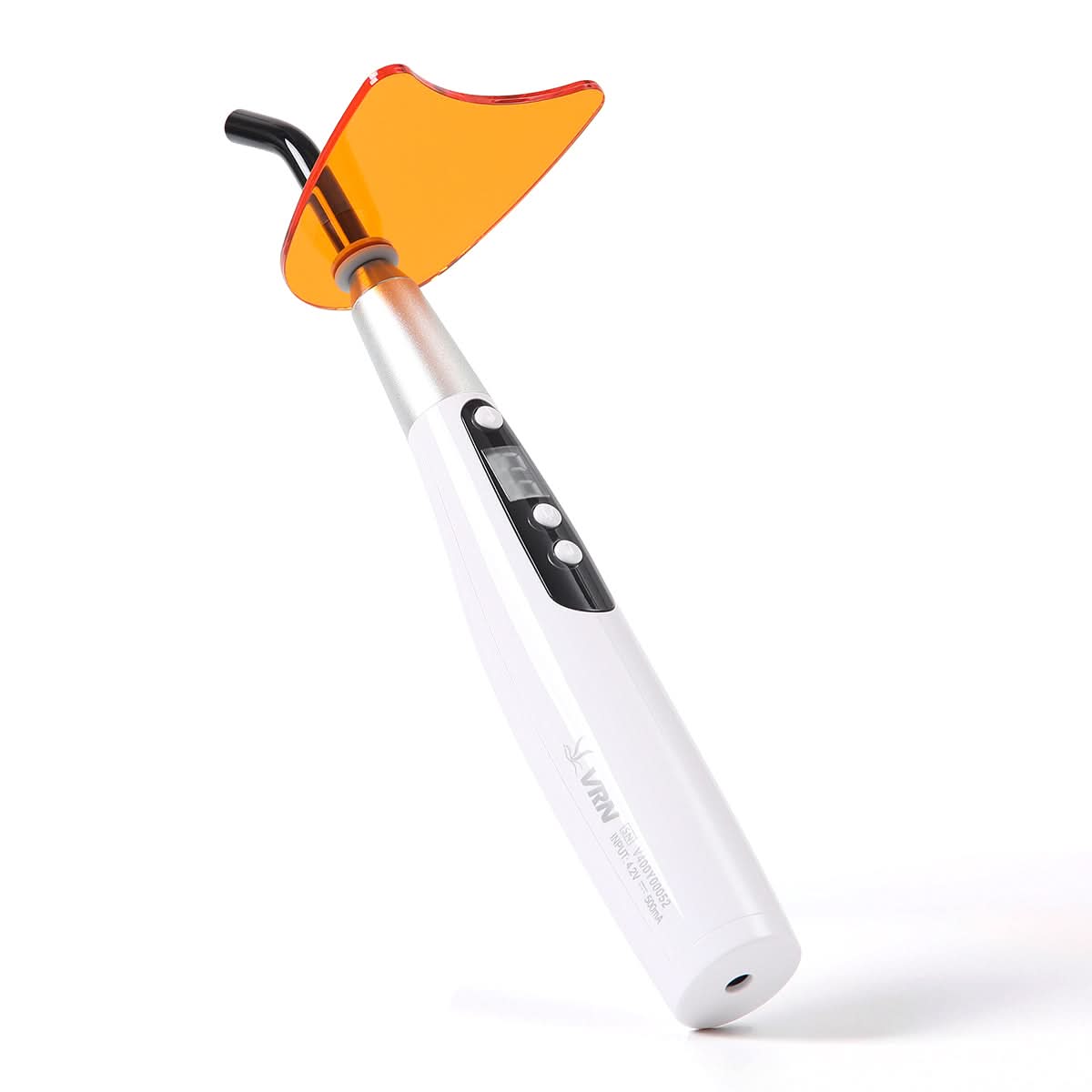

Dental LED Curing Light Wireless 3S Curing 360° Rotating Lamp Cap 3 Models 1400 mW/cm2. 360° Rotating head, 400-515nm, 5W blue LED light, HD digital display screen, 3 high-application curing modes. Handle radian adopts ergonomic design. 2200mAh supper large capacity battery.

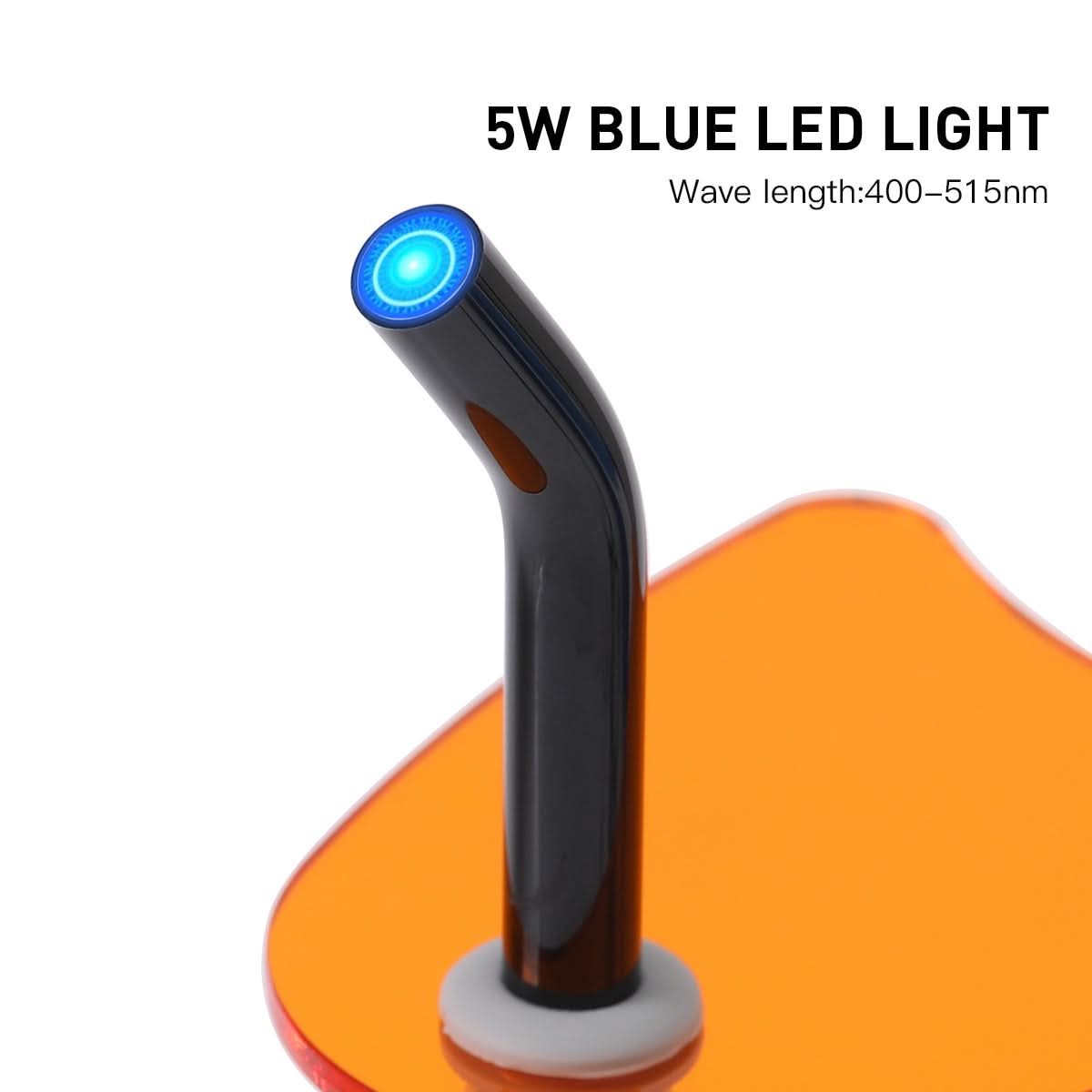

- 5W blue LED light, wave length: 400-515nm.

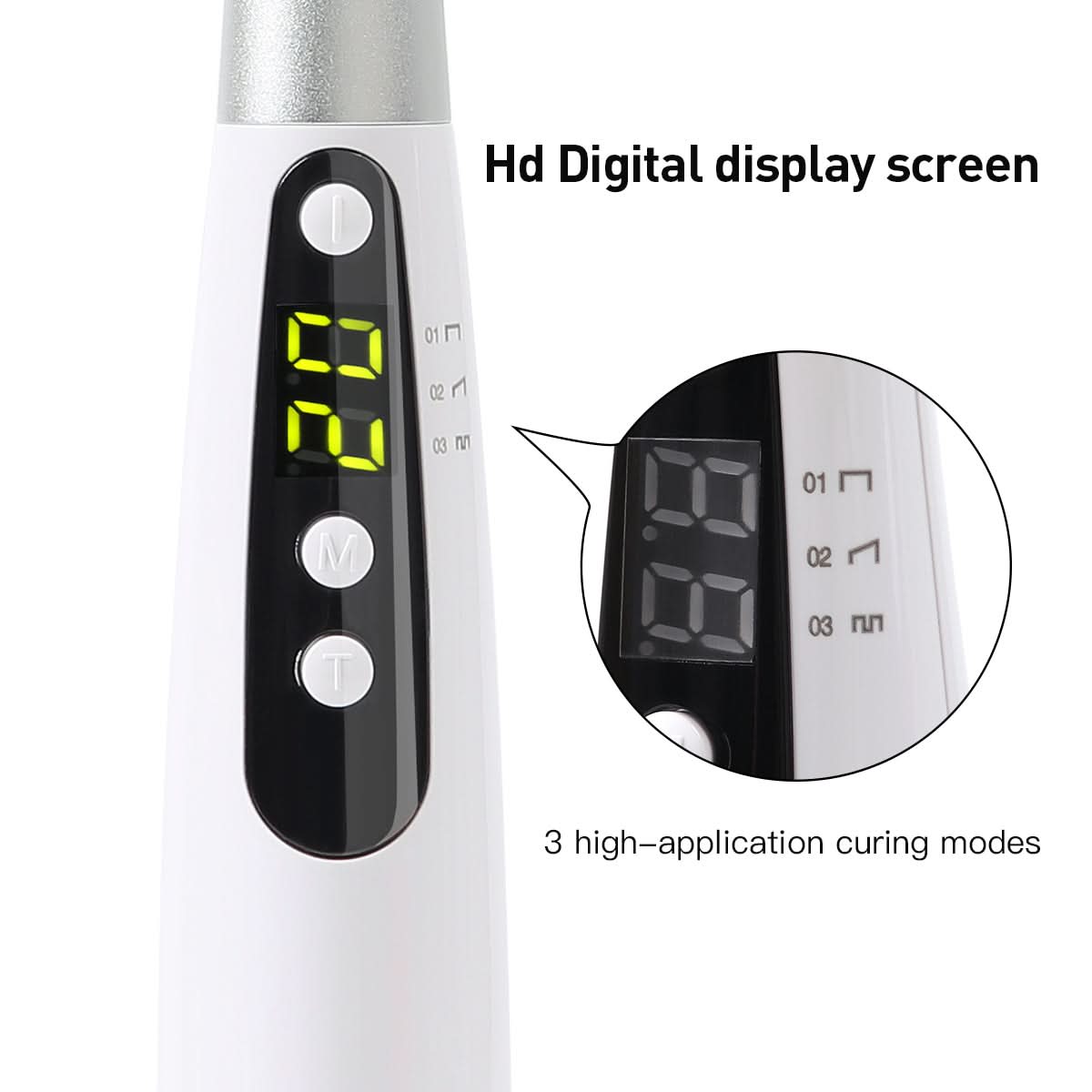

- HD digital display screen.
- 3 high-application curing modes.

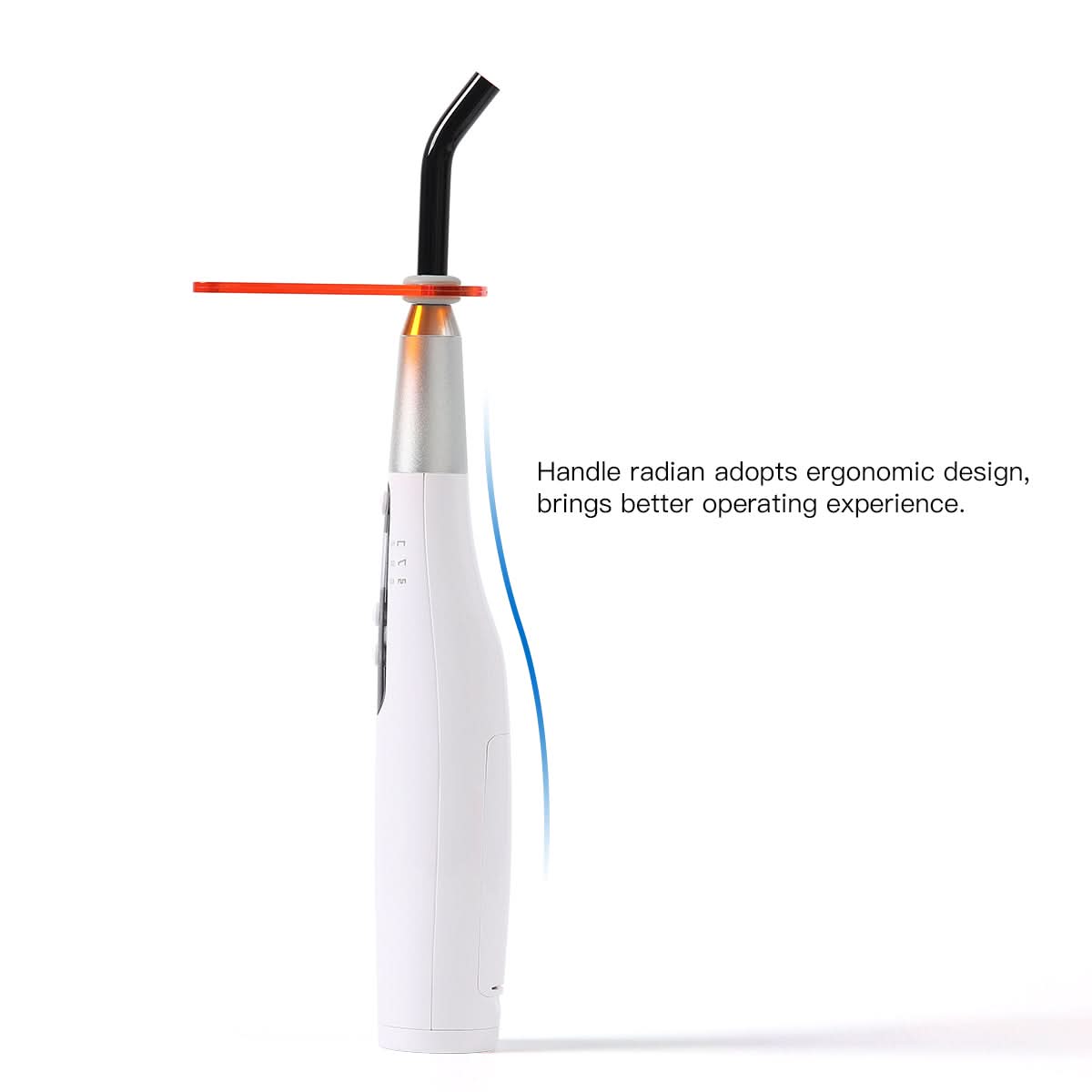

- Handle radian adopts ergonomic design bribngs better operating experience.

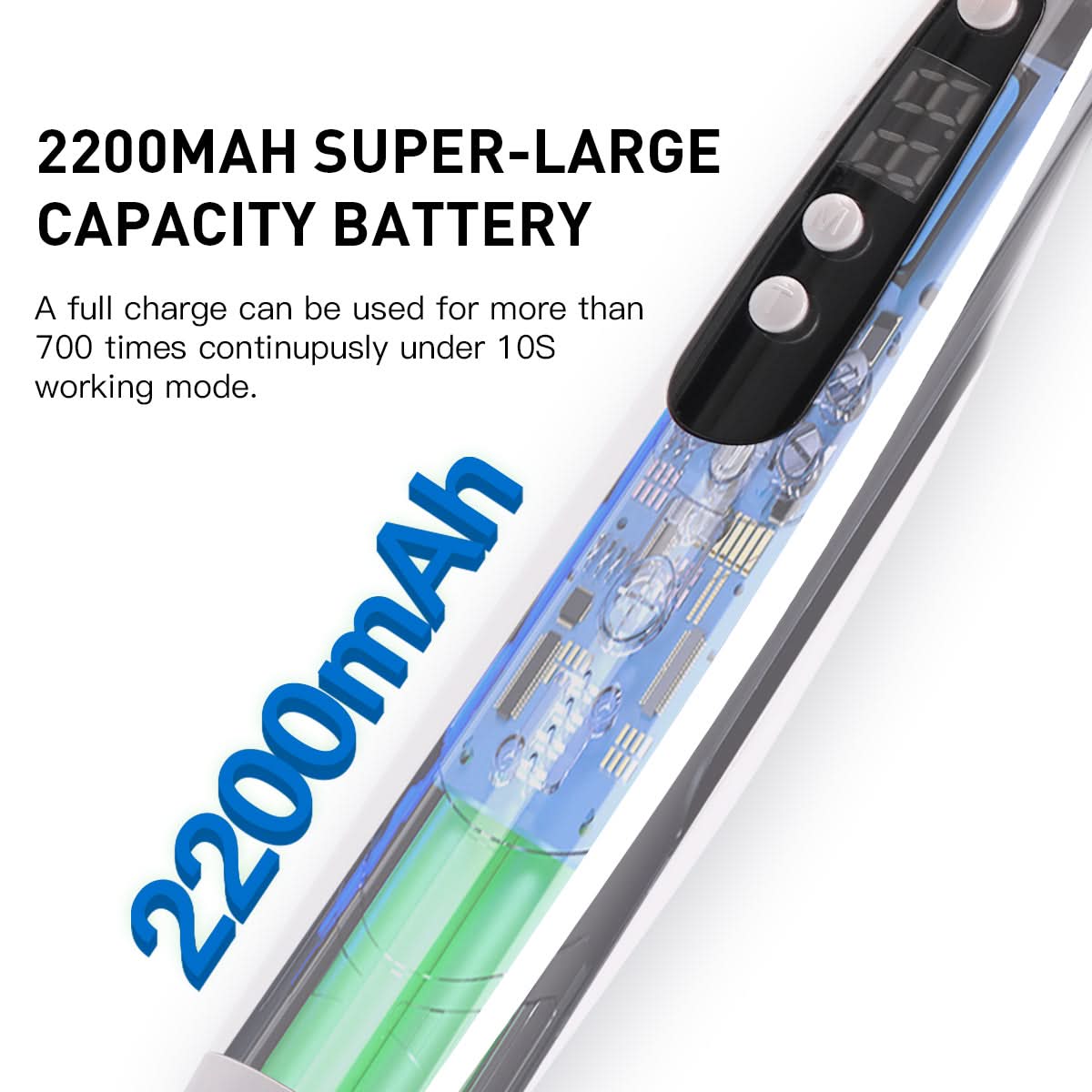

- 2200mAh supper large capacity battery.

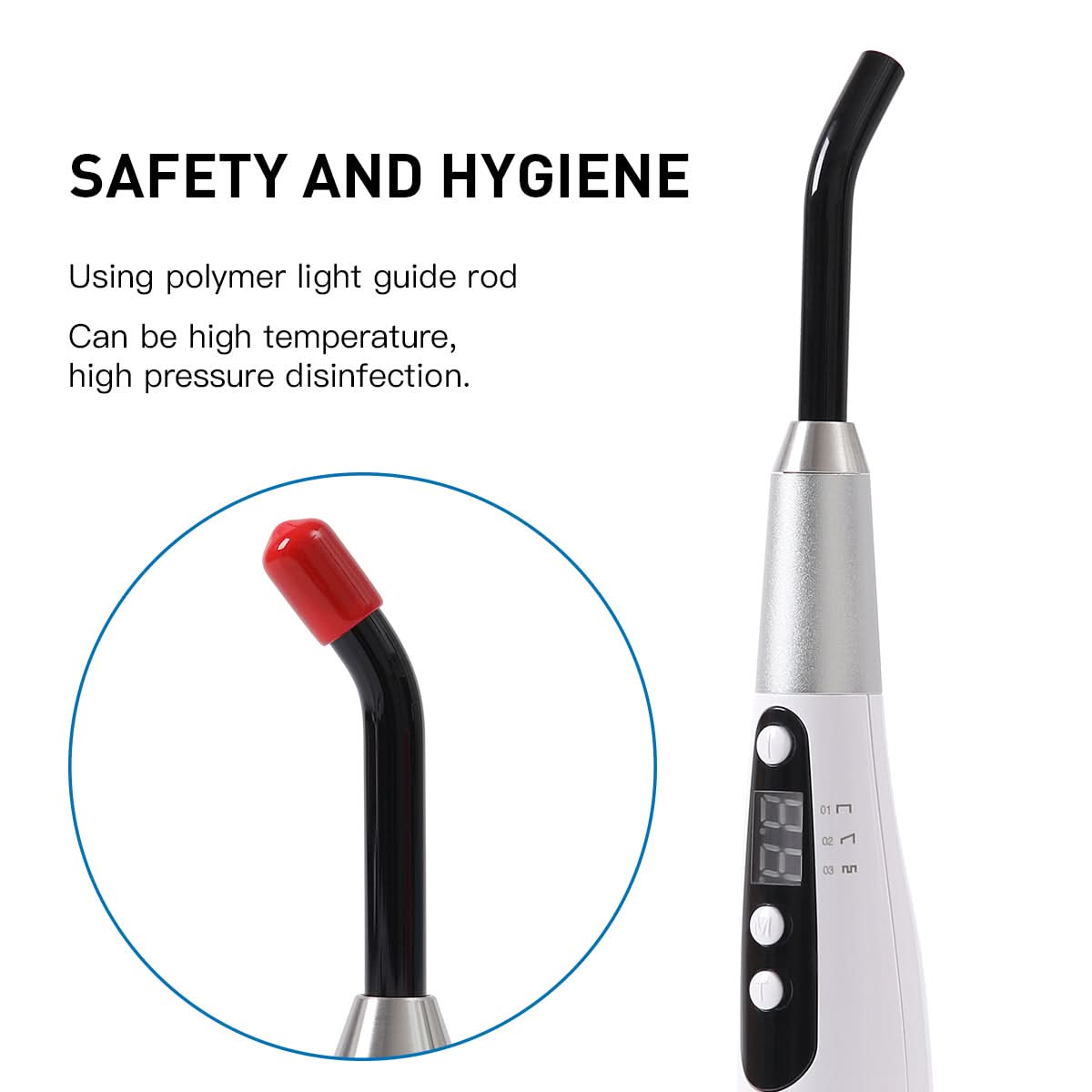

- Safety and hygiene.

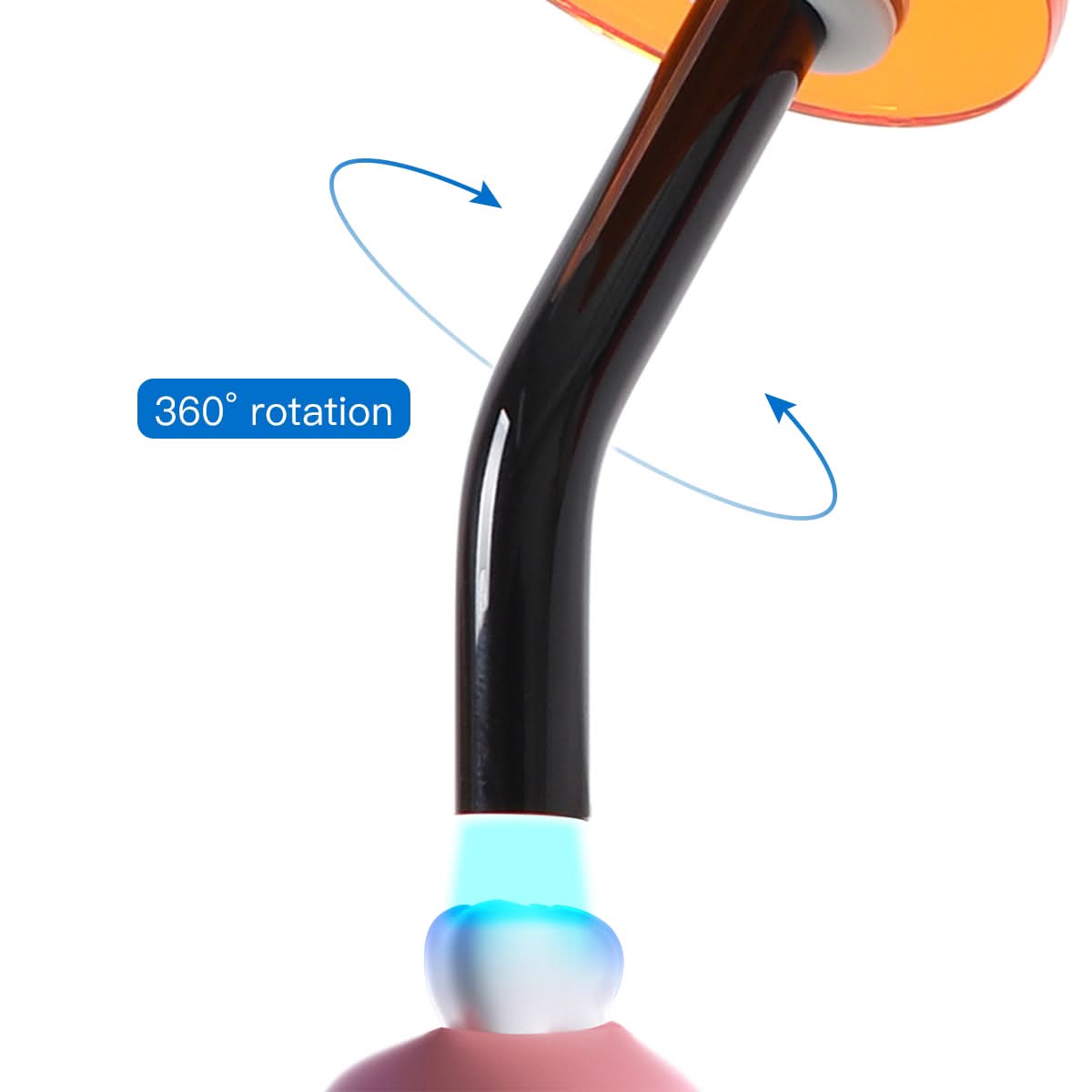

- Lamp cap can be rotated 360°.

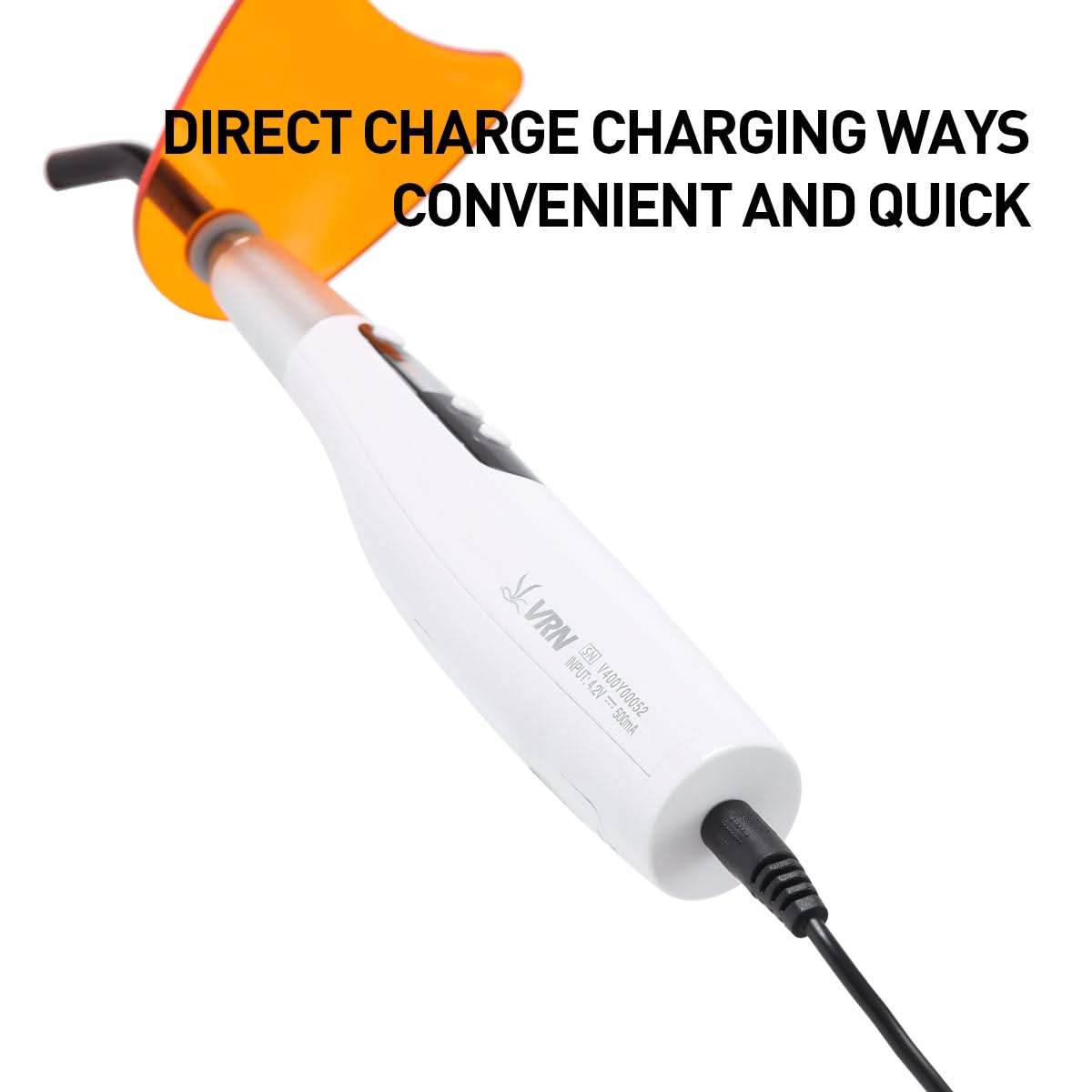

- Direct charge charging ways convenient and quick.
|

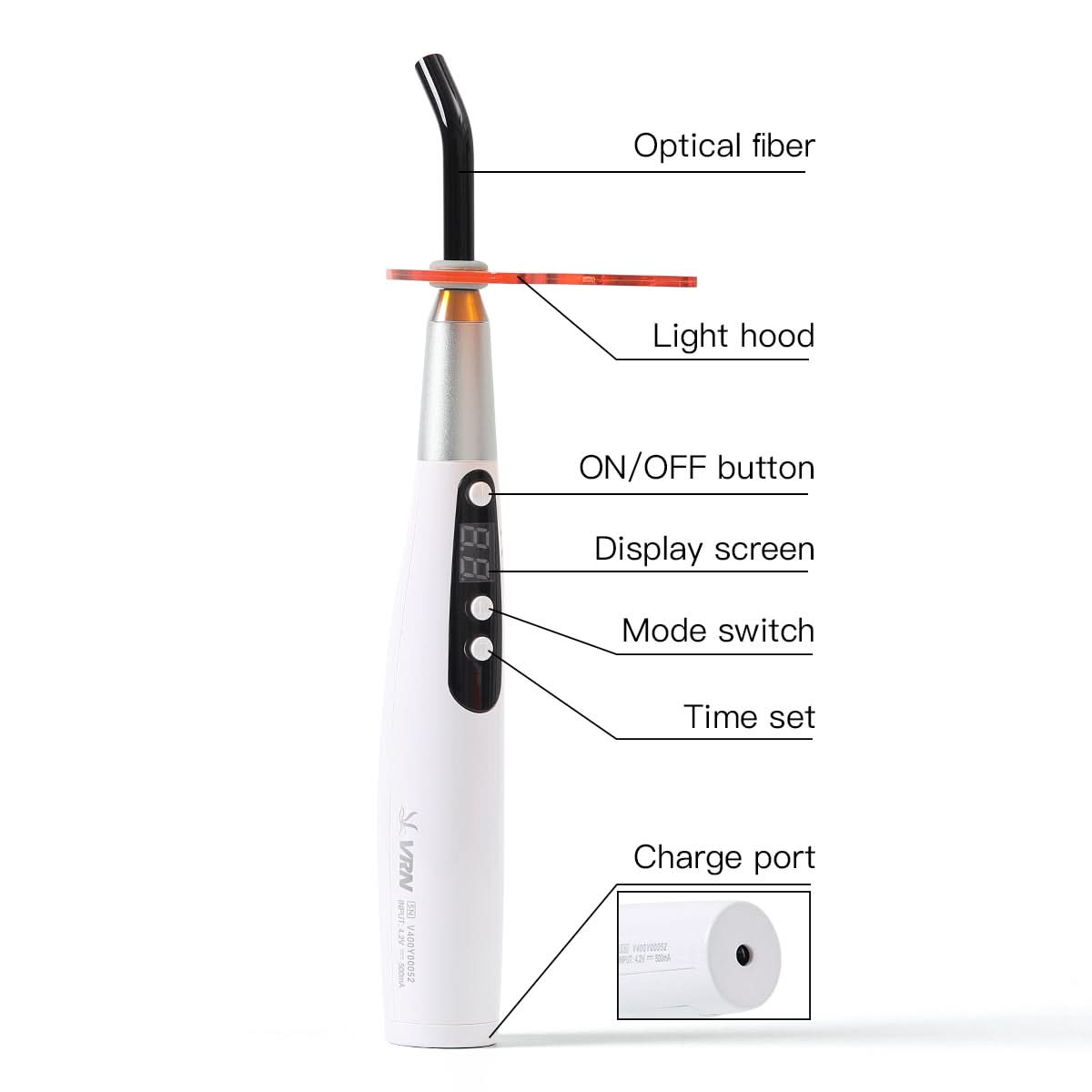

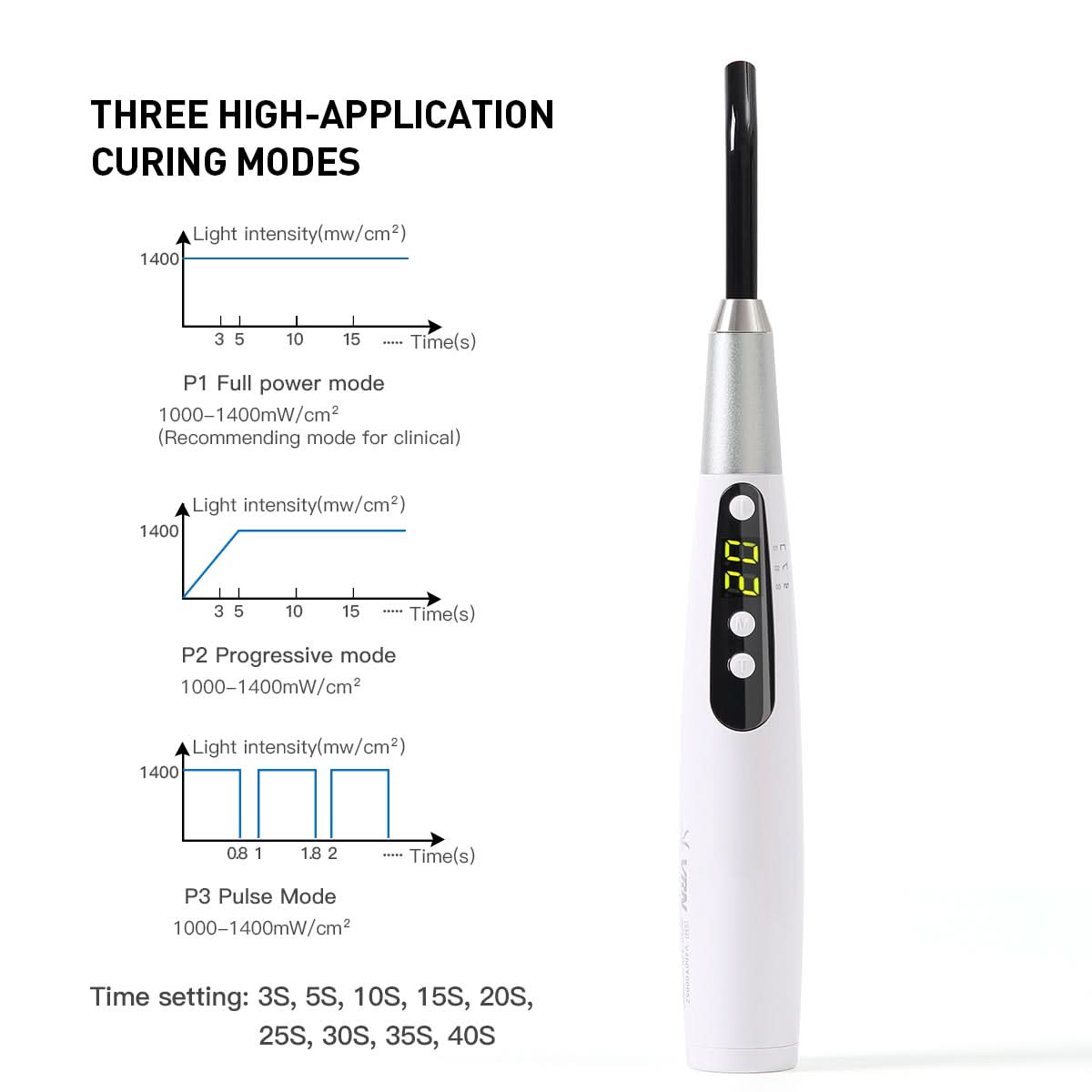

- 1. Choose one of three operation modes by pressing the mode switch button on the curing light.
Full power: The screen shows 01, the blue light radiates in full power, light intensity: 1000mW/cm2 ~1400mW/cm2.(recommending mode for clinical)
Progressive: The screen shows 02, the blue light power increase stronger continually, after 5 seconds reaches to the highest power，light intensity: 1000mW/cm2 ~1400mW/cm2.
Pulse: The screen shows 03, the blue light works on the pulse condition. light intensity: 1000mW/cm2 ~1400mW/cm2.
- 2. Press the "T"time set button to choose from3, 5,10, 15, 20, 25, 30, 35, 40 seconds for working time.
- 3. When the shooting period is done, press the "I" on/off button again for next shooting period. If the device becomes hot, the user should stop using the device and wait till the device cooling down. Recommending shooting period is not over 10 times.
- 4. Low battery alert: This device contains the low battery checking function. When the battery is low of power, the screen will blink.
- 5. The device will be automatically power off after 1 minutes in idle, and press any button to start.
- 6. The solidification effect for composite resin is not less than 4mm in 10 seconds.
|
| Volume: |
33 mm x 29 mm x 246 mm |
| Net weight: |
132 g |
| Chargeable battery: |
3.7 V |
| Capacity: |
2200 mAh, with Protection for over voltage, over current and short-circuits |
| Power adaptor: |
AC100~240 V 50/60 Hz |
| Input power: |
10 VA |
| Out power: |
DC 4.2 V/0.5 A |
| LED light feature: |
5W blue LED light |
| Wave length: |
400 nm~515 nm |
| Accessible emission limit (AEL): |
3.9x10 J |
| Checking: |
LED light is working when correctly |
| Operate Radiation: |
1000mW/cm2 ~1400mW/cm2 |
| Optical effective area of optical fiber: |
50 mm2 |

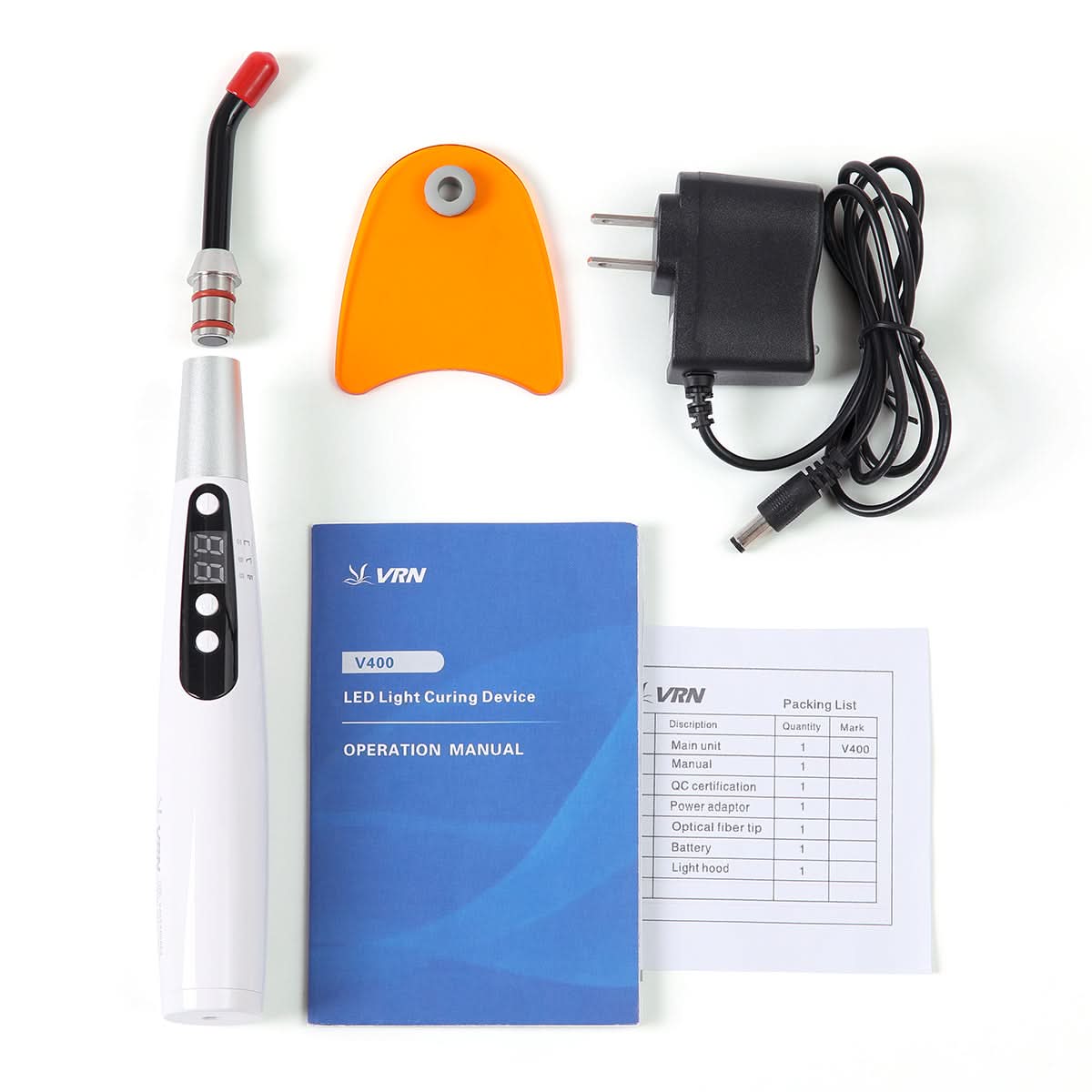

| Main unit : |
1 Pc
|
| Manual: |
1 Pc |
| QC certification: |
1 Pc |
| Power adapter: |
1 Pc |
| Optical fiber tip: |
1 Pc |
| Battery: |
1 Pc |
| Light hood: |
1 Pc |
