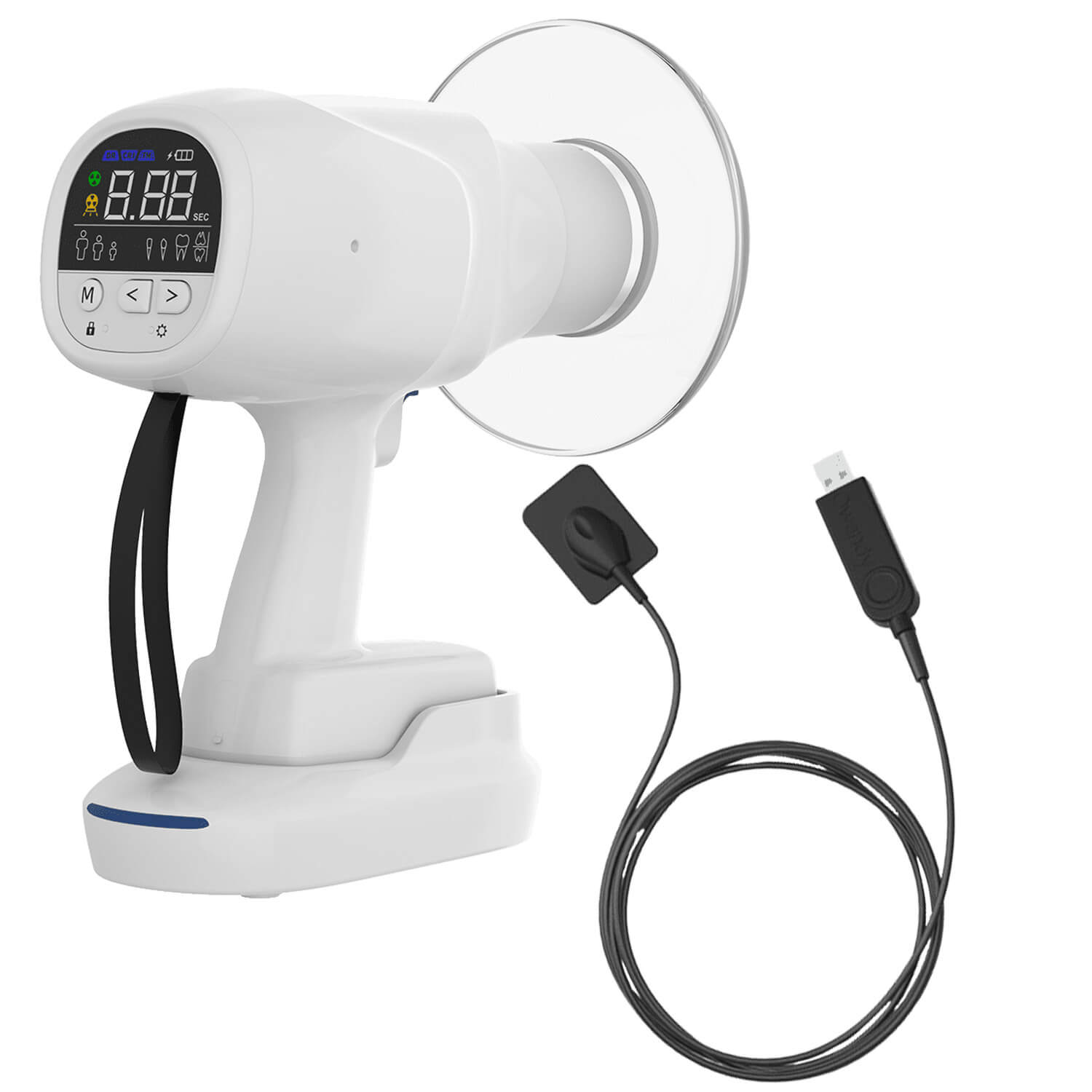

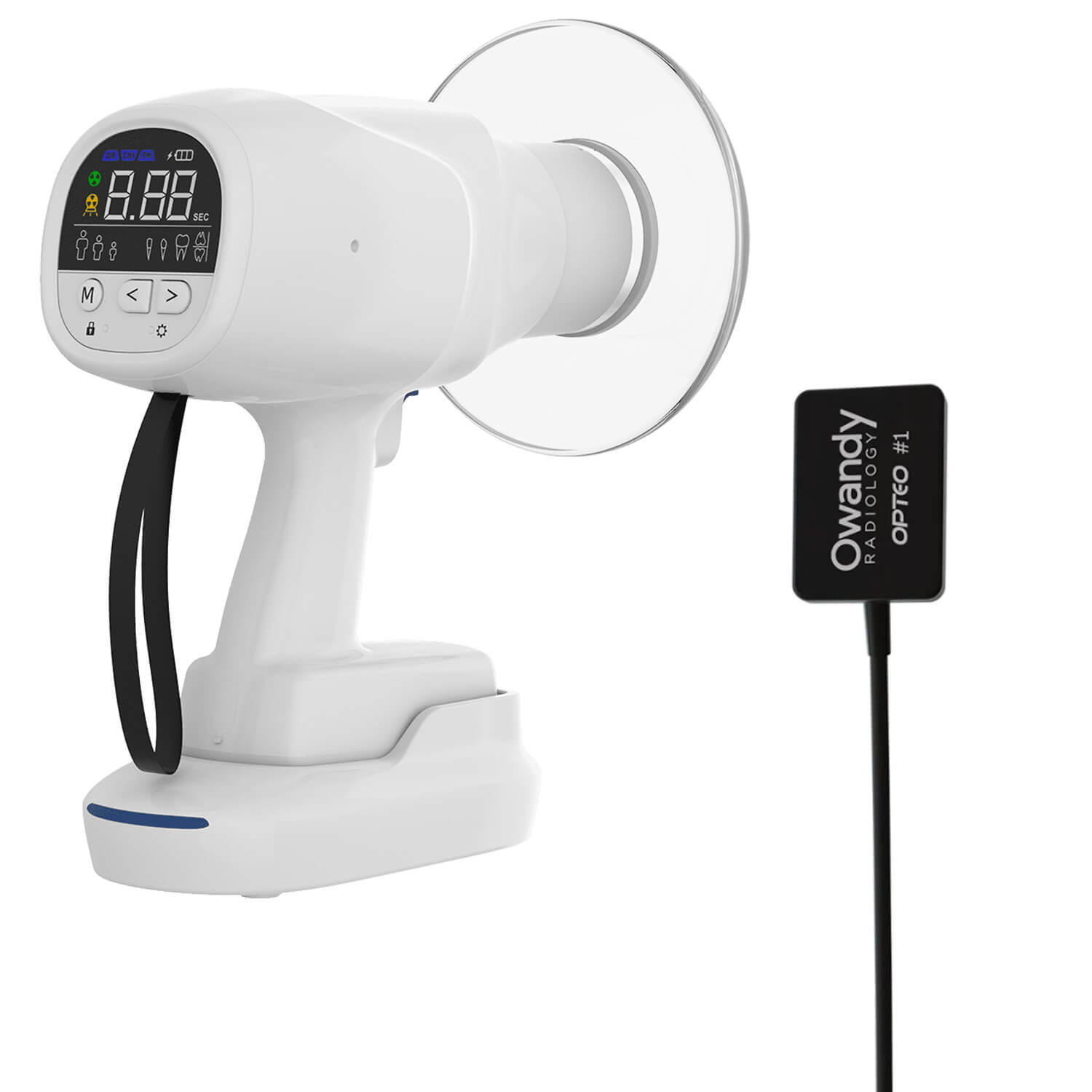

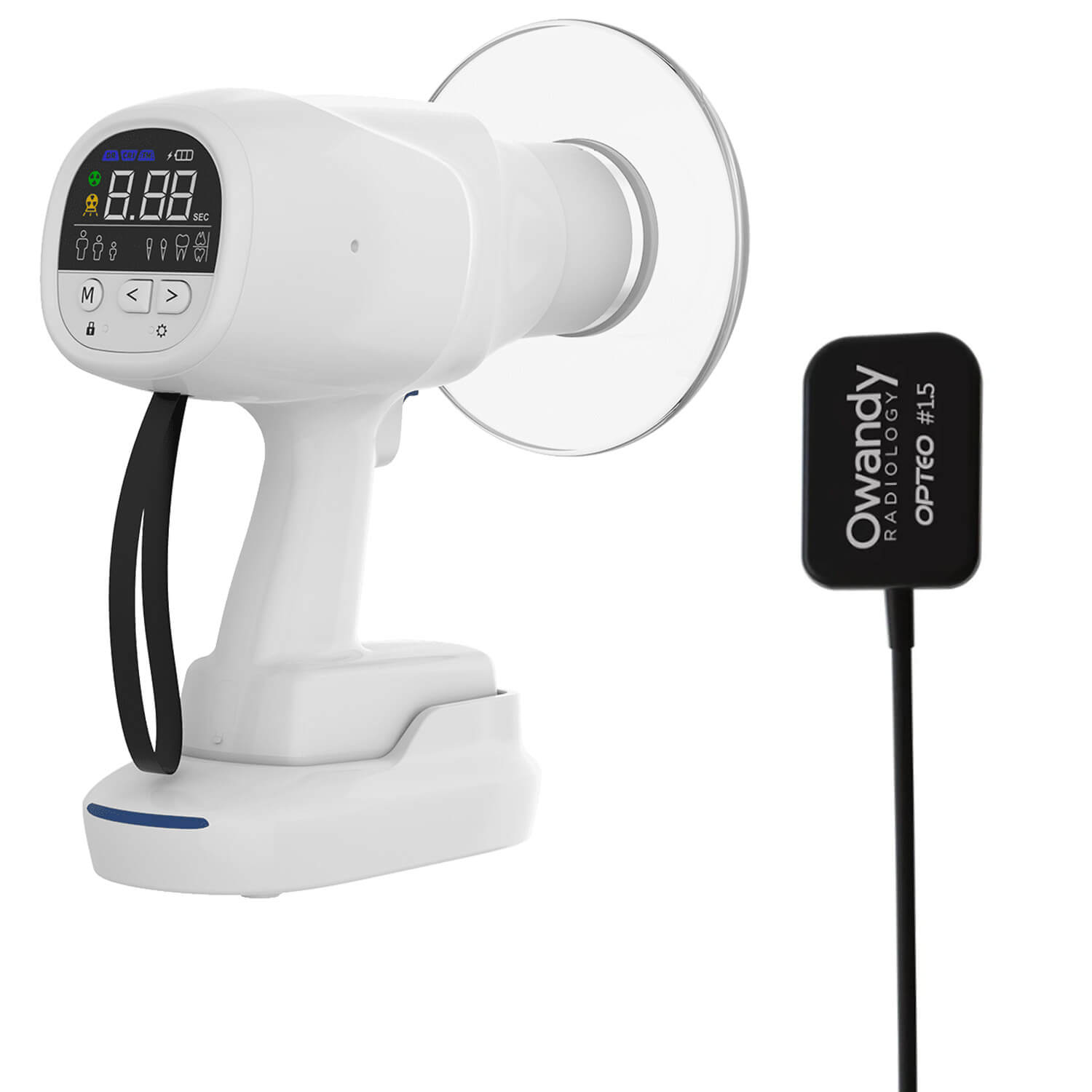

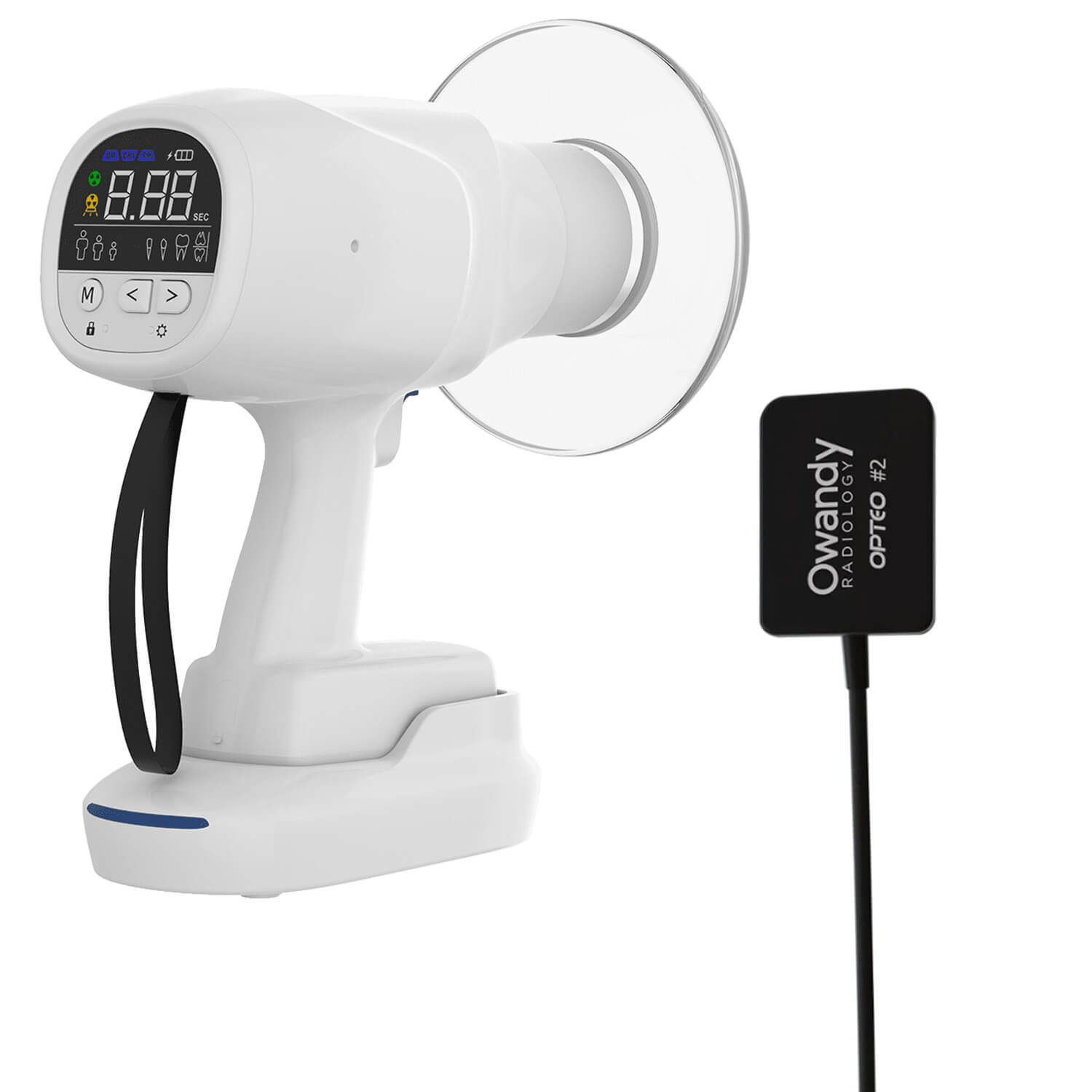

Owandy RX X-Ray Machine With OPTEO X-Ray Sensor Size #1 #1.5 #2.
Owandy RX Portable Dental Intraoral X-Ray Unit Machine with Backscatter Shield. Exceptional image resolution thanks to its 0.3 mm focus. Take X-rays by applying the predefined parameters. Can be used with one hand only. Up to 300 images on a single charge. Excellent image quality due to 3mA anode current. Simply charge by placing it on the base. FDA Approval.
Owandy OPTEO Digital Intraoral Sensor Size #1 #1.5 #2 for high-resolution dental radiographic imaging. Delivers stable and consistent image performance to support reliable clinical decision-making. Enhances image contrast and detail, improving exposure tolerance in varied clinical conditions. Compatible with most dental imaging and practice management systems including DPI and PMS workflows. Supports fast image capture and smooth integration into existing digital dental workflows.. FDA Approval.
X-Ray Machines manual download
X-Ray Sensor manual download
| Overview for X-Ray Machine |
-
Owandy RX Portable Dental Intraoral X-Ray Unit Machine with Backscatter Shield. Exceptional image resolution thanks to its 0.3 mm focus. Take X-rays by applying the predefined parameters. Can be used with one hand only. Up to 300 images on a single charge. Excellent image quality due to 3mA anode current. Simply charge by placing it on the base. FDA Approval.
-
Exceptional Image Quality: Features a 0.3mm focal spot and 3mA current for high-resolution imaging.
-
Long-Lasting Battery: Capable of taking up to 300 images on a single charge.
-
User-Friendly Interface: Simple menu displays for battery level, examination type, and X-ray parameters.
-
Adaptability: Compatible with films, digital sensors, and ERLM systems.
-
Charging System: Convenient dock base allows simple placement charging for efficient daily use.
|
| Overview for X-Ray Sensor |
-

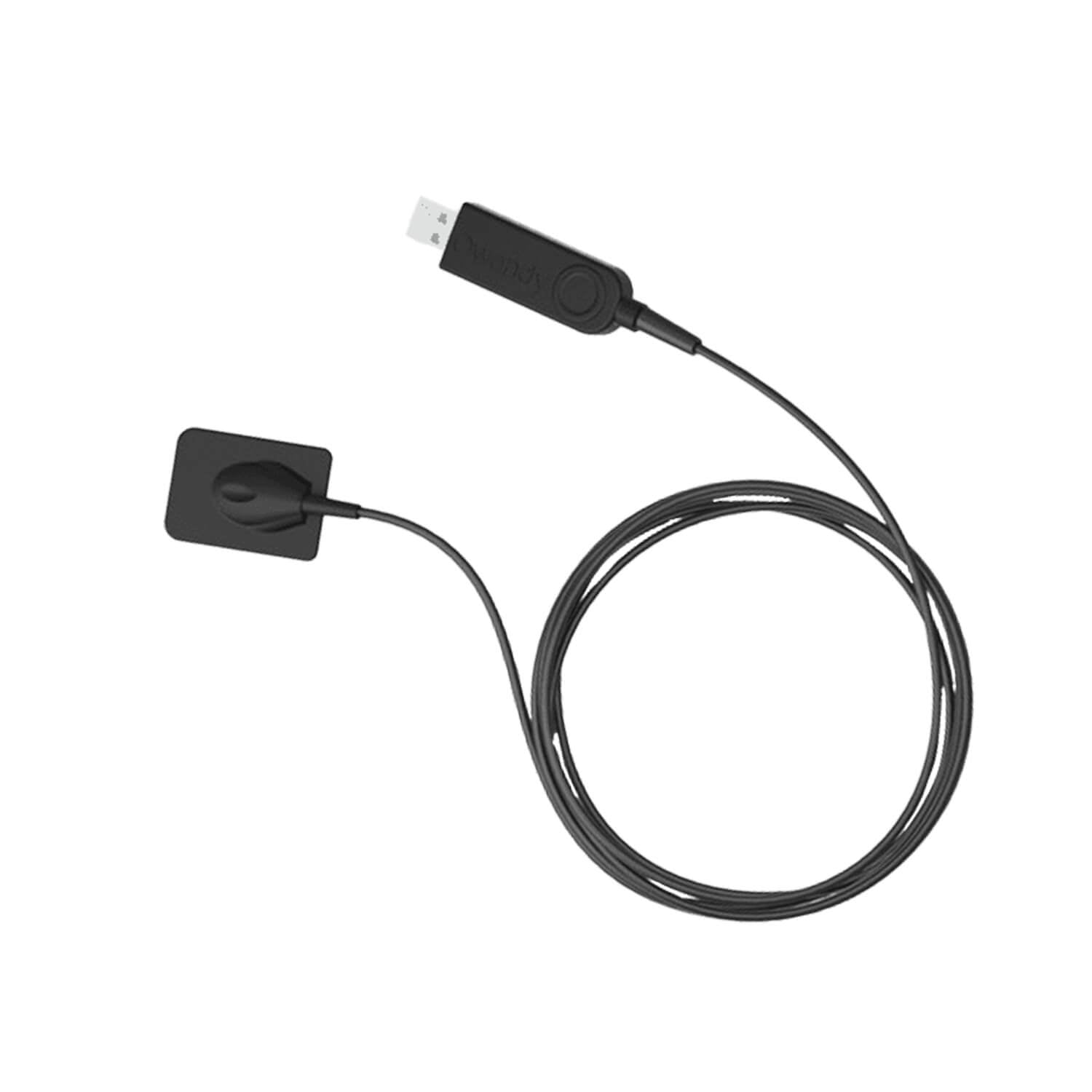

Reliable & Robust: Built with a CMOS sensor, fiber optics, scintillator, and shock absorption system, OPTEO combines high image resolution with enhanced durability and long-term stability.
-
Simple & Automatic: Direct USB connection eliminates complex setup and external control boxes, making operation simple and intuitive for single or multi-workstation use.
-
Image Quality: Delivers stable and consistent image performance to support reliable clinical decision-making.
-
Wide Dynamic Range (WDR): Enhances image contrast and detail, improving exposure tolerance in varied clinical conditions.
-
Software Integration: Compatible with most dental imaging and practice management systems including DPI and PMS workflows.
-
Workflow Efficiency: Supports fast image capture and smooth integration into existing digital dental workflows.
-
Endodontics: Supports detailed root canal imaging for improved diagnostic accuracy and treatment precision.
-
Implant & Prosthetic Surgery: Provides clear radiographic images for implant positioning, prosthetic planning, and post-operative assessment.
-
Caries Detection: Enables identification of early-stage caries and interproximal lesions for preventive dental care.
-
Clinical Applications: Suitable for endodontics, implant dentistry, prosthetic evaluation, and caries detection in daily dental practice.
|
| Technical Parameter of X-Ray Machine |
| Model: |
XVB2000 |
| Warranty: |
Two Years |
| X-ray tube: |
CEI |
| kV/mA: |
70kV / 3mA |
| Focal Spot: |
0.3 mm |
| Total Filtration: |
1.5mm Al |
| Battery charger Input Voltage: |
100-240V / 50~60Hz |
| Source to Skin Distance: |
200 mm |
| Weight: |
3.97 lbs/1.8 kg |
| Warranty: |
2-year Warranty |
| Options 1: |
Backscatter Protection |
| Options 2: |
Rectangular Collimator (30x40mm, 20×30 mm) |
| Specifications of X-Ray Sensor |
| Size: |
Size 1 |
Size 1.5 |
Size 2 |
| Sensor: |
CMOS |
CMOS |
CMOS |
| Fiber Optic Plate: |
Yes |
Yes |
Yes |
| Scintillator: |
CsI:Tl |
CsI:Tl |
CsI:Tl |
| Sensitive surface: |
22 × 30 mm (660 mm²) |
24 × 33 mm (790 mm²) |
26 × 35 mm (910 mm²) |
| Pixel Size: |
18.5 × 18.5 μm |
18.5 × 18.5 μm |
18.5 × 18.5 μm |
| Sensor resolution: |
27 lp/mm |
27 lp/mm |
27 lp/mm |
| Operation System |
Windows 10/11 |
Windows 10/11 |
Windows 10/11 |
| Warranty: |
5-year |
5-year |
5-year |
| Connection: |
Direct USB: High-Speed USB 2.0 |
Direct USB: High-Speed USB 2.0 |
Direct USB: High-Speed USB 2.0 |
| Packing List of X-Ray Machine |
| Main Unit: |
1 PC |
| Battery Charger: |
1 PC |
| Package: |
1 PC |
| Cradle: |
1 PC |
| Wrist Strap: |
1 PC |
| User Manual: |
1 PC |
| Packing List of X-Ray Sensor |
| Main Unit: |
1 PC |
| disposabl protective sleeves: |
1 PC |
| An USB Stick: |
1 PC |
| User Manual: |
1 PC |
| Self-adhesive sensor wall support: |
1 PC |
