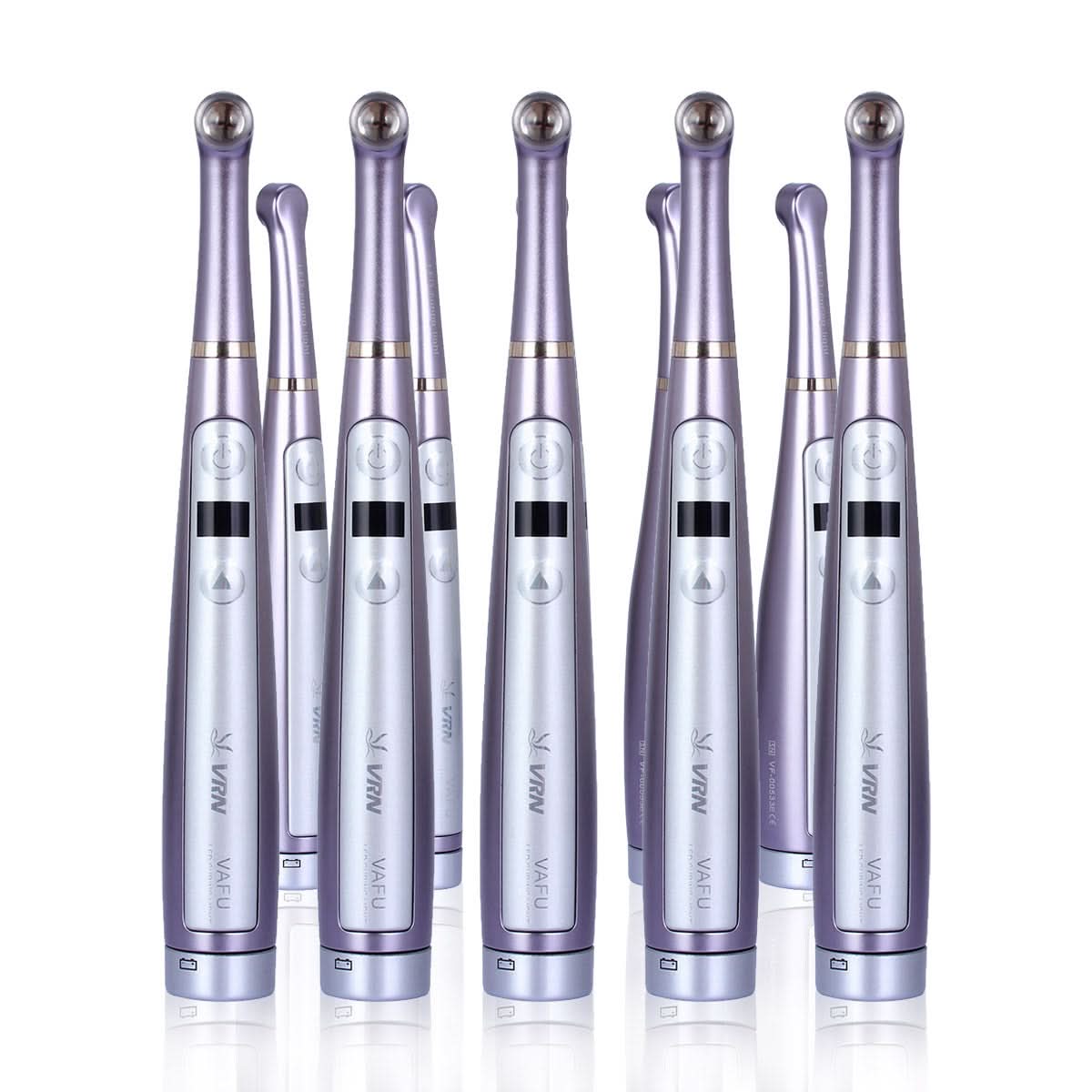

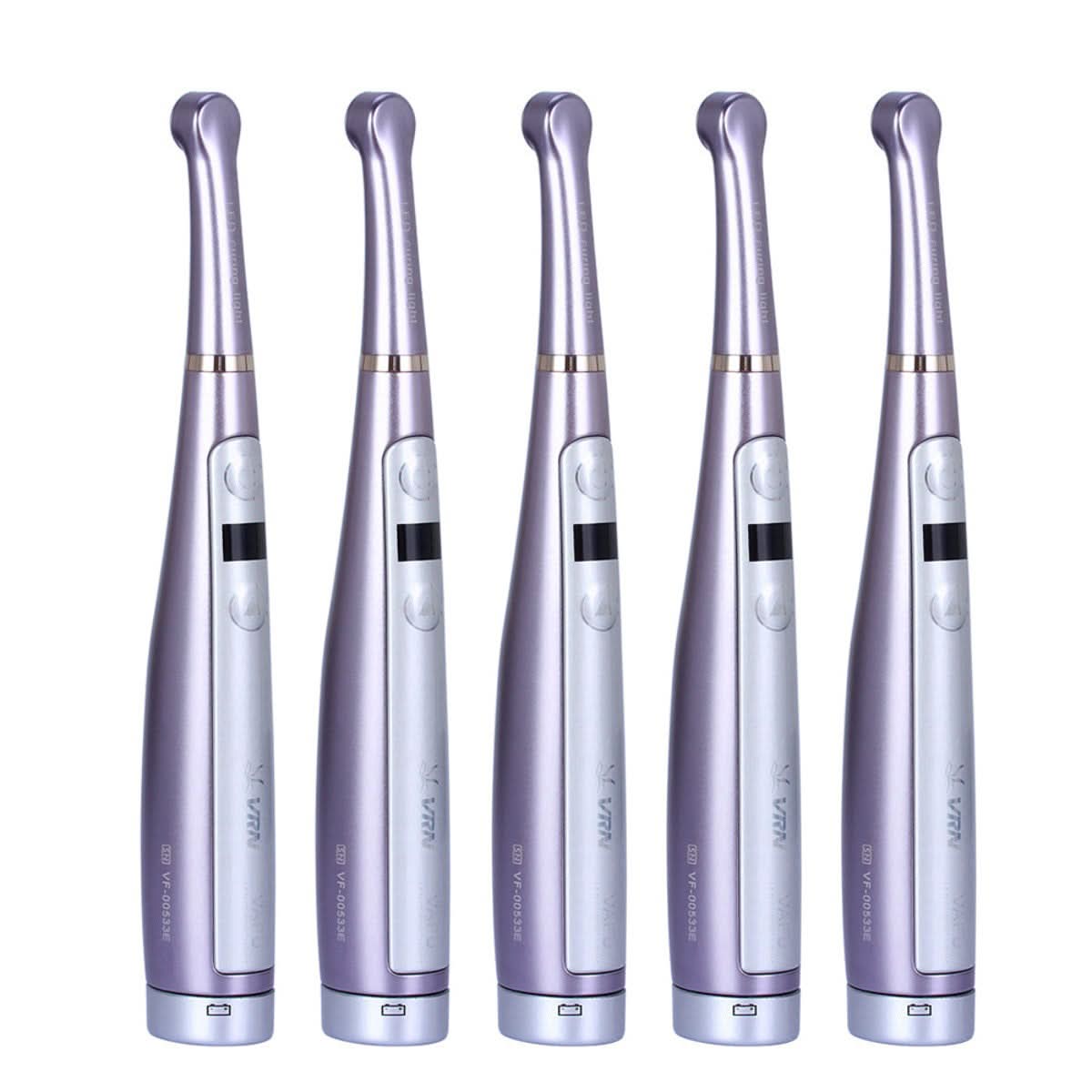

10 pcs VAFU LED Curing Light Cordless OLED Screen 1 Second DeepCure Wide Specturm Metal Body With Caries Detector Light Meter 3200mW/Cm² - pairaydental.com

Description

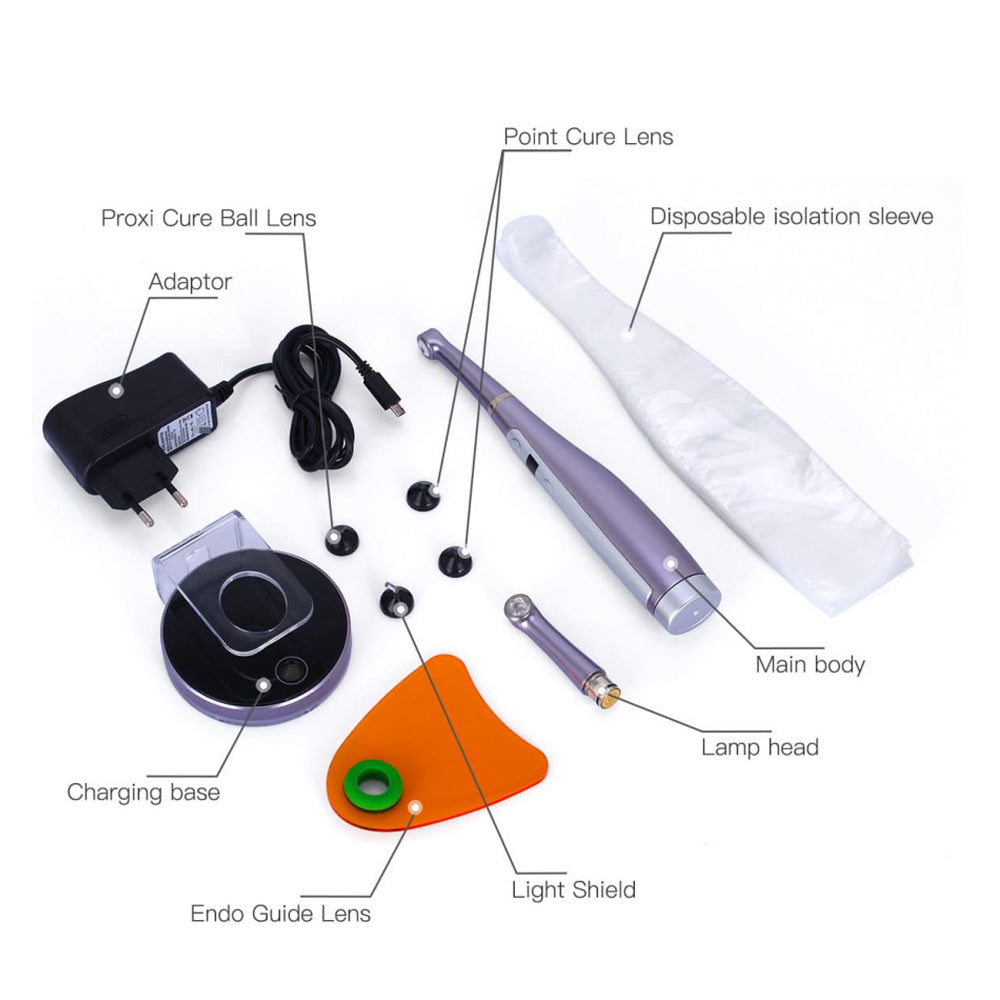

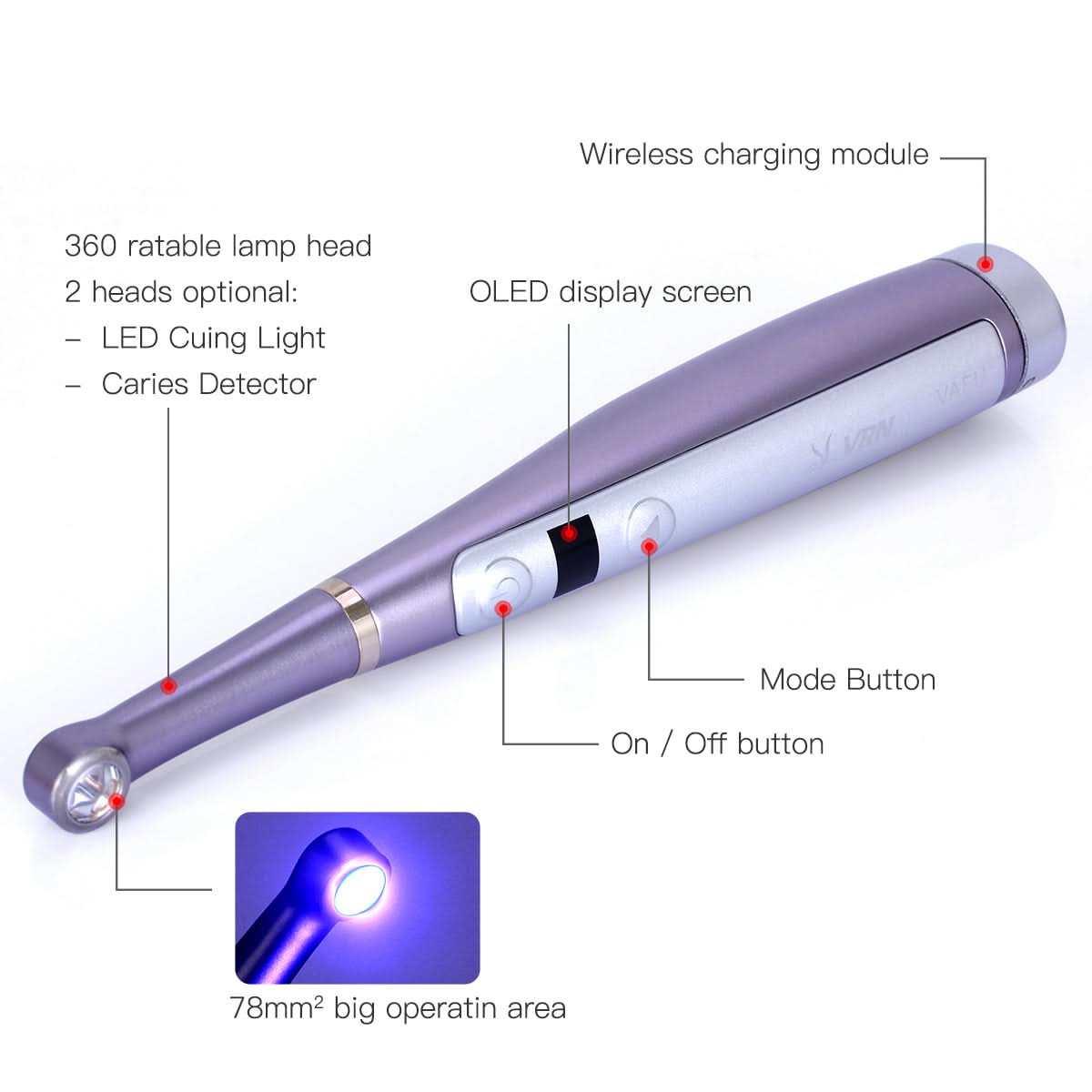

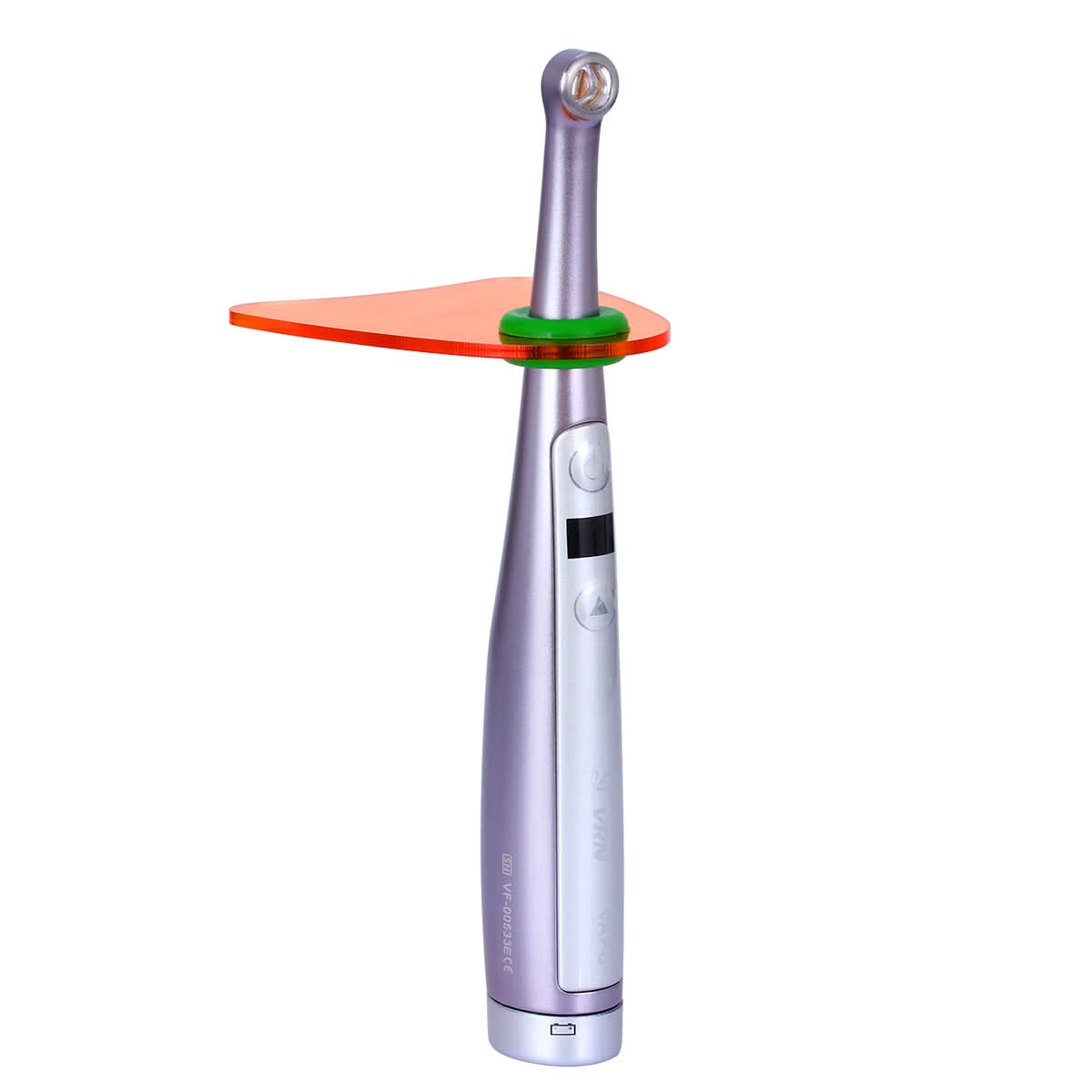

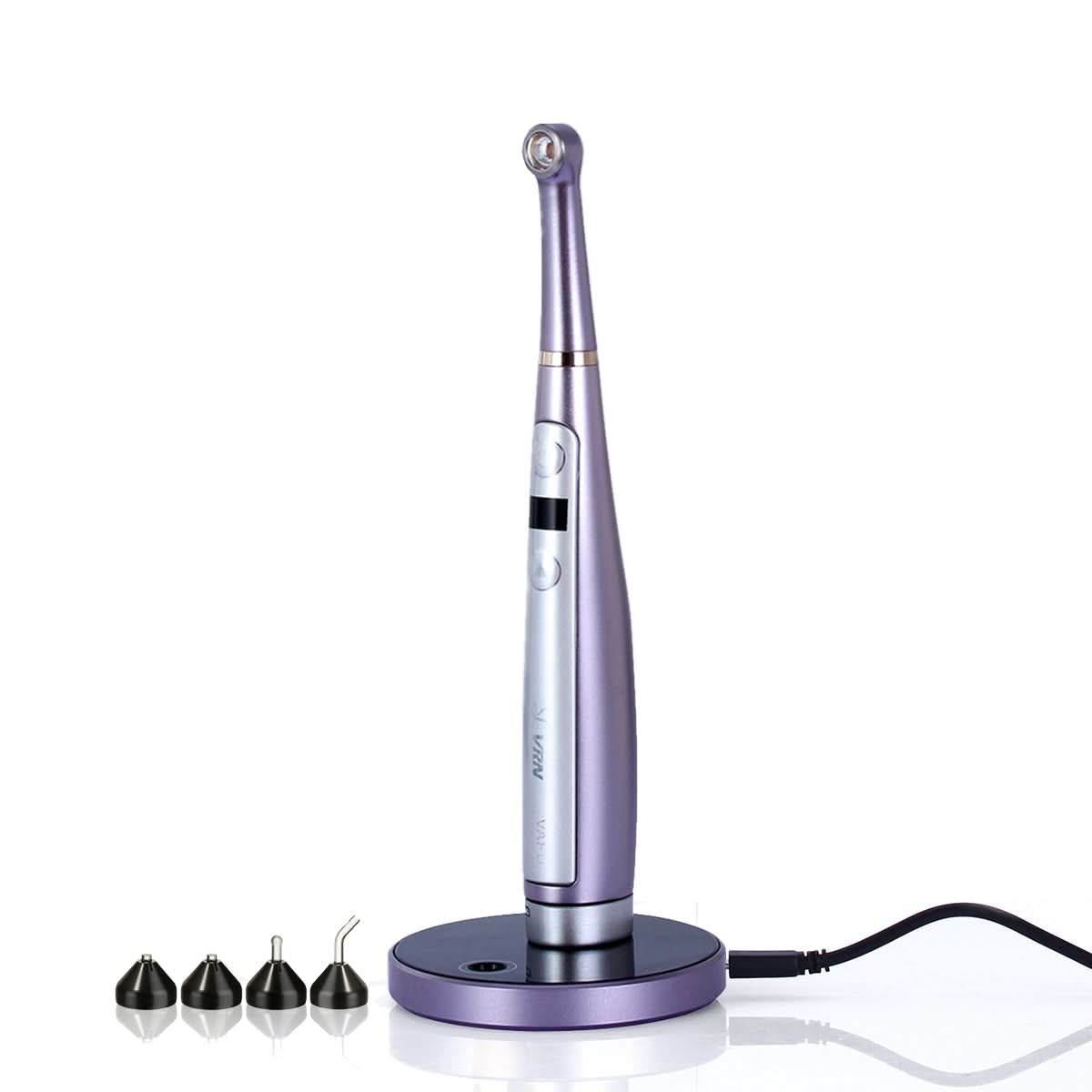

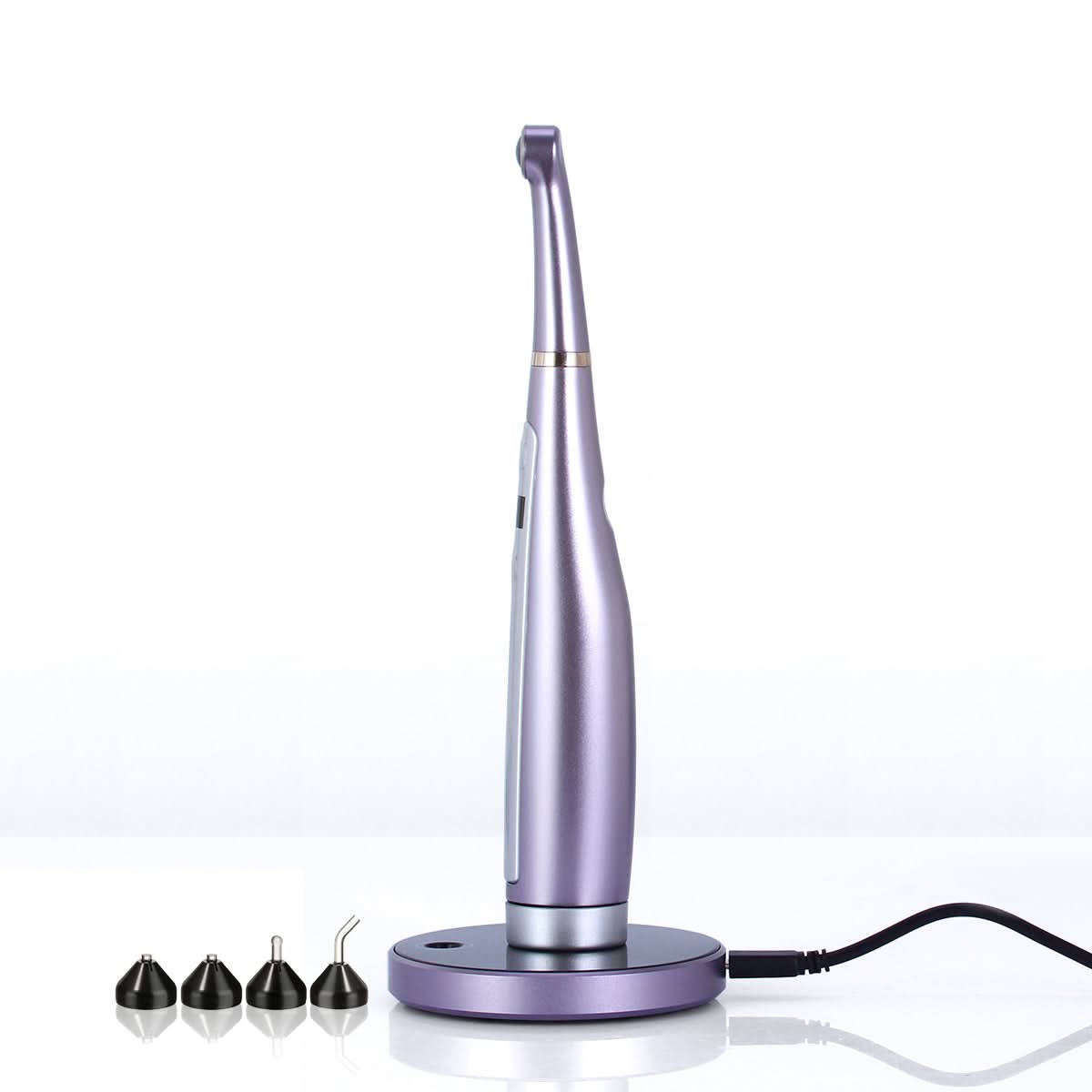

VAFU LED Curing Light Cordless 1 Second DeepCure Wide Specturm Metal Body With Caries Detector Light Meter 3200mW/Cm². Aluminum alloy body, resistance to shatter and drop. 78mm² big operation area. 4 LED light chips. 360° Rotating Head. 3 modes. 3 kinds of magnetic point curing lenses, 3 power levels, 2 lamp heads option. Caries detection light head.

Overview

Stable output power guarantees constant light so that the solidification effect is not affected by the consumption of remaining power.

Parallel light ensures more focused output energy and better solidification effect.

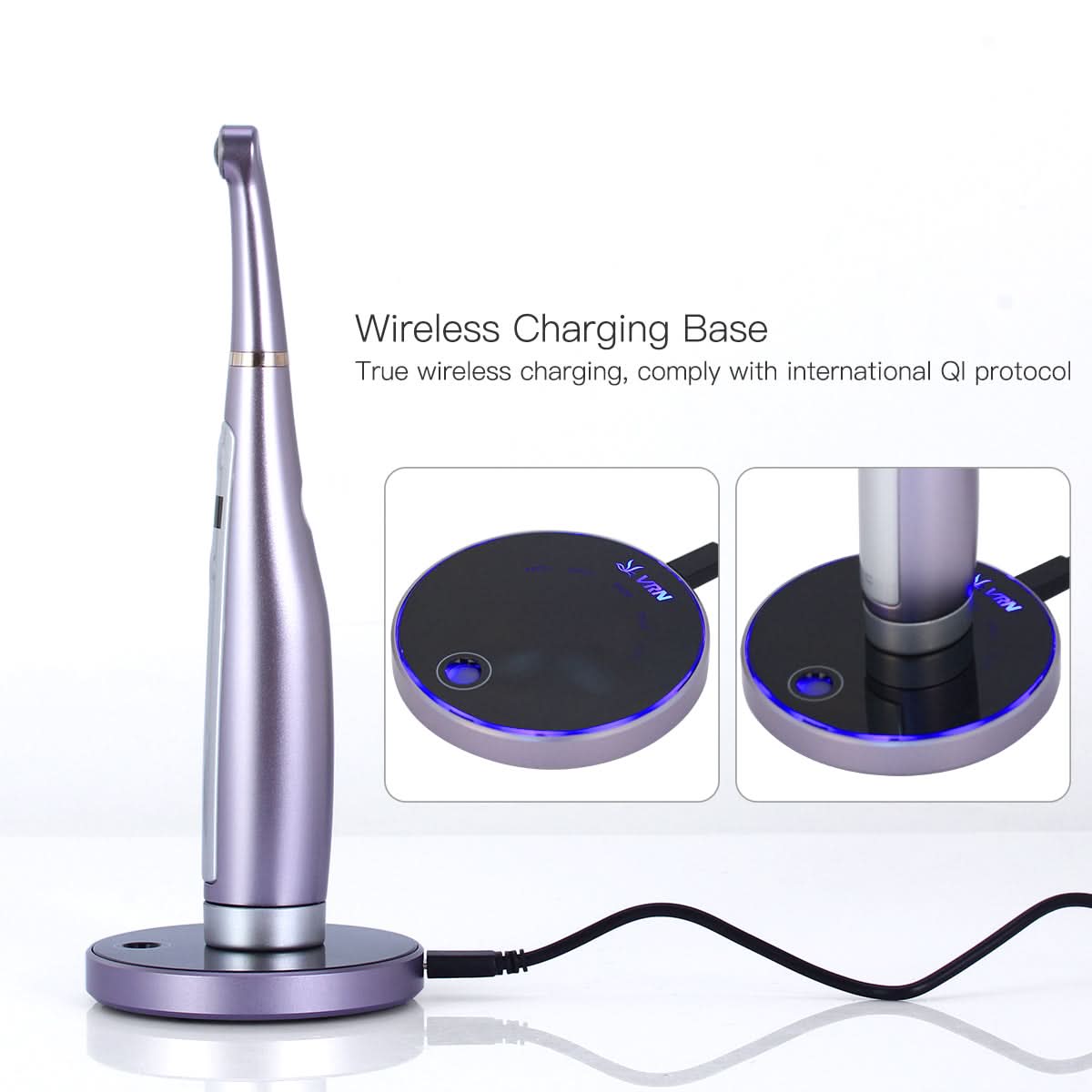

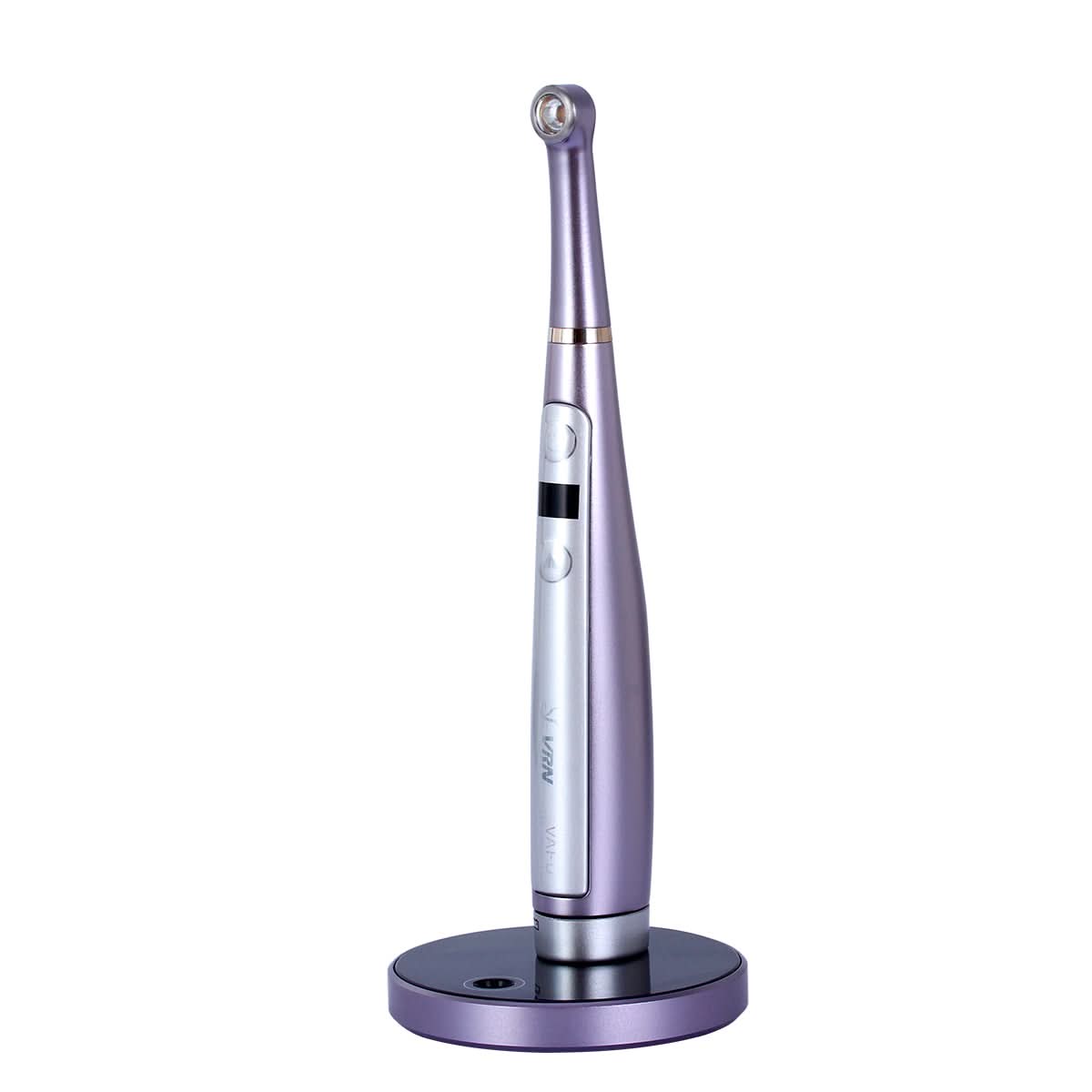

Wireless charging corresponding to the standards of wireless charging protocol is available.

Super capacity battery. A full charge can be used for more than 500 times continuously under 10s working of P2 mode, from full charge to low-battery alert.

Aluminum alloy body, resistance to shatter and drop.

Light source featuring 360-degre rotation to realize curing from all directions.

Replaceable light source, 400nm-420nm light source with corresponding reagent enables detection of dental caries.

A dedicated whitening roller, shooting teeth whitening gel with blue light to whiten teeth.

Charger verifying radiation output of LED curing light effective or not.

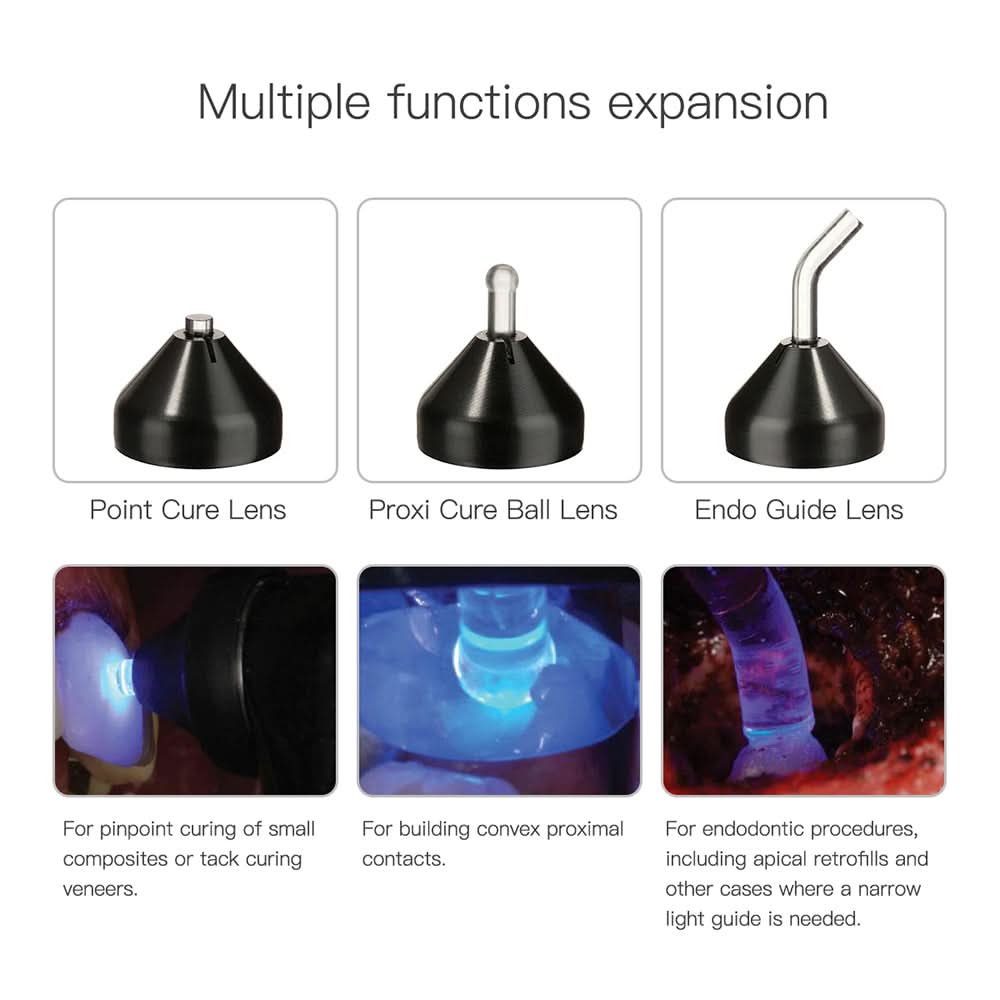

Solidified lens fixed on light source, bonded with all-ceramic veneer and adhered to crown and fiber-reinforced composite root canal post to make solidification effect better.

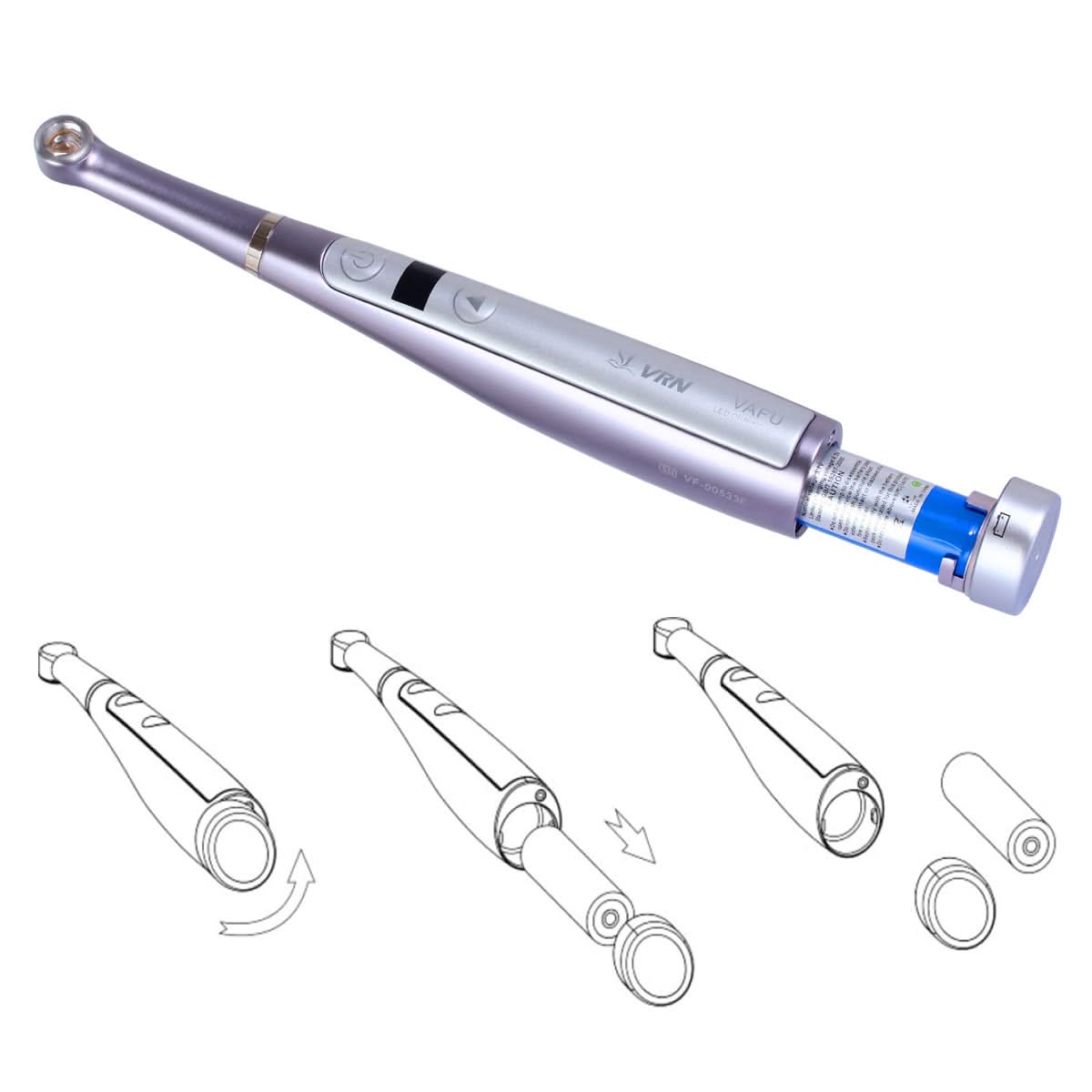

Replaceable Lithium battery, Auto power-off.

Watt high power blue LED light. Class: class 1

LED Curing Light is applicable to some commonly-used resin based materials in dental clinic,such as 3M, Dentsply ,dentex etc.

Equipment Safety Classification: Operation mode: Intermittent operation mode, Protection type against electric shock:class ll, power supply inside the set, Protection degree against electric shock: type B, Protection degree against inlet liquid: conventional equipment(IPXO) , Safety in the case of flammable anesthetic mixture with air, oxygen or nitrous oxide(not AP equipment or APG equipment).

Specifications

Dimensions:	33mm x 27mm x 206mm
Net weight:	160g
Power supply:	Different power supply ；Power supply is Rechargeable battery；Rechargeable Lithium battery；Standard voltage 3.7V, capacity:2200mAh；battery model ICR 18650. with protection for overvoltage, overcurrent and short-circuits
Power Adapter:	Input: 100-240V 50/60Hz, Fuse: T1A 250V
Input power:	5VA
Output:	5V 1A
Wave length:	400nm²-480nm²
Checking:	LED light works under proper use
Radiation:	850mW/cm²
Optical effective area:	75mm

Operating Instructions

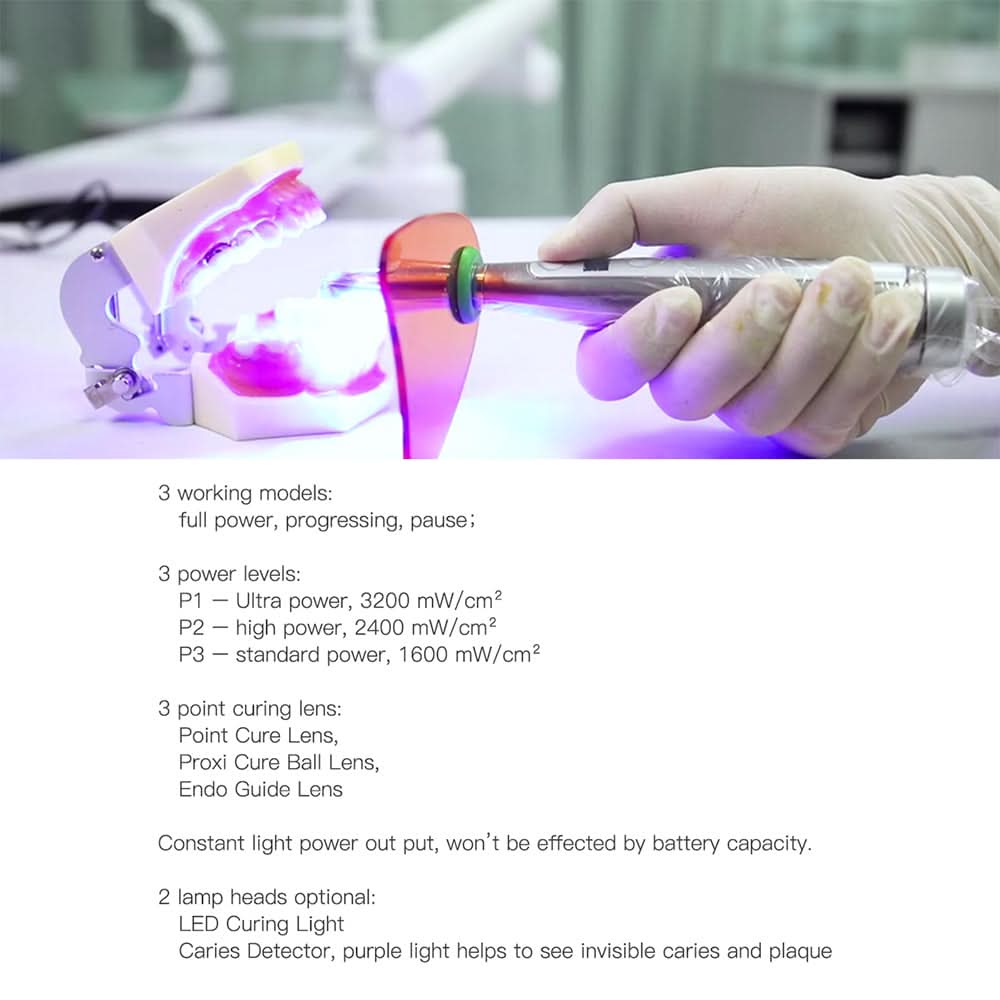

1. Press button "△"for 1 second and release the button when the buzzer warns for once. Following three modes are available

Full Power Mode: The screen shows “∏” The output light intensity is full-power. (recommended mode for clinical)
Progressive Mode: The screen shows “ɲ” The output light intensity enhances gradually power output is to maximum after 5 seconds
Pulsed Mode: The screen shows“∏∏”the blue light works in pulse manner

2. Press button "△"for 2 second and release the button when the buzzer warns for twice. Following three modes based on output of power density are available.

Ultra High Power Density: The screen shows "P1" The power density is about 3200mW/cm.
High Power Density: The screen shows "P2", The power density is about 2400mW/cm²
Standard Power Density: The screen shows "P3", The power density is about 1600mW/cm².

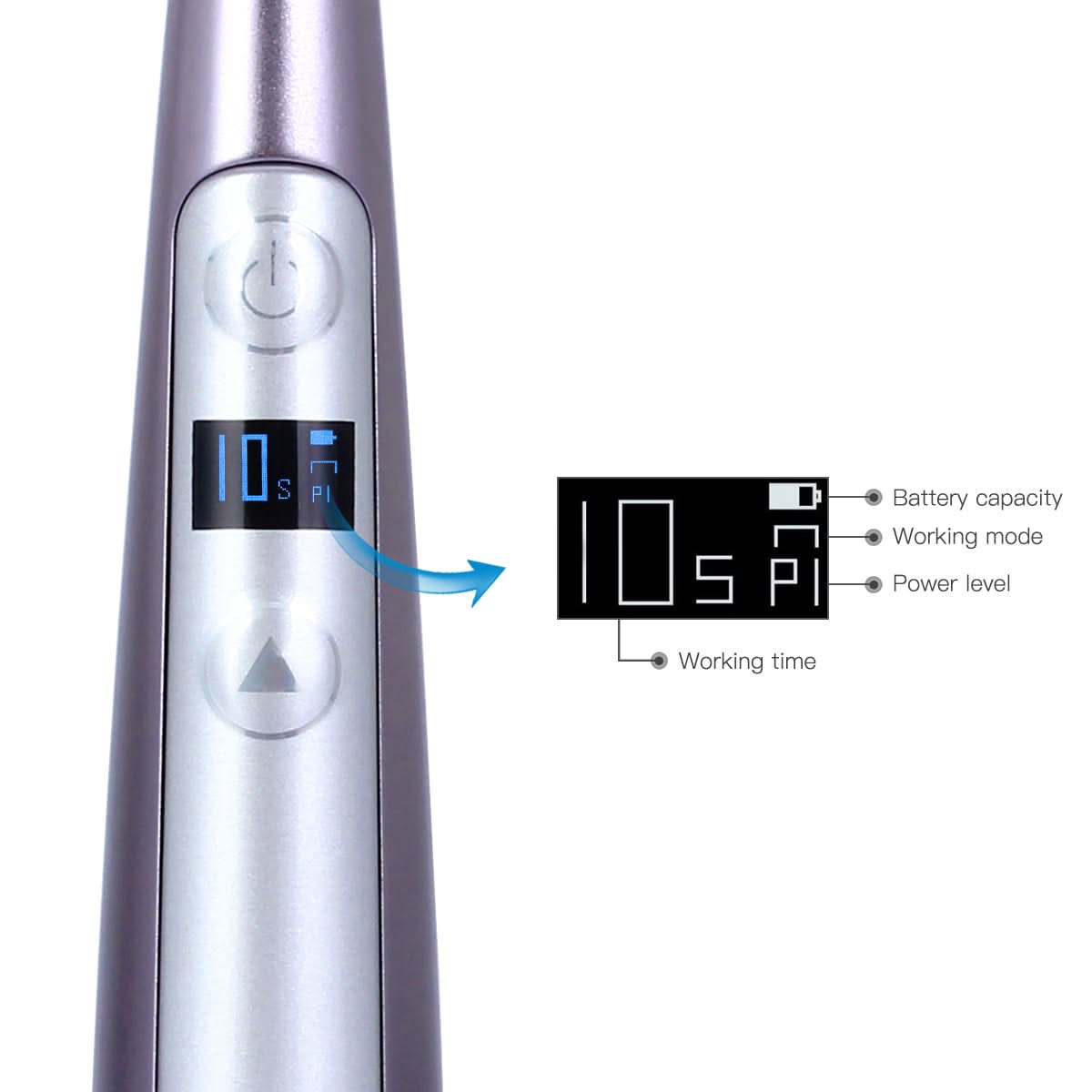

3. Tap button "△" to select working time interval. In"P3"mode, the time interval can be chose from 1,2,3.4,5.10,15,20 25,30, 35, 40 second In"P2"mode, the time interval can be chose from 1,2,3.4,5, 10,15,20 second In"P1"mode, the time interval can be chosefrom 1,2.3, second Information on the screen is shown in the figure.

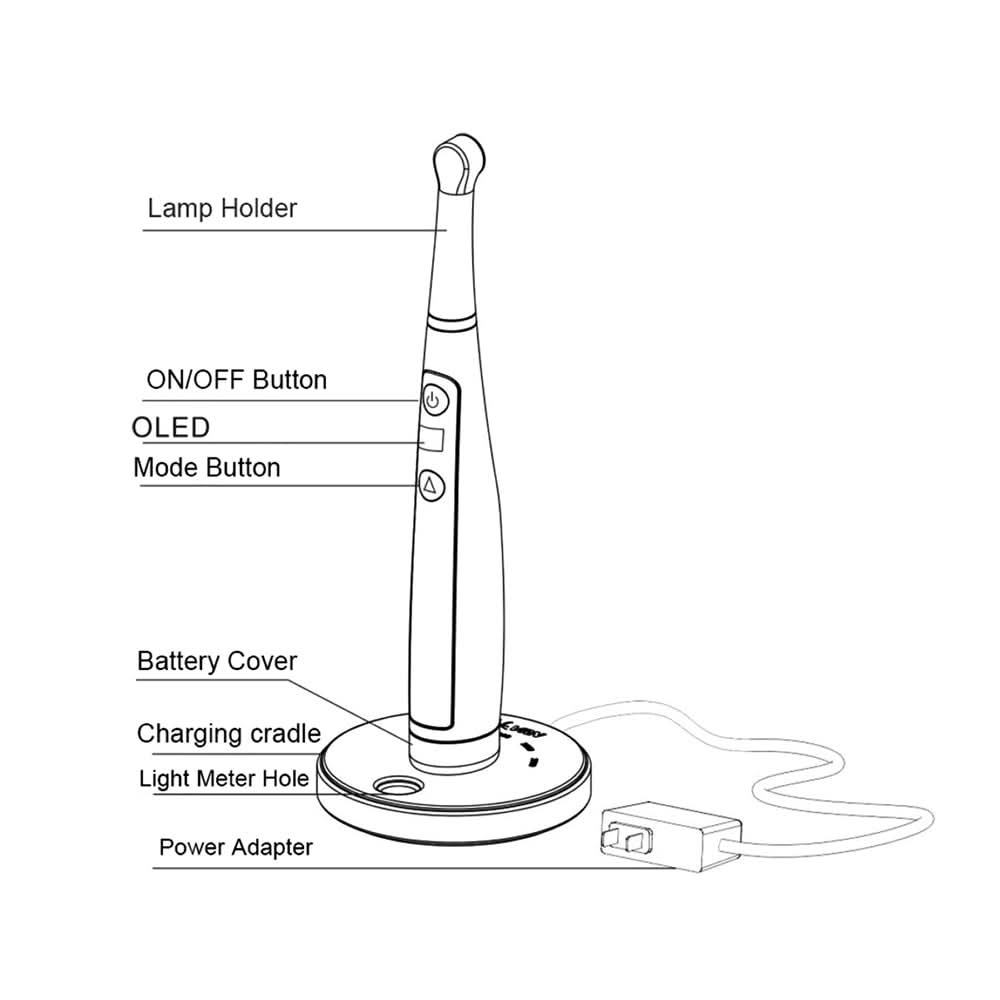

4. During the operation, put the disposable sleeve on the top of the main unit, aim the top at the correct position, press the ON/OF F button ("O" )and the main unit will produce 'Di' sound, the curing light radiates blue light and starts working according to the set modes Meanwhile, it starts counting down from the set working time interval, it stops working when counting down to ("O" )The screen displays the set working time interval again.

5. Operation can be stopped by paras the ON/OFF button ("O").

6. After a working cycle, operator can press the ON/OFF button ("O"). to start another working cycle. Stop operating if the equipment is burning obviously, let equipment cool down before restarting. Suggest continous working cycle less than 5 times.

7. Battery Indicator: Low power detective circuit is fixed inside of the main unit.If battery indicator in the screen has only 1 bar left, please charge in time.

8. When the battery needs to be charged. plug USB Type A jack in USB Type A plug of power adapter, and connect the plug of power adapter into the AC 100V-240V power supply, and connect Micro USB of USB cable into charge indicator in charge. The blue indicator light on charger indicates charger on standby. Put the main unit to the charging point of the charger, and the indicator light turns green, main unit is detected. Meanwhile,the indicator light at the bottom of main unit turn green, the curing light starts charging. When charging finished, the indicator light at the bottom of main unit turn blue.

9. After operating, take off the disposable sleeve and throw away, avoid reusing. Power output will be, decreased by 5-10% if using the disposable sleeve.

10. The product will turn off automatically if there is And operations within 2 minutes. Turn it on by pressing any button.

11. The depth of solidification or dental resin composite is not less than 4mm per 10 second. The recommended separation distance between Iuminous point and solidifying point is 2mm.
