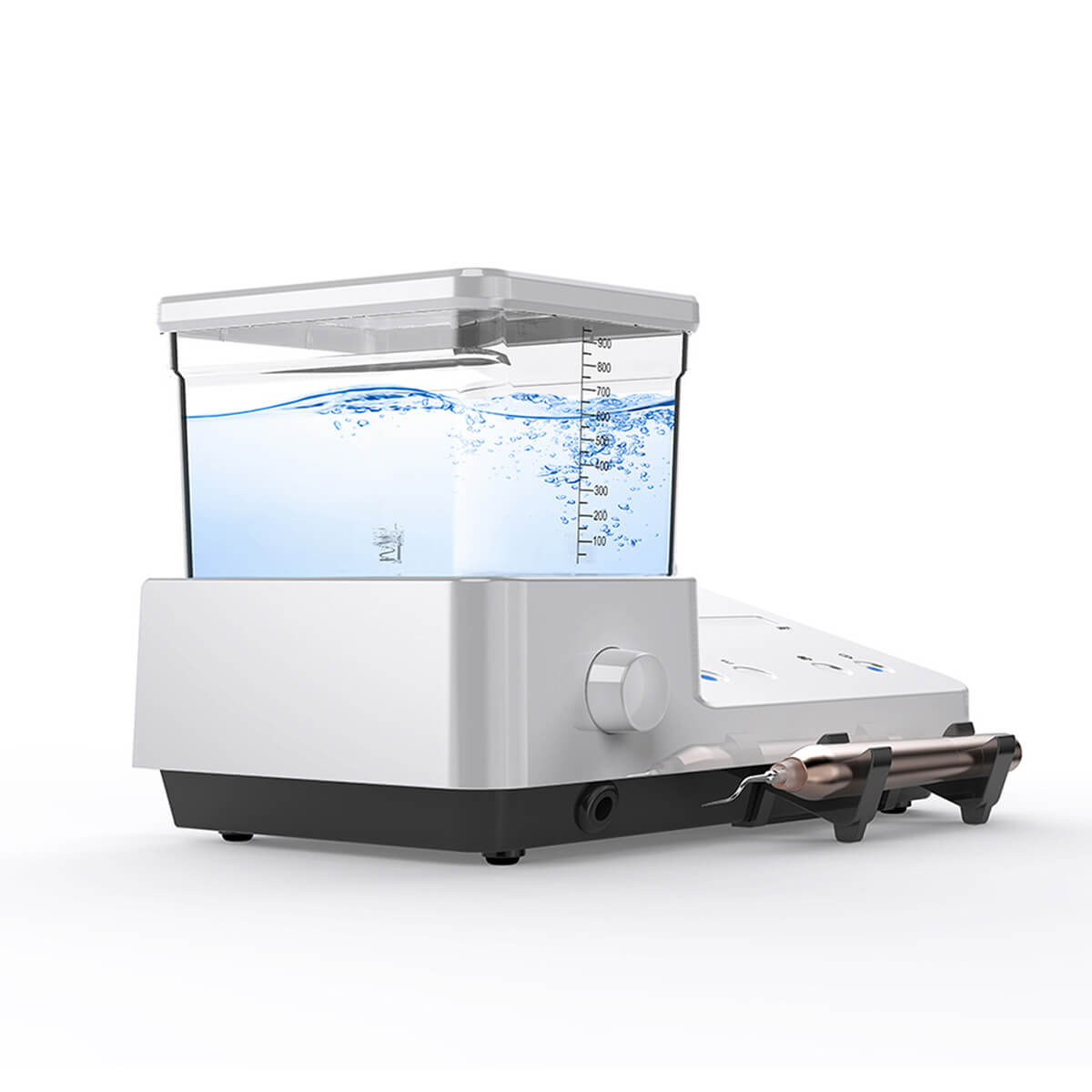

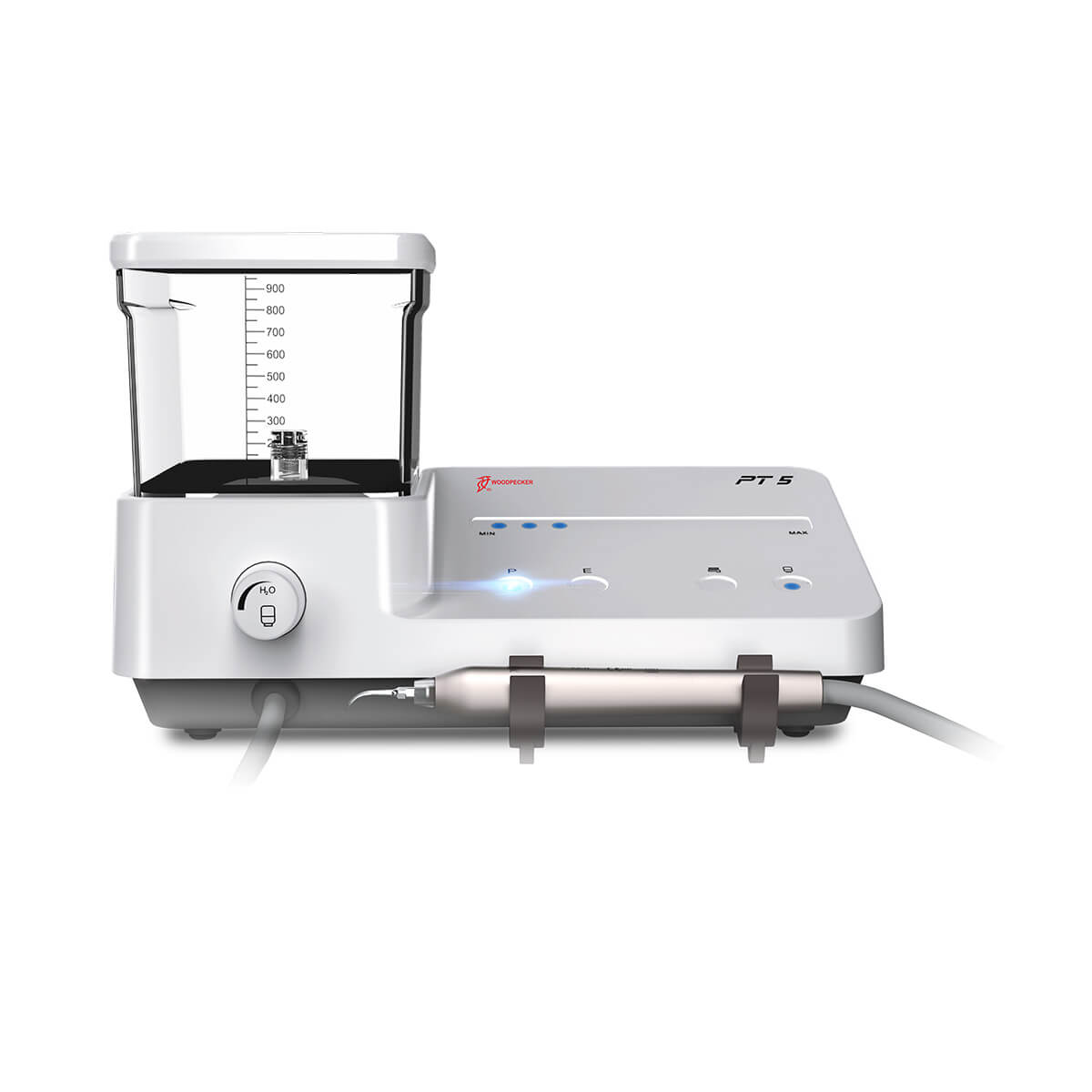

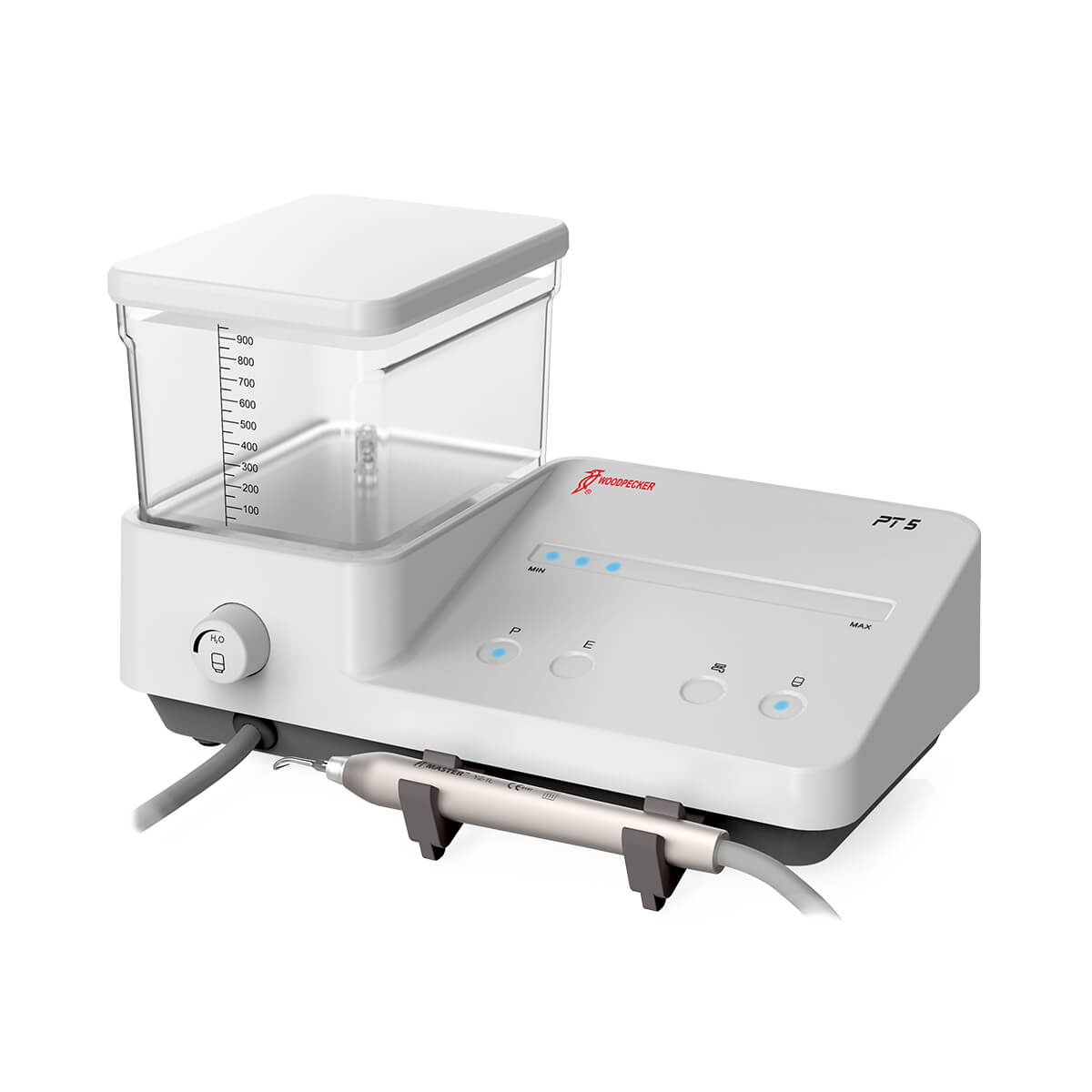

Woodpecker PT5 Painless Periodontal Treatment Device Ultrasonic Scaler Automatic Water Supply System with Titanium Tips. The Woodpecker PT5 is a flagship ultrasonic system for painless deep scaling, root planing, and implant maintenance. Featuring Circular Vibration and Sine Wave technology, it ensures a minimally invasive patient experience. Its dual-bottle design maximizes clinical efficiency, making it the premier choice for high-end dental practices.![]()
![]()
-
Painless Circular Vibration: The tip oscillates in a circular trajectory rather than a linear "hammering" motion. This disperses impact force, significantly reducing patient sensitivity during supragingival and subgingival scaling.
-
Intelligent Sine Wave Drive: Advanced circuitry prevents the harsh instantaneous currents found in traditional scalers, providing a stable, gentle vibration (20-60\mum amplitude) that protects the tooth surface.
-

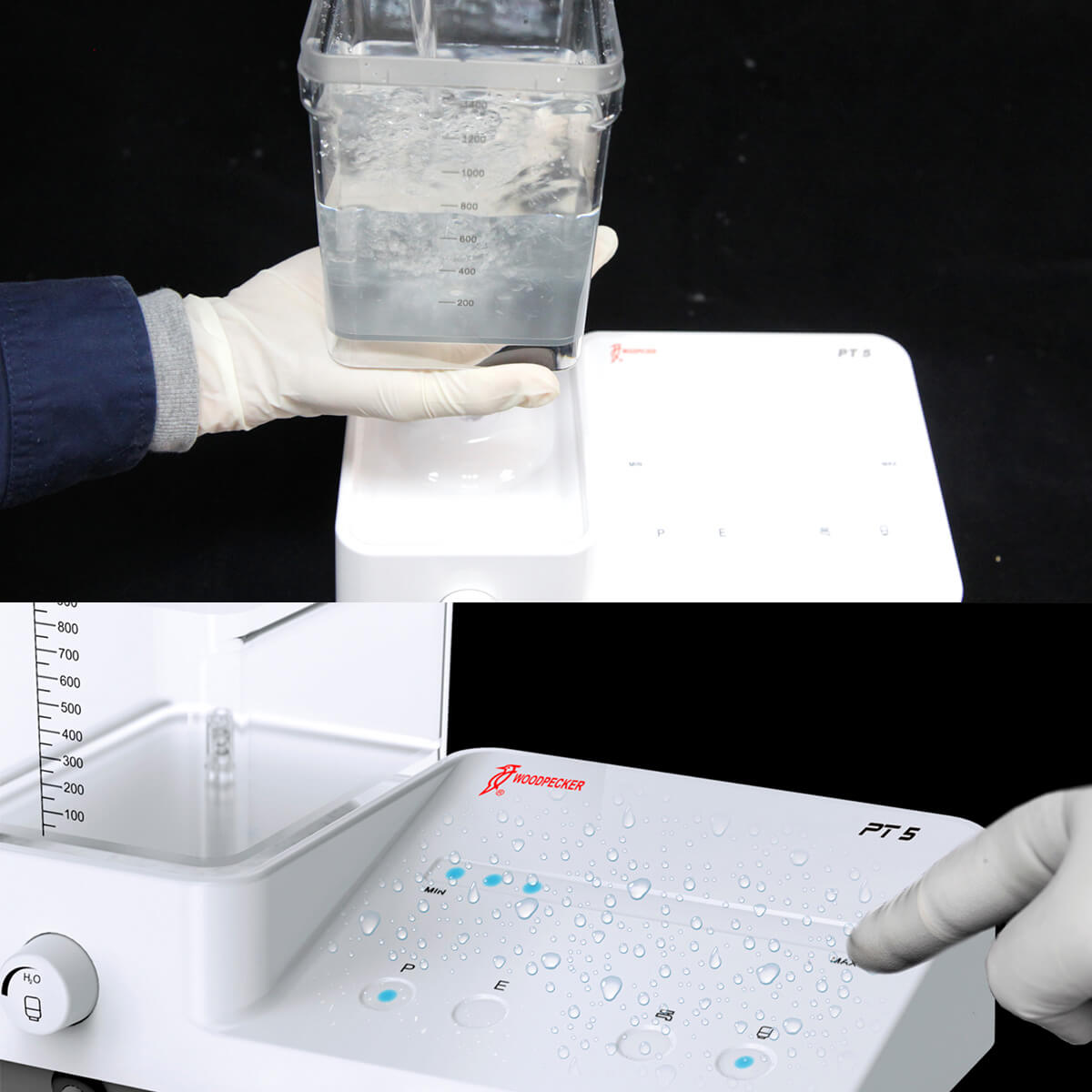

Advanced Water Management: Features dual 1000ml / 1500ml independent water bottles. The system supports specialized clinical fluids: Chlorhexidine, Hydrogen Peroxide, and Sodium Hypochlorite for deep-pocket irrigation.
-
Smart Touch Interface: A waterproof, high-sensitivity touch panel with 12 levels of power adjustment and an intuitive "Auto-Water" toggle for seamless control.
-
Cementum Protection: Premium Titanium Alloy Tips are softer than tooth enamel and bone, ensuring that calculus is removed without damaging the sensitive root surface.
-
14mm Deep Access: Specialized periodontal tips are designed to reach deep into periodontal pockets (up to 14mm) for thorough biofilm and calculus removal.
-
LED Clear Vision: The handpiece features high-intensity LED light to ensure a shadow-free operative field, even in posterior regions.
-
Total Hygiene Control: The Handpiece is fully detachable and autoclavable at 135°C, ensuring strict infection control and compliance with international safety standards.
|
- The use of strong detergent and disinfectant (alkaline pH>9 or acid pH <5)
will reduce the life span of products. And in such cases, the manufacturer takes
no responsibility.
- Do not clean the handpiece with ultrasound cleaning machine.
- This device shall not be exposed to high temperature above 138℃.
|

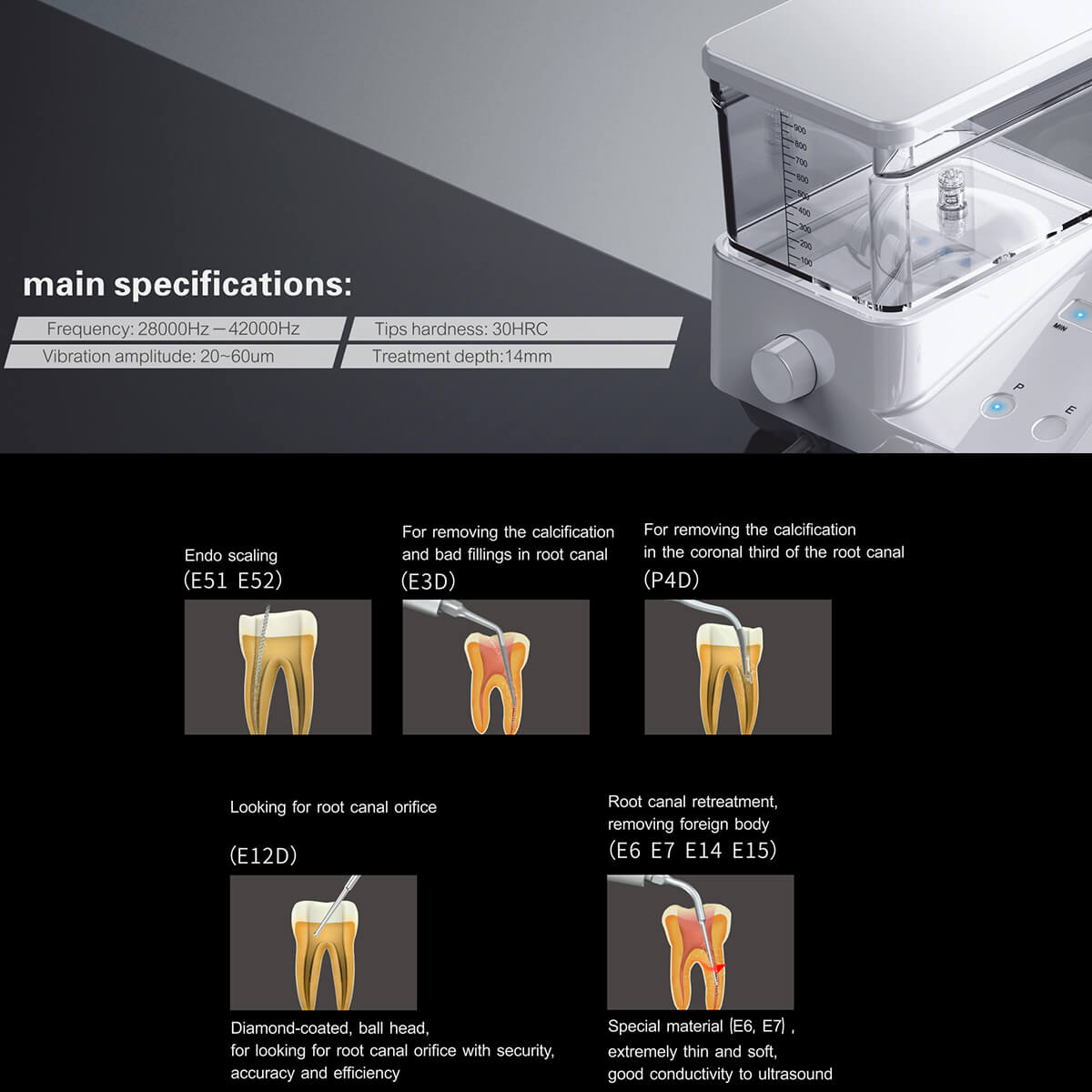

| Frequency: |
28000 Hz - 42000 Hz |
| Tips hardness: |
30 HRC |
| Vibration amplitude: |
20~60 um |
| Treatment depth: |
14 mm |
| Main unit input: |
110V~ 50Hz/60Hz |
| Output primary tip vibration excursion: |
≤60μm |
|
Output half-excursion force:
|
<2N |
|
Output tip vibration frequency:
|
28kHz~42kHz
|
| Output power: |
3W to 20W |
| Water pressure: |
0.01MPa to 0.5MPa |
| Weight of main unit: |
2.0kg |
| Main unit： |
×1 |
| Detachable handpiece: |
×1 |
| Foot switch: |
×1 |
| Power cord: |
×1 |
| Scaling tip: |
P50R×1, P50L×1, P54R×1, P54L×1, G4×1, P3×1, P95×1, E62×1, E60×1 |

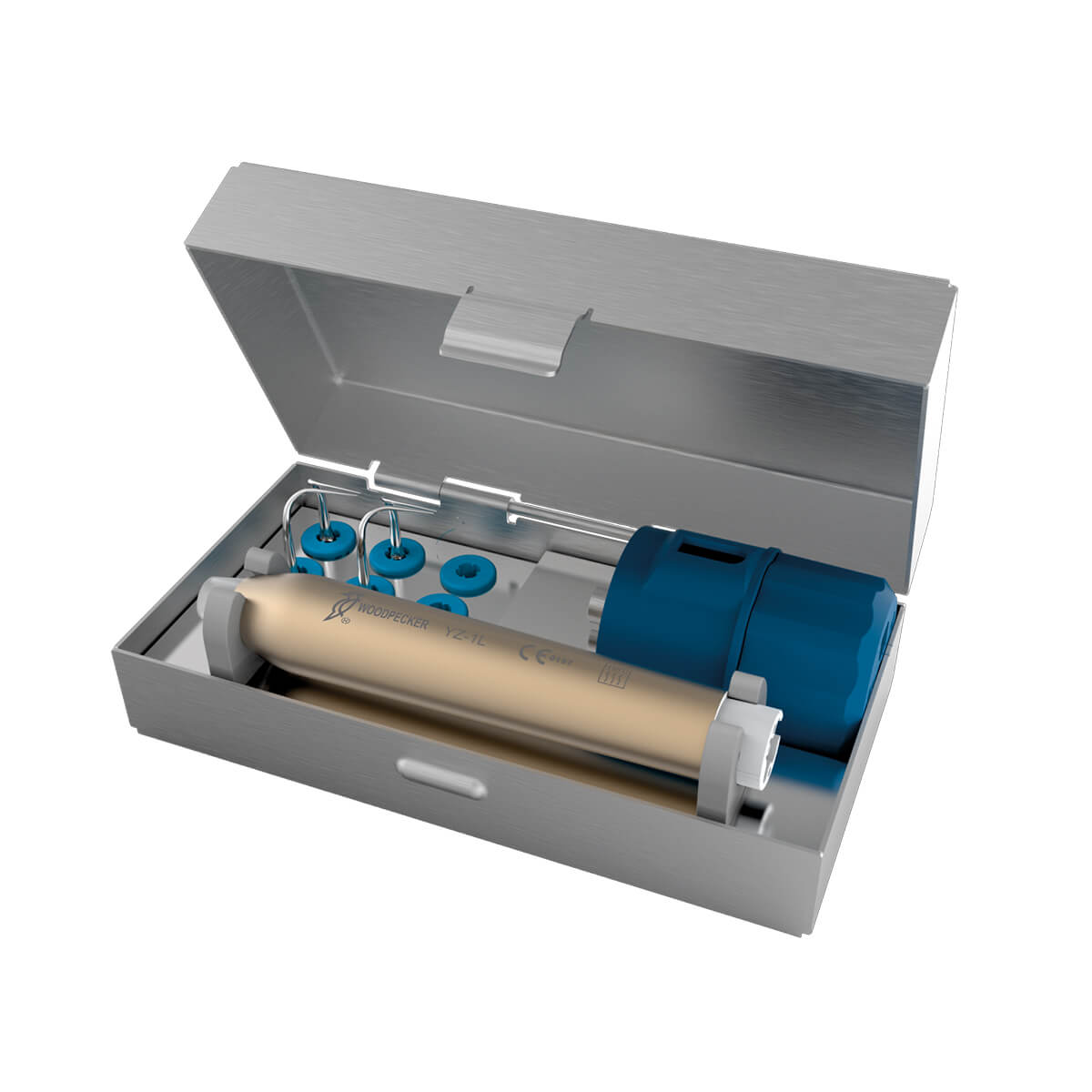

| Stainless sterilize box: |
×1 |
| Torque wrench: |
×1 |
| Endo wrench: |
×1 |
| 1000mL water bottle: |
×1 |
| 1500mL water bottle: |
×1 |
| LED lamp: |
×1 |
| Quick instruction: |
×1 |
| Instruction manual: |
×1 |
| Qualified certification: |
×1 |
| Tip Instruction manual: |
×1 |
| Warranty card: |
×1 |
| Packing list: |
×1 |
| O-ring pack (Waterproof"O"ring, Bottle seal ring): |
×1 |
| O-ring pack (Bottle seal ring): |
×1 |
