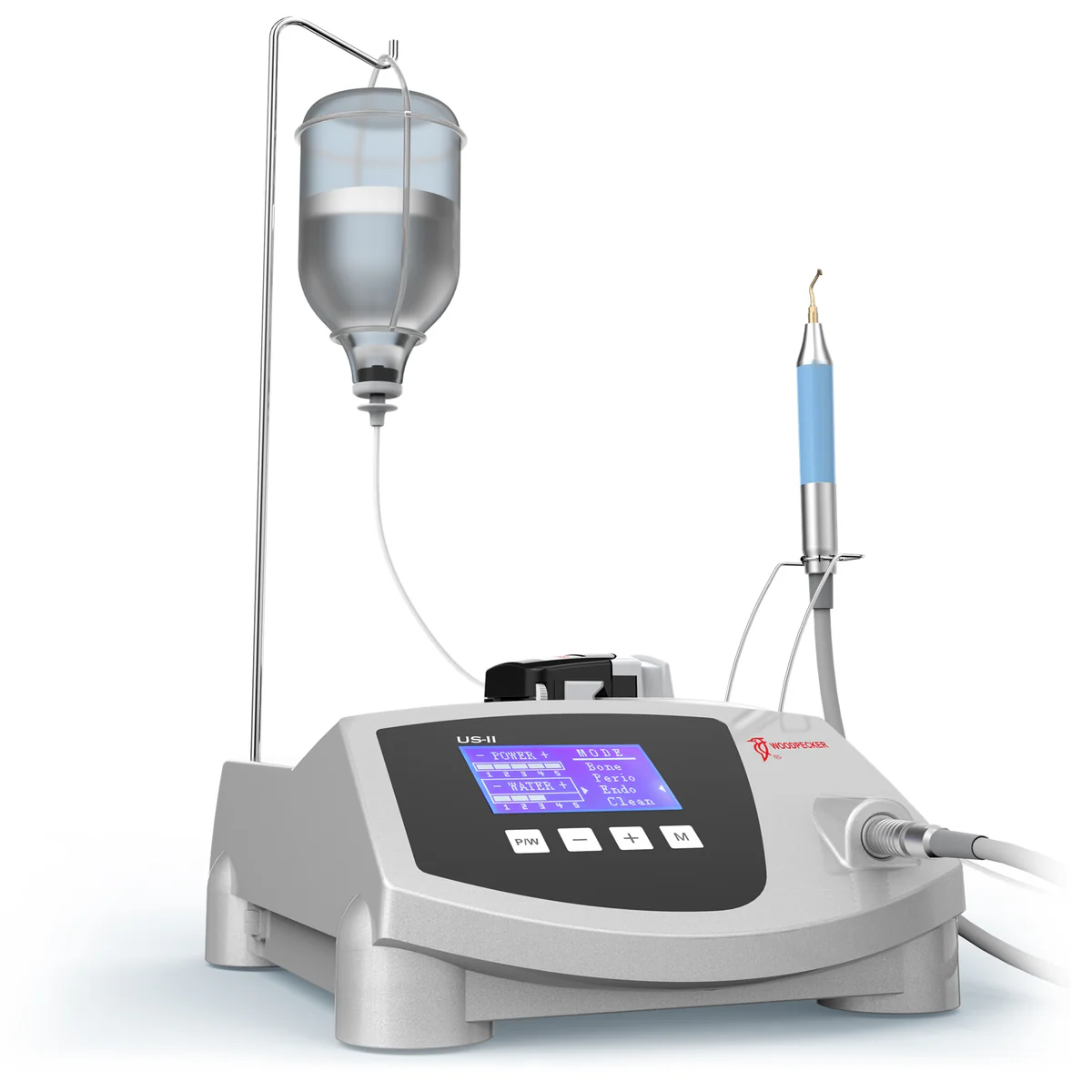

Woodpecker US-II LED Ultrasonic Piezo Bone Cutter Ultrasurgery. Complete set including Main Unit with accessories, 2x LED hand pieces, and 14 cutting tips (one each: US1, US2, US3, US4, US5, US1L, US1R, UL1, UL2, UL3, UL4, UL5, UI1, UC1). Autoclavable Handpiece and Tips. Minimally Invasive Incision. Maximum Safety to Soft Tissue. Reliable and Efficient.
-
Minimally Invasive Incision: The tips vibration accuracy is 20-200μm micron, the minimum incision is only 3.5mm*0.5mm. The postoperative recovery is fast, due to operation area is small.
-
Provide Maximum Safety to Soft Tissue: he vibration frequency is 24-29KHZ, which can effectively cut bone tissue and reduce the risk of soft tissue injury.
- Easy Operation: For different treatment needs, there are four modes for choosing: bone function, periodontal function, root function, clean function.
- More Safety: Handpiece, cable, tip holder, working tip and torque wrench can be autoclaved under the high temperature of 135°C and the pressure of 0.22Mpa.
-
Newly Developed Handpiece: Developed handpiece and tip are more compatible and stable. The LED Handpiece insure better vision.
- Equipped with Professional Kits: Come with 2 LED handpieces and 14 tips, providing a wide choice for application of your clinical practice.
|
- The US-II (LED) is a piezoelectric device for bone surgery that enables osteotomy and osteoplasty techniques to be applied to in almost any anatomical situation. This equipment can be used in the following fields
- Oral surgery
- Orthopedic surgery
- Maxillofacial surgery
- Cosmetic surgery
- Neurosurgery
- Otolaryngology
-
The function of bone is mainly used for dental surgery, such as dental extraction, bone grafting, osteogenic distraction, endodontic surgery, alveolar nerve decompression, cyst removal, osteoplasty, bone harvesting techniques and periodontic surgery. etc.
|
- One year warranty (not including customer damages)
- Due to the nature of the medical equipment, we don’t offer return on this product if it has been open box and used. We will repair it for free if it’s product problem and still within warranty
|
| Power input: |
110V~ 50Hz/60Hz |
| Main unit input: |
24V~ l.3A |
| Output power: |
5W ~ 35W |
| Intermittent operation: |
Max T_on 60s, T_off 10s |
| Frequency: |
24kHz ± 36kHz |
| Main unit weight: |
6.8lbs (3.1kg) |
| Dimensions: |
13"x 10"x 6.6" (330×254×167mm) |
| Main unit: |
1 |
| Power cord: |
1 |
| Foot switch: |
1 |
| Handpiece holder: |
1 |
| Pump tubing: |
8 |
| Steriliza box: |
1 |
| Single package: |
2 |
| Silicone handle holder: |
2 |
| Instruction manual: |
1 |
| Quality certificate: |
1 |
| Packing list: |
1 |
| Peristaltic pump: |
1 |
| Hook: |
1 |
| LED Handpiece: |
2 |
| Tip Holders: |
2 |
| Connector for pump tubing: |
4 |
| Torque Wrench: |
2 |
| Tip book: |
1 |
| Normal saline connector: |
2 |
| Warranty card: |
1 |
| Assembly card: |
1 |
| Complimentary article: |
LED lamp (only for US-II LED) *1 |
| Tips: |
US1*1, US2*1, US3*1, US4*1, US5*1 UL1*1, UL2*1, UL3*1, UL4*1, UL5*1 US1L*1, US1R*1 UI1*1, UC1*1 |
