Implant Products

Dental Implant Surgical Brushless Motor Multi Function Color Touch Screen With 20:1 LED Contra Angle 80Ncm

Dental Implant Surgical Brushless Motor Multi Function Color Touch Screen With 20:1 LED Contra Angle 80Ncm. Auto-Calibration Function. 8 setting programs. LED light source illumination. LED lighting ensures visibility. Illumination and sound can be adjusted. Flexible multi function foot pedal, could achieve the most of operating functions. There are 6 gears water flow,click the button each time, increase water volume. Motor and cable can be sterilized at high temperature and pressure. Built in common error prompt and alarm interfaces, timely remind the wrong operation, better protect the machine.

Note: The foot pedal is with a cord, it is not a wireless foot pedal.

Overview

Surgical brushless motor
8 setting programs
20:1 Fiber Optic Contra Angle
LED light source illumination
Warranty
Main unit: 2 years
Motor and contra angle: 1 year

Features

Color touch screen
The large size screen ensures that the treatment parameters are visible. Graphical operation steps, intuitive and clear, easy operation, simple and flexible, humanized touch design, responsive.
Multi function
For implant, restoration, extraction of impacted teeth, orthopaedic surgery.
8 Program memory function for setting setting speed, torque, compatible with various contra angle or straight handpiece, such as 20:1 16:1 27:1 4:1 3.2:1 1:1 1:3 1:4.2 1:5
Motor Auto-Calibration function (implant)
Operate safely with high precision thanks to the surgical motor, low noise and vibration, powerful.
A new generation of motors with torque up to 80Ncm
High performance brushless motor, high torque and wide speed range for all kinds of treatment.
LED lighting ensures visibility
Helps clinicians focus more on the treatmenet area and make surgery more accurate.
Illumination and sound can be adjusted
Flexible multi function foot pedal
Could achieve the most of operating functions.
Smooth Irrigation Pump
There are 6 gears water flow,click the button each time, increase water volume.
Built in user manual
Simple and convenient operation.
Motor and cable can be sterilized at high temperature and pressure

Warnings: Plug must be inserted when the motor is sterilized.

Built in common error prompt and alarm interfaces
Timely remind the wrong operation, better protect the machine.

Technical

Maximum power:	150W
Power supply:	AC110v/60HZ,AC220V/50HZ
Torque:	5-80Ncm
Motor speed:	300-40000rpm
Infusion flow(Maximum):	135ml/min

Package

Implant unit:	1
E-type motor:	1
LED contra angle handpiece:	1
Foot pedal:	1
Motor stand:	1
Hanger:	1
Power cord:	1
Motor cap for autoclave:	1
Irrigation tube:	2
English instruction manual:	1
Aluminum Box:	1

$970.00 $1,500.00

Universal Implant Torque Wrench Handpiece Kit with 2 Heads 12 Drivers

1 Kit 3 Kits

🔥

5 Kits

🔥

10 Kits

🔥

$74.99

Dental Electric Wireless Universal Implant Driver Kit with Torque Wrench 16pcs Drivers 10-50Ncm 360° Rotating

1 Kit 5 KIts 10 Kits

$256.99

Dental Stainless Steel Implant Screw Removal Kit

1 Kit 5 Kits 10 Kits

$283.34 $321.98

Dental Implant Colorful Electronic Torque Universal Tools Kit 16pcs Drivers With Wrench 10-50Ncm

1 Kit 5 Kits 10 Kits

$104.96 $115.59

Disposable Implant Irrigation Tube Green 114.56" - pairaydental.com

Disposable Implant Irrigation Tube Green 114.56 Inch

5 Bags 10 Bags 20 Bags

$17.44 $21.94

COXO CX235C6 Dental 20:1 Contra Angle Electric Implant Handpiece Fiber Optic #C6-22

1 Pc 5 Pcs 10 Pcs

$169.99 $199.99

Woodpecker Dental Surgical Implant Motor Implant Air w/ 20:1 LED Contra Angle

Woodpecker Dental Surgical Implant Motor Implant Air w/ 20:1 LED Contra Angle. Automatic Calibration that is Convenient & Ensures Accuracy. Compact Design, User Friendly Interface. Ultra Quiet Peristaltic Pump that is Convenient to Use. Max Water Volume: 135ml/minute. Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable. Multi-Function Foot Pedal.

Features

The Woodpecker Implant Air is the latest and most advanced version of implant motor from Woodpecker Dental that is completely redesigned to be simple, precise and reliable for your implant surgery. Implanter Air will be your favorite assistant of high-precision dental implanting treatment.
Automatic Calibration that is Convenient & Ensures Accuracy
The Implant Air Implant Motor features automatic torque calibration upon powering on the motor to ensure absolute accuracy and eliminating manual operational steps.
Compact Design & User Friendly Interface
The Implant Air Implant Motor is designed with space savings in mind. Its compact design is perfect for space savings in your operatory and has a much smaller foot print than other implant motors available. This is not your typical â€œclunky" implant motor.
-Length 6.1 inches (155mm)
-Width 6.5 inches (167mm)
-Height 8.9 inches (227mm)
The 5 inch color LCD touchscreen is user friendly and easy to understand. It has 5 pre-set surgical programs and automatically saves the parameters after each operation.
Ultra Quiet Peristaltic Pump that is Convenient to Use
The Implant Motor water pump has a waterproof design to prevent any occurrence of circuit board burnout. Simple and user friendly connect for water supply and is adaptable to using a disposable water source.
Max Water Volume: 135ml/minute
Multi-Function Foot Pedal
The Woodpecker Implant Air Implant Motor foot pedal has 1) water volume control 2) program switching 3) forward and reverse and 4) speed control. This allows you to free your hands and focus on the implant procedure.
Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable.
The Woodpecker Implant Air features a Swiss Motor producing torque of 80N cm and an LED 20:1 Handpiece with German bearings allowing for maximum stability and durability.
* One 20:1 LED contra angle is included with the implant motor.

Technical

Model:	Implant Air
Power Input:	AC 100-240V 50Hz/60Hz
Host Size:	155mm×167mm×227mm
Size of fuse:	5.2 mm×20mm
No-Load Speed (r/min):	300 ~ 42000
Input Power:	180VA
Software Version:	V1
Ambient Temperature:	+5 ~ 40°C
Relative Humidity:	30% ~ 75%
Atmospheric Pressure:	70kPa ~ 106kPa
Handpiece Gear Ratios Output speed (r/min):	16: 1 (20 ~ 2500) 20: 1 (15 ~ 2000) 27: 1 (10 ~ 1500) 1: 1 (300 ~ 42000) 1:2 (600 ~ 84000) 1:2.7 (810 ~ 113400) 1:3 (900 ~ 126000) 1:4.2 (1260 ~ 176400) 1:5 (1500 ~ 210000)
Pedals Model:	MF4
Tail line length:	2.8m

Packing List

Main unit:	1
Handpiece holder:	1
Disposable water pipe:	4
Infusion bottle holder:	1
Foot pedal:	1
Power cord:	1
Motor handpiece:	1
Contra-angle kit:	1
Spare fuse:	2
Disinfection plug:	2
Pipe clamp:	10
O-ring(Motor):	4
Instruction manual:	1

$1,999.99 $2,499.99

COXO Dental Implant Motor With 20:1 Fiber Optic Contra Angle Handpiece 7" Touch Screen #C-SAILOR PRO

$999.00 $1,199.99

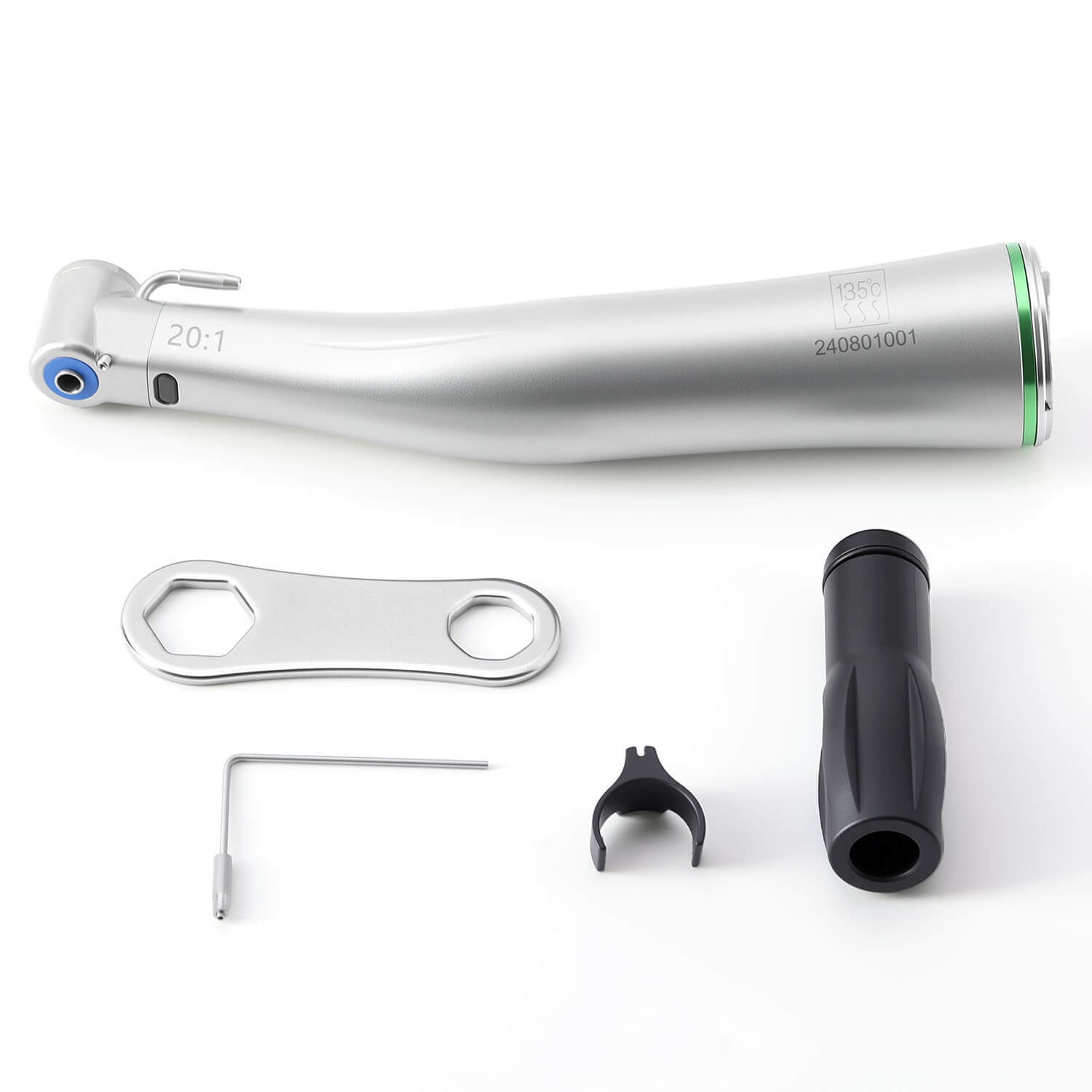

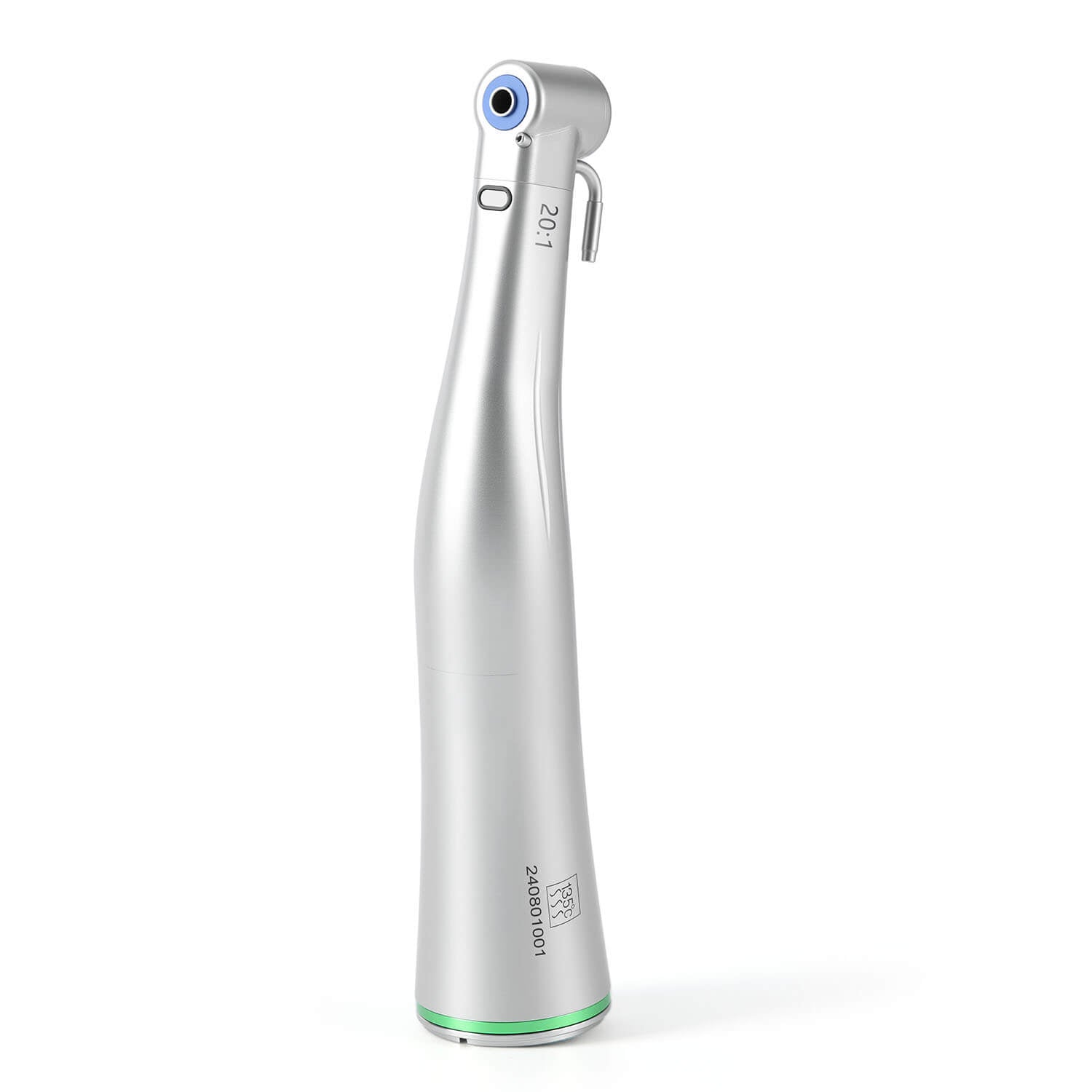

Dental 20:1 Implant Reduction Contra Angle Handpiece LED Fiber Optic Push Button

1 Pc 5 Pcs 10 Pcs

$78.49

20:1 Implant Contra Angle Handpiece External Spray Push Button

1 Pc 5 Pcs 10 Pcs

$52.58

Dental Implant Stability Measurement Device

Dental Implant Stability Measurement Device. It is a stability measuring device that uses tapping method. Easy to use due to simple controlling method. Fast measuring time less than 3 seconds. Safe measurement due to slight tapping technique and auto safety system. Available to check possibility of implant failure at in earlier stages.

Overview

Used to measure implant stability, continuous monitoring of implant stability can help determine bone resorption and guide the selection of the great repair timing.
The impact force is relatively small, approximately equal to 0.9N.
Simple and fast measurement of accurate values.
It is a stability measuring device that uses tapping method, which measures the time of the Tapping Rod of the device contacting the implant for dentistry and dental implantology or oral cavity, or abutment, to measure the stability of the placed implant.
Convenient usage due to small and light design. Easy to use due to simple controlling method.
Fast measuring time less than 3 seconds. Safe measurement due to slight tapping technique and auto safety system (tapping stops after tapping twice when Osseointegration is unstable, otherwise taps up to 6 times.).
Available to check possibility of implant failure at in earlier stages.

Note: Maintain the contact angle within the range of 0° ~ 30°, the measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular.

Product manual download

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure.
Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure.
Do not use disinfectant spray to prevent the disinfectant from penetrating into the product
Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

Measuring Process

Take out the disposable seeve and put it on the handpiece before use
Turn the power on by pressing the ON/OFF switch.
Carefully position the tip of the Tapping Rod to the upper edge of the healing abutment while being cautious not to push the abutment.
Maintain the contact angle within the range of 0° ~ 30° to upward
When the Tapping Rod of the handpiece is located 90 degree from the side part of the top of the healing abutment and the ON/OFF switch is pressed once, the tapping motion starts after 0.5 second.
The measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular.
Check the numbers displayed on the LCD screen of the device.
Due to the different bone widths in different directions of the implant, the measurement data will be biased. Try to measure the stability value from multiple angles to get a reasonable value.

Note

If the contact angle is off the range (0° ~ 30° . upward from the surface), an alert sound will be on and the LCD screen displays "TOO LOW" or"TOO HIGH", the handpiece will not operate. In this case, tilt the deviceuntil the contact angle is back in the range, and then, try measuring again.
Measurement error may occur if the tip of the Front Guide applies too much force to the healing abutment or is too far away from the healingabutment during measurement.
Empty tapping-motion results in no reading or obvious data errors.

Checking Measured Value (iST scale)

Measured value is similar to ISQ scale:
-above 60: bridge recommended.
-above 70: single case loading possible.
A range of measured value is displayed as a number between 01 to 99.
Color of the number appears as Red (1 to 59), Yellow (60 to 64), Green(65 to 99).
Green light below the LCD Display is the status bar.
Lower the measured value (iST scale), greater the implant mobility (weaker the degree of osseointegration).

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure.
Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure.
Do not use disinfectant spray to prevent the disinfectant from penetrating into the product
Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

Specifications

Battery Capacity:	850mAh
lnput:	100-240V~50/60Hz
Output:	5V 1A
Environment Temperature:	+5℃ to +40℃
Relative Humidity:	10%~93%
Atmosphere Pressure:	70kPa to106kPa
Operation Model:	Continuous Operation

Performance

Accuracy:	Display value ± 3
Tapping Speed:	0.5 sec. / 1 time
Tapping Strength:	≤1.0 N to 1.3N
Number of Tapping:	Taps 2~4 times until the measured value of 1~59. After 60~ 99, the device taps 6 times in order to measure the stability.

$769.99 $1,049.00

Dental Disposable Surgical Irrigation Tube 107.48"

1 Bag 5 Bags 10 Bags 20 Bags

$3.00

Dental Drill Guide and Implant Positioning Kit Implant Tools

1 Kit 5 Kits 10 Kits

$63.65

20:1 Implant Reduction Contra Angle Handpiece Push Button External Spray

1 Pc 3 Pcs

🔥

5 Pcs

🔥

10 Pcs

🔥

$41.49

20:1 Implant Contra Angle Handpiece LED Fiber Optic Push Button

1 Pc 5 Pcs 10 Pcs

$112.89

Dental Implant Stability Monitor ISQ Tester for Osseointegration Measurement

$387.19

Dental Wireless Implant Electric Torque Wrench LCD Display With 16pcs Drivers 360° Rotating

1 Kit 5 Kits 10 Kits

$123.88

Electronic Torque Wrench:	10-50N.cm
Autoclavable:	135°C Autoclavable,the box can also be sterilized. Electronic handles can only be alcohol wiped on the surface and cannot be autoclaved.
Material:	Stainless Steel+Plastics
Package:	1 pc Electronic Wrench. 16 pcs drivers

Model:	CX235C6, #C6-22
Low-speed handpiece:	20: 1 reduction
Chuck type:	Push button
Spray:	Inner channel and external
Bur applicable:	Ø2.35mm(ISO1797-1)
Max speed:	2, 000RPM
Internal cooling system:	Kirschner/ Meyer

Maximum power:	130VA
Power supply:	AC110V 60Hz
Motor speed	300--40000rpm
Adjustable torque:	5Ncm--80Ncm (20:1)
Water supply volume:	4 blocks adjustable. up to 150ml/min
Light source illumination:	30000 lux
Motor:	surgical brushless motor
Volume(cm)	42x38x26cm
Weight(kg) with case/pcs:	8.7kg
Packing:	Aluminum box

Chuck Type:	Push Button
Bur Applicable:	Ø2.35mm
Head Size:	Ø9.1 X H14 mm
Torque:	80N.cm
Max Speed:	2,000RPM
Body Material:	Stainless steel

Gear Ratio:	20:1 Reduction
Chuck Type:	Push Button
Model:	AZ-ER 20
Bur Applicable:	φ2.345-2.355mm
Spray:	Extemal irrigation system
Max torque:	70Ncm
For:	Compatible with all E-type motors(NSK Aseptico, W&H, Nouvag Acteon)

Chuck Type:	Button type chuck
Bur Applicable:	φ2.345-2.355mm
Spray:	Extemal irrigation system
Warranty:	1 Year (6 months for cartridge)

Gear Ratio:	20:1, for implant
Chuck Type:	Push Button
Bur Applicable:	Ø2.35mm
Torque:	55N.cm
Max Speed:	2,000RPM
Warranty:	1 year
Autoclavable:	135°C
Packing:	Handpiece1, Wrench1, Operation manual*1

Instrument Weight:	100g
Power Supply:	~100-240V, 50Hz/60Hz
Power Output:	5VDC 2VA
Accuracy:	±0.5ISQ
Charger Safety Grade:	EN 60601-1-1
Capability of Battery:	900mAh

Battery:	3.7V/1500mAh
Contra Angle:	20:1
Speed:	10~50 rpm
Torque:	10~50 N.cm
Packaging Size:	1909760mm
Mainframe Weight:	158g

Host Machine	*1pc
20:1 Contra Angle	*1pc
Screwdriver	*16pc
Base	*1pc
USB Cable	*1pc
Wrench	*1pc
User Manual	*1pc
