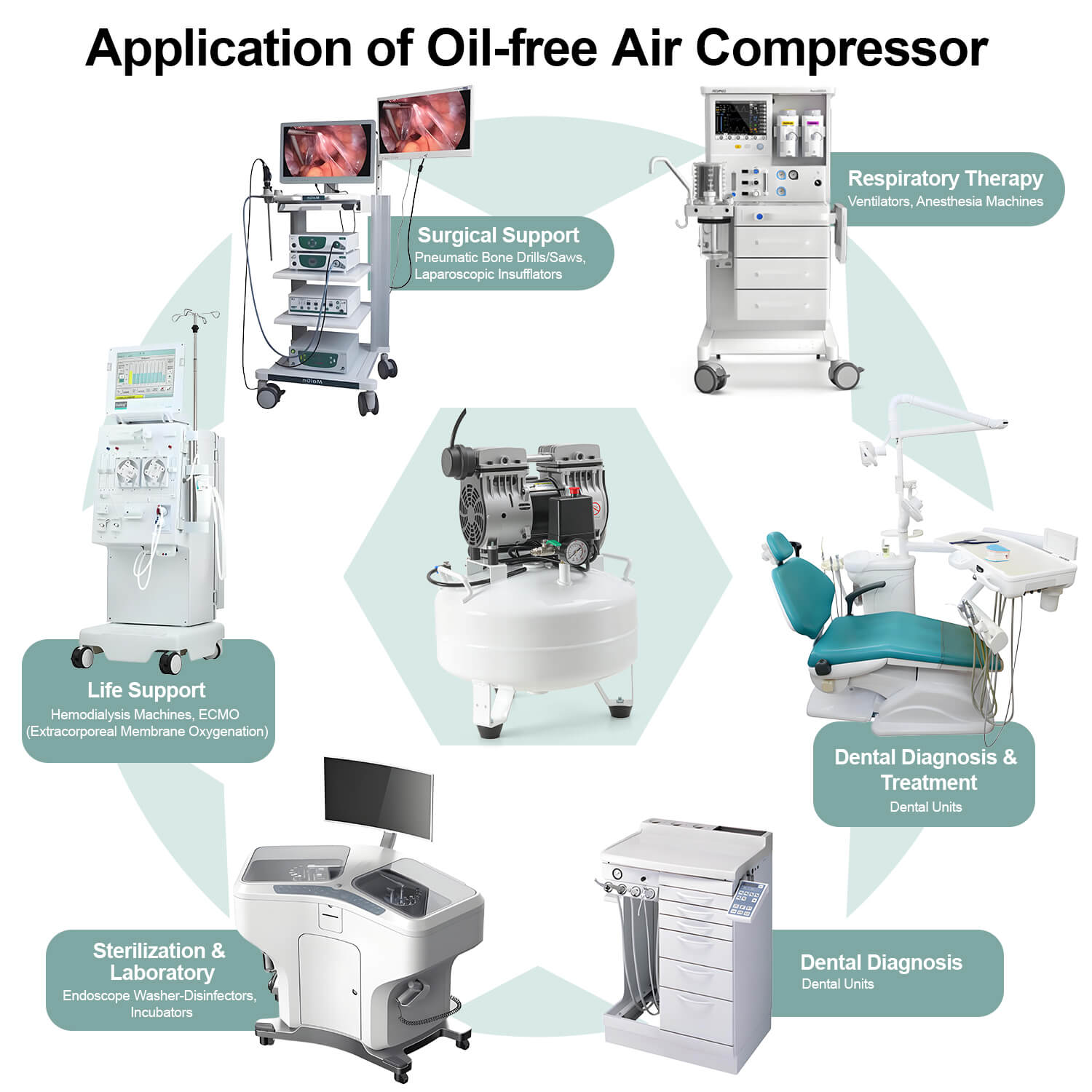

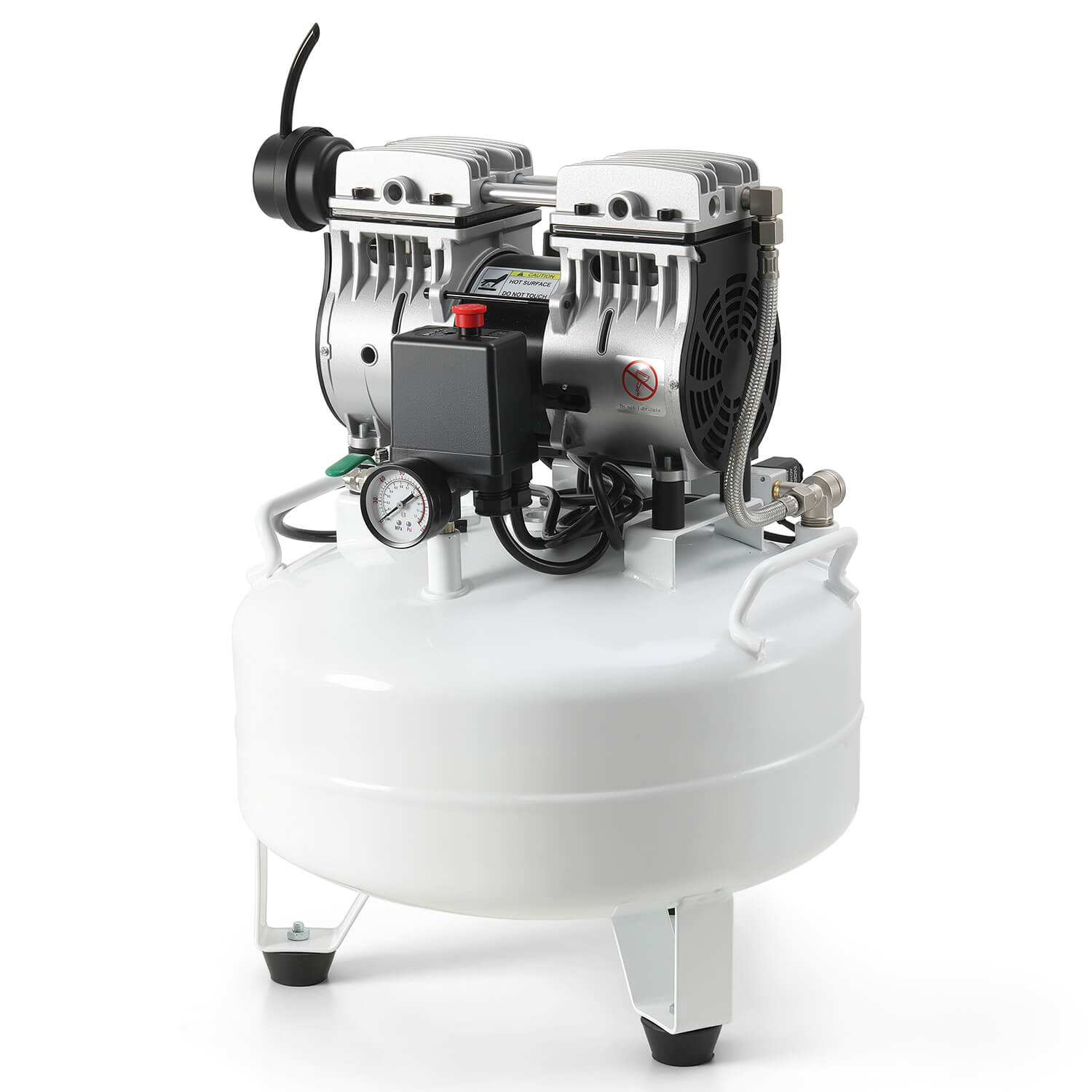

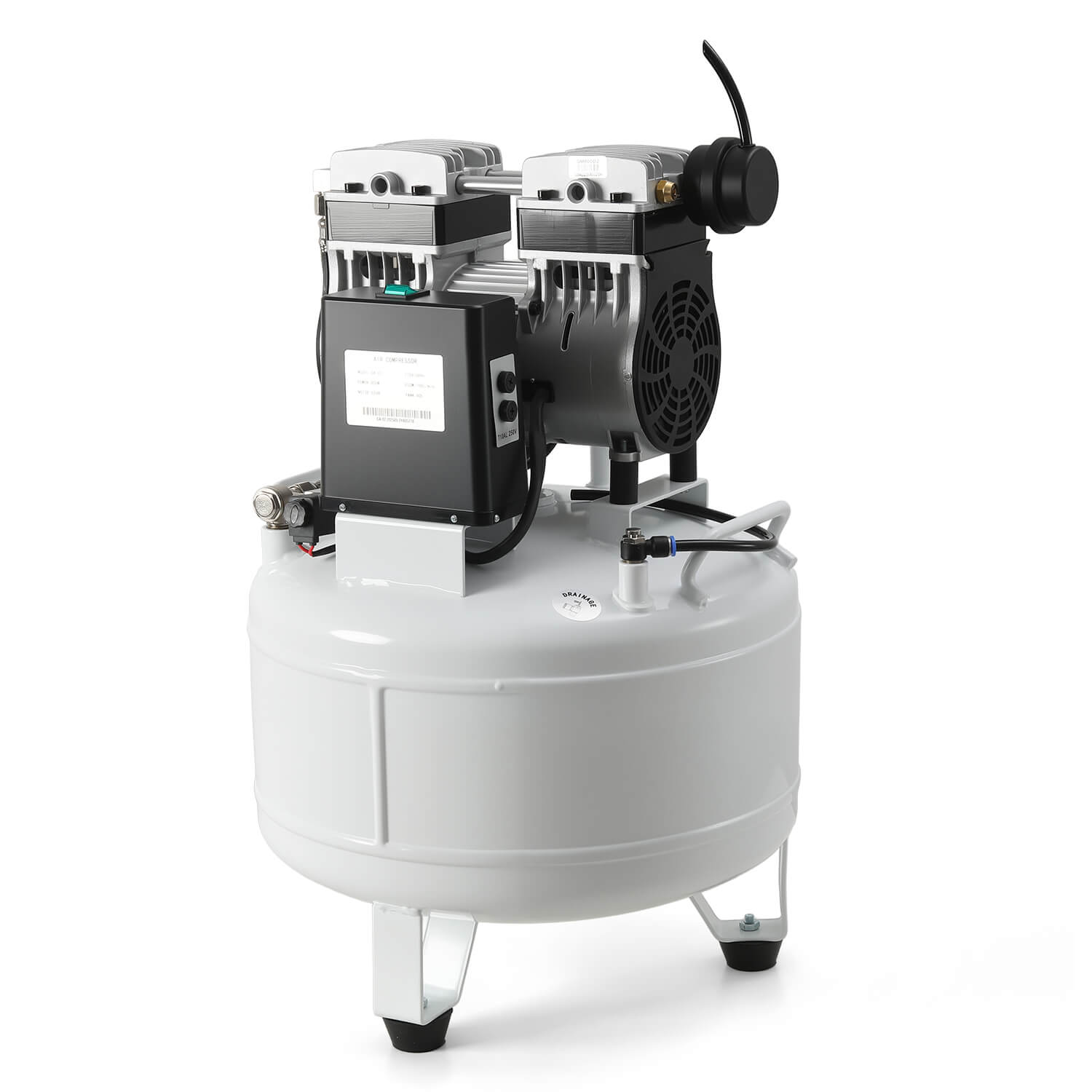

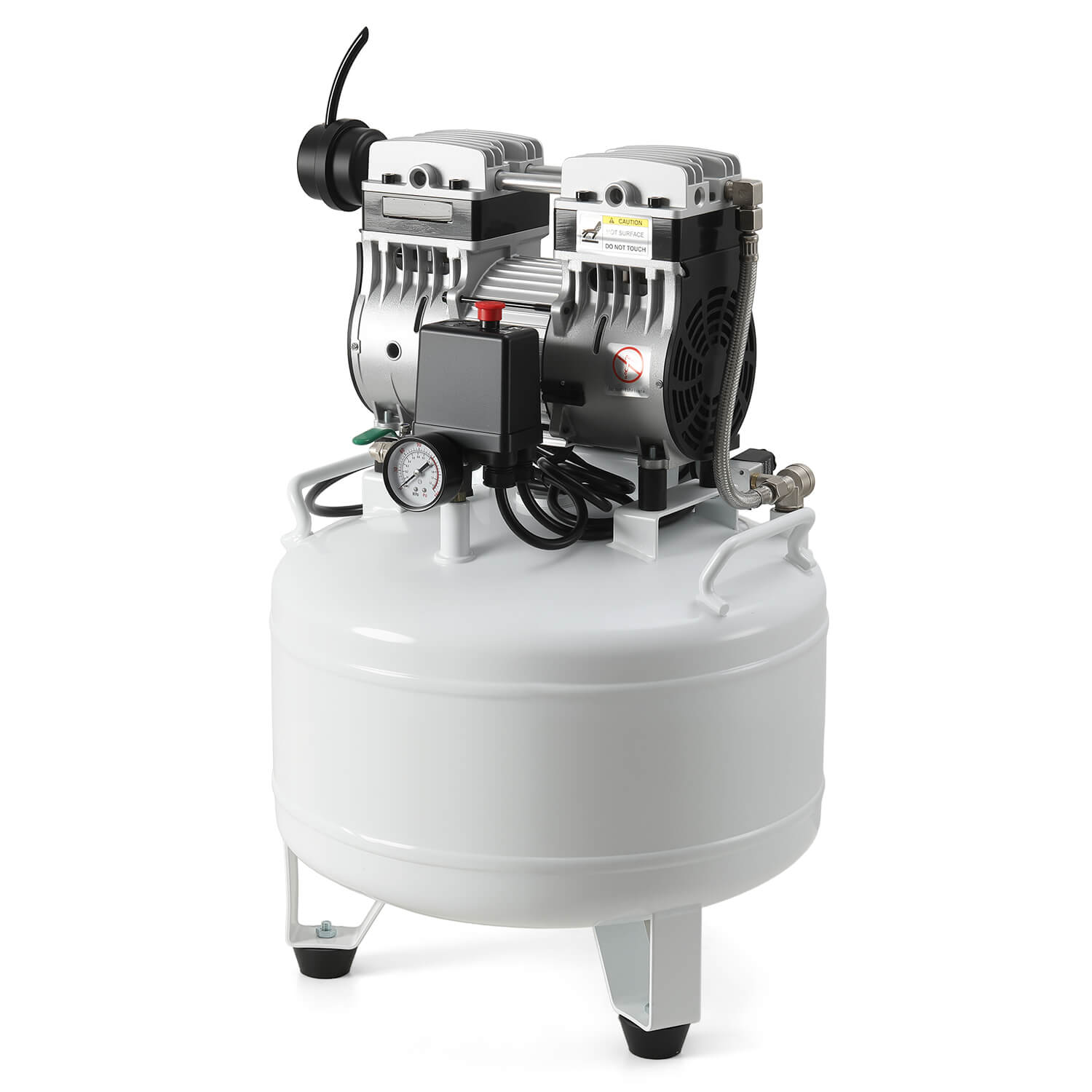

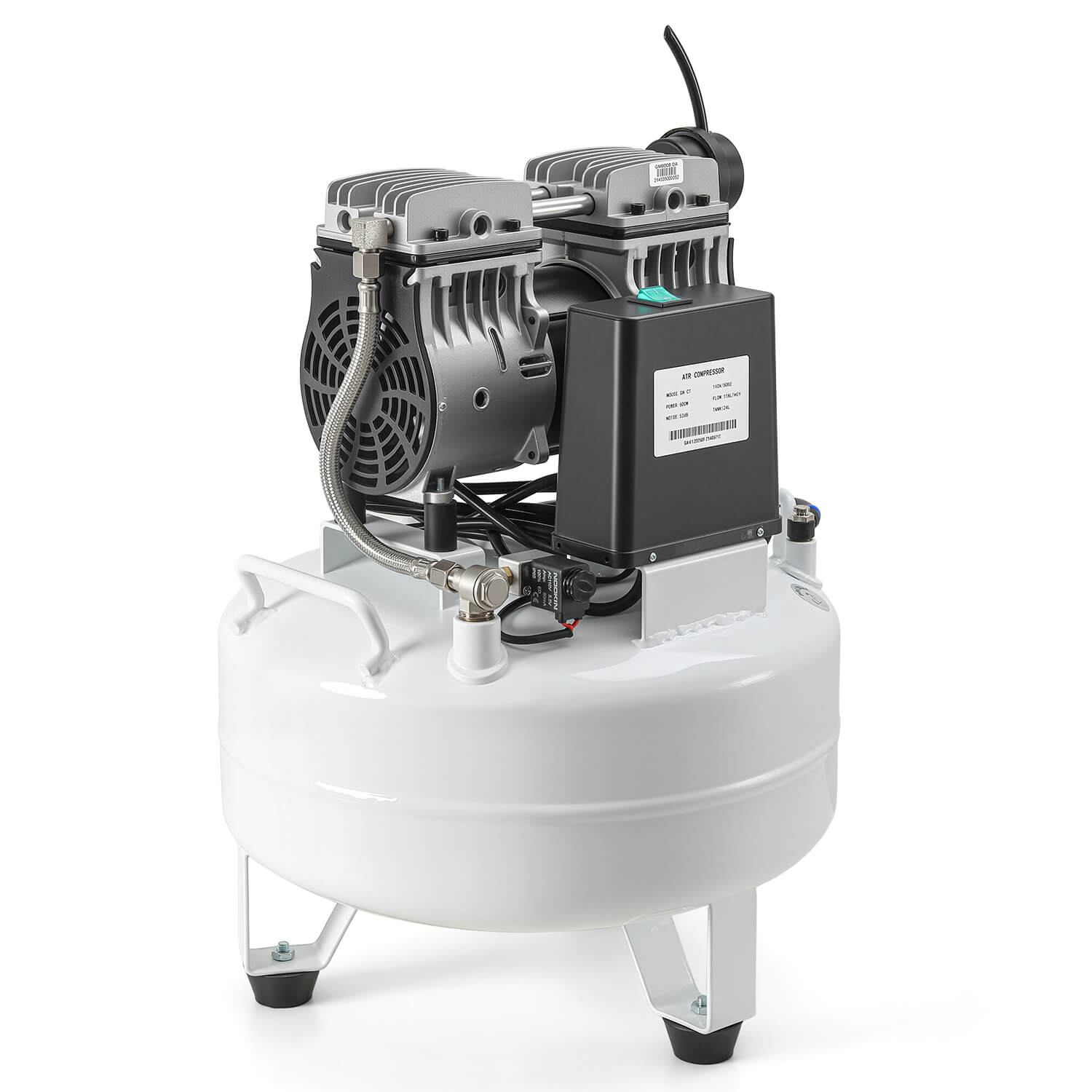

Dental Noiseless Oil-Free Air Compressor 24L/40L Single Pressure Gauge for 1-2 Dental Chair. FDA Approved. Clean Air Assurance. Low Noise Design. Long Service Life. Designed for dental applications, delivering clean, quiet, and reliable performance. Its advanced features include anti-rust and anti-microbial interior tank coating, ultra-low noise operation, and durable continuous-run capability.
- This oil-free air compressor is designed for dental applications, delivering clean, quiet, and reliable performance. Its advanced features include anti-rust and anti-microbial interior tank coating, ultra-low noise operation, and durable continuous-run capability.
|

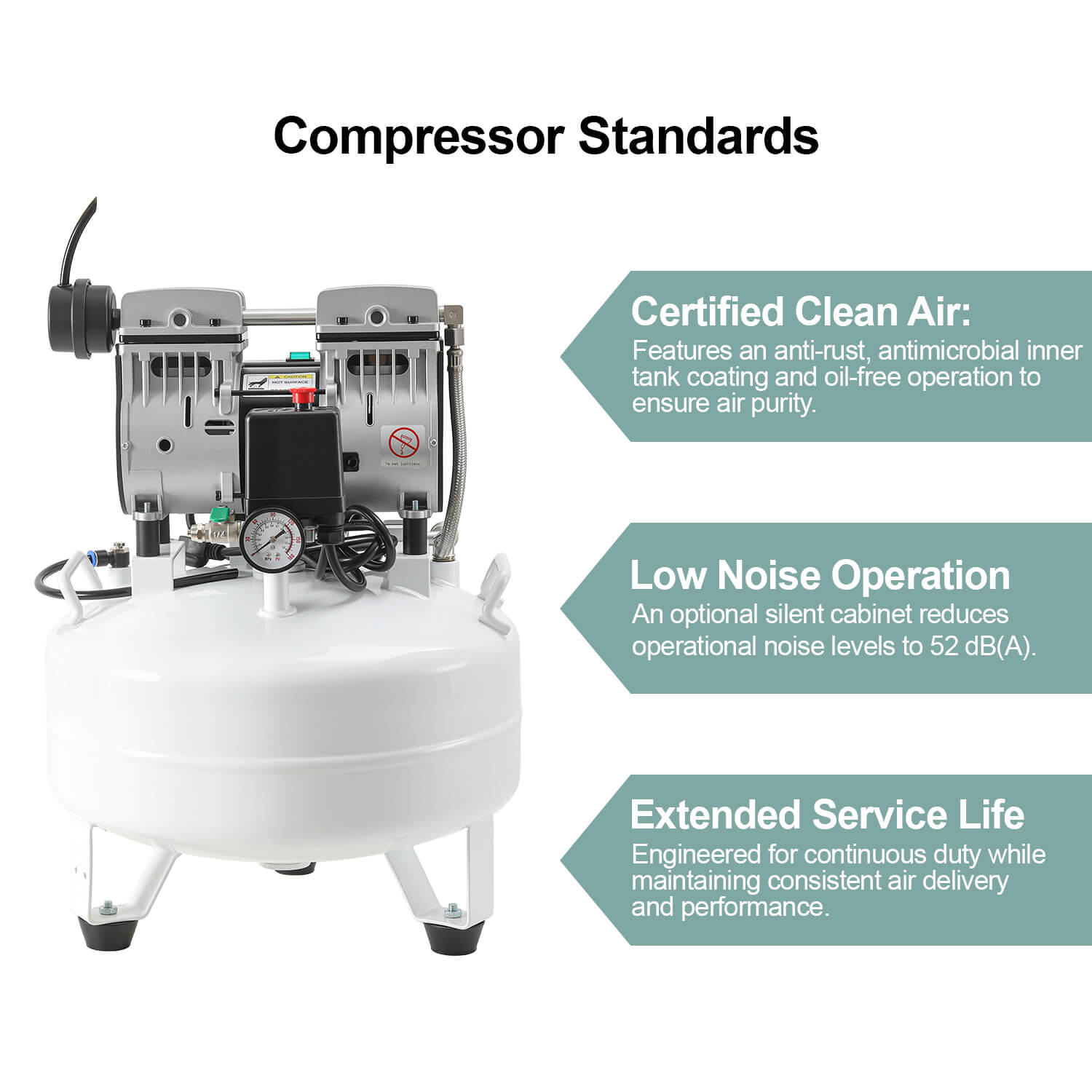

- Clean Air Assurance:
Oil-free operation with anti-rust and anti-microbial interior tank coating.
- Low Noise Design:
Optional silent cabinet reduces noise to just 50dB+(A).
- Long Service Life:
Engineered for continuous operation with stable airflow output.
|

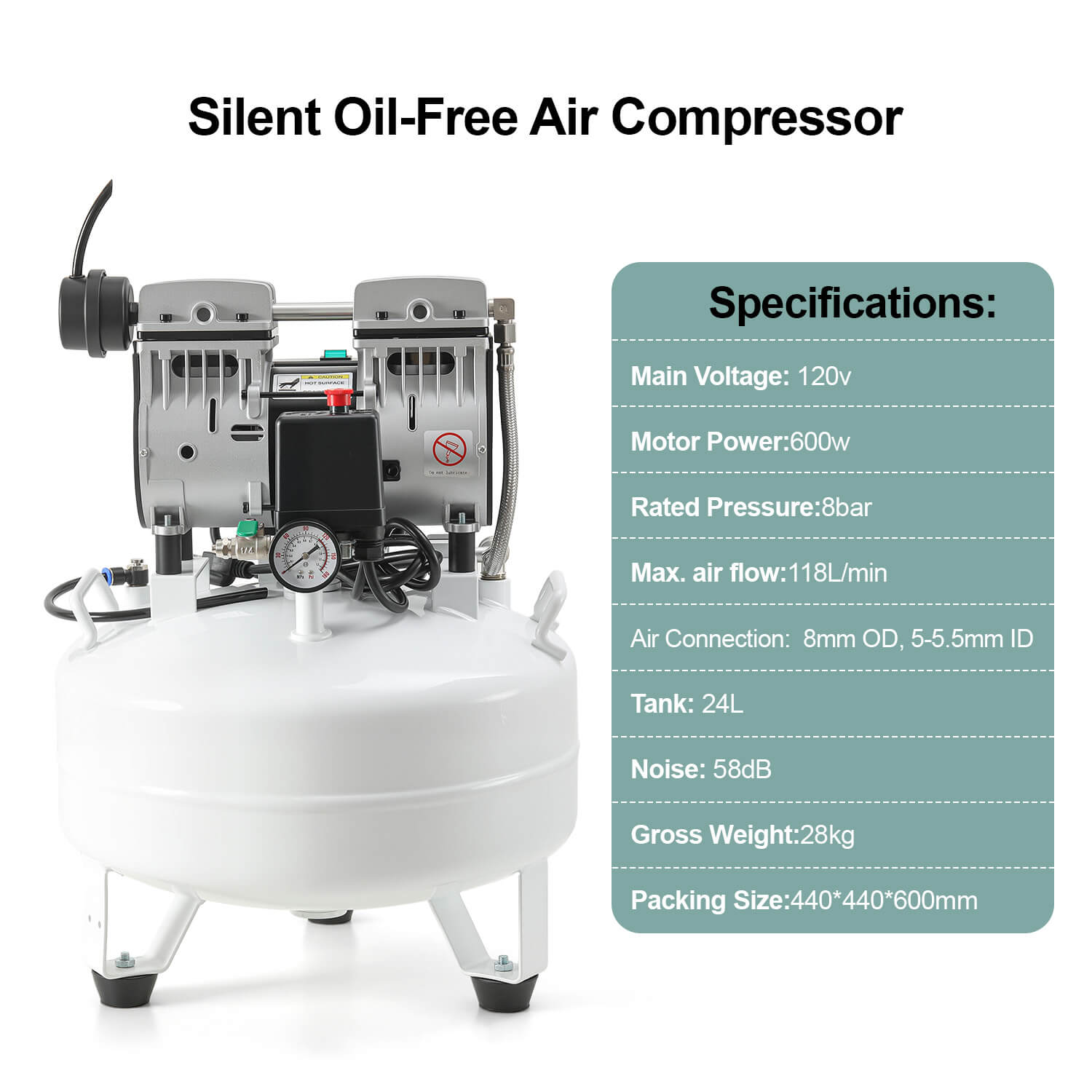

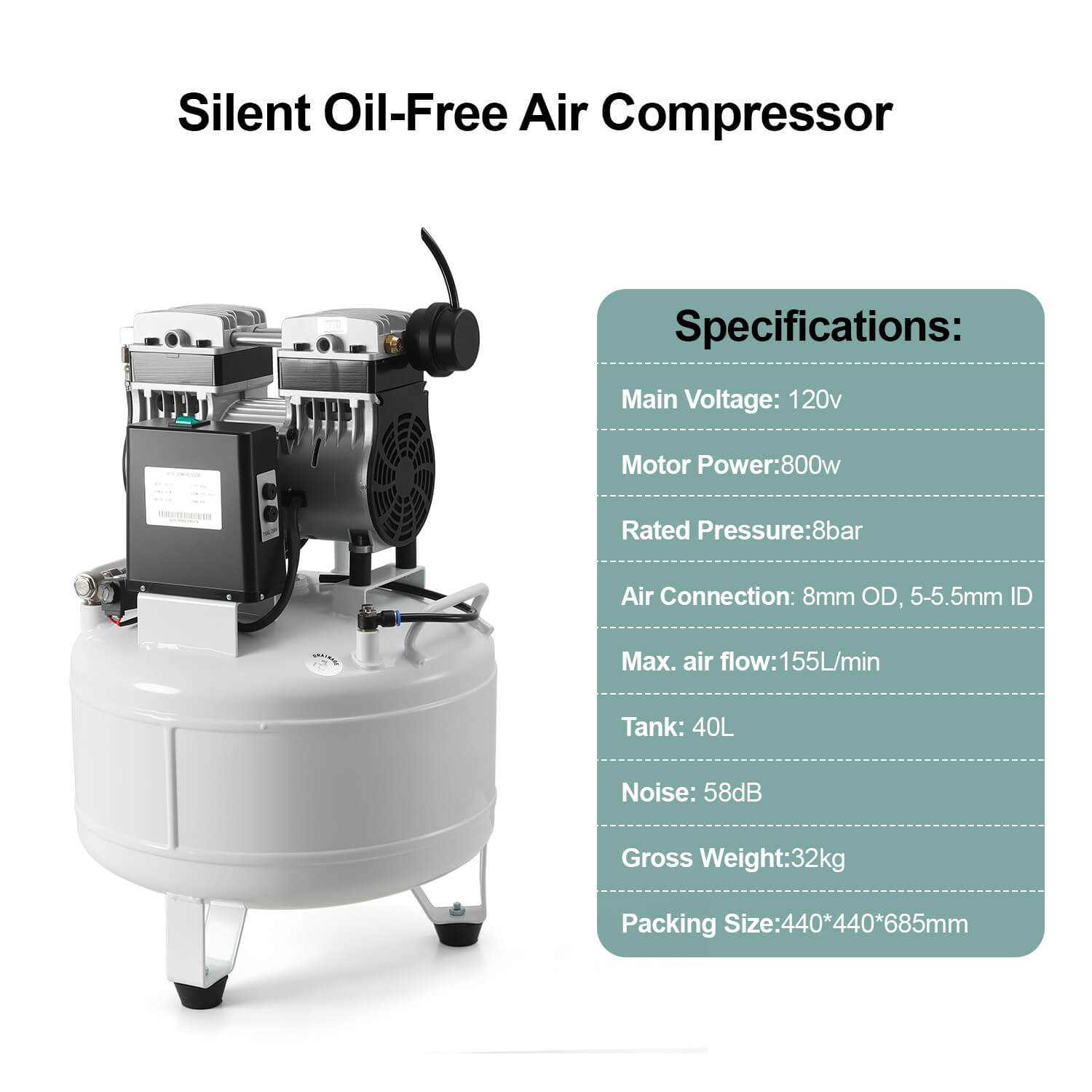

| Model: |
GA01 24L, 600W |
GA02 40L, 800W |
| Voltage: |
120V |
120V |
| Motor Power: |
600W |
800W |
| Rated Pressure: |
8 bar |
8 bar |
| Max. Air Flow: |
118 L/min |
155 L/min |
| Tank Capacity: |
24 L |
40 L |
| Noise Level: |
58 dB |
58 dB |
| Gross Weight: |
28 kg |
32 kg |

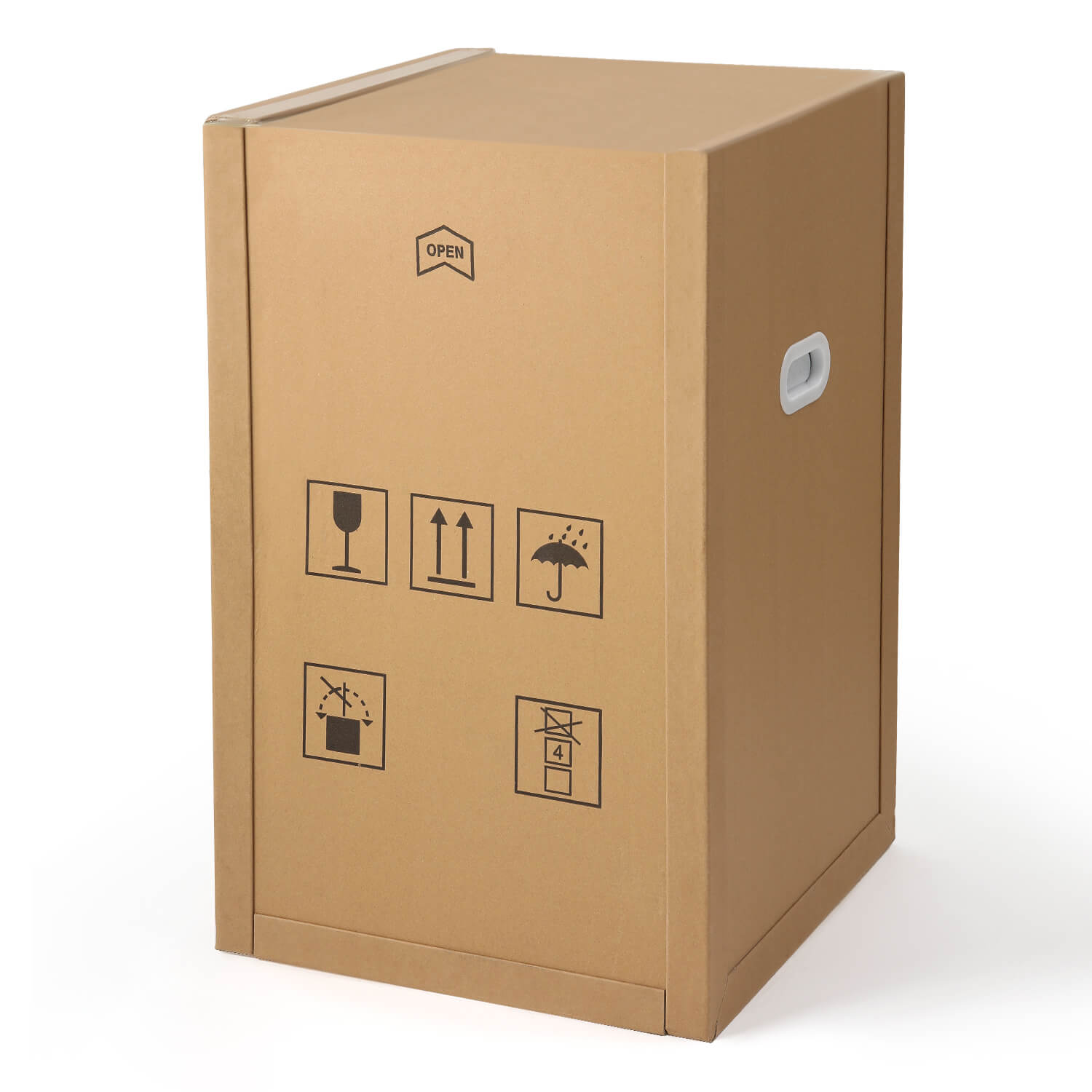

| Packing Size: |
440×440×600 mm |
440×440×685 mm |
| For Dental Chair: |
1 Dental Chair
|
2 Dental Chair
|

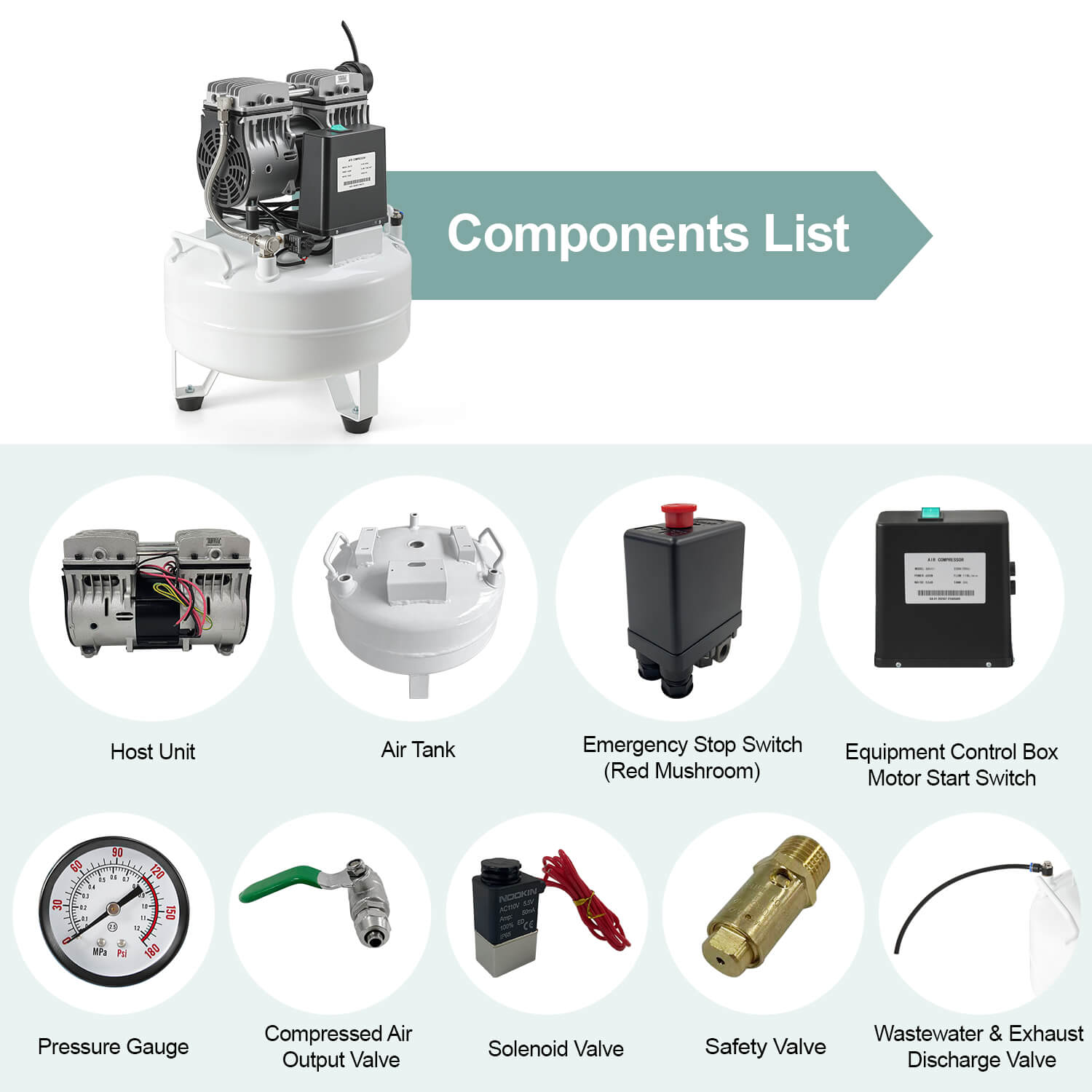

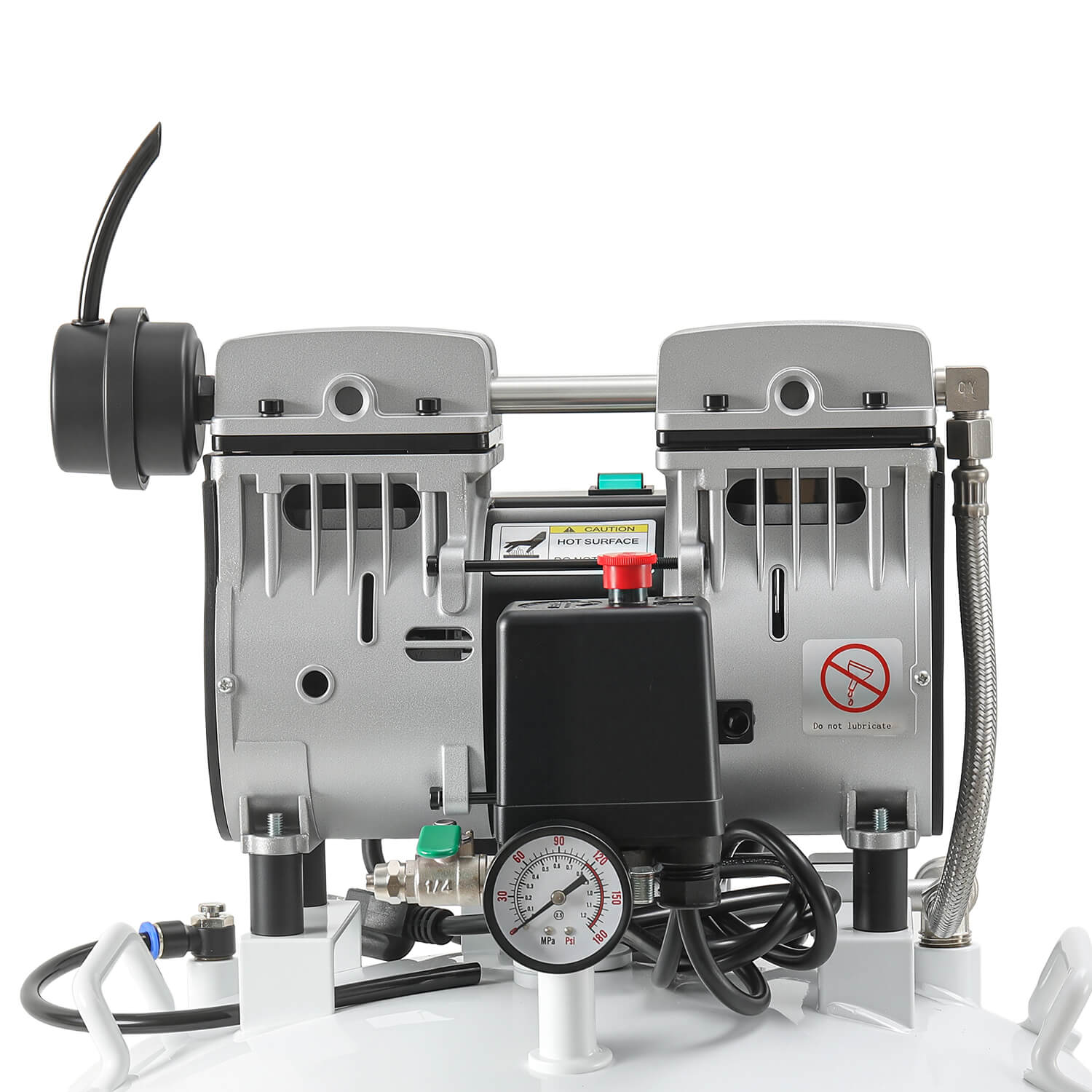

- Host Unit
- Air Tank
- Emergency Stop Switch (Red Mushroom)
- Motor Start Switch Equipment Control Box
- Solenoid Valve
- Pressure Gauge
- Safety Valve
- Compressed Air Output Valve
- Wastewater & Exhaust Discharge Valve
|
| Operation & Maintenance Guidelines |

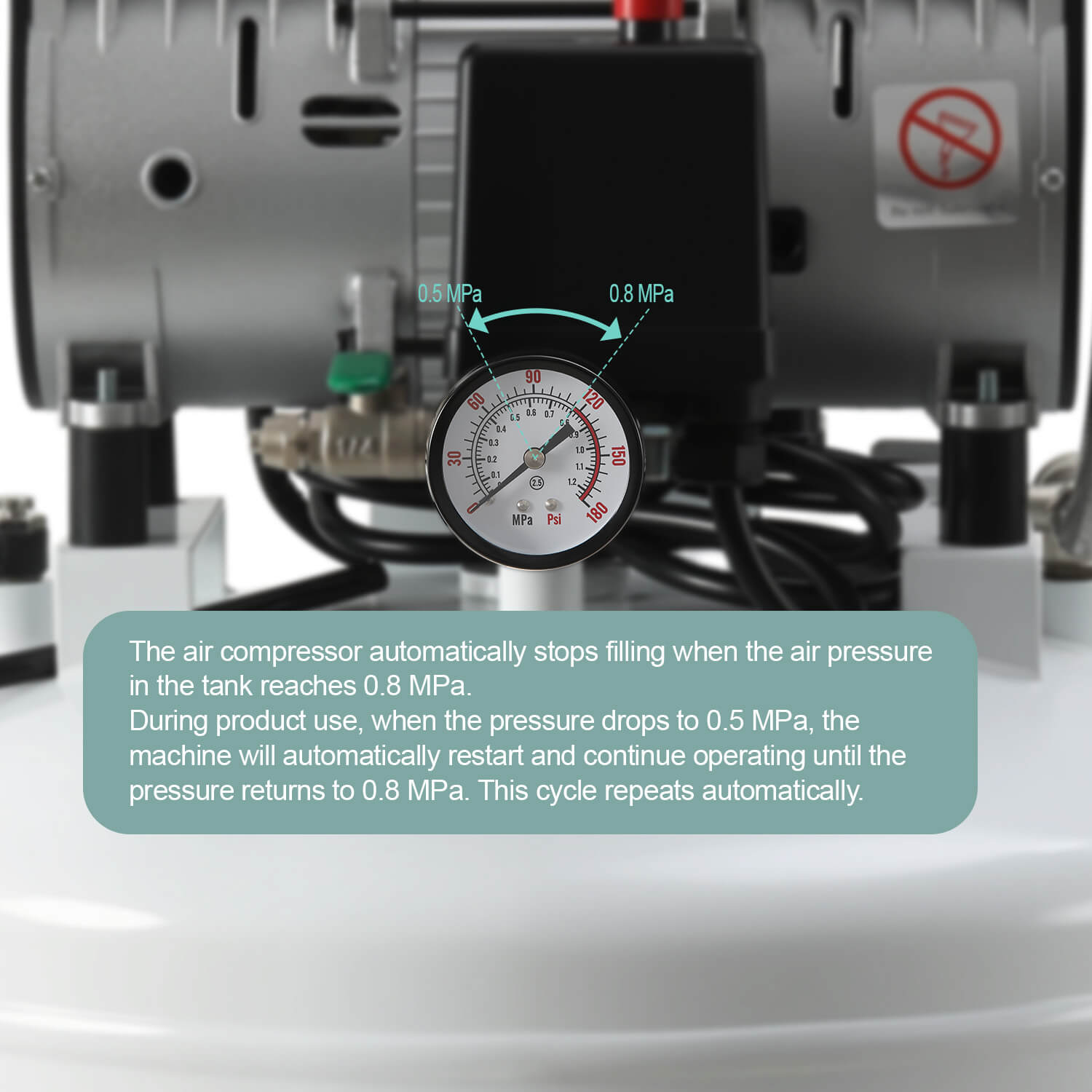

- The air compressor automatically stops filling when the air pressure in the tank reaches 0.8 MPa, During product use, when the pressure drops to 0.5MPa, the machine will automatically restart and continue operating until the pressure returns to 0.8 MPa. This cycle repeats automatically.

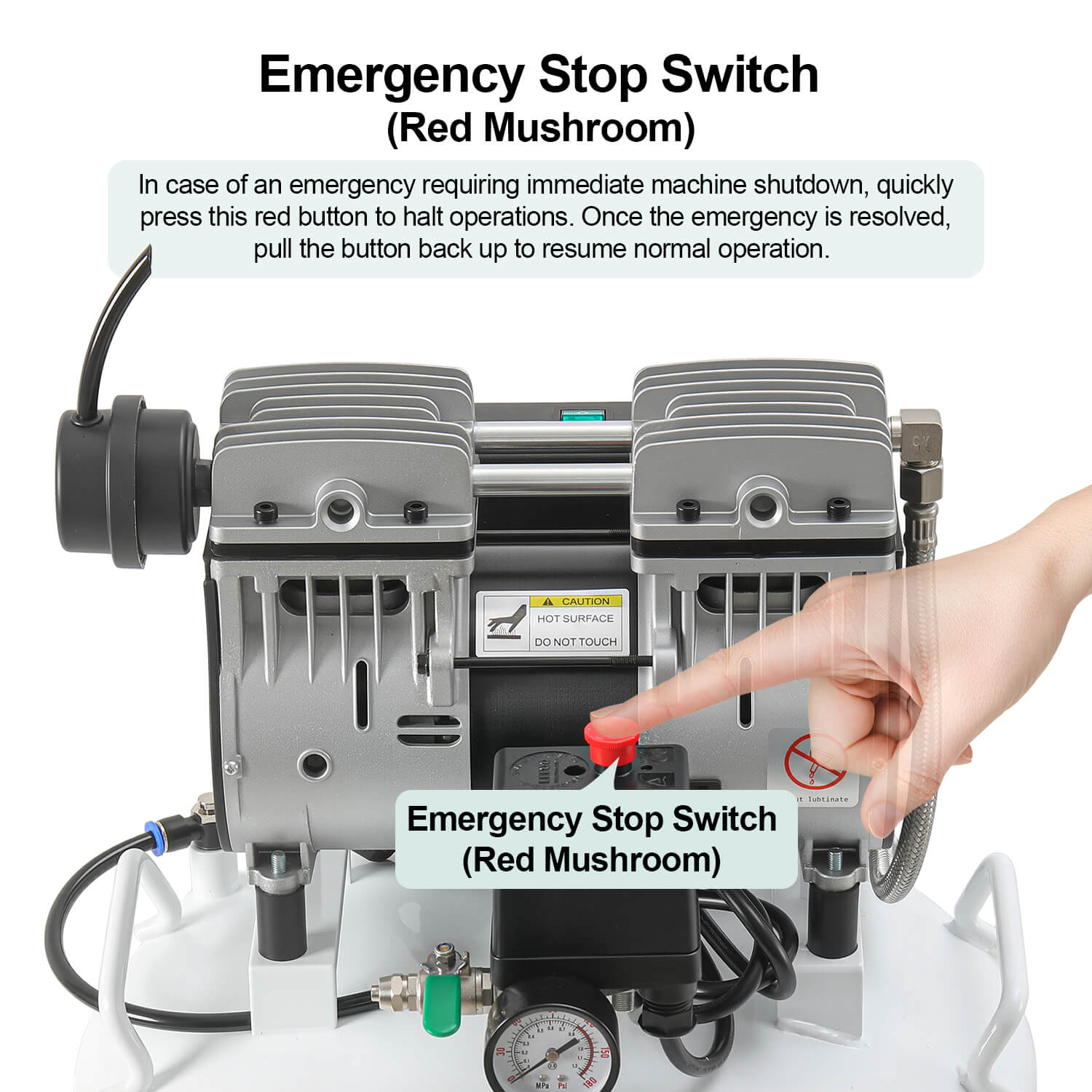

- Emergency Stop Button
Press the red button to immediately stop the machine in emergencies.
Pull the button upward to reset after resolving the issue.

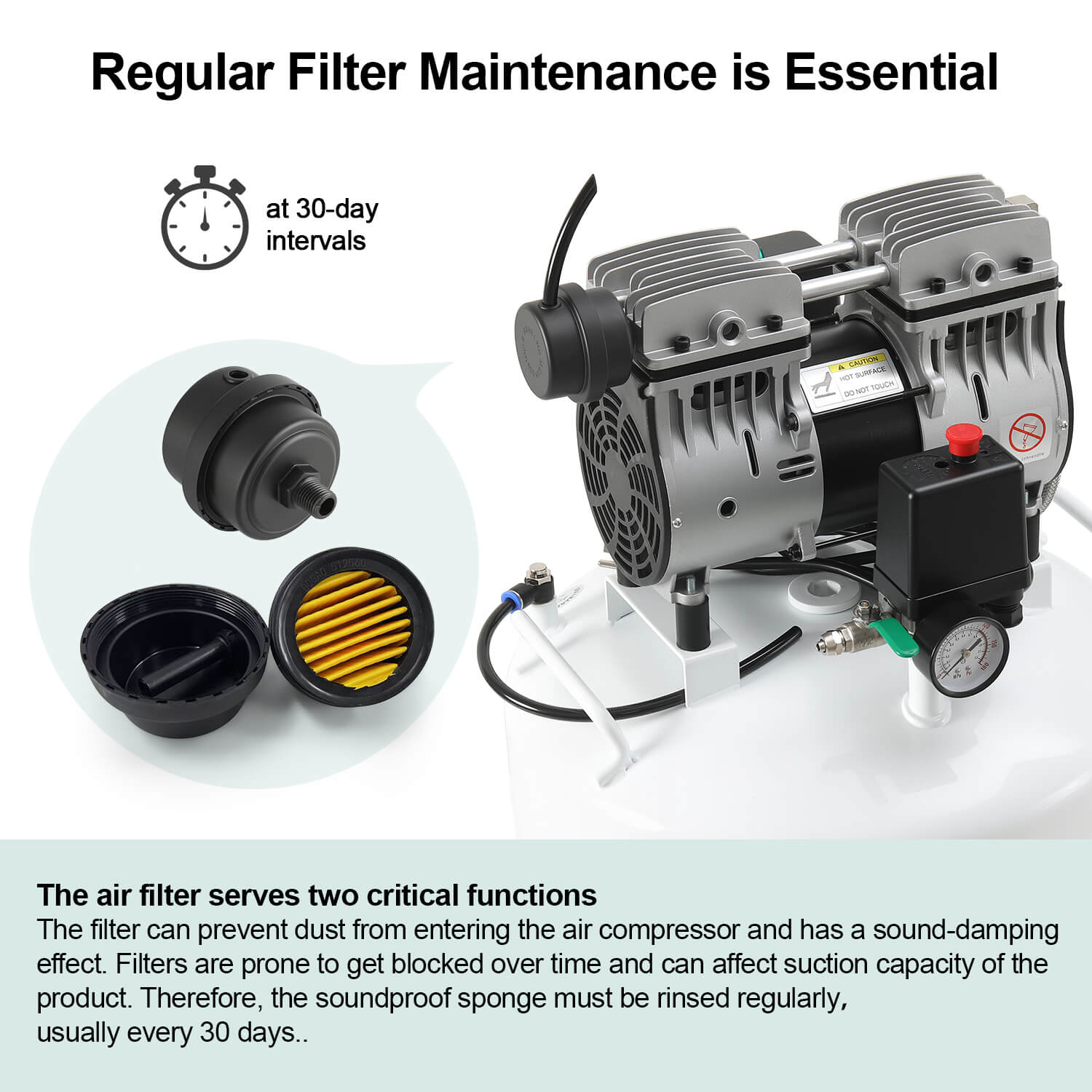

- Air Filter Maintenance
Clean the filter regularly to prevent dust entry and maintain suction efficiency.
Rinse the sound-damping sponge every 30-60 days.

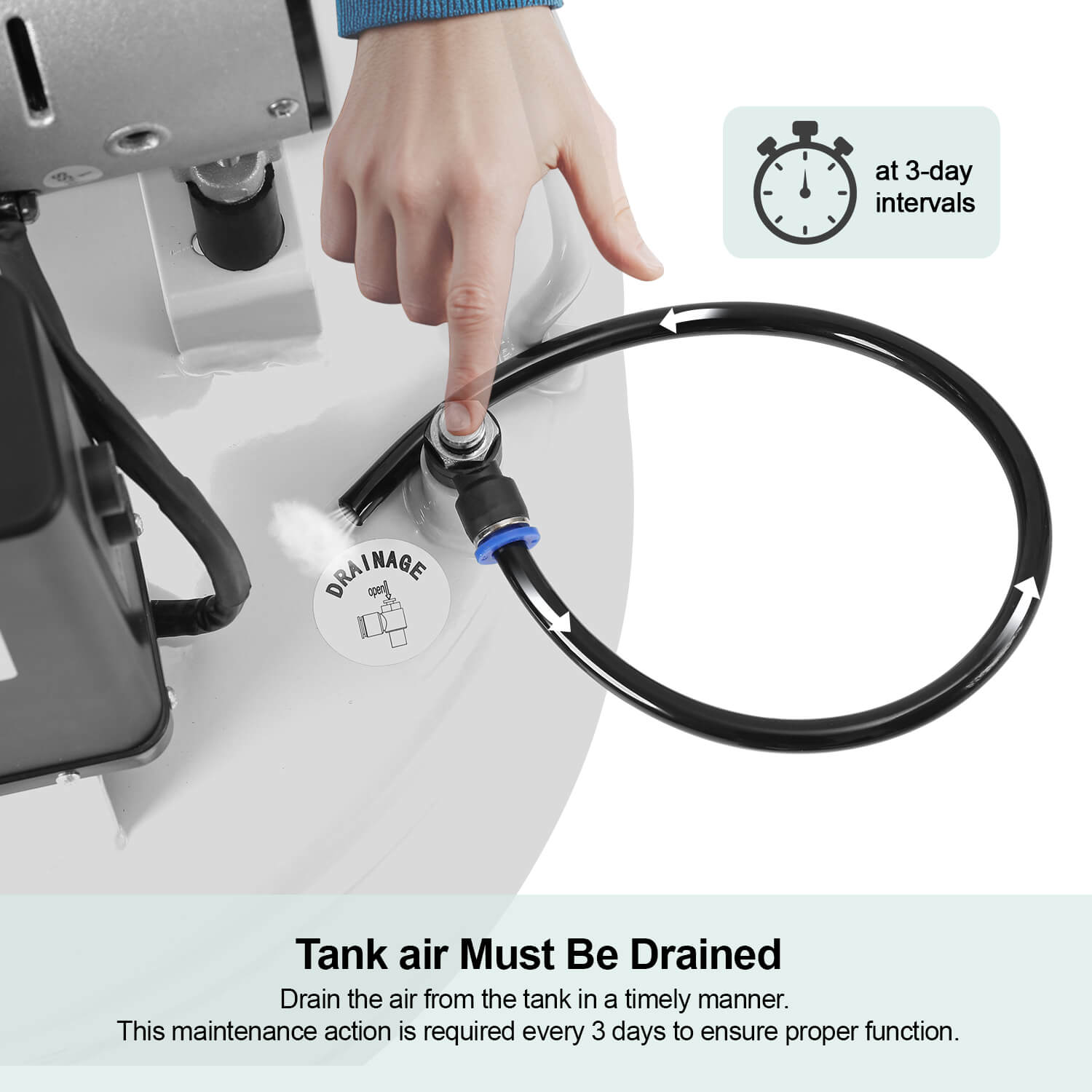

- Tank Drainage
Drain accumulated water every 3-5 days to maintain tank integrity.

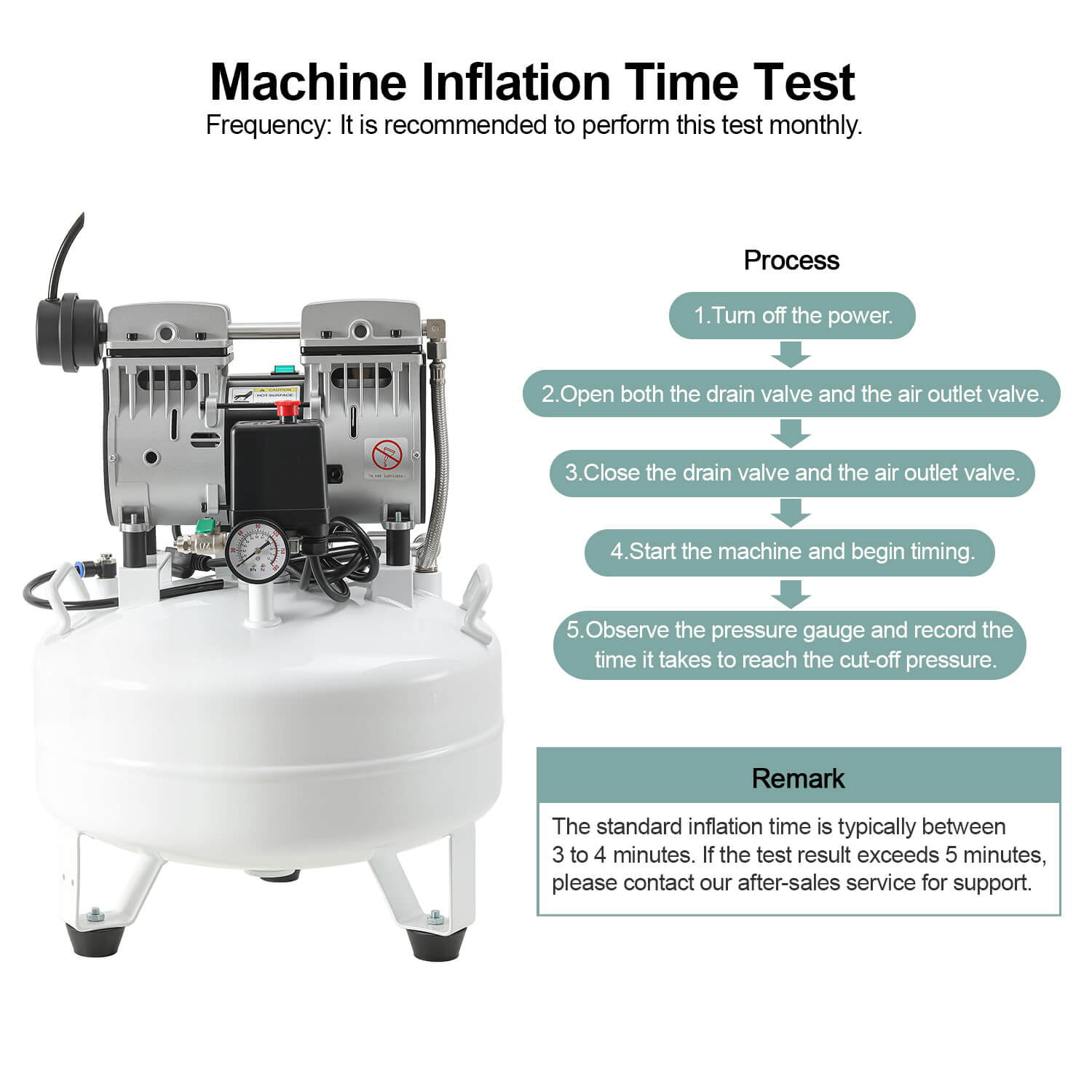

- Inflation Time Test
Recommended frequency: Monthly
Procedure:
1.Turn off power.
2.Open drain and air outlet valves.
3.Close both valves.
4.Restart the machine and record the time to reach shutoff pressure.
- Note:
Normal inflation time: 3–4 minutes.
If exceeding 5 minutes, contact after-sales service.
|
