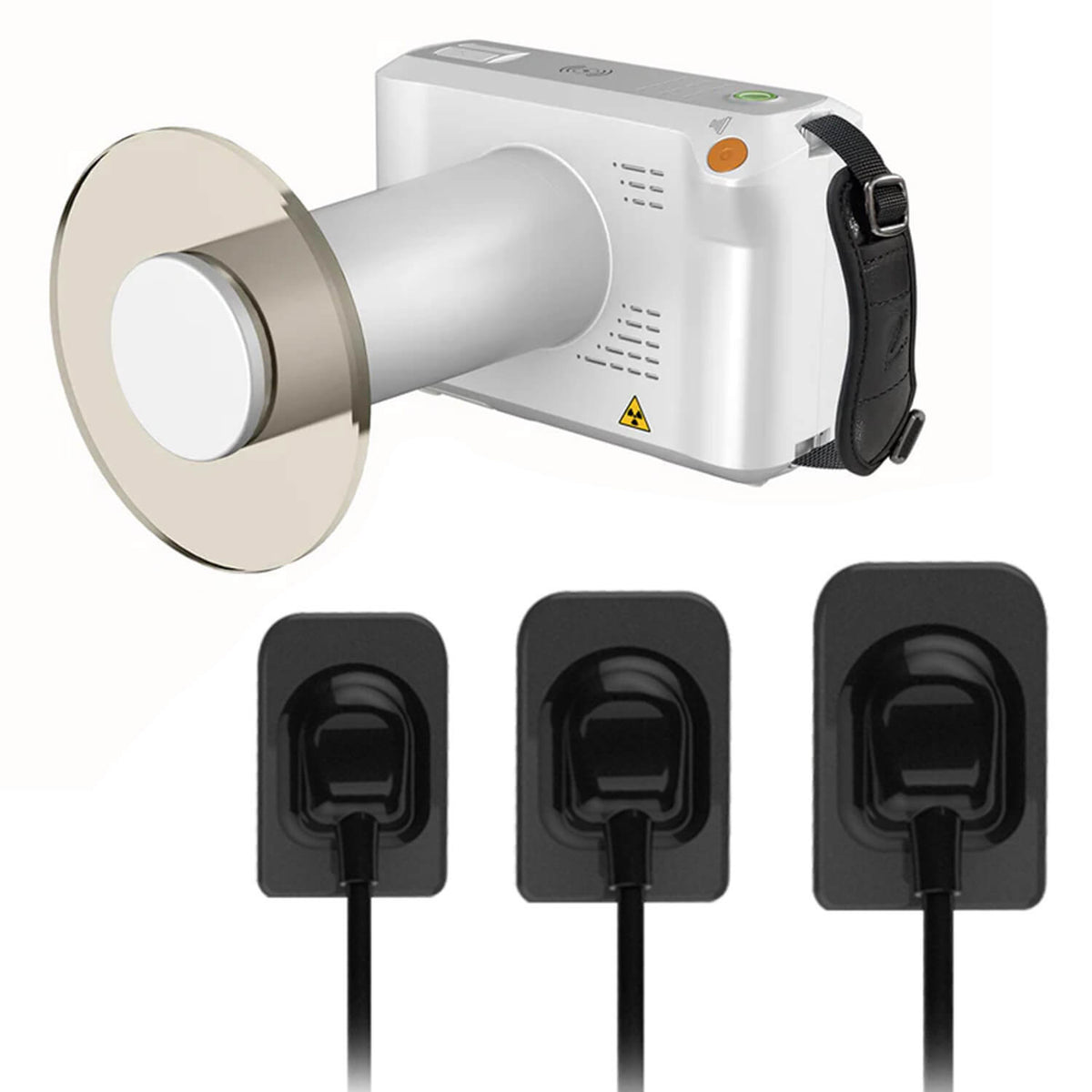

iRay Dental Portable Handheld X Ray Machine with Digital RVG X-Ray Sensor Kit
iRay Dental Portable Handheld X Ray Machine Touch Screen FDA. Automatic pitch angle display, ensure optimal positioning for accurate X-ray results. Wireless image transmission. Support multi-language. Simple operation. Crisp imaging. Effortless connectivity. Compact and lightweight. Capture and view images instantly for efficient workflow. Organize patient data efficiently for better record-keeping. FDA Approved.
Note: This X Ray Machine does come with its own software system and only supports its own software

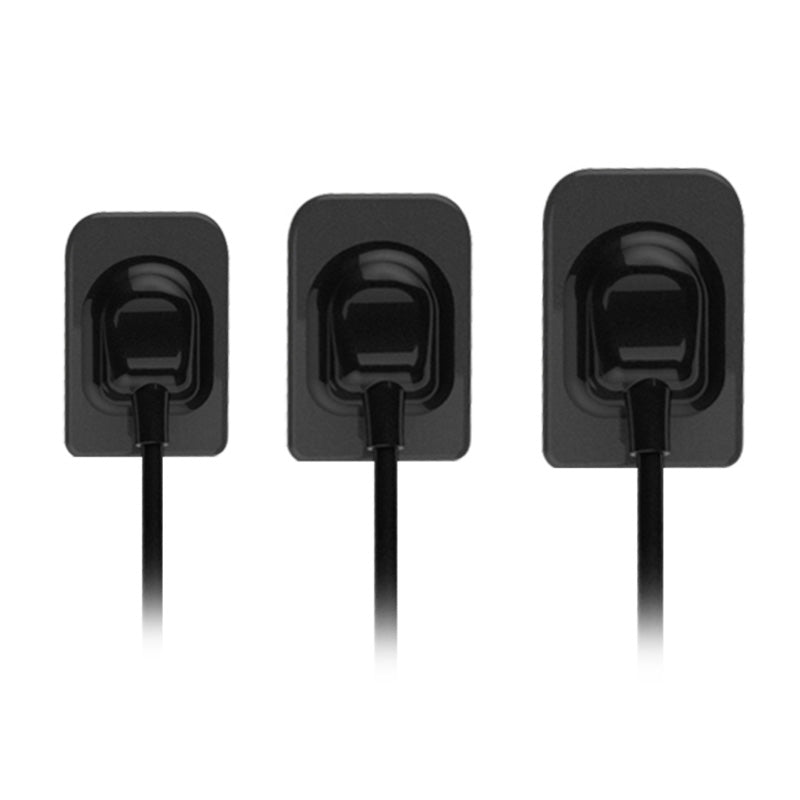

iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0002X. FDA approved. One year warranty. Pluto 0002X is digital size-2 intra-oral sensor. 20 μm pixel pitch CMOS sensor with CsI scintillator. Ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. Works with TWAIN supported software. TWAIN works well with Dexis.
Important Notes:
1. The sensor comes with its own DR software, which is lifetime free use.
2. Works with TWAIN supported software, Eaglesoft, Dexis and TigerView.
3. The computer operating system adapted by our products is win7, win10, win11.
4. Check before the purchase, make sure your software and PC meet the required specifications for smooth operation.
| Overview for X Ray Machine |
|
| Overview for X-Ray Sensor |
|
| Features for X Ray Machine |
|
| Technical Parameter for X Ray Machine |
| Operating System: | Android |
| Screen: | 7-inch Touch Screen |
| W: | 140 |
| kV: | 70 |
| mA: | 2 |
| Exposure Time (s): | 0.04-2 |
| Anode Angle: | 12° |
| Spot: | 0.4mm |
| Data Transmission: | Wireless & USB |
| Total Filter: | ≥1.5mmAL |
| Weight (kg): | ≈2 |
| Internal Radiation Shielding: | ≤2.5uGy/h@1m |
| Operating Temperature (℃): | 10-40 |
| Storage & Transport Temperature with Package (℃): | -10-45 |
| Operating Humidity (% RH) (Non-Condensing): | 30-75 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing): | 30-75 |
| Technical Parameter for X-Ray Sensor |
| Model: | Pluto 0001X | Pluto 0015X | Pluto 0002X |
| Detector Technology: | CMOS | CMOS | CMOS |
| Scintillator: | Direectly Deposited CsI: TI | Direectly Deposited CsI: TI | Direectly Deposited CsI: TI |
| Pixel Pitch (μm): | 20 | 20 | 20 |
| Active Area (mm²): | 20 x 30 | 24 x 33 | 26 x 36 |
| AD Conversion (bit): | 14 | 14 | 14 |
| Exposure Mode: | Smart AED | Smart AED | Smart AED |
| X-ray Exposure Window (s): | Max. 5s | Max. 5s | Max. 5s |
| X-ray Energy Range (kV): | 55～100kV | 55～100kV | 55～100kV |
| Data Interface: | USB 2.0 | USB 2.0 | USB 2.0 |
| Power Dissipation (W): | ≤0.8W | ≤0.8W | ≤0.8W |
| Dimensions (mm3): | 25.03 × 38.53 × 4.5 | 29.2 × 43.5 × 4.5 | 31.62 × 45.0 × 4.5 |
| Length of Cable(m): | 3m(Standard), 5m(Option) | 3m(Standard), 5m(Option) | 3m(Standard), 5m(Option) |
| Housing Material: | Kevlar | Kevlar | Kevlar |
| X-Ray Shielding: | Pb-shield Behind Active Area | Pb-shield Behind Active Area | Pb-shield Behind Active Area |
| Radiation Dose: | ≥ 50Gy | ≥ 50Gy | ≥ 50Gy |
| Ingress Protection: | IP68 | IP68 | IP68 |
| Operating Temperature (℃): | 10 ~ 40 | 10 ~ 40 | 10 ~ 40 |
| Storage & Transport Temperature with Package (℃): | -10~60 | -10~60 | -10~60 |
| Operating Humidity (% RH): | 20 ~ 90 (Non-Condensing) | 20 ~ 90 (Non-Condensing) | 20 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH): | 10 ~ 95 (Non-Condensing) | 10 ~ 95 (Non-Condensing) | 10 ~ 95 (Non-Condensing) |
iRay Dental Portable Handheld X Ray Machine with Digital RVG X-Ray Sensor Kit
iRay Dental Portable Handheld X Ray Machine Touch Screen FDA. Automatic pitch angle display, ensure optimal positioning for accurate X-ray results. Wireless image transmission. Support multi-language. Simple operation. Crisp imaging. Effortless connectivity. Compact and lightweight. Capture and view images instantly for efficient workflow. Organize patient data efficiently for better record-keeping. FDA Approved.
Note: This X Ray Machine does come with its own software system and only supports its own software
iRay Dental X-Ray Digital Intra-oral Sensor CMOS Detector Technology High Resolution Pluto 0002X. FDA approved. One year warranty. Pluto 0002X is digital size-2 intra-oral sensor. 20 μm pixel pitch CMOS sensor with CsI scintillator. Ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. Works with TWAIN supported software. TWAIN works well with Dexis.
Important Notes:
1. The sensor comes with its own DR software, which is lifetime free use.
2. Works with TWAIN supported software, Eaglesoft, Dexis and TigerView.
3. The computer operating system adapted by our products is win7, win10, win11.
4. Check before the purchase, make sure your software and PC meet the required specifications for smooth operation.
| Overview for X Ray Machine |
|
| Overview for X-Ray Sensor |
|
| Features for X Ray Machine |
|
| Technical Parameter for X Ray Machine |
| Operating System: | Android |
| Screen: | 7-inch Touch Screen |
| W: | 140 |
| kV: | 70 |
| mA: | 2 |
| Exposure Time (s): | 0.04-2 |
| Anode Angle: | 12° |
| Spot: | 0.4mm |
| Data Transmission: | Wireless & USB |
| Total Filter: | ≥1.5mmAL |
| Weight (kg): | ≈2 |
| Internal Radiation Shielding: | ≤2.5uGy/h@1m |
| Operating Temperature (℃): | 10-40 |
| Storage & Transport Temperature with Package (℃): | -10-45 |
| Operating Humidity (% RH) (Non-Condensing): | 30-75 |
| Storage & Transport Humidity with Package (% RH) (Non-Condensing): | 30-75 |
| Technical Parameter for X-Ray Sensor |
| Model: | Pluto 0001X | Pluto 0015X | Pluto 0002X |
| Detector Technology: | CMOS | CMOS | CMOS |
| Scintillator: | Direectly Deposited CsI: TI | Direectly Deposited CsI: TI | Direectly Deposited CsI: TI |
| Pixel Pitch (μm): | 20 | 20 | 20 |
| Active Area (mm²): | 20 x 30 | 24 x 33 | 26 x 36 |
| AD Conversion (bit): | 14 | 14 | 14 |
| Exposure Mode: | Smart AED | Smart AED | Smart AED |
| X-ray Exposure Window (s): | Max. 5s | Max. 5s | Max. 5s |
| X-ray Energy Range (kV): | 55～100kV | 55～100kV | 55～100kV |
| Data Interface: | USB 2.0 | USB 2.0 | USB 2.0 |
| Power Dissipation (W): | ≤0.8W | ≤0.8W | ≤0.8W |
| Dimensions (mm3): | 25.03 × 38.53 × 4.5 | 29.2 × 43.5 × 4.5 | 31.62 × 45.0 × 4.5 |
| Length of Cable(m): | 3m(Standard), 5m(Option) | 3m(Standard), 5m(Option) | 3m(Standard), 5m(Option) |
| Housing Material: | Kevlar | Kevlar | Kevlar |
| X-Ray Shielding: | Pb-shield Behind Active Area | Pb-shield Behind Active Area | Pb-shield Behind Active Area |
| Radiation Dose: | ≥ 50Gy | ≥ 50Gy | ≥ 50Gy |
| Ingress Protection: | IP68 | IP68 | IP68 |
| Operating Temperature (℃): | 10 ~ 40 | 10 ~ 40 | 10 ~ 40 |
| Storage & Transport Temperature with Package (℃): | -10~60 | -10~60 | -10~60 |
| Operating Humidity (% RH): | 20 ~ 90 (Non-Condensing) | 20 ~ 90 (Non-Condensing) | 20 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH): | 10 ~ 95 (Non-Condensing) | 10 ~ 95 (Non-Condensing) | 10 ~ 95 (Non-Condensing) |
iRay Dental Portable Handheld X Ray Machine with Digital RVG X-Ray Sensor Kit
$4,099.99
